Toyota COROLLA radiator grille — Figure 5301

Toyota COROLLA EPC diagram 5301, radiator grille, with 1 images and 2 PNC and OE references.

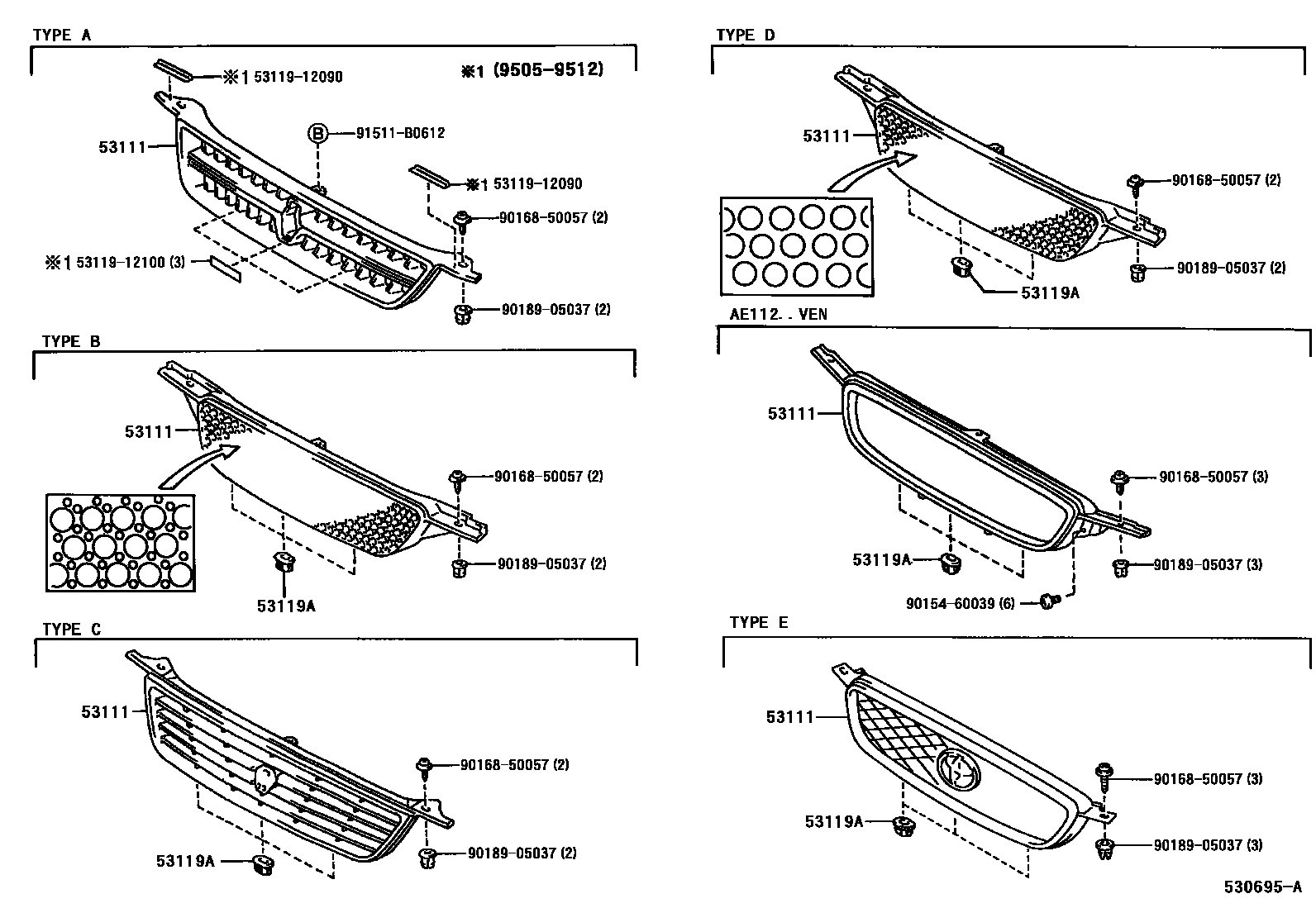

Toyota COROLLA radiator grille EPC diagram — 530695A
radiator grille — 530695A (199505 – 999999)

PNC and OE references

PNCPart nameOE numbers
53111radiator grille53101-1A140 · 53111-1A240 · 53111-1A250 · 53111-1A280 · 53111-1A300 · 53111-1A310 · 53111-1A311 · 53111-1A320 · 53111-1A330 · 53111-1A430
53119ARadiator grille to front fender bumper53119-12110
