Toyota COROLLA 前保险杠及附件 — Figure 5201

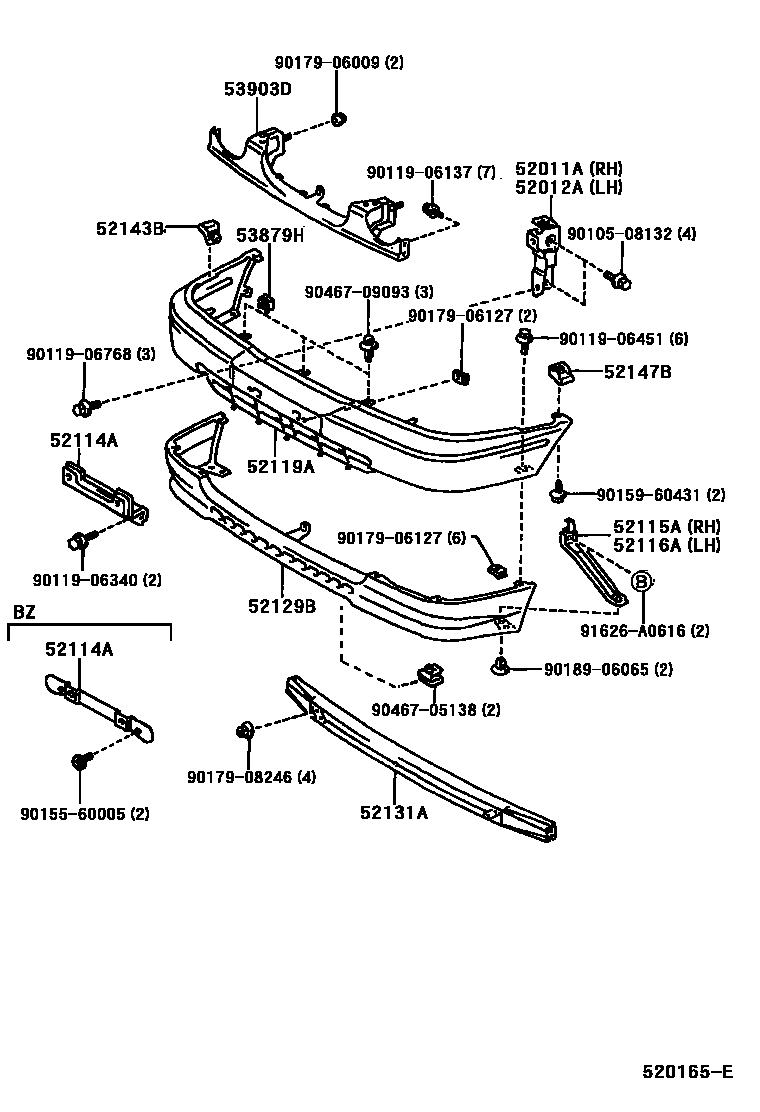

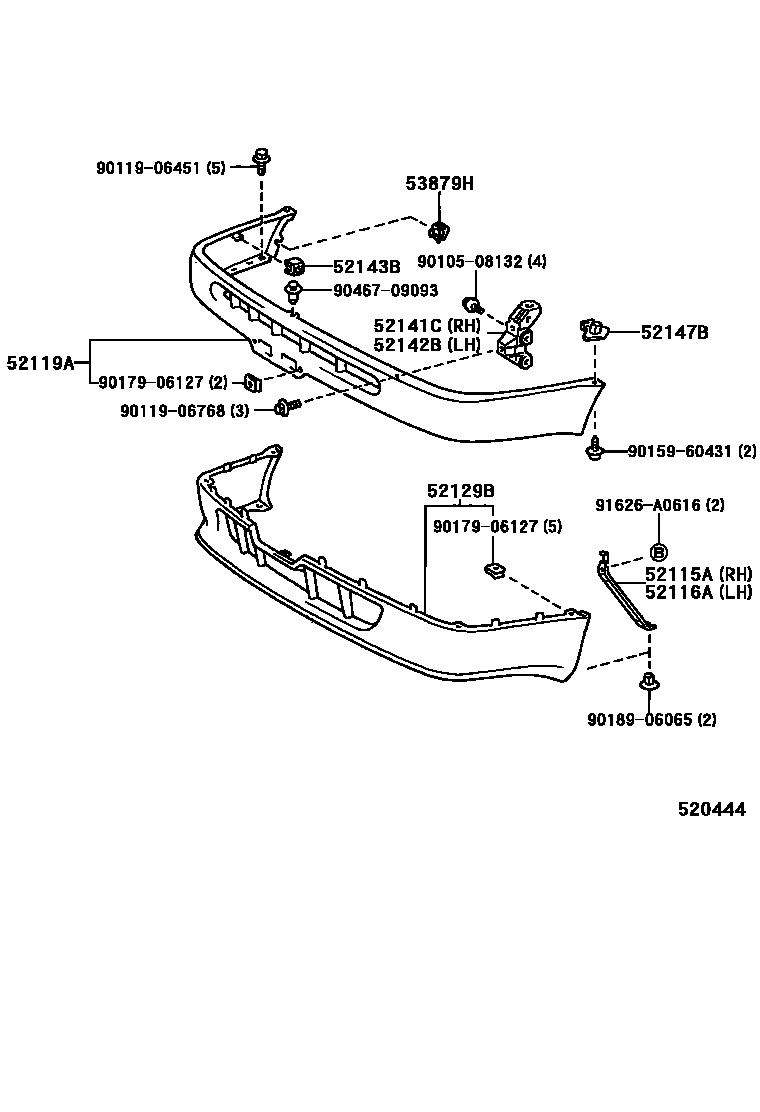

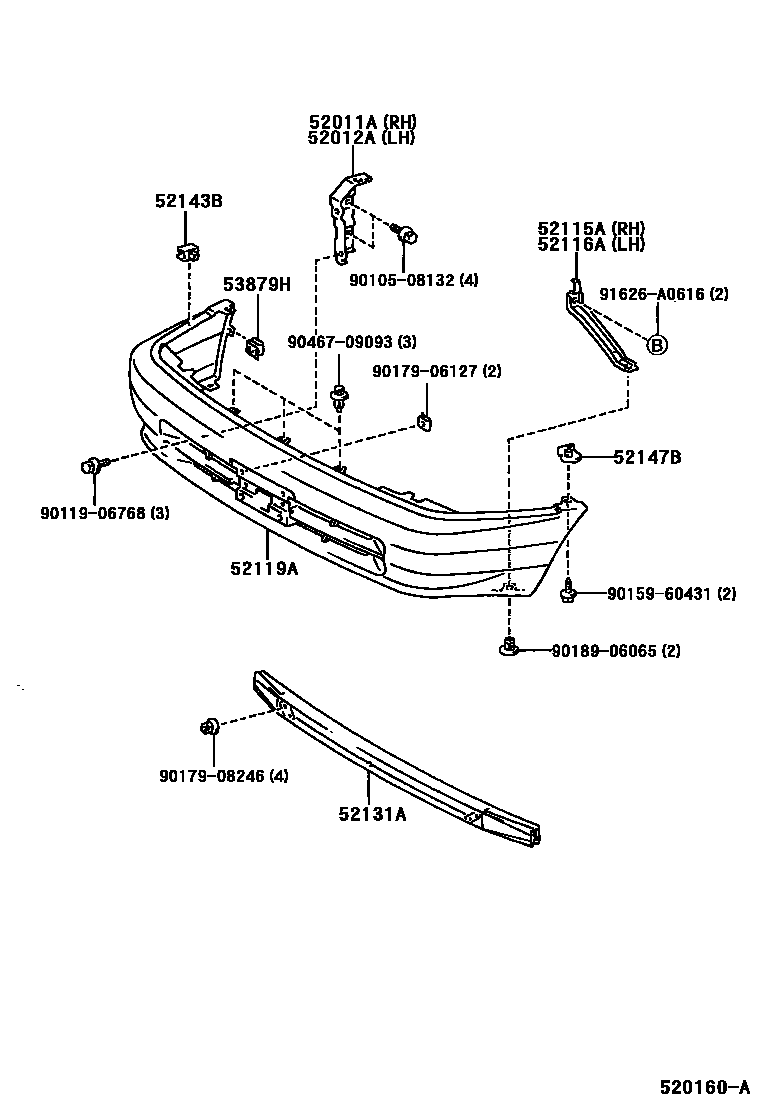

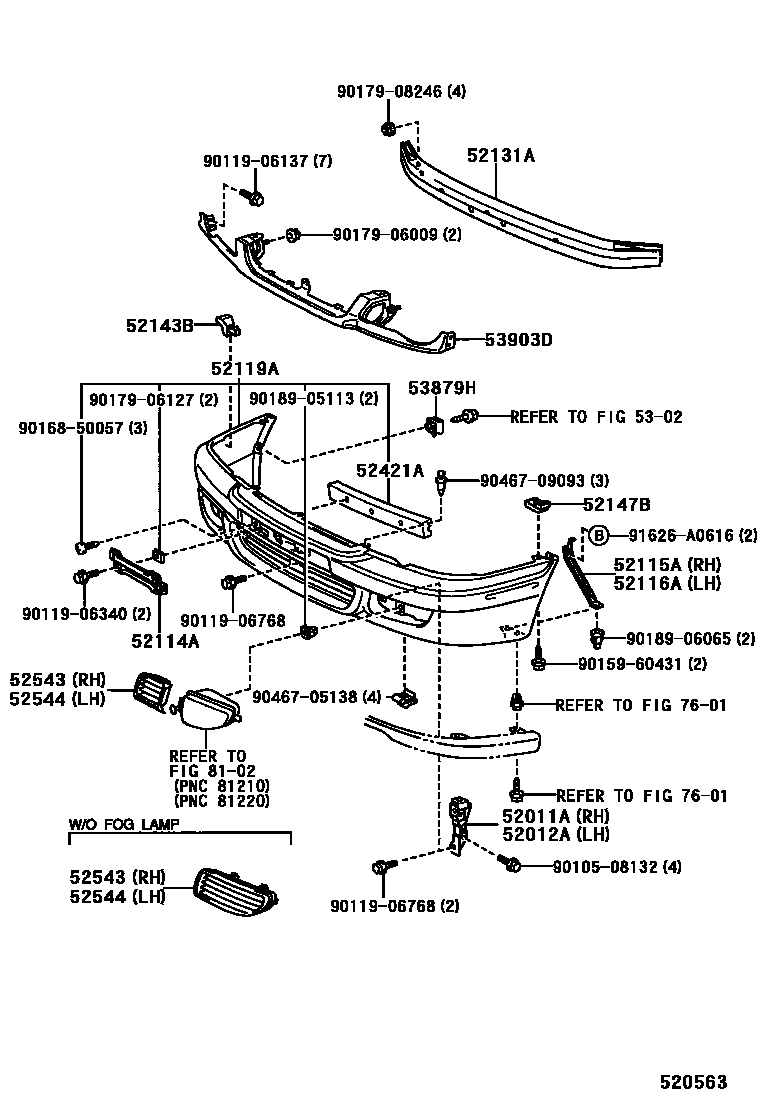

Toyota COROLLA EPC diagram 5201, 前保险杠及附件, with 4 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52011A | Front bumper right arm sub-assembly | 52141-12430 · 52141-12440 · 52141-12490 |
| 52012A | Front bumper left arm sub-assembly | 52142-12360 · 52142-12370 · 52142-12420 |
| 52114A | Front bumper extension mounting bracket | 52114-12080 · 52114-30080 |
| 52115A | Front bumper right side bracket | 52115-12320 |
| 52116A | Front bumper left bracket | 52116-12290 |
| 52119A | front bumper cover | 52119-1E020 · 52119-1E330 · 52119-1E500 · 52119-1E510 · 52119-1E610 · 52119-1E630 |
| 52129B | Front bumper lower cover | 52129-12040 · 52129-12070 |
| 52131A | Front bumper reinforcement | 52131-12180 |
| 52141C | Front bumper right arm | 52141-12420 |
| 52142B | Front bumper left arm | 52142-12350 |
| 52143B | Front bumper side bracket | 52143-12340 · 52143-12350 |
| 52147B | Front bumper mounting bracket | 52147-12190 · 52147-16080 |
| 52421A | front bumper lining | 52421-12050 |
| 52543 | Front bumper right seal | 81481-12040 · 81481-12050 |
| 52544 | Front bumper left seal | 81482-12020 · 81482-12030 |
| 53879H | Front fender lining fixing parts | 53879-12010 |
| 53903D | Front bumper upper extension sub-assembly | 53903-12080 · 53903-12110 |
