Toyota COROLLA Rear Spring & Shock Absorber — Figure 4804

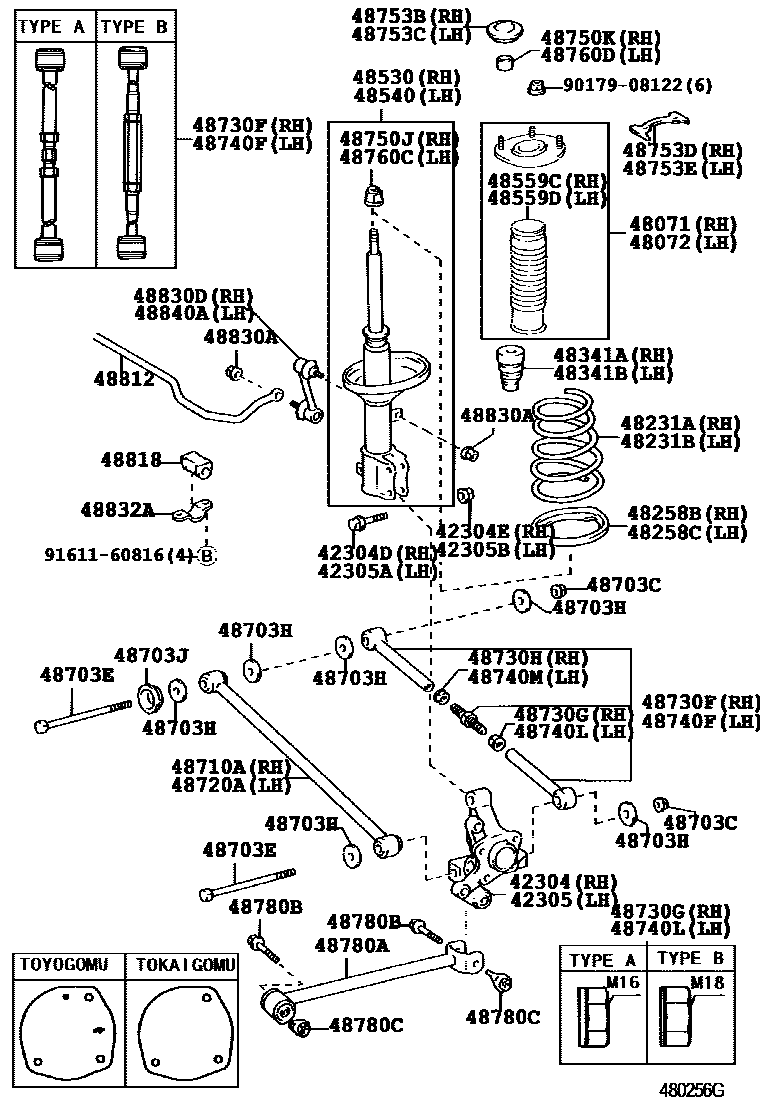

Toyota COROLLA EPC diagram 4804, Rear Spring & Shock Absorber, with 1 images and 47 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42304 | Rear axle right bracket sub-assembly | 42304-12090 · 42304-12130 · 42304-12140 · 42304-12170 |
| 42304D | Bolt (for rear axle right bracket) | 90105-12102 |
| 42304E | Nut (for rear axle right bracket) | 90179-12025 |
| 42305 | Rear axle left bracket sub-assembly | 42305-12090 · 42305-12130 · 42305-12140 · 42305-12170 |
| 42305A | Bolt (for left rear axle bracket) | 90105-12102 |
| 42305B | Nut (for left rear axle bracket) | 90179-12025 |
| 48071 | Right rear suspension bearing sub-assembly | 48071-12130 · 48071-12140 |
| 48072 | Left rear suspension bearing sub-assembly | 48072-12130 · 48072-12140 |
| 48231A | Right rear coil spring | 48231-1E780 · 48231-1E870 · 48231-1E890 · 48231-1H230 · 48231-1H330 · 48231-1H400 · 48231-1H440 · 48231-1H450 |
| 48231B | Left rear coil spring | 48231-1E780 · 48231-1E870 · 48231-1E890 · 48231-1H230 · 48231-1H330 · 48231-1H400 · 48231-1H440 · 48231-1H450 |
| 48258B | Right rear coil spring lower vibration isolation pad | 48258-12040 |
| 48258C | Left rear coil spring lower vibration isolation pad | 48258-12040 |
| 48341A | No. 1 right rear spring buffer block | 48341-12130 · 48341-12180 |
| 48341B | No. 1 left rear spring buffer block | 48341-12130 · 48341-12180 |
| 48530 | Right rear shock absorber assembly | 48530-19645 · 48530-19715 · 48530-80011 · 48530-80016 |
| 48540 | Left rear shock absorber assembly | 48540-19095 · 48540-19165 · 48540-19285 · 48540-19295 |
| 48559C | Right rear shock absorber No. 1 dust cover | 48559-12080 · 48559-12090 |
| 48559D | Left rear shock absorber No. 1 dust cover | 48559-12080 · 48559-12090 |
| 48703C | Nut (for rear suspension arm) | 90179-14025 |
| 48703E | Bolts (for rear suspension arms) | 90105-14099 |
| 48703H | Washer No. 1 (for rear suspension arm) | 90201-14035 |
| 48703J | Washer No. 2 (for rear suspension arm) | 90209-15002 |
| 48710A | Right rear suspension No. 1 arm assembly | 48710-12200 |
| 48720A | Left rear suspension No. 1 arm assembly | 48710-12200 |
| 48730F | Right rear suspension No. 2 arm assembly | 48730-12110 · 48730-12160 · 48730-13020 |
| 48730G | Nut No. 1 (for right rear suspension arm No. 2) | 90179-16022 · 90179-18016 |
| 48730H | No. 2 nut (for right rear suspension No. 2 arm assembly) | 90179-16021 · 90179-18017 |
| 48740F | Left rear suspension No. 2 arm assembly | 48730-12110 · 48730-12160 · 48730-12170 · 48730-13020 |
| 48740L | Nut No. 1 (for left rear suspension arm No. 2) | 90179-16022 · 90179-18016 |
| 48740M | No. 2 nut (for left rear suspension No. 2 arm assembly) | 90179-16021 · 90179-18017 |
| 48750J | Nut (for rear mount to right rear shock absorber) | 90179-14015 |
| 48750K | Collar (for rear mount to right rear shock absorber) | 90387-15027 |
| 48753B | Right rear suspension support cover No. 1 | 48753-12050 |
| 48753C | Left rear suspension support cover No. 1 | 48753-12050 |
| 48753D | Right rear suspension support cover No. 2 | 48753-12080 |
| 48753E | Left rear suspension support cover No. 2 | 48753-12080 |
| 48760C | Nut (for rear mount to left rear shock absorber) | 90179-14015 |
| 48760D | Collar (for rear mount to left rear shock absorber) | 90387-15027 |
| 48780A | Rear support rod assembly | 48780-12080 |
| 48780B | Bolts (for support rods) | 90119-12152 |
| 48780C | Nut (for support rod) | 90179-12091 |
| 48812 | rear stabilizer bar | 48812-02020 · 48812-02070 · 48812-12160 · 48812-12170 · 48812-12180 · 48812-12190 · 48812-12200 |
| 48818 | Rear stabilizer bar bushing | 48818-02060 · 48818-12150 · 48818-12160 · 48818-12170 · 48818-12180 · 48818-12220 |
| 48830A | Nut (for rear stabilizer link) | 90179-10183 |
| 48830D | Right rear stabilizer bar link assembly | 48830-12060 · 48830-20010 |
| 48832A | Rear stabilizer bar No. 1 bracket | 48832-20030 |
| 48840A | Left rear stabilizer bar link assembly | 48830-12060 · 48830-20010 |
