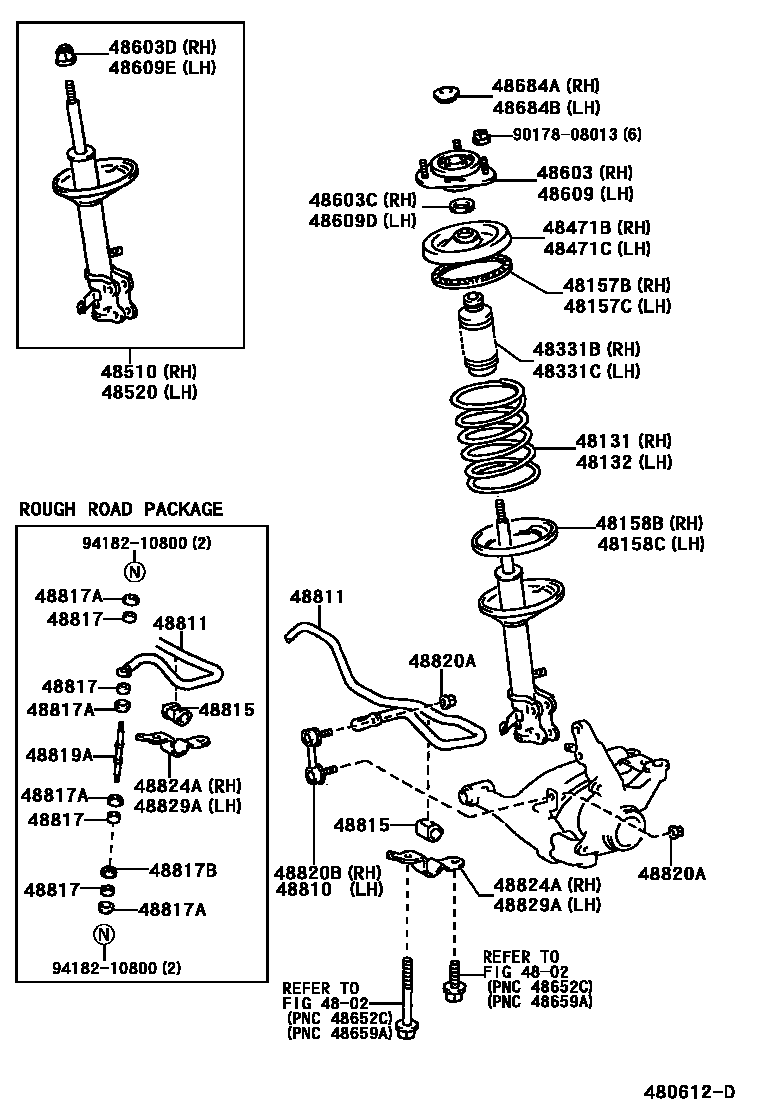

Toyota COROLLA Front Spring & Shock Absorber — Figure 4803
Toyota COROLLA EPC diagram 4803, Front Spring & Shock Absorber, with 1 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 48131 | Right front coil spring | 48131-1L450 · 48131-1L610 · 48131-1L630 · 48131-1L650 · 48131-1L670 · 48131-1L690 · 48131-1L710 · 48131-1L890 · 48131-1N080 · 48131-1N100 · 48131-1N140 · 48131-1N160 · 48131-1N380 · 48131-1N390 · 48131-1N400 · 48131-1N410 |
| 48132 | Left front coil spring | 48131-1L450 · 48131-1L610 · 48131-1L630 · 48131-1L650 · 48131-1L670 · 48131-1L690 · 48131-1L710 · 48131-1L890 · 48131-1N080 · 48131-1N100 · 48131-1N140 · 48131-1N160 · 48131-1N380 · 48131-1N390 · 48131-1N400 · 48131-1N410 |
| 48157B | Front coil spring upper right vibration isolation pad | 48157-12070 |
| 48157C | Front coil spring upper left vibration isolation pad | 48157-12070 |
| 48158B | Front coil spring lower right vibration isolation pad | 48158-12030 |
| 48158C | Front coil spring lower left vibration isolation pad | 48158-12030 |
| 48331B | Right front spring buffer block | 48304-12030 · 48331-12140 · 48331-12150 |
| 48331C | Left front spring buffer block | 48304-12030 · 48331-12140 · 48331-12150 |
| 48471B | Front coil spring upper right seat | 48044-01020 · 48044-12090 |
| 48471C | Front coil spring upper left seat | 48044-01020 · 48044-12090 |
| 48510 | Right front shock absorber assembly | 48510-19425 · 48510-19435 · 48510-19475 · 48510-80003 · 48510-80006 · 48510-80008 · 48510-87686 · 48510-87690 · 48510-87693 · 48510-87700 |
| 48520 | Left front shock absorber assembly | 48520-19145 · 48520-19155 · 48520-19195 · 48520-19595 · 48520-19605 · 48520-19625 · 48520-49215 · 48520-49216 · 48520-49255 · 48520-49256 |
| 48603 | Right front suspension bearing sub-assembly | 48609-12330 · 48609-12340 · 48609-12341 · 48609-12350 · 48609-12370 |
| 48603C | Dust seal (for right front suspension mount) | 90303-22049 |
| 48603D | Nut (for front mount to right front shock absorber) | 94182-11400 |
| 48609 | Left front suspension bearing sub-assembly | 48609-12330 · 48609-12340 · 48609-12341 · 48609-12350 · 48609-12370 |
| 48609D | Dust seal (for left front suspension mount) | 90303-22049 |
| 48609E | Nut (for front mount to left front shock absorber) | 94182-11400 |
| 48684A | Right front suspension support dust cover | 48684-12070 · 48684-32010 |
| 48684B | Left front suspension support dust cover | 48684-12070 · 48684-32010 |
| 48810 | Left front stabilizer bar link assembly | 48820-33010 |
| 48811 | front stabilizer bar | 48811-12720 · 48811-12770 · 48811-12890 · 48811-1A100 |
| 48815 | Front stabilizer bar bushing No. 1 | 48815-12220 · 48815-12230 · 48815-12280 |
| 48817 | Front stabilizer bar cushion | 48817-30020 |
| 48817A | Crash pad block No. 1 (for front stabilizer bar) | 90948-02032 |
| 48817B | Crash pad block No. 2 (for front stabilizer bar) | 90948-02015 |
| 48819A | front stabilizer bar bolt | 48819-20030 |
| 48820A | Nut (for front stabilizer bar link) | 90179-10183 |
| 48820B | Right front stabilizer bar link assembly | 48820-33010 |
| 48824A | Right front stabilizer bar bracket No. 1 | 48824-12130 · 48824-12140 |
| 48829A | Left front stabilizer bar bracket No. 1 | 48829-12060 · 48829-12070 |
