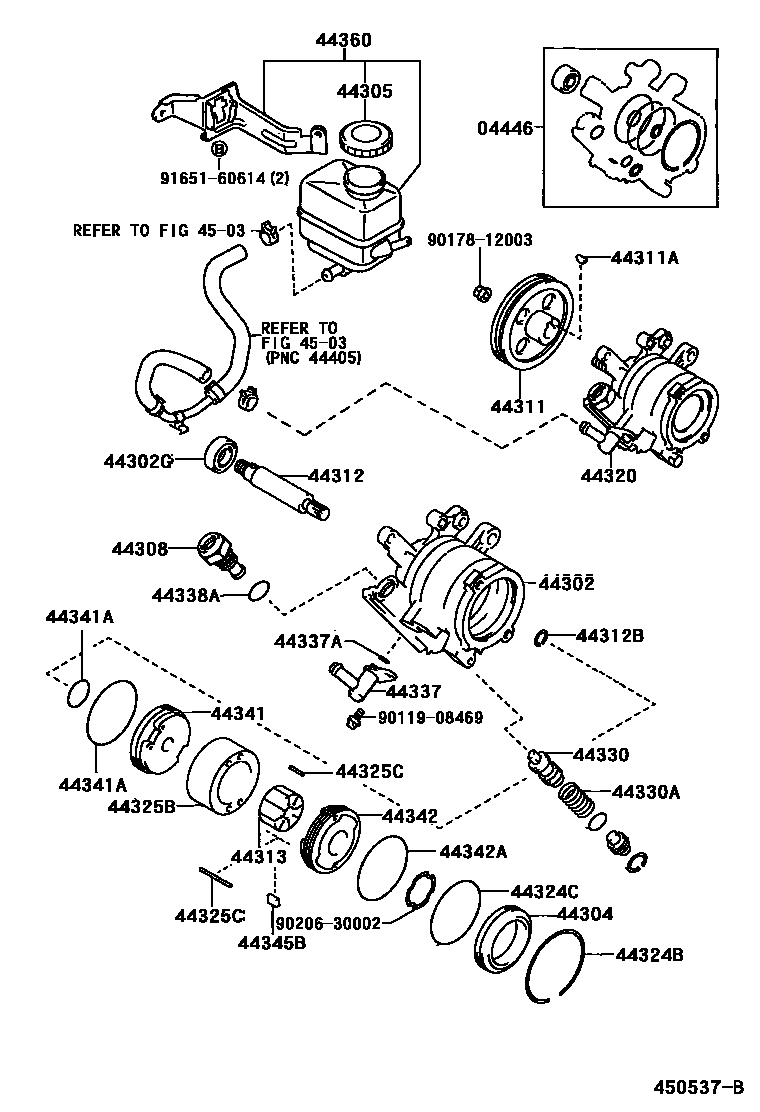

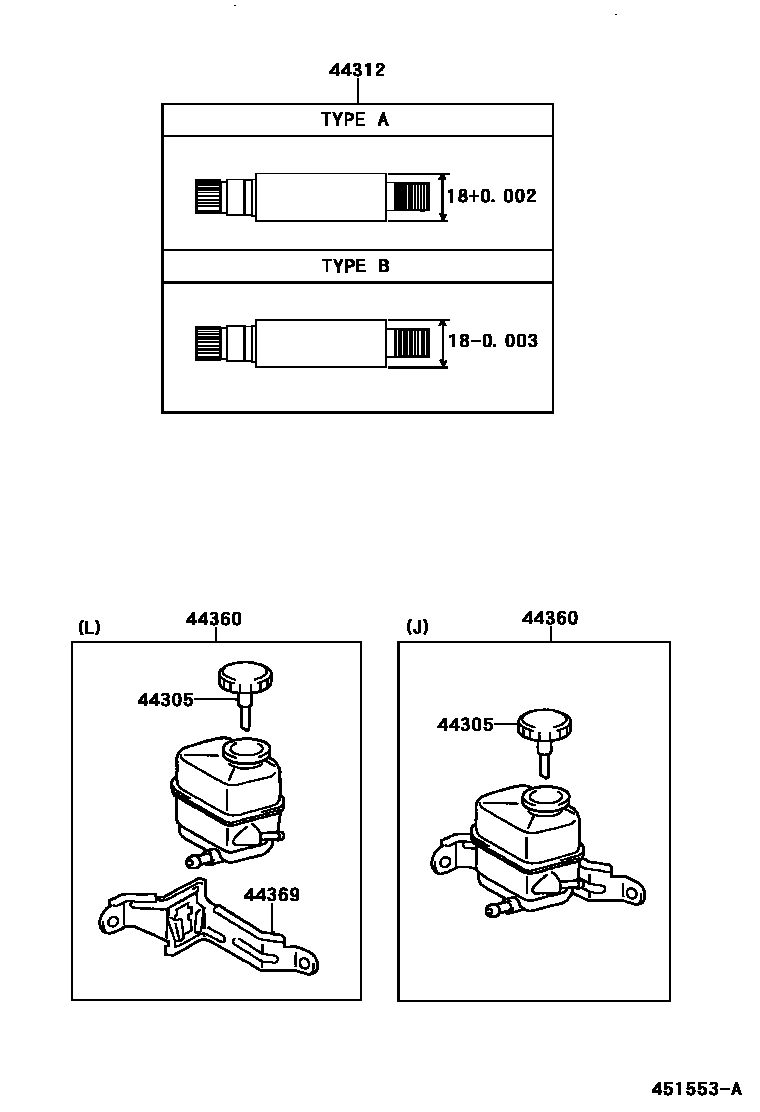

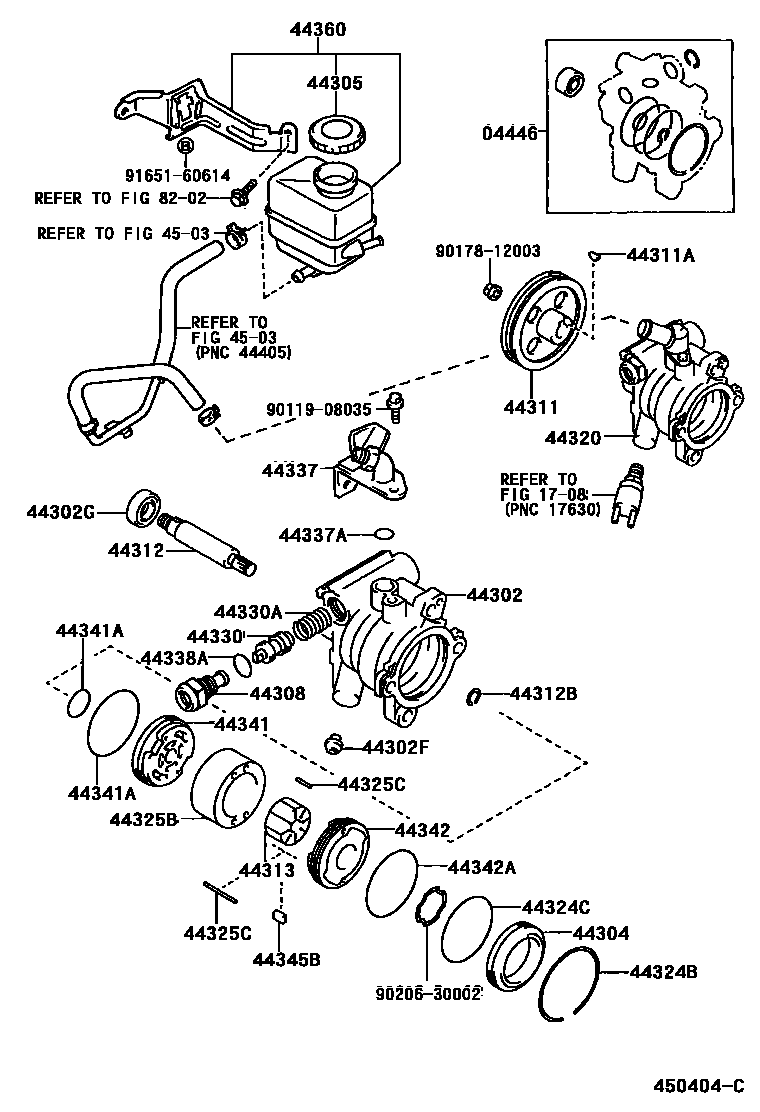

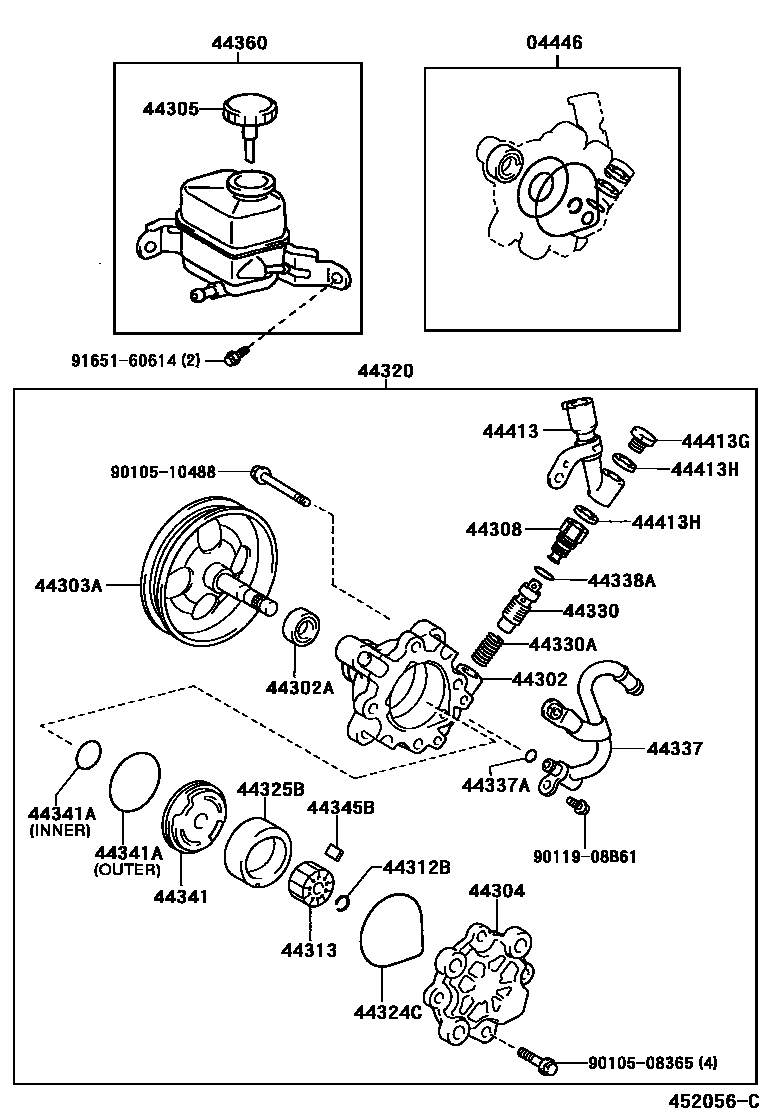

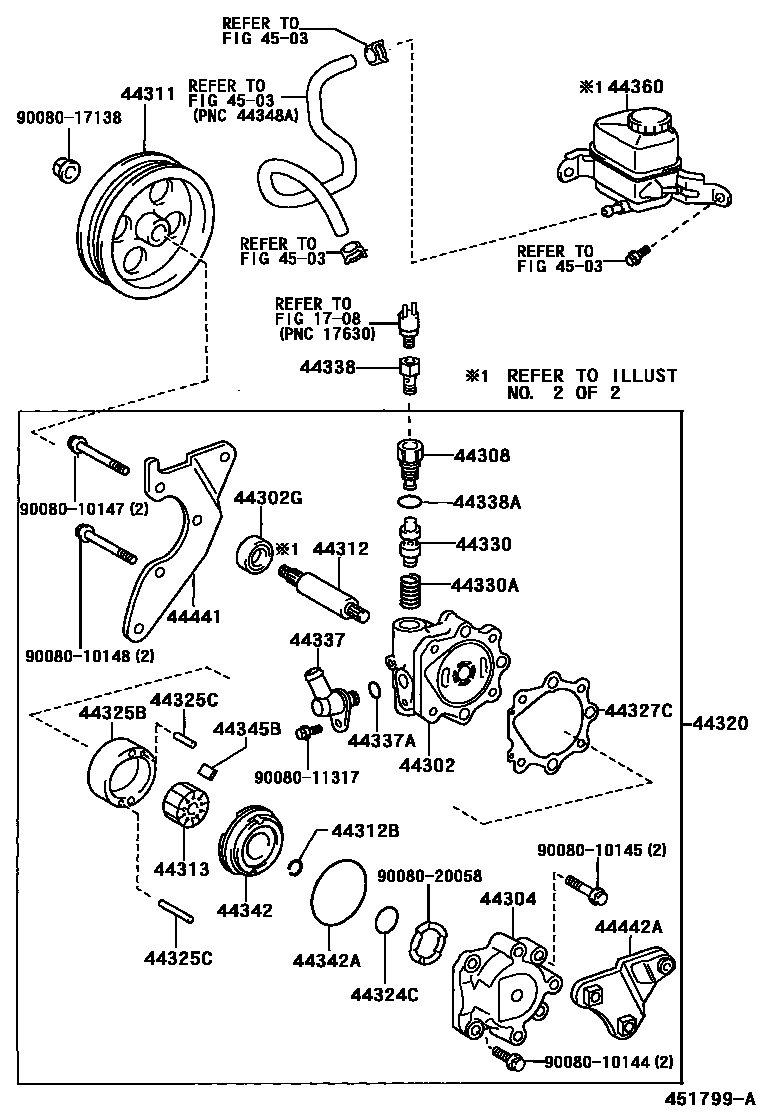

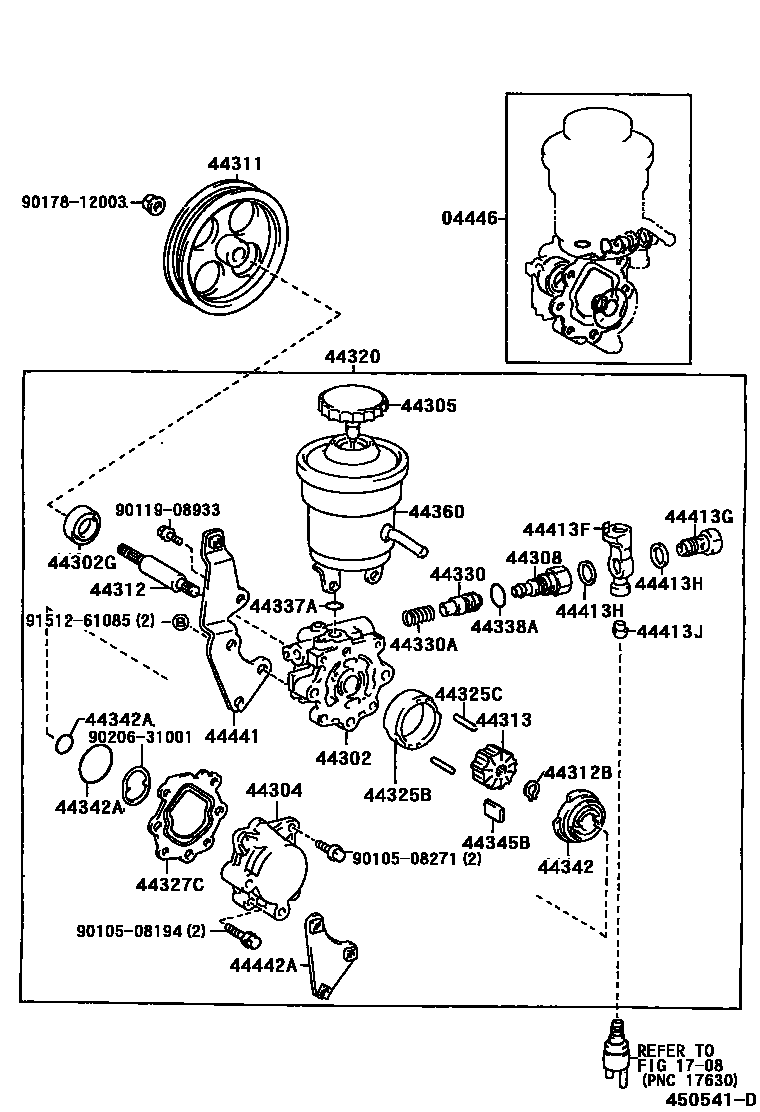

Toyota COROLLA 叶片泵和储油罐(动力转向) — Figure 4502
Toyota COROLLA EPC diagram 4502, 叶片泵和储油罐(动力转向), with 6 images and 40 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04446 | Power steering pump gasket assembly | 04446-12080 · 04446-20120 · 04446-27011 · 04446-32011 |
| 44302 | Front vane pump housing sub-assembly | 44302-02060 · 44302-12041 · 44302-12110 · 44302-12160 · 44302-12180 |
| 44302A | No. 1 oil seal (for vane pump housing) | 90311-15012 |
| 44302F | Joint seat (for vane pump housing) | 90410-05035 |
| 44302G | No. 2 oil seal (for vane pump housing) | 90080-31048 · 90311-18007 · 90311-18015 |
| 44303A | Shaft sub-assembly with pulley | 44303-32010 |
| 44304 | Vane pump rear housing sub-assembly | 44304-32041 · 44324-02040 · 44324-12031 · 44324-26031 |
| 44305 | Vane pump oil storage tank cover sub-assembly | 44305-02040 · 44305-12030 · 44305-20041 · 44305-22040 |
| 44308 | Pressure hole connector sub-assembly | 44308-02030 · 44308-12032 · 44308-12042 · 44308-12050 · 44308-12110 · 44308-28010 · 44308-52010 |
| 44311 | vane pump pulley | 44311-02060 · 44311-12030 · 44311-12090 · 44311-12100 · 44311-12110 |
| 44311A | Vane pump pulley key | 90280-05008 |
| 44312 | vane pump shaft | 44312-02030 · 44312-02040 · 44312-12030 · 44312-32020 |
| 44312B | No. 1 snap ring (for vane pump shaft) | 90080-52097 · 90520-10003 |
| 44313 | vane pump rotor | 44313-02060 · 44313-02070 · 44313-02080 · 44313-02090 · 44313-02100 · 44313-22040 · 44313-22050 · 44313-22060 · 44313-22070 · 44313-22080 · 44313-26060 · 44313-26070 · 44313-26080 · 44313-26090 · 44313-26100 · 44313-32060 · 44313-32070 · 44313-32080 · 44313-32090 · 44313-32100 |
| 44320 | Vane pump assembly | 44310-12500 · 44320-02050 · 44320-12212 · 44320-12241 · 44320-12271 · 44320-12342 · 44320-12360 · 44320-12390 · 44320-12391 |
| 44324B | Hole snap ring (for pump rear housing) | 90521-62002 |
| 44324C | O-ring (for pump rear housing) | 90080-30038 · 90301-53006 · 90301-53007 · 90903-01007 |
| 44325B | vane pump cam ring | 44325-02110 · 44325-02120 · 44325-02130 · 44325-02140 · 44325-02150 · 44325-12110 · 44325-12120 · 44325-12130 · 44325-12140 · 44325-12150 · 44325-12270 · 44325-12280 · 44325-12290 · 44325-12300 · 44325-12310 · 44325-32340 · 44325-32350 · 44325-32360 · 44325-32370 · 44325-32380 |
| 44325C | Direct sales (for vane pump cam rings) | 90080-25025 · 90250-04047 · 90250-04049 · 90250-04071 |
| 44327C | Vane pump casing gasket | 44327-02020 · 44327-26010 |
| 44330 | Flow control valve assembly | 44330-02190 · 44330-02200 · 44330-02210 · 44330-02220 · 44330-02230 · 44330-02240 · 44330-12311 · 44330-12321 · 44330-12331 · 44330-12341 · 44330-12351 · 44330-12361 · 44330-12570 · 44330-12580 · 44330-12590 · 44330-12600 · 44330-12610 · 44330-12620 · 44330-12630 · 44330-12640 · 44330-12650 · 44330-12660 · 44330-12670 · 44330-12680 · 44330-20070 · 44330-20080 · 44330-20090 · 44330-20100 · 44330-20110 · 44330-20120 |
| 44330A | Compression spring (for flow control valve) | 90080-50224 · 90501-12103 · 90501-13034 |
| 44337 | Power steering suction port connector | 44337-02030 · 44337-12060 · 44337-12091 · 44337-12100 |
| 44337A | O-ring (for power steering oil suction port) | 90080-30040 · 90301-11010 · 90301-11016 · 90301-11020 · 90301-12003 |
| 44338 | Pressure port connector | 44338-12160 |
| 44338A | O-ring (for pressure port connector) | 90080-30039 · 90301-18009 · 90301-19003 · 90301-19013 · 90301-19018 |
| 44341 | Vane pump front cover | 44341-32010 · 44341-32031 |
| 44341A | O-ring (for vane pump front cover) | 90301-16012 · 90301-25001 · 90301-25008 · 90301-45003 · 90301-52001 |
| 44342 | Vane pump rear end cover | 44342-02020 · 44342-26020 · 44342-32010 |
| 44342A | O-ring (for vane pump rear end cover) | 90080-30030 · 90301-18007 · 90301-47001 · 90301-52001 |
| 44345B | vane pump disc | 44345-02060 · 44345-02070 · 44345-02080 · 44345-02090 · 44345-02100 · 44345-12010 · 44345-12020 · 44345-12030 · 44345-12040 · 44345-12050 · 44345-26010 · 44345-26020 · 44345-26030 · 44345-26040 · 44345-26050 · 44345-32100 · 44345-32110 · 44345-32120 · 44345-32130 · 44345-32140 |
| 44360 | Vane pump oil storage tank assembly | 44306-12160 · 44360-02030 · 44360-12050 · 44360-12060 |
| 44369 | No. 1 oil storage tank bracket | 44369-02030 |
| 44413 | No. 1 pressure supply pipe | 44413-12170 |
| 44413F | No. 2 pressure supply pipe | 44413-12150 · 44413-12160 |
| 44413G | Joint bolt (for pressure supply pipe No. 2) | 90401-16041 · 96341-41603 |
| 44413H | Gasket (for pressure supply pipe No. 2) | 44327-12040 · 90430-16242 |
| 44413J | Connector seat (for No. 2 pressure supply pipe) | 90410-05035 |
| 44441 | Pump front bracket | 44441-02040 · 44441-12070 |
| 44442A | Vane pump rear bracket | 44442-02040 · 44442-12020 |
