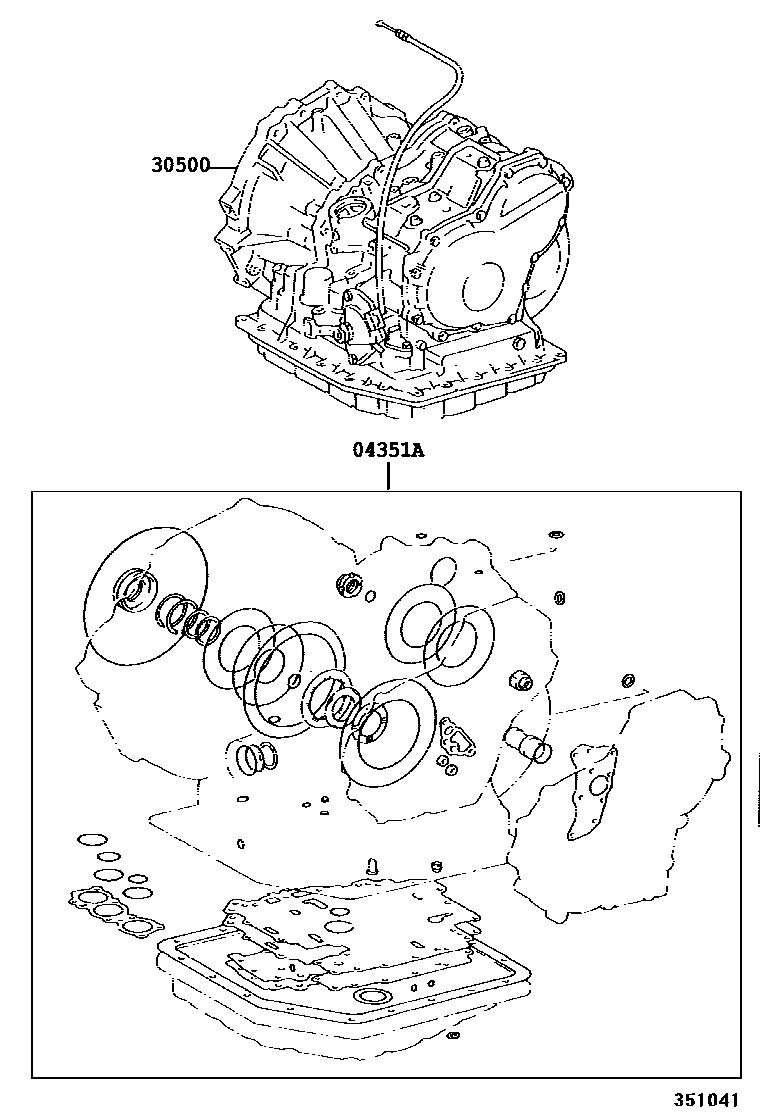

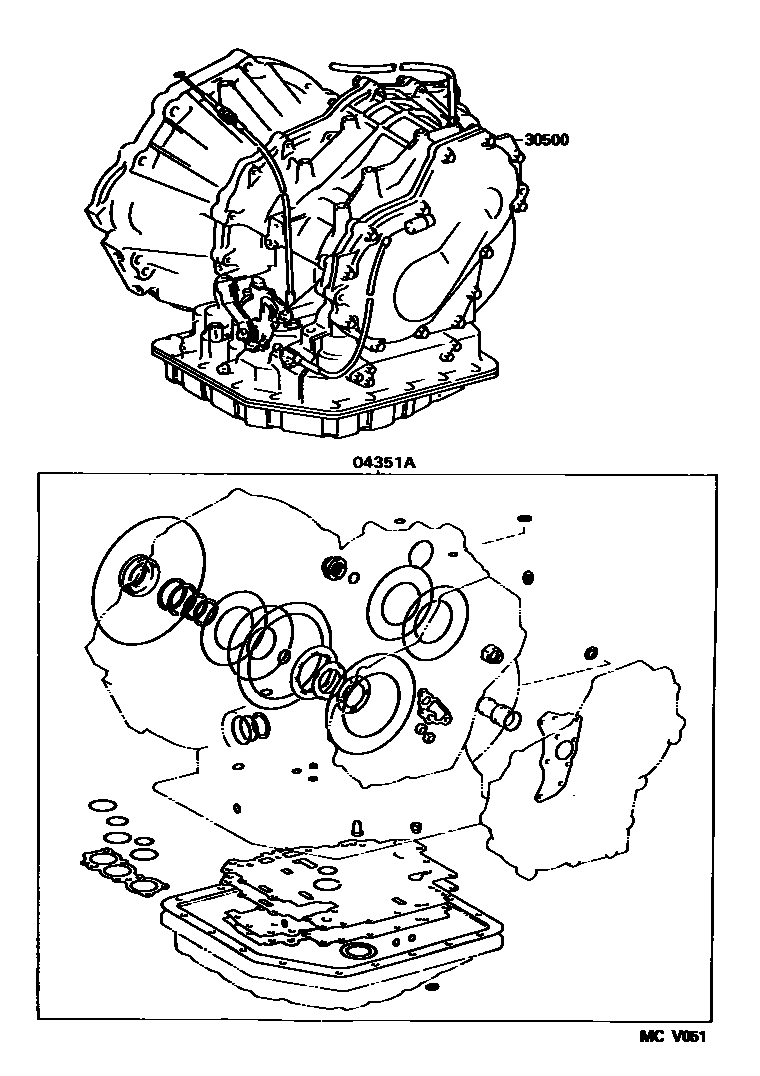

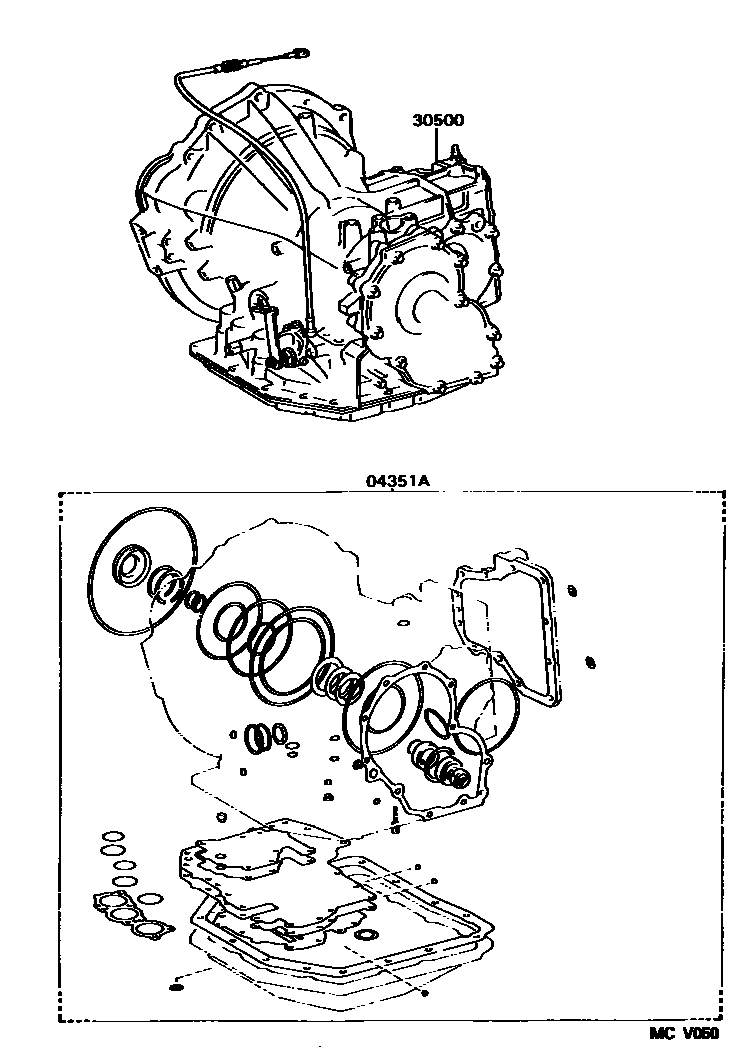

Toyota COROLLA 传动桥或变速器总成和衬垫组件(ATM) — Figure 3501
Toyota COROLLA EPC diagram 3501, 传动桥或变速器总成和衬垫组件(ATM), with 3 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04351A | Transaxle overhaul gasket assembly (ATM) | 04351-12100 · 04351-12110 · 04351-12150 · 04351-12151 · 04351-12170 · 04351-16070 · 04351-16071 |
| 30500 | Automatic transmission axle assembly | 30500-1A120 · 30500-1A130 · 30500-1A150 · 30500-1A190 · 30500-1A340 · 30500-1A370 · 30500-1A380 · 30500-1A390 · 30500-1A410 · 30500-1A420 · 30500-1A440 · 30500-1A450 · 30500-1A540 · 30500-1A550 · 30500-1A560 · 30500-1A620 · 30500-1A650 |
