Toyota COROLLA Shift Lever & Retainer — Figure 3312

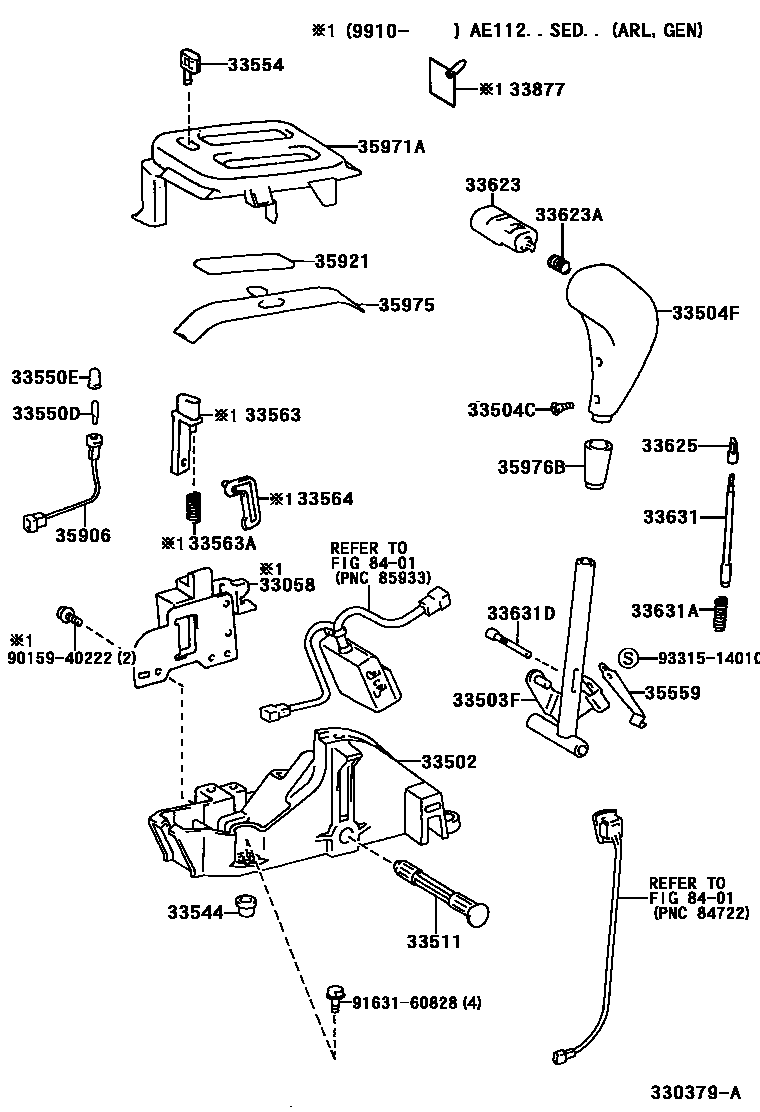

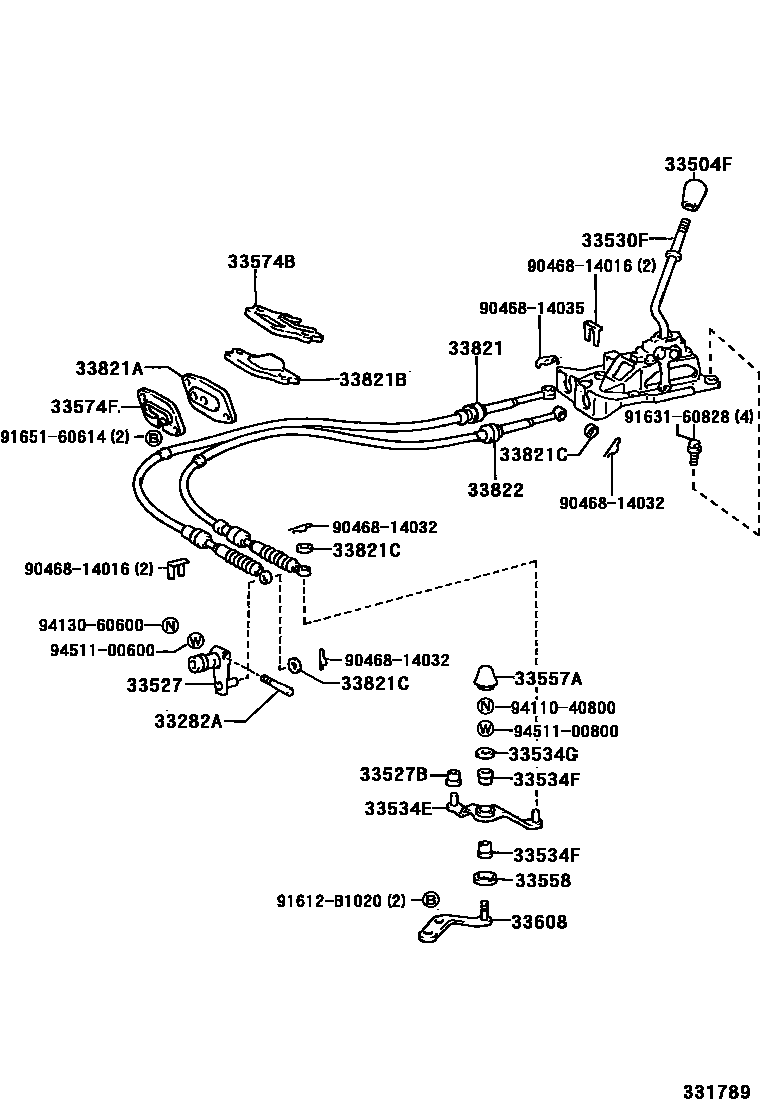

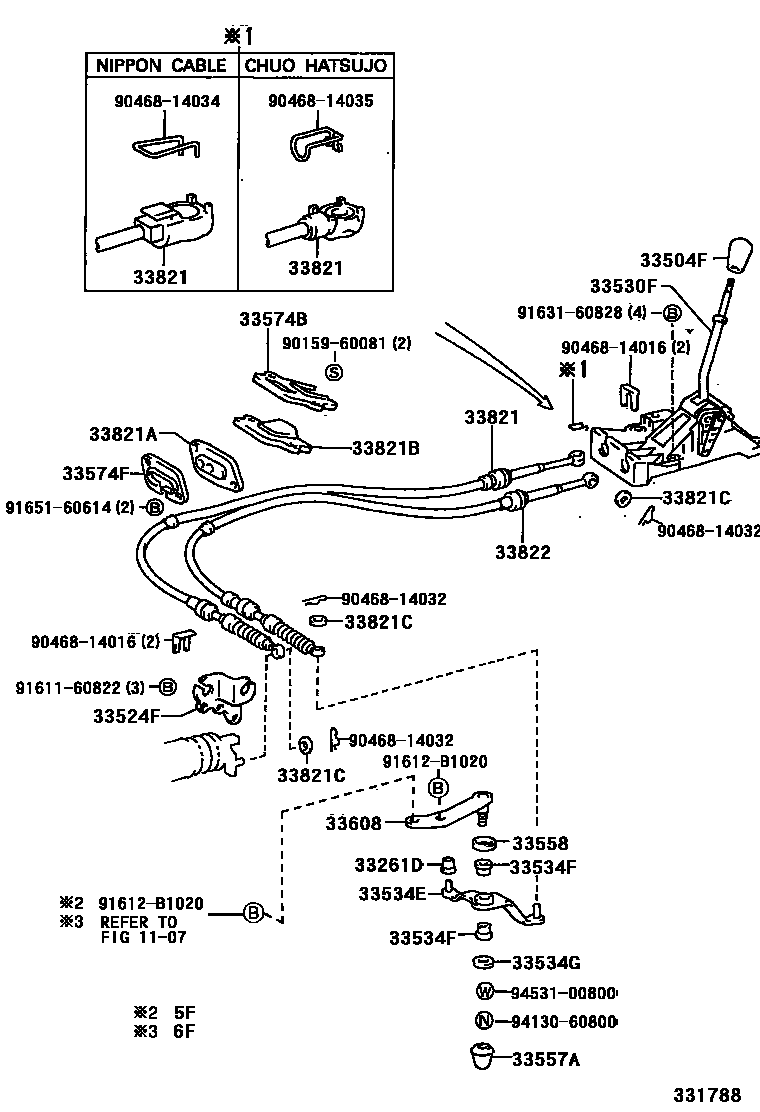

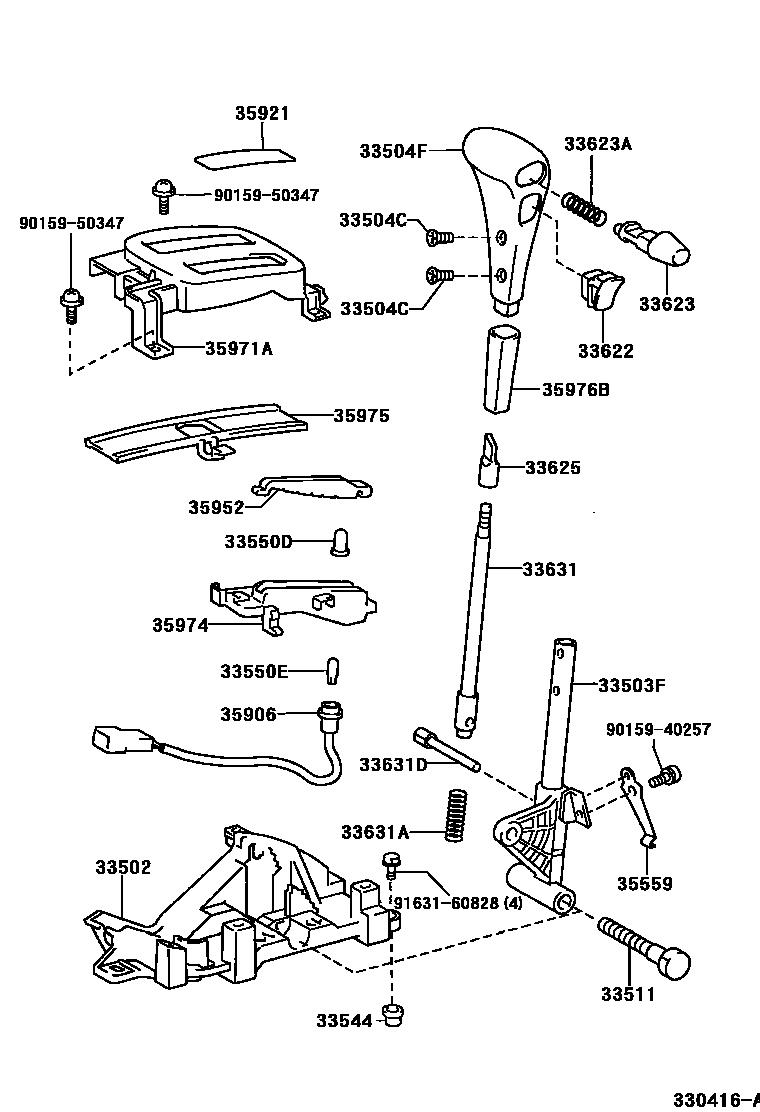

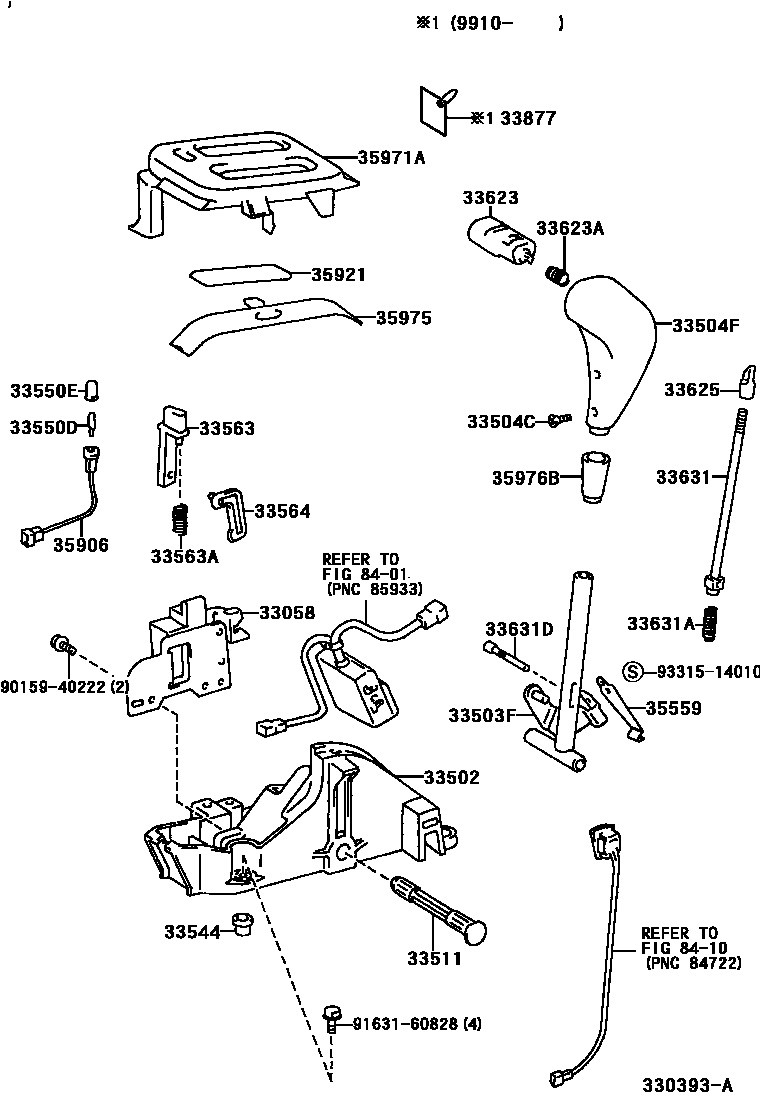

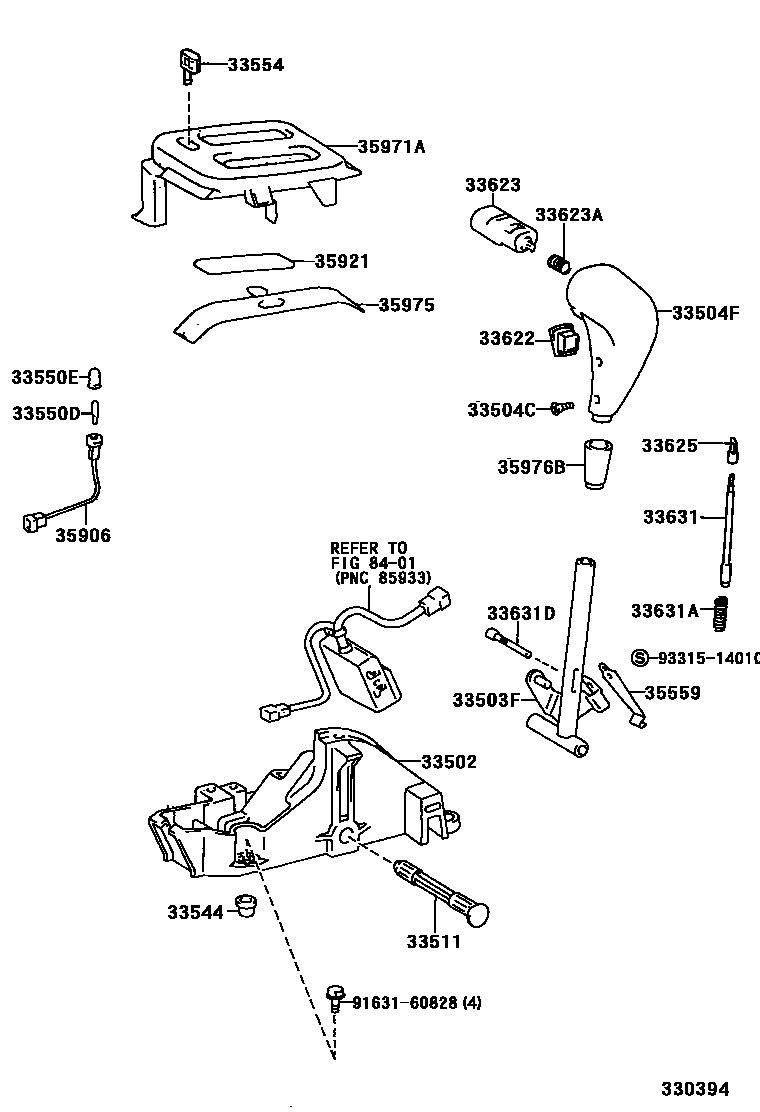

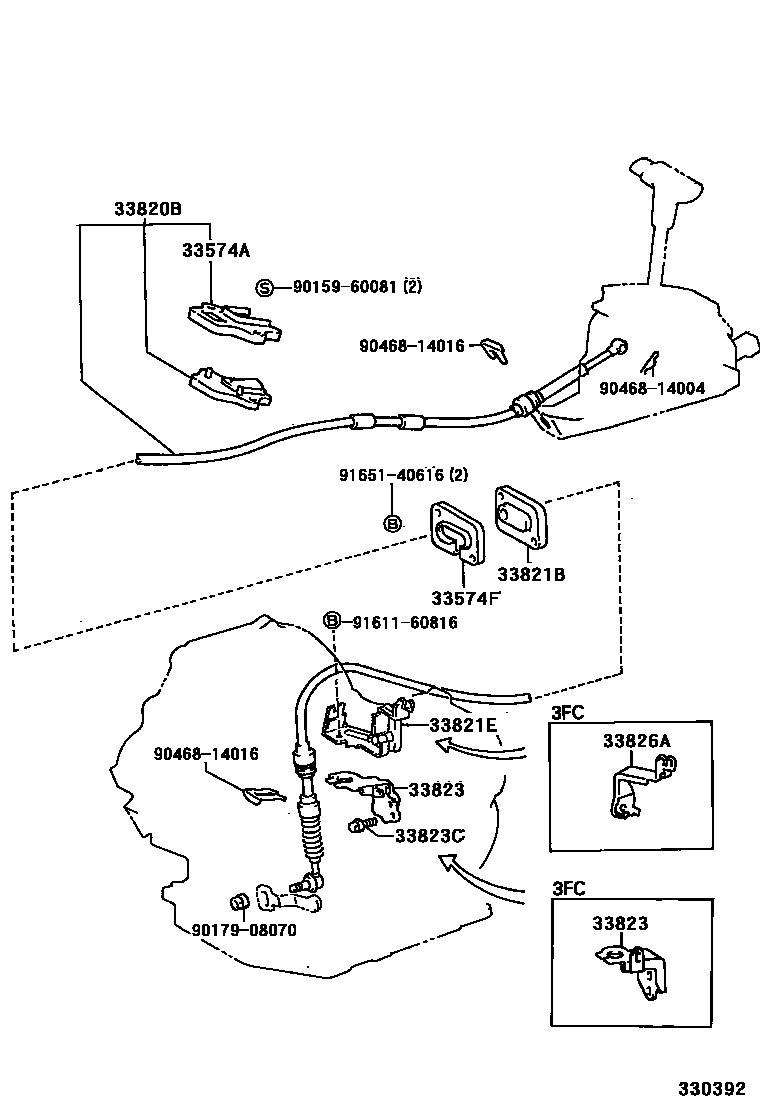

Toyota COROLLA EPC diagram 3312, Shift Lever & Retainer, with 7 images and 47 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33058 | Shift lock solenoid valve bracket sub-assembly | 33058-12060 |
| 33261D | Bushing (for shift lever) | 33557-33010 |
| 33282A | Shift lever lock pin (for shift lever) | 33282-35010 |
| 33502 | Shift lever base plate sub-assembly | 33521-02020 · 33521-12250 · 33521-42010 |
| 33503F | Shift lever sub-assembly (for floor shift) | 33055-12050 · 33055-20190 |
| 33504C | Screw (for securing shift lever knob) | 90159-40238 |
| 33511 | Control shaft (for floor shifting) | 33511-12110 · 33511-12120 |
| 33524F | Lever housing bracket (for floor shift) | 33524-12011 |
| 33527 | Gear shift lever (for floor shift) | 33527-32010 |
| 33527B | Bushing (for shift control lever) | 33557-33010 |
| 33530F | Shift lever assembly (for floor shift) | 33530-02040 · 33530-12630 · 33530-12681 |
| 33534E | No. 2 gear selection right-angle lever | 33534-10060 · 33534-16051 · 33534-33010 |
| 33534F | Bushing (for No. 2 gear selector right-angle lever) | 90386-12022 |
| 33534G | Flat washer (for No. 2 gear selector right-angle lever) | 90201-08028 |
| 33544 | Shift lever insert No. 1 | 33544-33010 |
| 33550D | position indicator light bulb | 90981-11018 · 90981-11036 |
| 33550E | position indicator cover | 90339-04062 · 90339-09001 |
| 33557A | No. 1 gear selection right-angle lever dust cover | 33557-32010 |
| 33558 | No. 2 gear selection right-angle lever dust cover | 33558-10030 · 33558-32010 |
| 33563 | Shift lock release button | 33563-12070 · 33563-12100 |
| 33563A | Compression spring (for shift lock release button) | 90501-05041 |
| 33564 | No. 1 shift lock release link | 33564-12070 |
| 33574A | No. 1 shift cable retaining ring retaining ring | 33574-12040 |
| 33574B | No. 2 shift cable seal | 33574-12060 |
| 33574F | Dust seal retainer (for floor shift) | 33574-12080 |
| 33608 | Gear selection right-angle lever bracket sub-assembly | 33608-10032 · 33608-16021 · 33608-33010 |
| 33623A | Compression spring (for shift lever knob button) | 90501-07037 · 90501-07110 |
| 33625 | Shift lever handle sleeve | 33625-12030 |
| 33631 | Locking lever | 33631-12130 · 33631-33020 |
| 33631A | Compression spring (for locking lever) | 90501-07101 · 90501-07117 |
| 33631D | Grooved pin (for locking lever) | 90245-04009 · 90256-04008 |
| 33820B | Transmission control cable assembly | 33820-12680 · 33820-12690 · 33820-12800 · 33820-12860 |
| 33821 | Transmission shift control cable (for floor-mounted shifting) | 33821-12720 · 33821-12730 · 33821-12740 · 33821-12810 |
| 33821A | No. 1 retaining ring (for transmission control cable) | 90480-01400 |
| 33821B | No. 2 retaining ring (for transmission control cable) | 90480-01398 · 90480-01672 |
| 33821C | Flat Washer (for transmission control cable) | 90201-08077 · 90201-10042 |
| 33821E | Clamp No. 1 (for transmission control cable) | 33829-12020 · 90929-01353 |
| 33822 | Transmission selector control cable (for floor-mounted shifting) | 33822-12290 · 33822-12310 · 33822-12400 |
| 33823 | No. 1 transmission control cable bracket | 33823-12100 · 33823-12140 · 33823-12150 · 33823-12170 |
| 33823C | Bolt (for transmission control cable bracket) | 91611-60816 · 91611-61022 · 91612-61022 |
| 33826A | No. 2 transmission control cable bracket | 33826-16020 |
| 33877 | Shift lock information label No. 1 | 33877-50030 |
| 35559 | Manual locking spring | 35559-12040 |
| 35906 | Indicator light wiring harness sub-assembly | 35906-12140 · 35906-12160 |
| 35921 | control position indicator board | 35921-12390 · 35921-12400 · 35921-12420 · 35921-12430 |
| 35952 | Position indicator lampshade | 35952-02010 · 35952-42010 |
| 35974 | Position indicator light lower shell | 35974-02020 · 35974-42010 |
