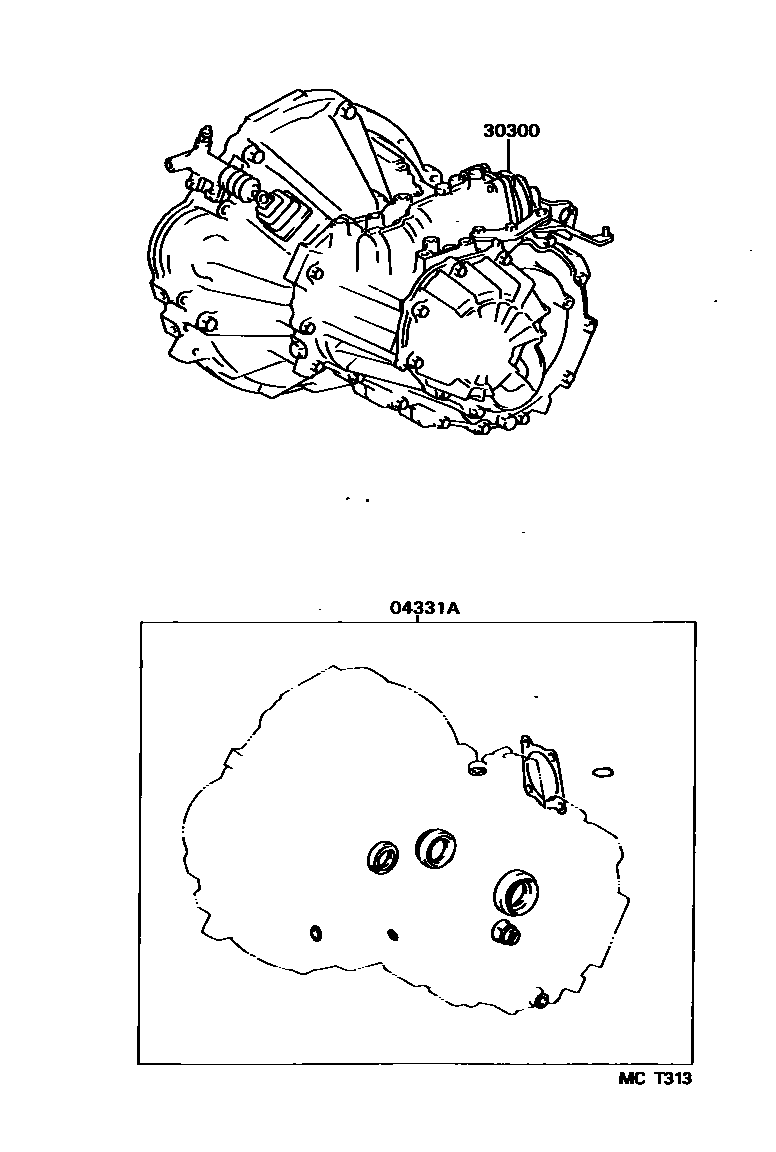

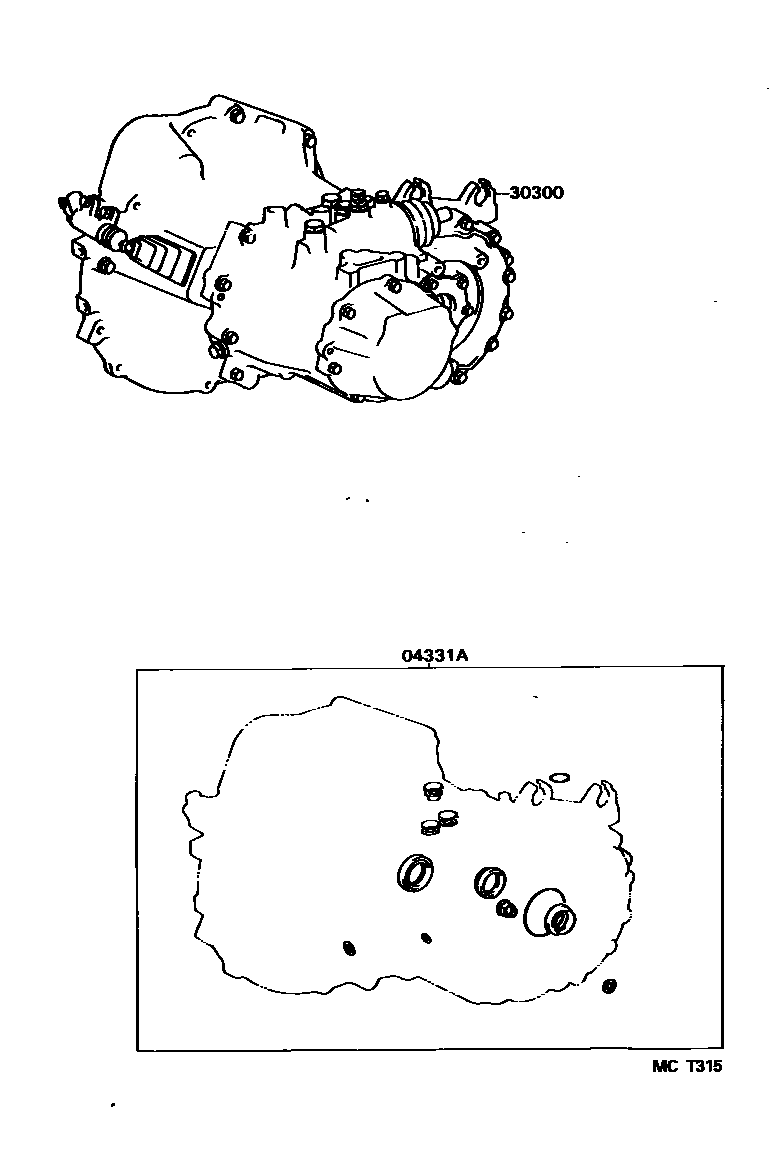

Toyota COROLLA 传动桥或变速器总成和衬垫组件(MTM) — Figure 3301
Toyota COROLLA EPC diagram 3301, 传动桥或变速器总成和衬垫组件(MTM), with 2 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04331A | Transaxle overhaul pad assembly (MTM) | 04331-12110 · 04331-32011 · 04331-32040 |
| 30300 | Manual transmission axle assembly | 30300-12791 · 30300-12801 · 30300-12862 · 30300-1A320 · 30300-1A350 · 30300-1A360 · 30300-1A370 · 30300-1A380 · 30300-1A390 · 30300-1A400 · 30300-1A410 · 30300-1A420 · 30300-1A430 · 30300-1A520 · 30300-1A730 · 30300-1A760 |
