Toyota COROLLA fuel filter — Figure 2302

Toyota COROLLA EPC diagram 2302, fuel filter, with 3 images and 8 PNC and OE references.

Toyota COROLLA fuel filter EPC diagram — 230035
fuel filter — 230035 (199704 – 999999)

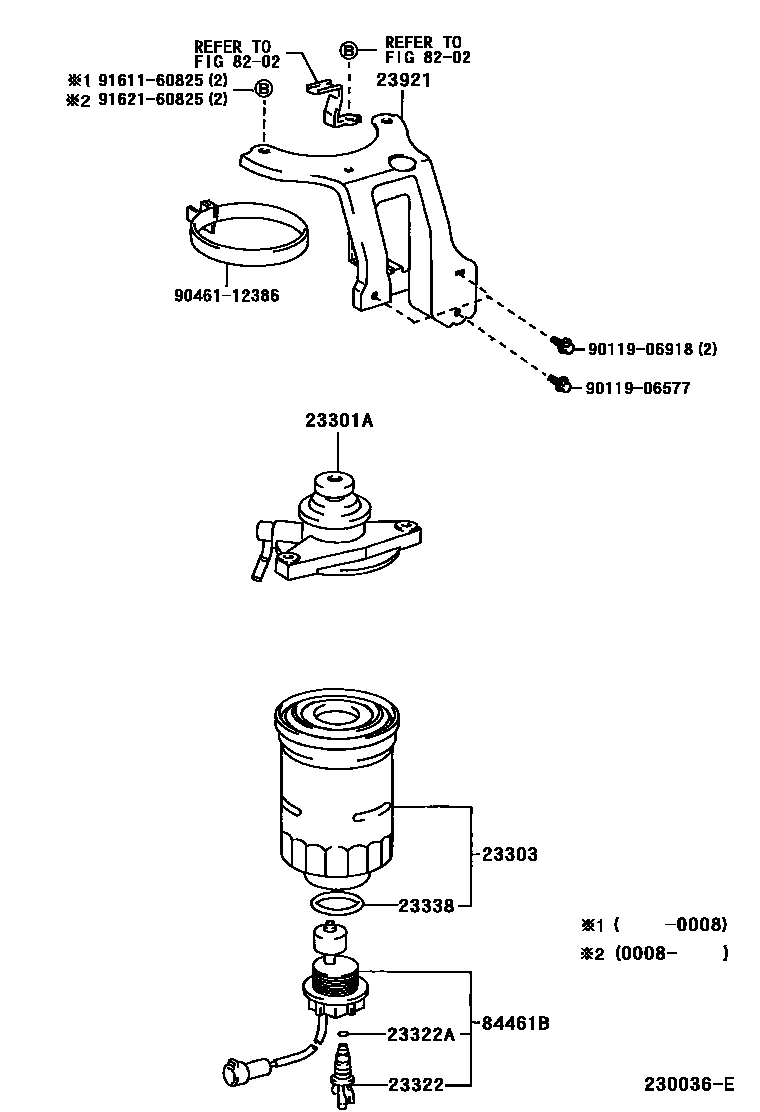

Toyota COROLLA fuel filter EPC diagram — 230036E
fuel filter — 230036E (199704 – 999999)
Toyota COROLLA fuel filter EPC diagram — 230037
fuel filter — 230037 (199505 – 999999)

PNC and OE references

PNCPart nameOE numbers
23300fuel filter assembly23300-15010
23301AFuel filter cover assembly23301-64300
23303Fuel filter element sub-assembly23303-64010
23322Drain plug (for fuel filter)23322-64020
23322AO-ring (for drain plug)23344-54010
23338Gasket (for warning switch)23344-64010
23921Fuel filter support23264-11040 · 23264-11110 · 23921-64182
84461BLiquid level warning switch84461-12060
