Toyota COROLLA 燃油泵和燃油管 — Figure 2301

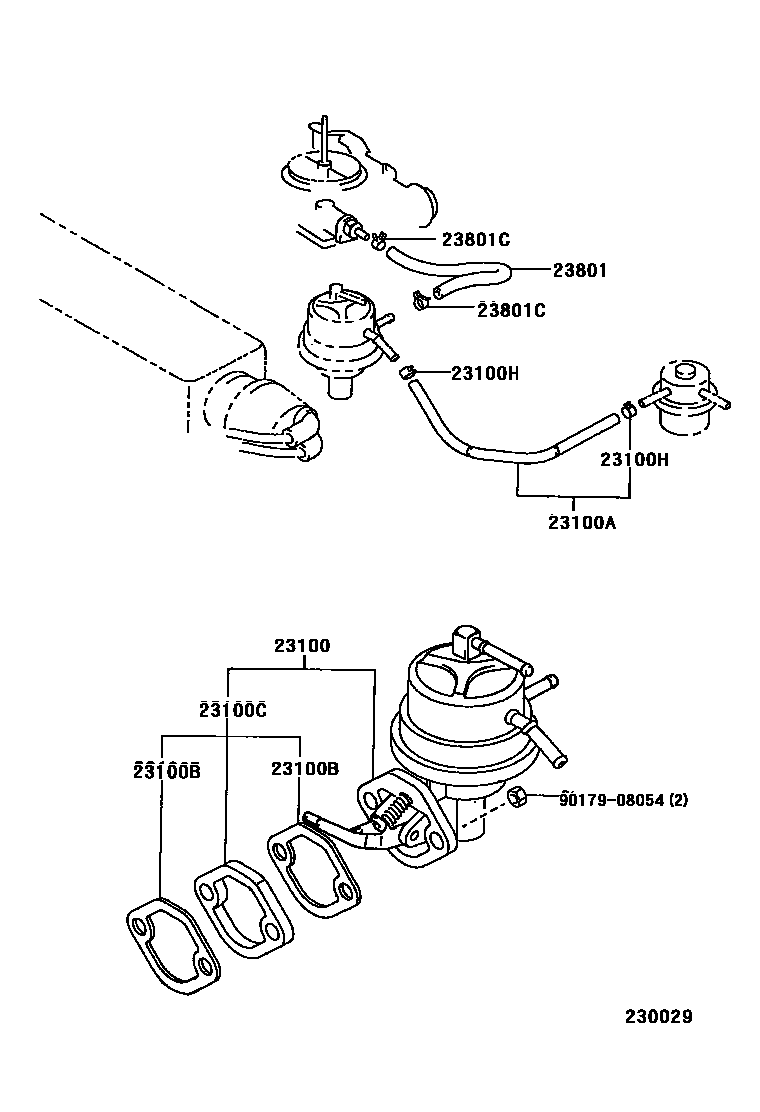

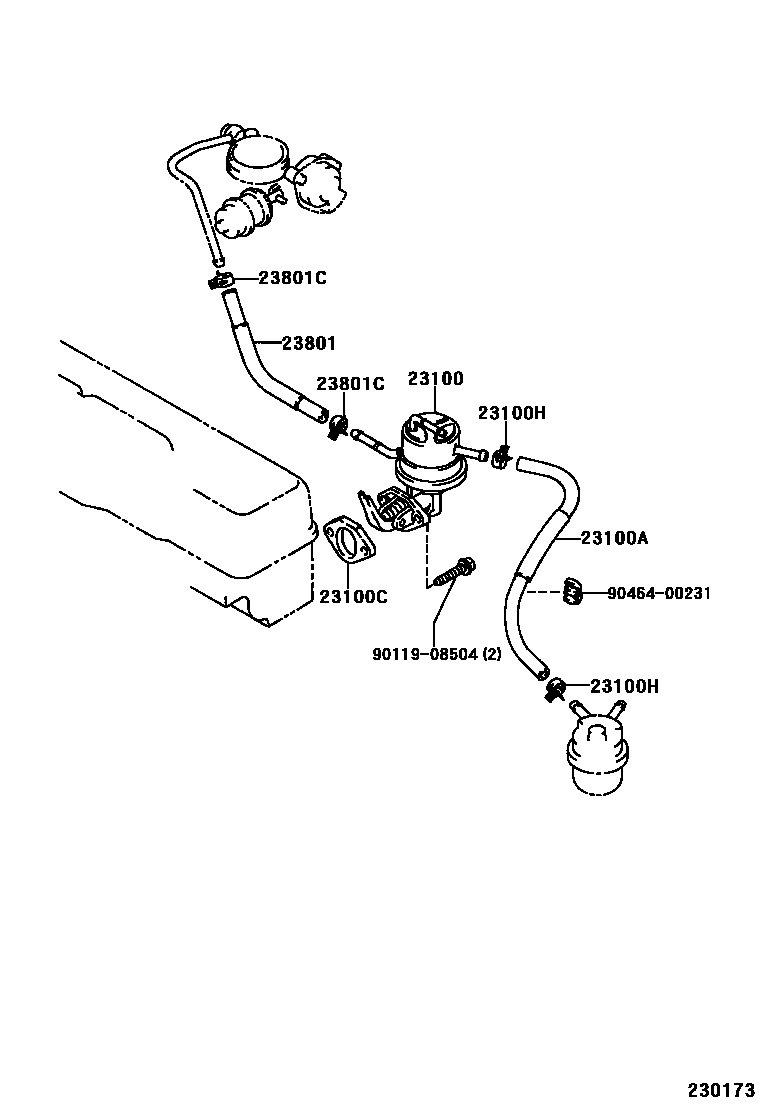

Toyota COROLLA EPC diagram 2301, 燃油泵和燃油管, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23100 | fuel pump assembly | 23100-15082 · 23100-19256 · 23100-19257 |
| 23100A | fuel hose | 23271-11180 · 95334-06040 |
| 23100B | fuel pump gasket | 90923-05024 |
| 23100C | Fuel pump vibration isolation pad | 23915-10021 · 23915-16010 |
| 23100H | Clamp (for fuel hose) | 96132-41100 |
| 23801 | No. 1 carburetor fuel pipe or hose sub-assembly | 95333-06020 · 95334-06010 · 95334-06015 |
| 23801C | Clamp (for carburetor fuel hose) | 96132-30600 · 96135-41100 |
