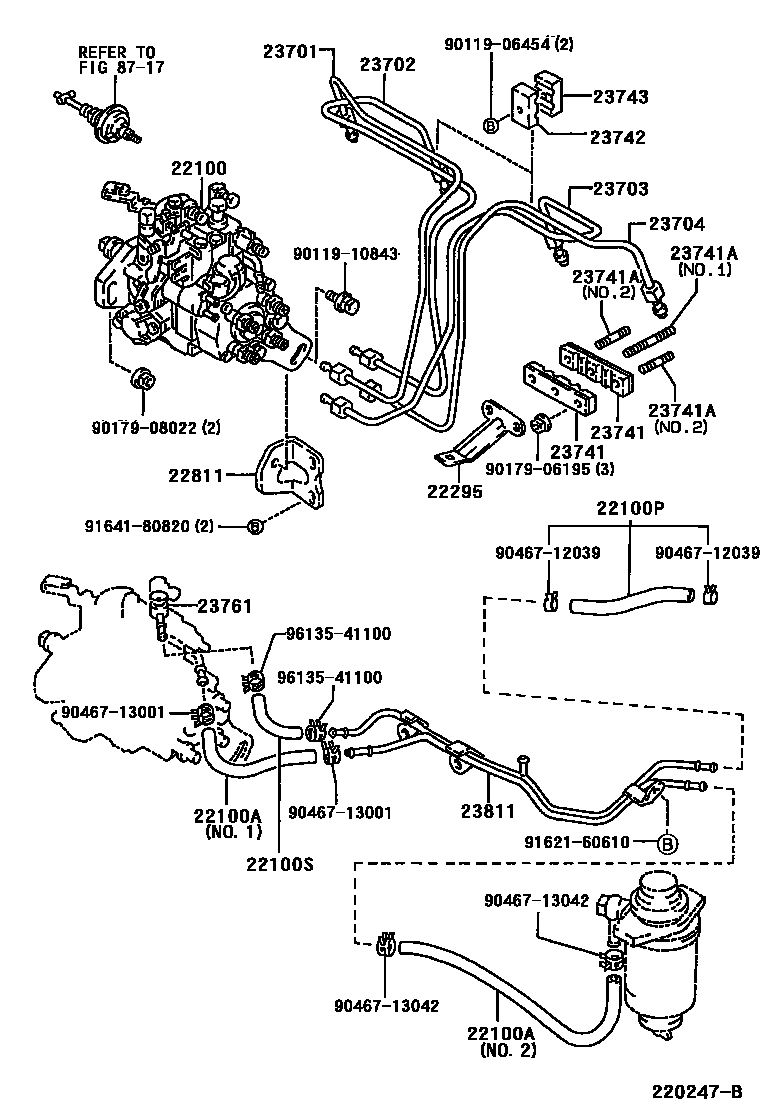

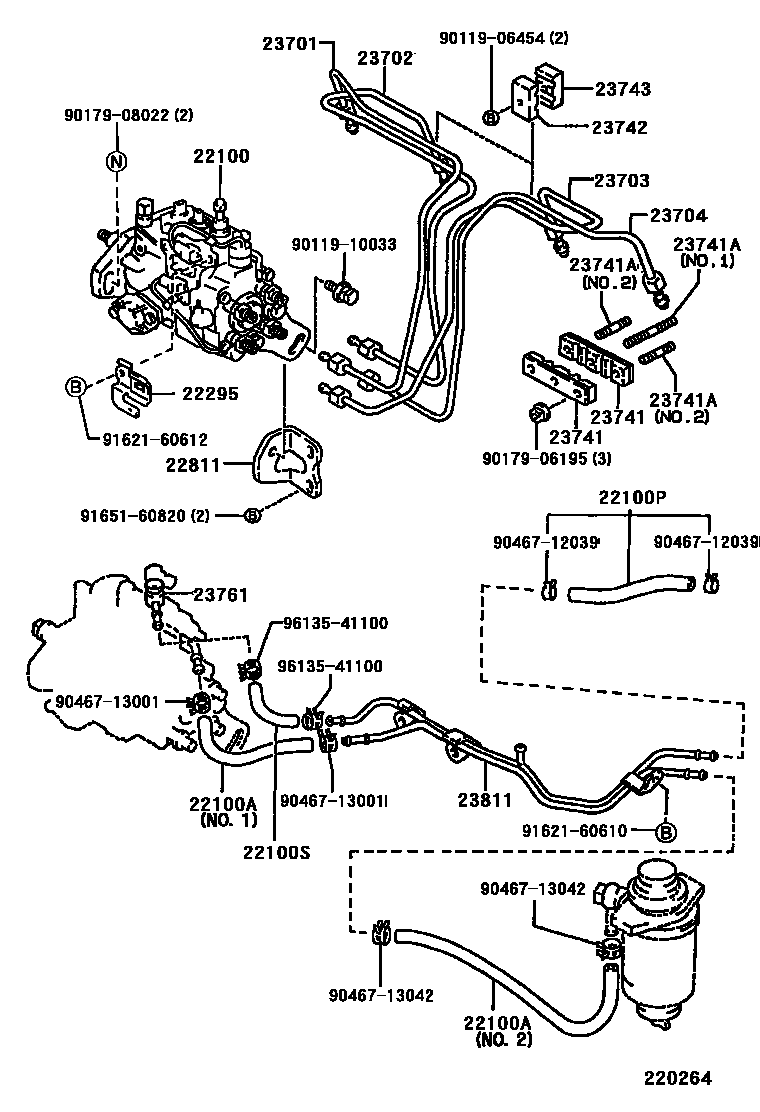

Toyota COROLLA 喷油泵总成 — Figure 2202
Toyota COROLLA EPC diagram 2202, 喷油泵总成, with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 22100 | Fuel injection pump or fuel supply pump assembly | 22100-6E150 · 22100-6E160 |
| 22100A | Fuel hose or fuel line (for injection pump to fuel filter) | 23271-64170 · 23273-64030 |
| 22100P | Fuel hose (for fuel line to fuel hose) | 23271-64160 |
| 22100S | Fuel hose (for injection pump to fuel pipe) | 23274-64020 · 95333-06020 |
| 22295 | Fuel injection pump connector bracket | 22295-64011 · 22295-64020 |
| 22811 | No. 1 fuel injection pump bracket | 22811-64020 |
| 23701 | No. 1 fuel injection pipe sub-assembly | 23701-64110 |
| 23702 | No. 2 fuel injection pipe sub-assembly | 23702-64110 |
| 23703 | No. 3 fuel injection pipe sub-assembly | 23703-64090 |
| 23704 | No. 4 fuel injection pipe sub-assembly | 23704-64110 |
| 23741 | No. 1 fuel injection pipe clamp | 23741-64010 |
| 23741A | Stud bolts (for fuel injection pipe clamp) | 90116-06275 · 92122-60622 |
| 23742 | No. 2 fuel injection pipe clamp | 23741-54010 |
| 23743 | No. 3 fuel injection pipe clamp | 23742-54010 |
| 23761 | No. 1 fuel injector overflow pipe | 23764-64030 · 23764-64110 |
| 23811 | Fuel pipe (for fuel filter to injection pump) | 23811-64090 · 23811-64120 |
