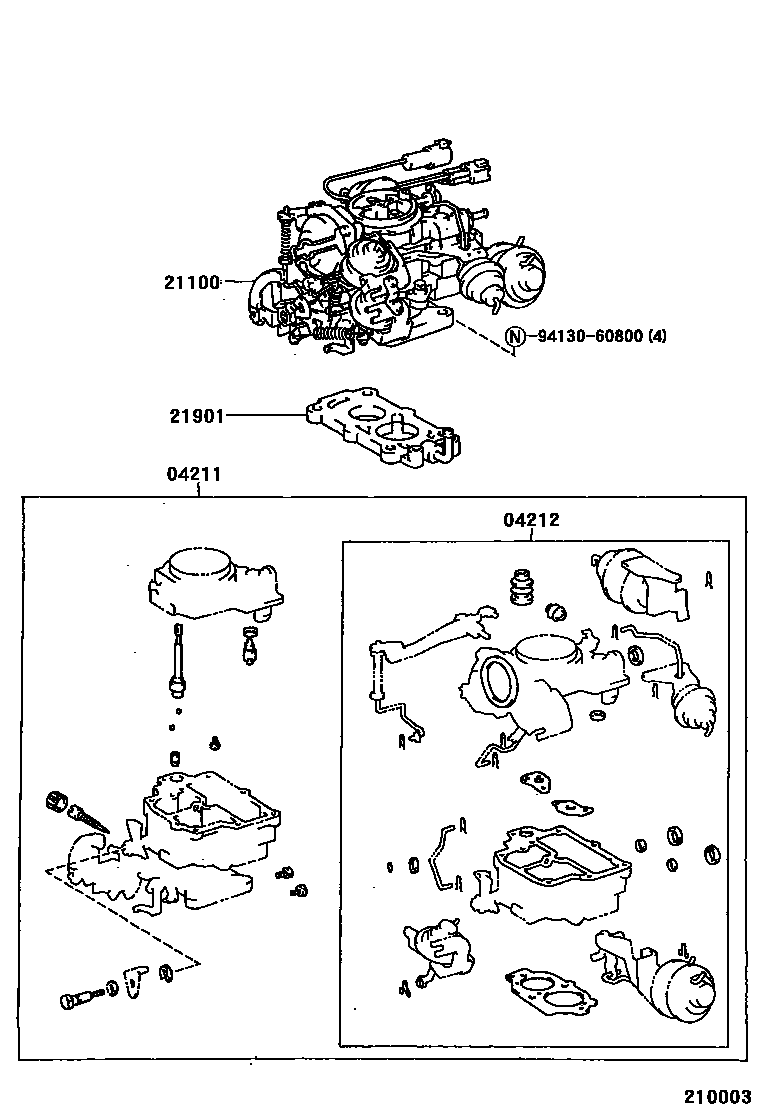

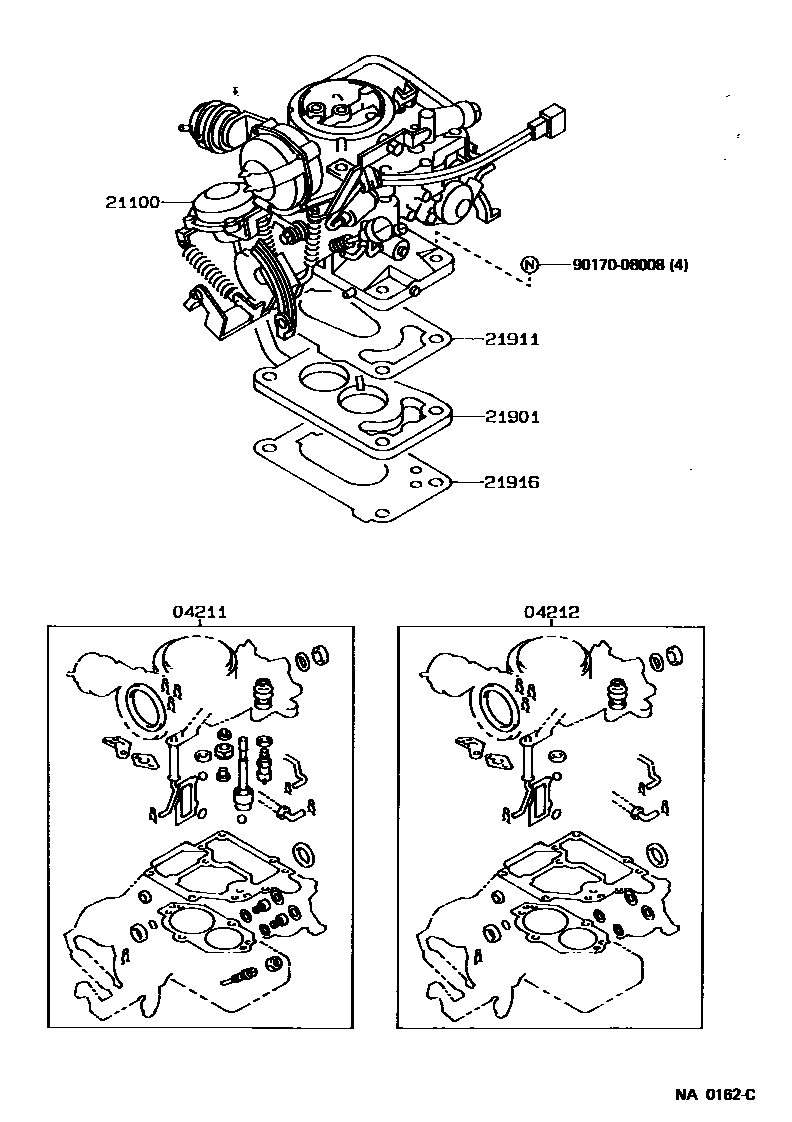

Toyota COROLLA carburetor assembly — Figure 2102
Toyota COROLLA EPC diagram 2102, carburetor assembly, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04211 | carburetor components | 04211-11200 · 04211-16152 · 04211-16172 · 04211-1B020 · 04211-1B060 |
| 04212 | carburetor gasket assembly | 04212-11071 · 04212-16011 · 04212-16071 |
| 21100 | carburetor assembly | 21100-11850 · 21100-11870 · 21100-11890 · 21100-16540 · 21100-16550 · 21100-1B040 |
| 21901 | No. 1 carburetor heat insulation pad sub-assembly | 21901-11060 · 21901-15091 |
| 21911 | carburetor gasket | 21911-15072 |
| 21916 | No. 2 carburetor gasket | 21916-15041 |
