Toyota COROLLA 点火线圈和火花塞 /电热塞 — Figure 1901

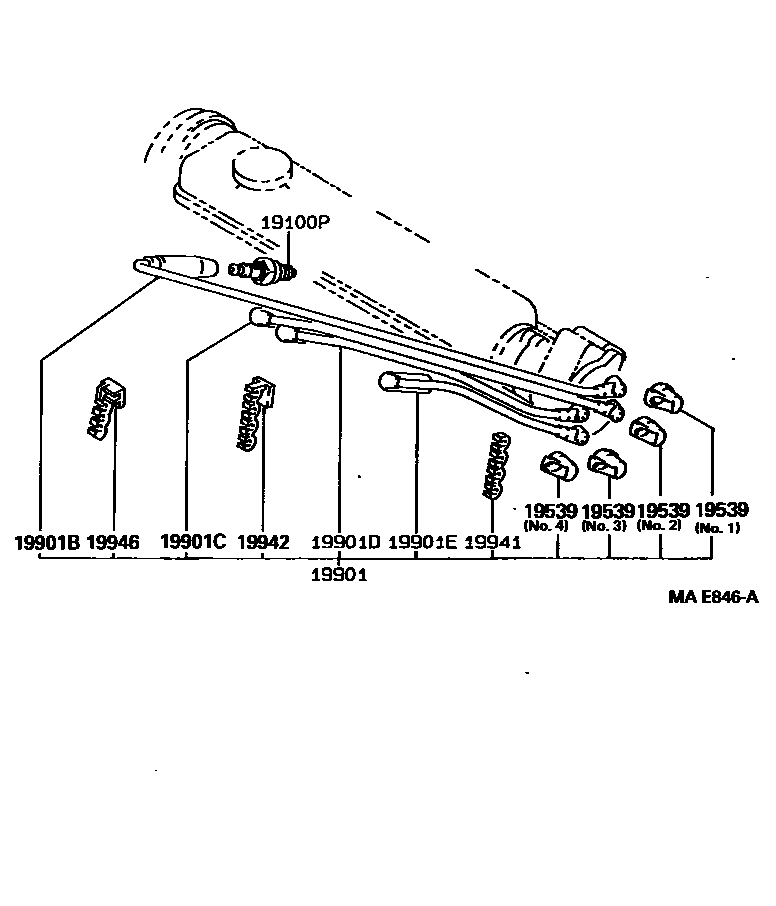

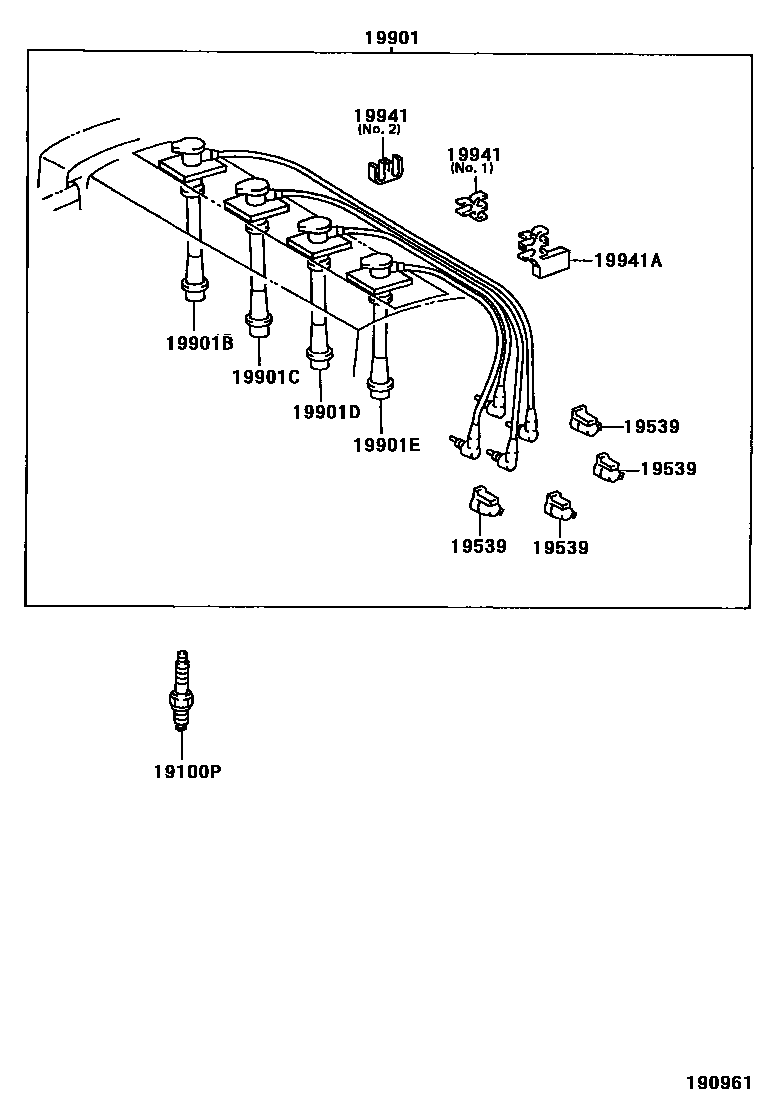

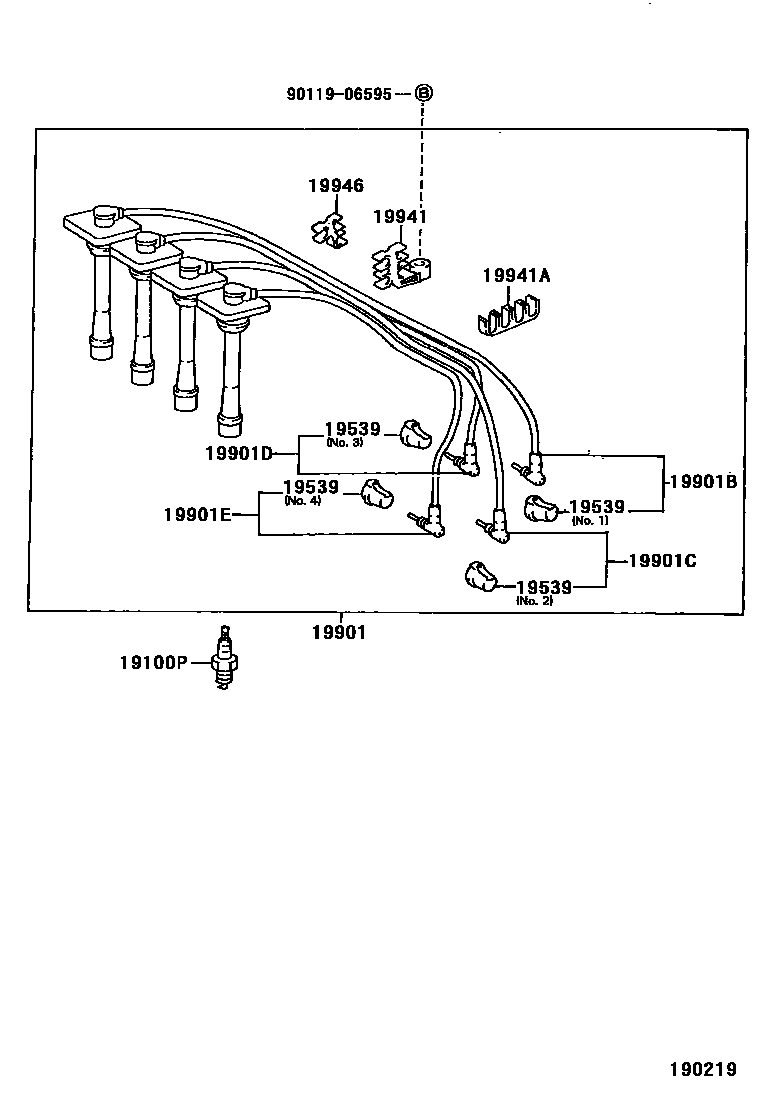

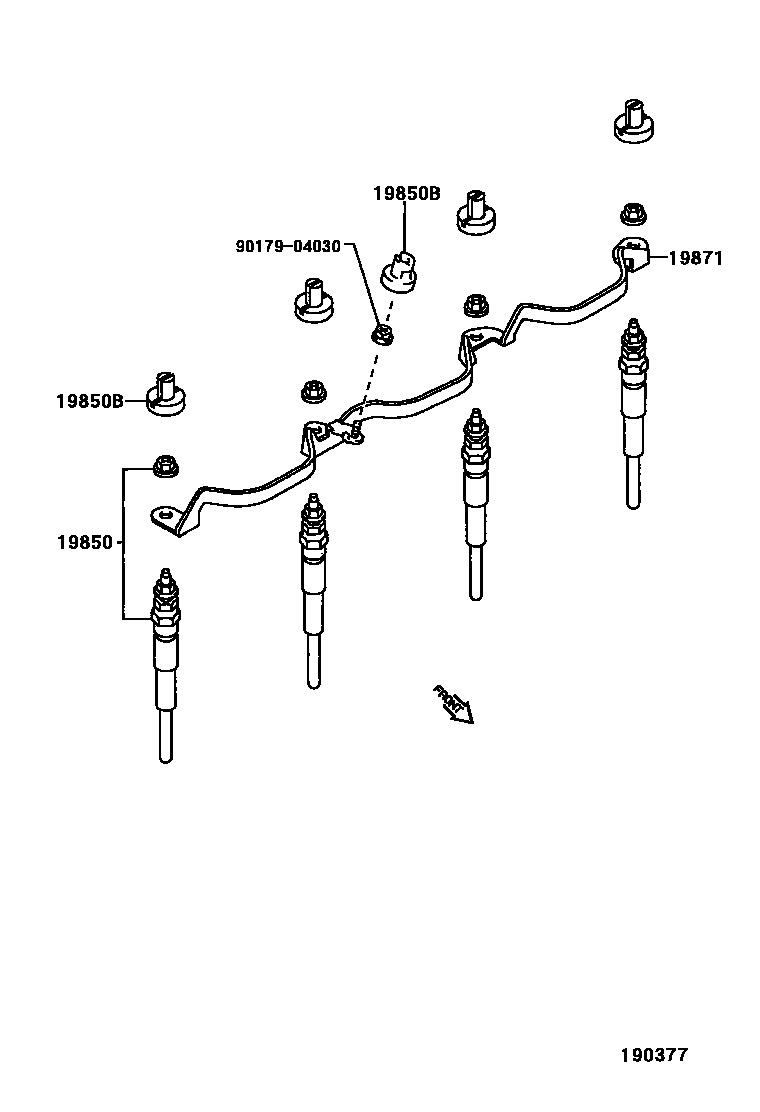

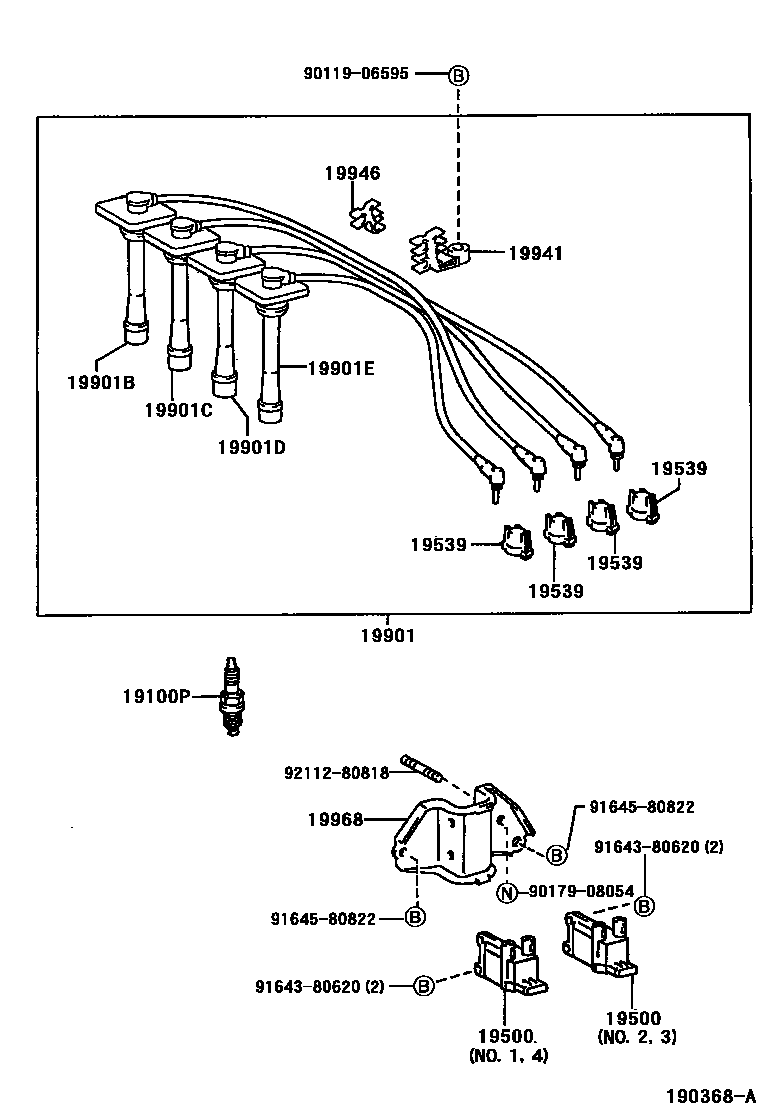

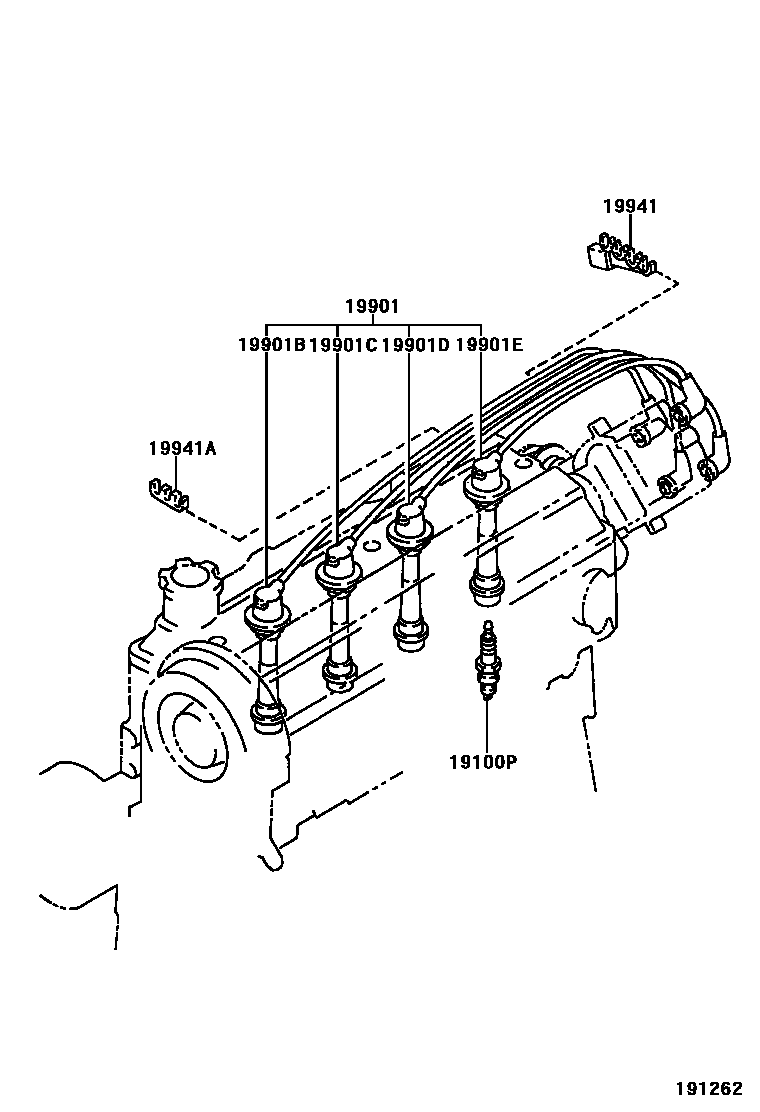

Toyota COROLLA EPC diagram 1901, 点火线圈和火花塞 /电热塞, with 8 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 19100P | spark plug | 90080-91066 · 90080-91193 · 90080-91194 · 90919-01084 · 90919-01091 · 90919-01098 · 90919-01155 · 90919-01164 · 90919-01166 · 90919-01176 · 90919-01192 |
| 19500 | Ignition coil assembly | 90080-19017 · 90080-19019 · 90919-02220 · 90919-02226 · 90919-02239 |
| 19539 | No. 4 damping wire fixing piece | 19532-50010 · 19539-11010 · 19539-11020 · 19539-11030 · 19539-46010 |
| 19850 | Glow plug assembly | 19850-64031 · 19850-64050 |
| 19850B | Screw seal (for glow plug) | 90189-04024 |
| 19871 | Glow plug connector No. 1 | 19871-64040 |
| 19901 | Coil and spark plug assembly with damper wire | 90080-91148 · 90919-22211 · 90919-22327 · 90919-22329 · 90919-22373 · 90919-22395 |
| 19901B | No. 1 spark plug damper wire | 90080-91152 · 90919-12779 · 90919-15211 · 90919-15216 · 90919-15423 · 90919-15510 |
| 19901C | No. 2 spark plug damper wire | 90080-91151 · 90919-12780 · 90919-15210 · 90919-15217 · 90919-15424 · 90919-15511 |
| 19901D | No. 3 spark plug damper wire | 90080-91150 · 90919-12781 · 90919-15209 · 90919-15218 · 90919-15425 · 90919-15512 |
| 19901E | No. 4 spark plug damper wire | 90080-91149 · 90919-12782 · 90919-15202 · 90919-15208 · 90919-15219 · 90919-15513 |
| 19941 | No. 1 damping wire clip | 90464-00561 · 90464-00637 · 90464-00655 · 90929-01258 · 90929-01274 |
| 19941A | Clamp (for damping wire) | 90464-00287 · 90464-00559 · 90929-01273 |
| 19942 | No. 2 damping wire clip | 90464-00639 |
| 19946 | No. 3 impedance wire clip | 90464-00561 · 90464-00638 |
| 19968 | Ignition coil bracket | 19968-11030 |
