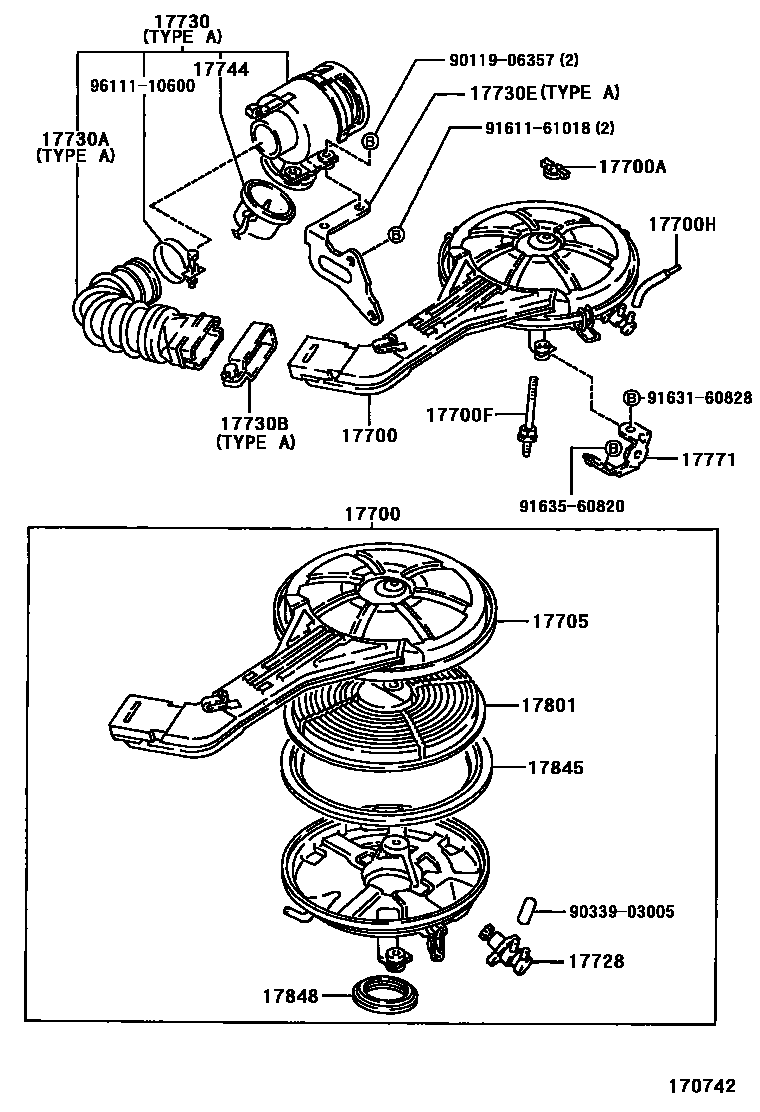

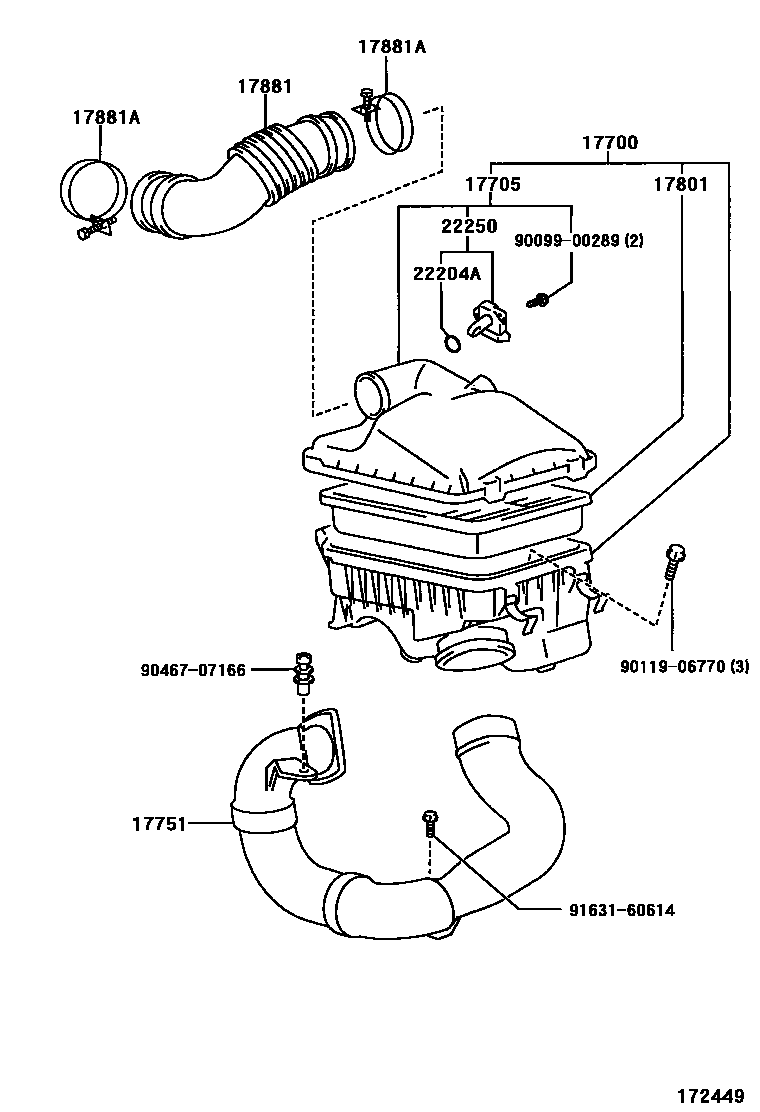

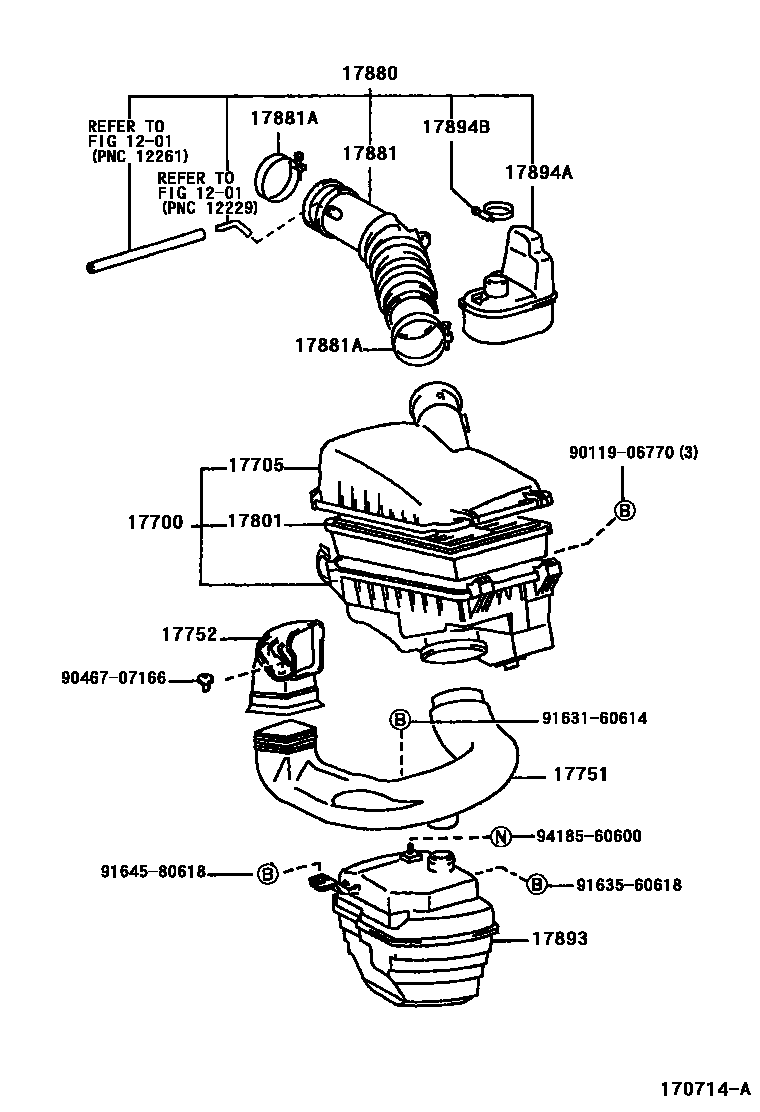

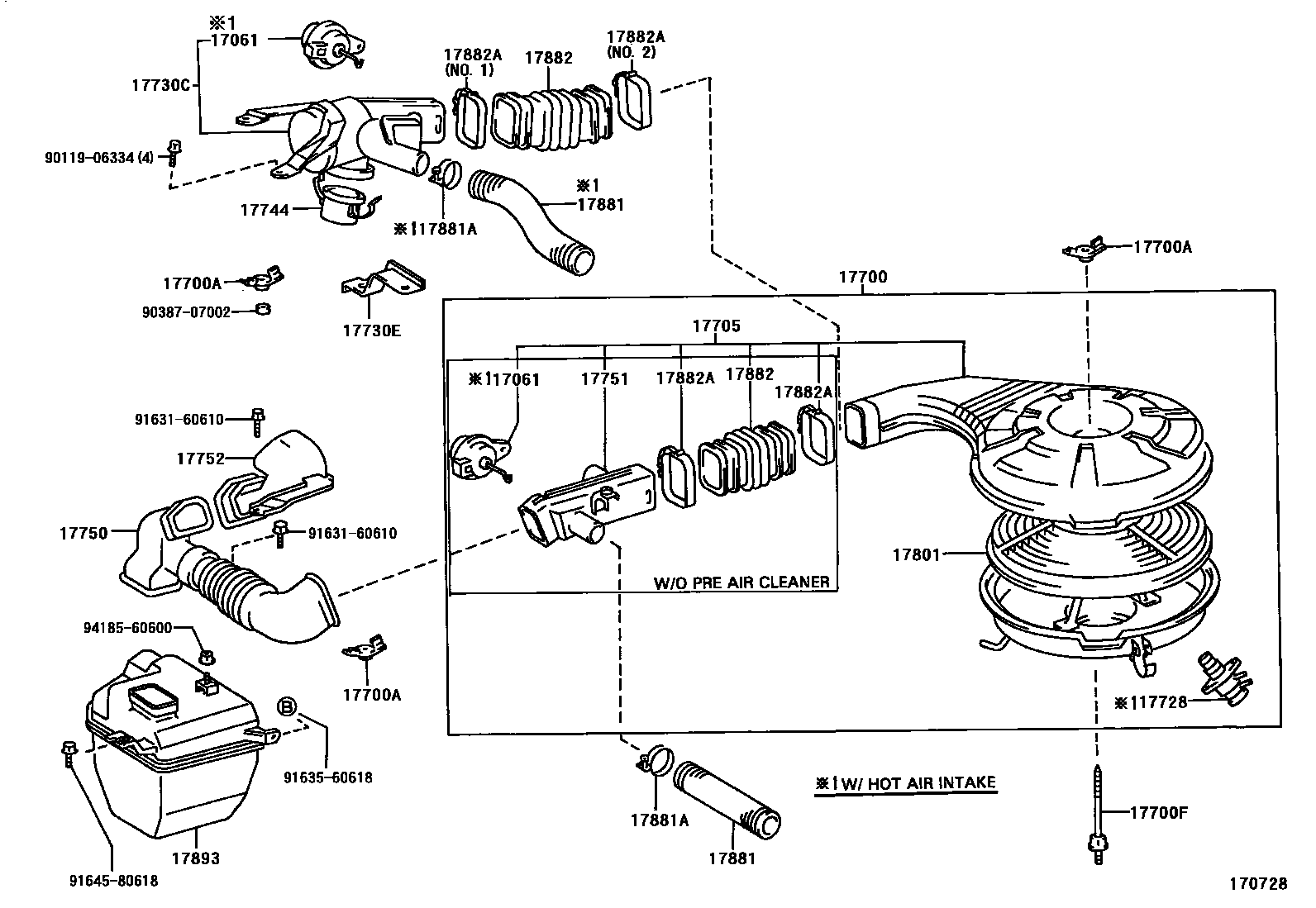

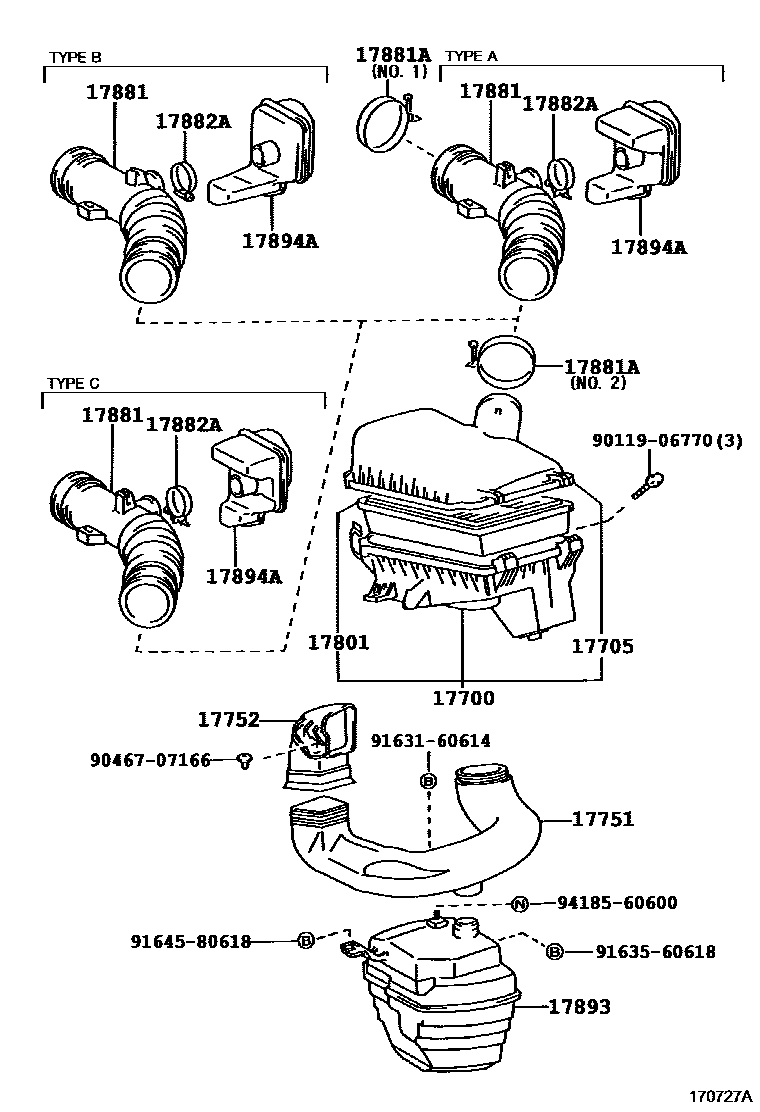

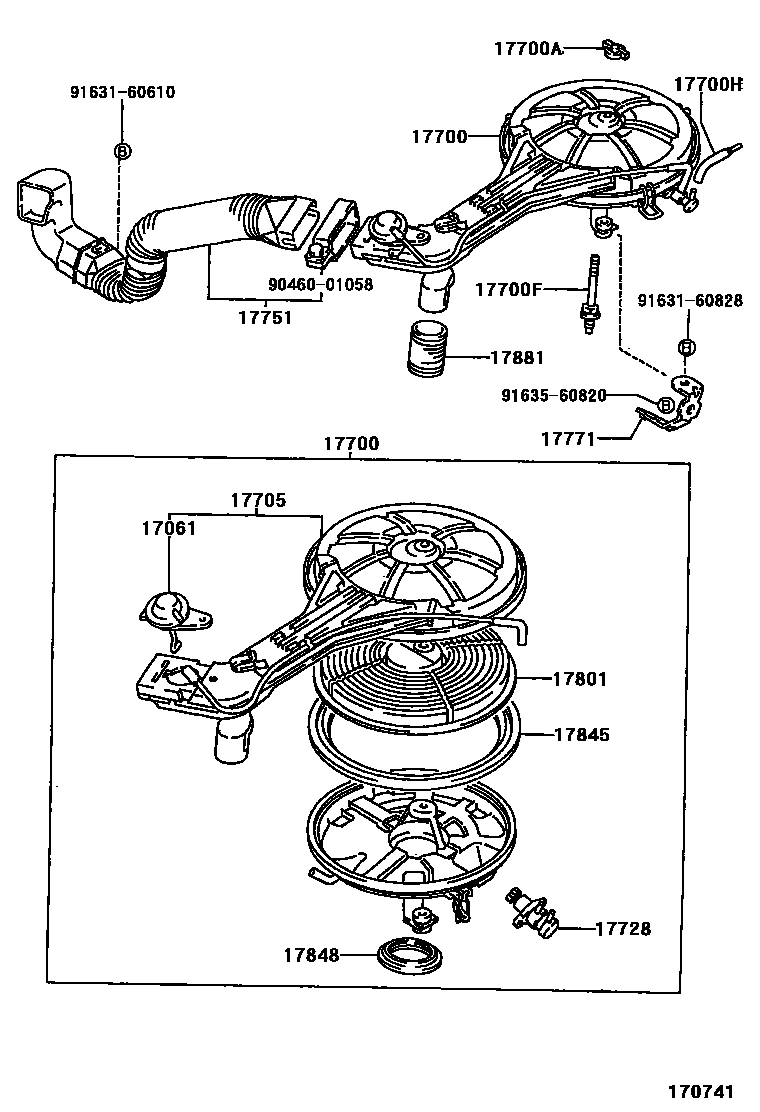

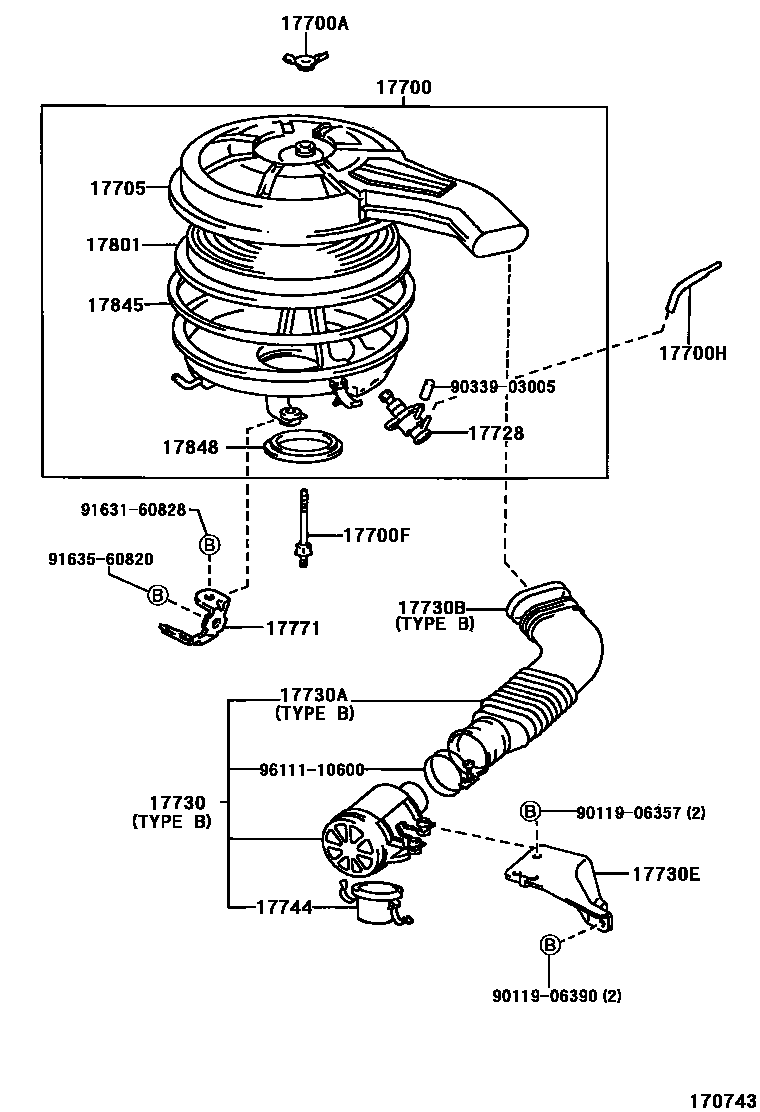

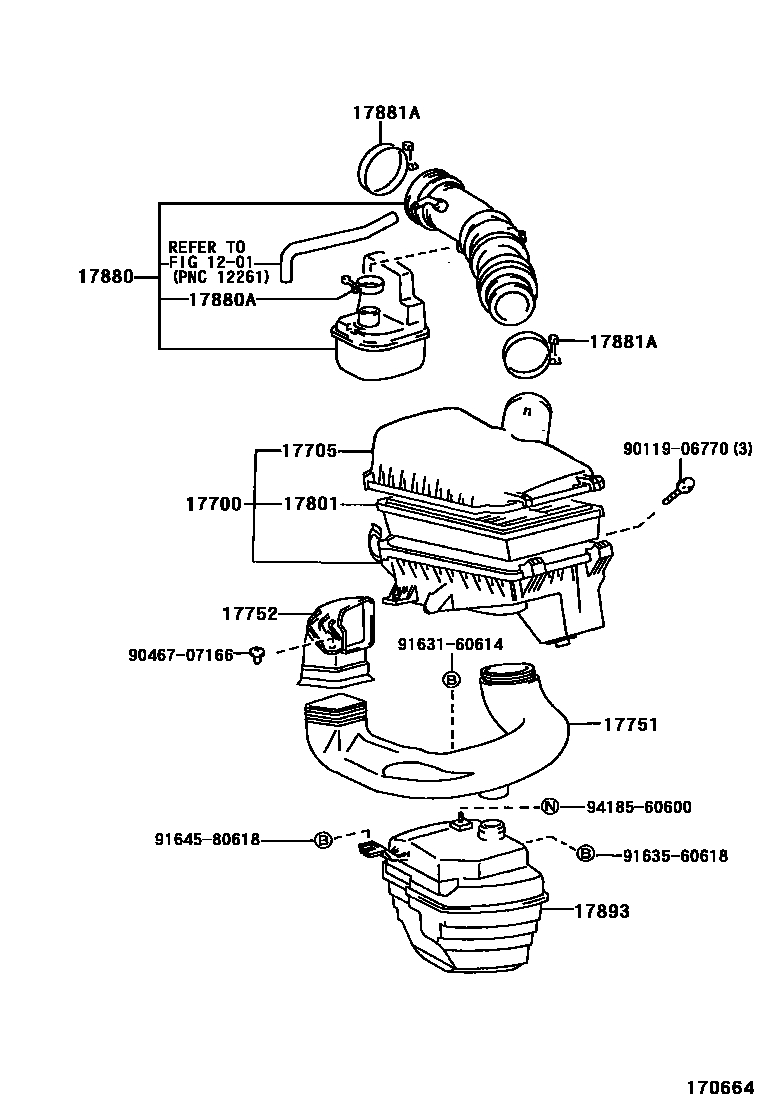

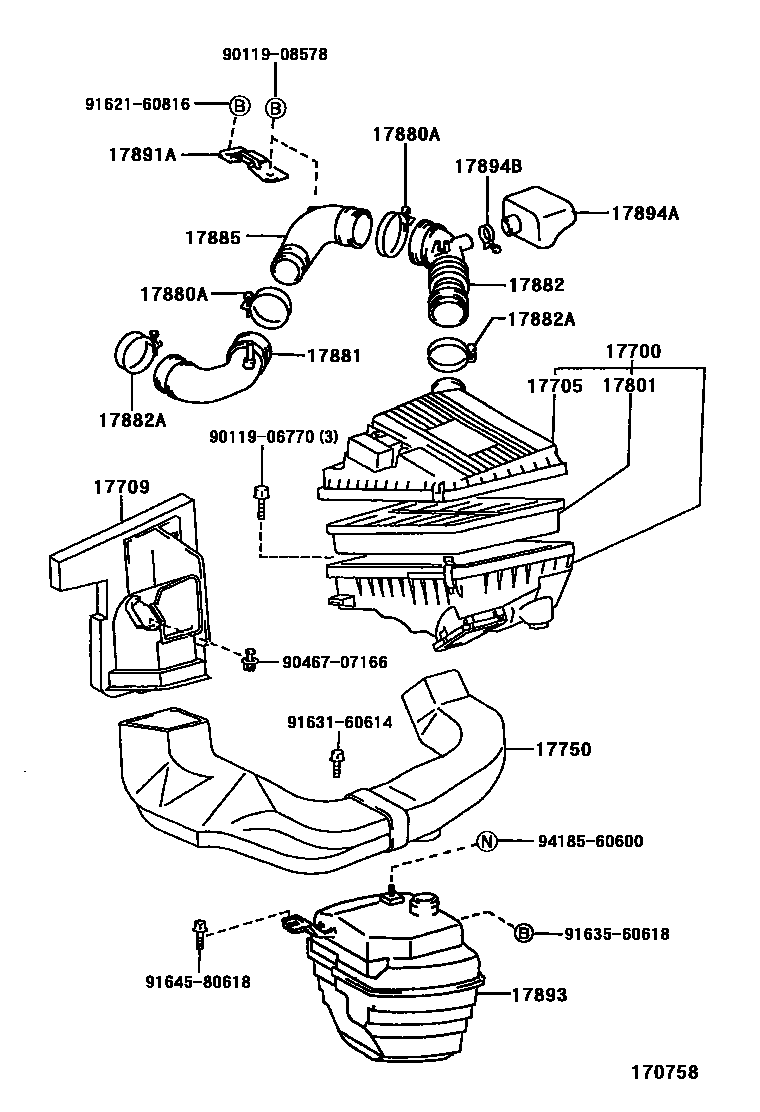

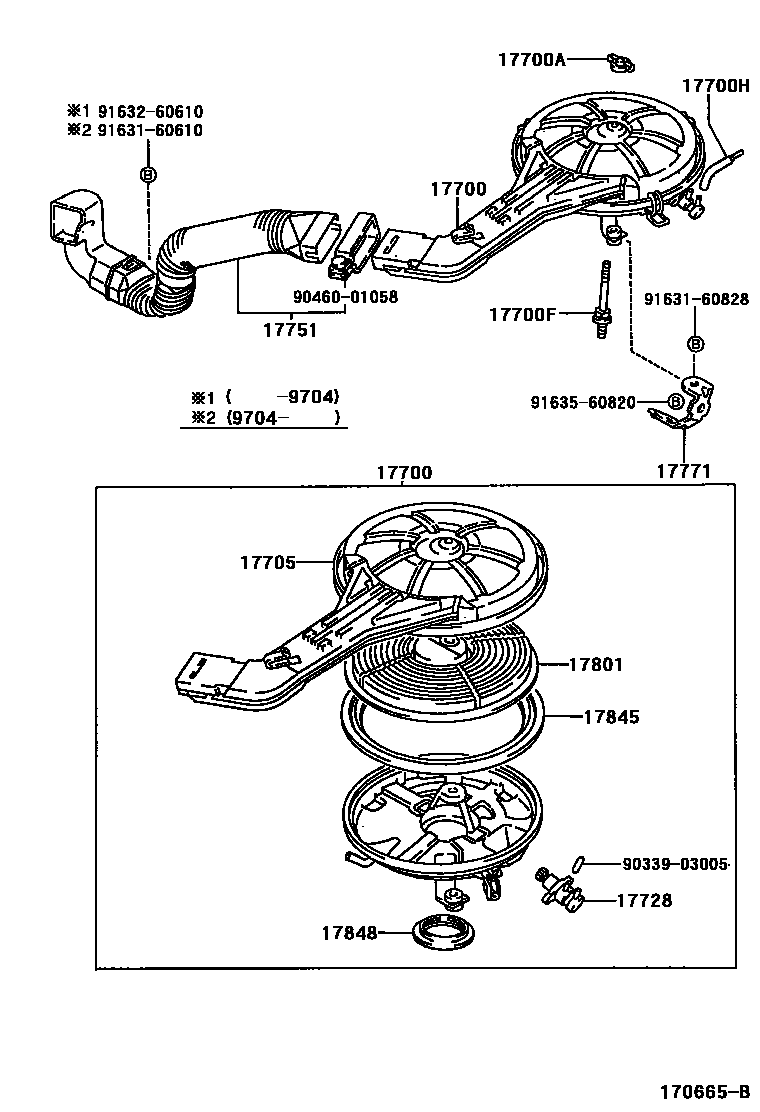

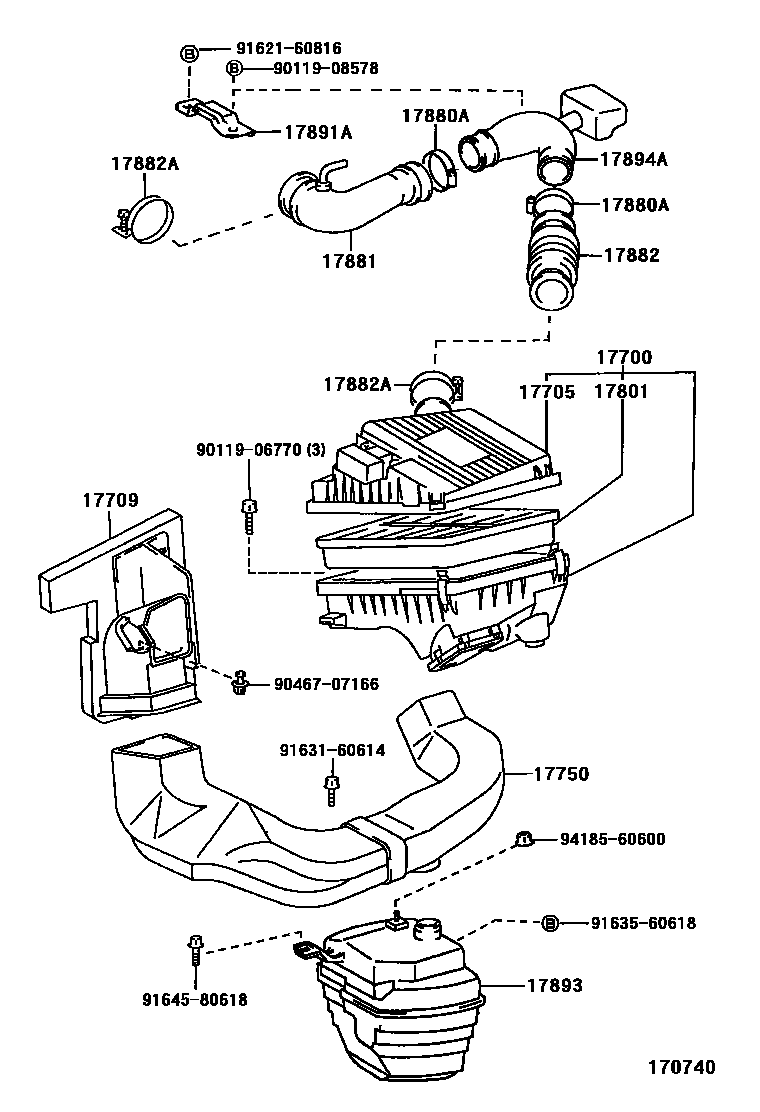

Toyota COROLLA Air Cleaner — Figure 1703
Toyota COROLLA EPC diagram 1703, Air Cleaner, with 11 images and 34 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17061 | Diaphragm sub-assembly | 17061-10010 · 17061-15040 |
| 17700 | air filter assembly | 17700-11780 · 17700-11790 · 17700-11800 · 17700-11890 · 17700-15340 · 17700-15360 · 17700-16840 · 17700-16850 · 17700-16860 · 17700-16870 · 17700-1B040 · 17700-22070 · 17700-64390 · 17700-64391 · 17700-64401 |
| 17700A | Wing nut (for air cleaner) | 90175-06010 |
| 17700F | Stud bolt (for securing air filter) | 90116-06018 · 90116-06142 |
| 17700H | air hose | 17341-10010 |
| 17705 | Air filter cover sub-assembly | 17705-11190 · 17705-11360 · 17705-11370 · 17705-11550 · 17705-11600 · 17705-15180 · 17705-15190 · 17705-16450 · 17705-16460 · 17705-16470 · 17705-16480 · 17705-22080 · 17705-64270 · 17705-64271 · 17705-64281 |
| 17709 | Air filter air inlet sub-assembly | 17709-64020 |
| 17728 | thermostat valve | 17728-11080 · 17728-16010 |
| 17730 | Air pre-filter assembly with hose | 17730-11050 · 17730-11060 |
| 17730A | Coarse filter hose | 17881-11080 · 17881-11390 |
| 17730B | Hose clamp (for primary filter hose) | 90460-01005 · 90460-01058 |
| 17730C | Coarse filter housing | 17736-16090 · 17736-16100 |
| 17730E | No. 1 coarse filter holder | 17741-11010 · 17741-11030 · 17741-16030 |
| 17744 | Coarse filter cup | 17744-16020 |
| 17750 | Air filter air inlet cover seal assembly | 17750-16020 · 17750-64020 |
| 17751 | No. 1 air filter air inlet | 17750-11040 · 17751-15010 · 17751-15050 · 17751-15070 · 17751-16010 · 17751-22040 |
| 17752 | No. 2 air filter air inlet | 17752-15030 · 17753-16030 |
| 17771 | Air filter inlet pipe bracket | 17771-11020 |
| 17801 | Air filter element sub-assembly | 17801-02030 · 17801-11090 · 17801-11100 · 17801-15060 · 17801-15070 · 17801-64070 |
| 17845 | air cleaner cover gasket | 17845-10020 |
| 17848 | Gasket from air cleaner to carburetor | 17848-10021 |
| 17880 | Air cleaner hose assembly | 17880-11260 · 17880-11350 |
| 17880A | hose clamp | 96111-10380 · 96111-10630 |
| 17881 | No. 1 air cleaner hose | 17881-02040 · 17881-10033 · 17881-11560 · 17881-15150 · 17881-15190 · 17881-15200 · 17881-22040 · 17881-64300 · 17881-64360 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 90460-73001 · 90460-73009 · 96111-10460 · 96111-10690 · 96111-10730 |
| 17882 | No. 2 air cleaner hose | 17881-15140 · 17881-16180 · 17882-64070 · 17882-64110 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 17786-15010 · 17786-16010 · 90080-46146 · 96111-10380 · 96111-10480 · 96111-10650 |
| 17885 | air cleaner tube | 17885-64010 |
| 17891A | Air filter hose clamp | 17891-64020 |
| 17893 | Intake resonator | 17893-15050 · 17893-16150 |
| 17894A | No. 2 intake resonator | 17894-02020 · 17894-11130 · 17894-15040 · 17894-15050 · 17894-64040 · 17894-64070 |
| 17894B | Hose clamp (for intake resonator No. 2) | 96111-10330 · 96111-10480 |
| 22204A | O-ring (for intake air flow meter) | 90099-14141 |
| 22250 | Intake air flow meter assembly | 22204-15010 |
