Toyota COROLLA Exhaust Pipe — Figure 1702

Toyota COROLLA EPC diagram 1702, Exhaust Pipe, with 18 images and 28 PNC and OE references.

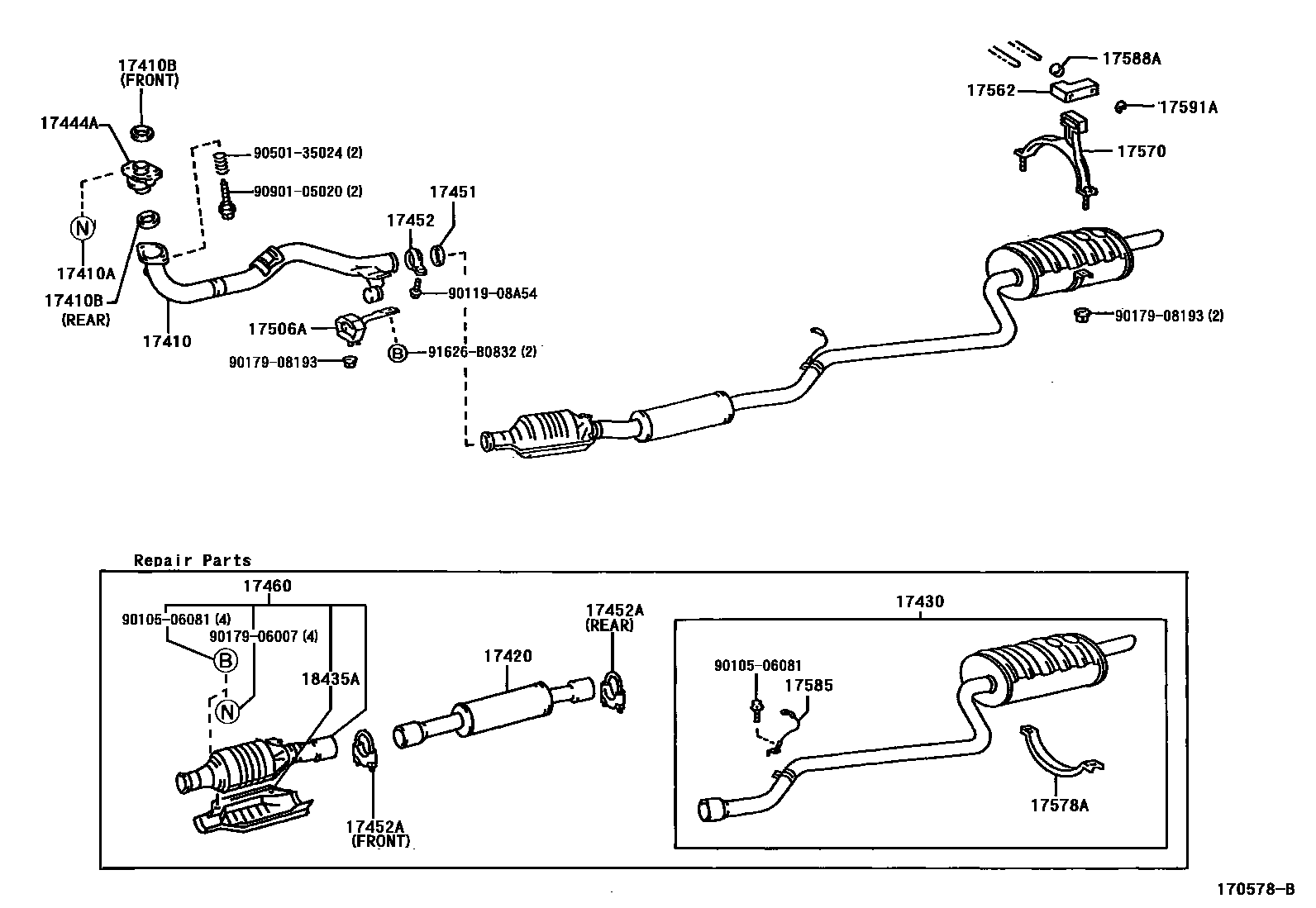

Toyota COROLLA Exhaust Pipe EPC diagram — 170578B
Exhaust Pipe — 170578B (199701 – 999999)

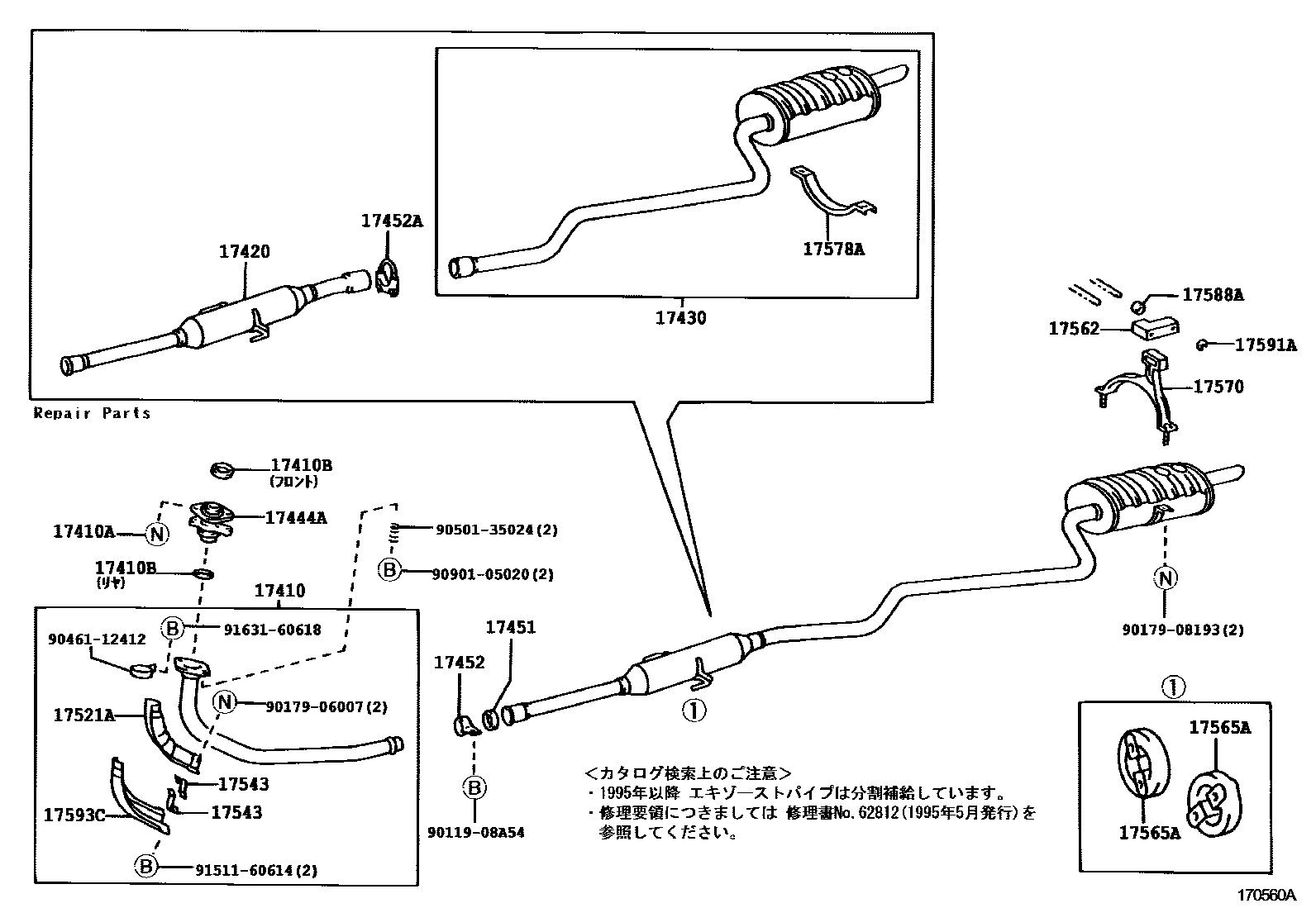

Toyota COROLLA Exhaust Pipe EPC diagram — 170650A
Exhaust Pipe — 170650A (199704 – 999999)

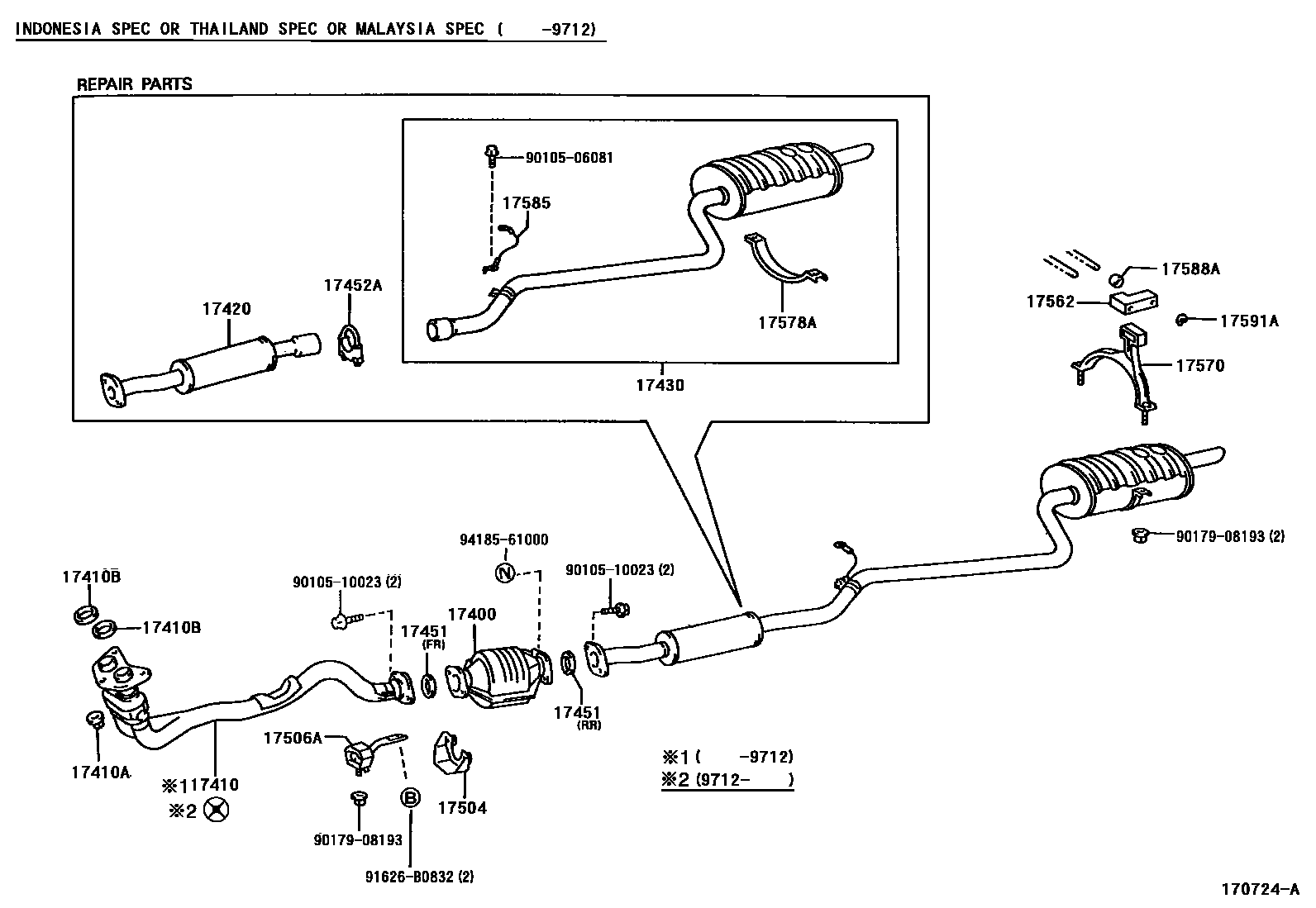

Toyota COROLLA Exhaust Pipe EPC diagram — 170724A
Exhaust Pipe — 170724A (199704 – 999999)

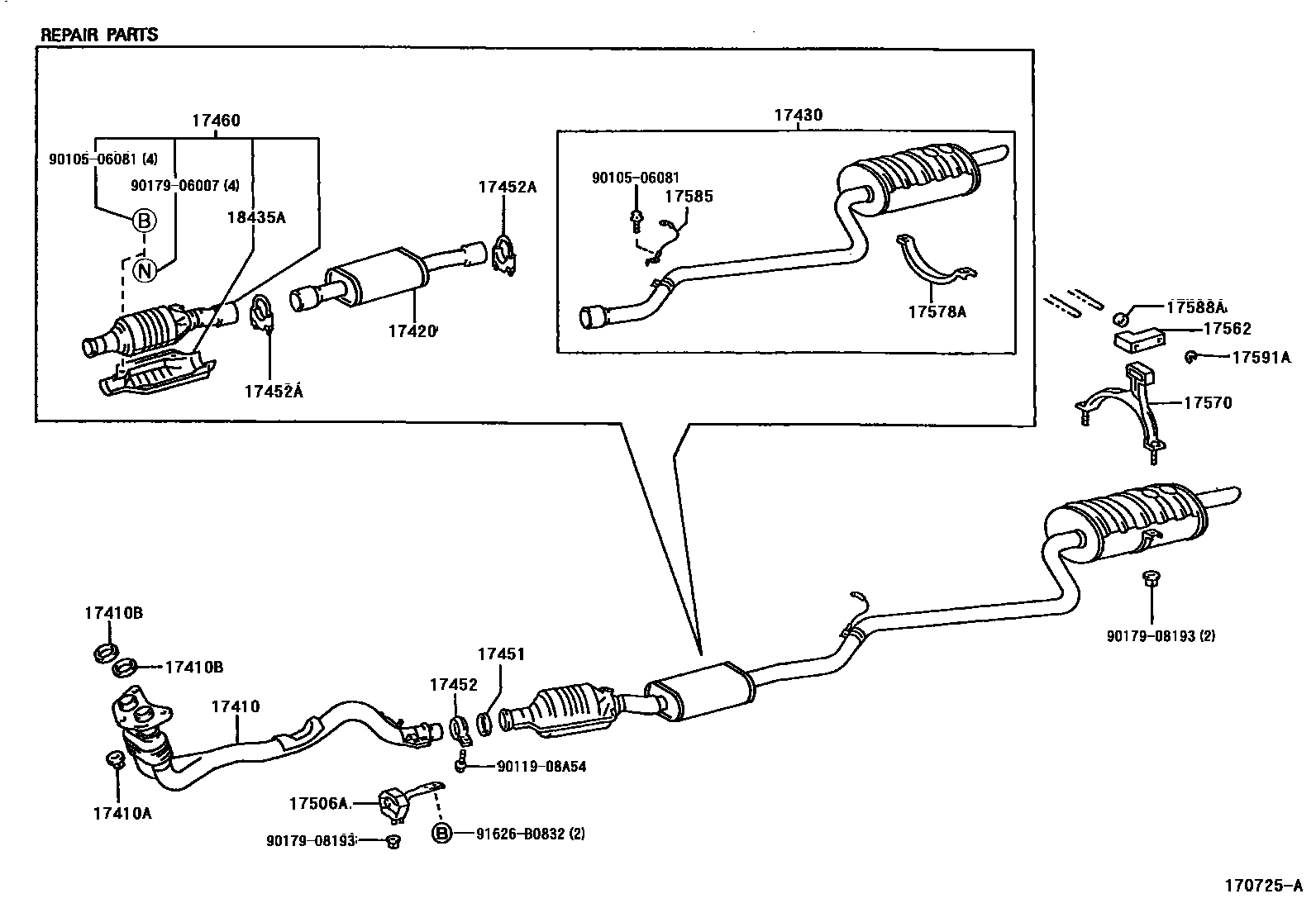

Toyota COROLLA Exhaust Pipe EPC diagram — 170725A
Exhaust Pipe — 170725A (199704 – 999999)

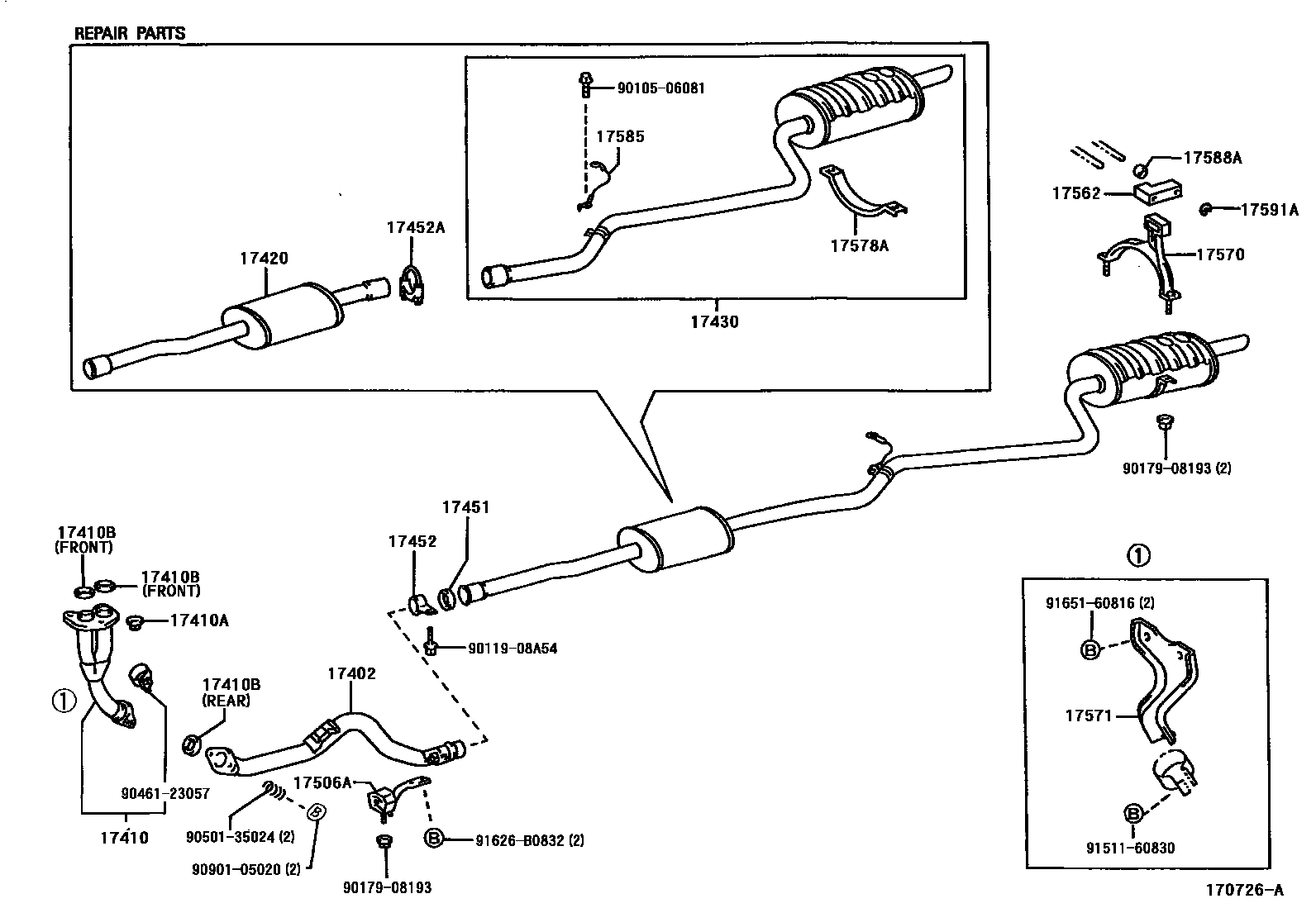

Toyota COROLLA Exhaust Pipe EPC diagram — 170726A
Exhaust Pipe — 170726A (199704 – 999999)

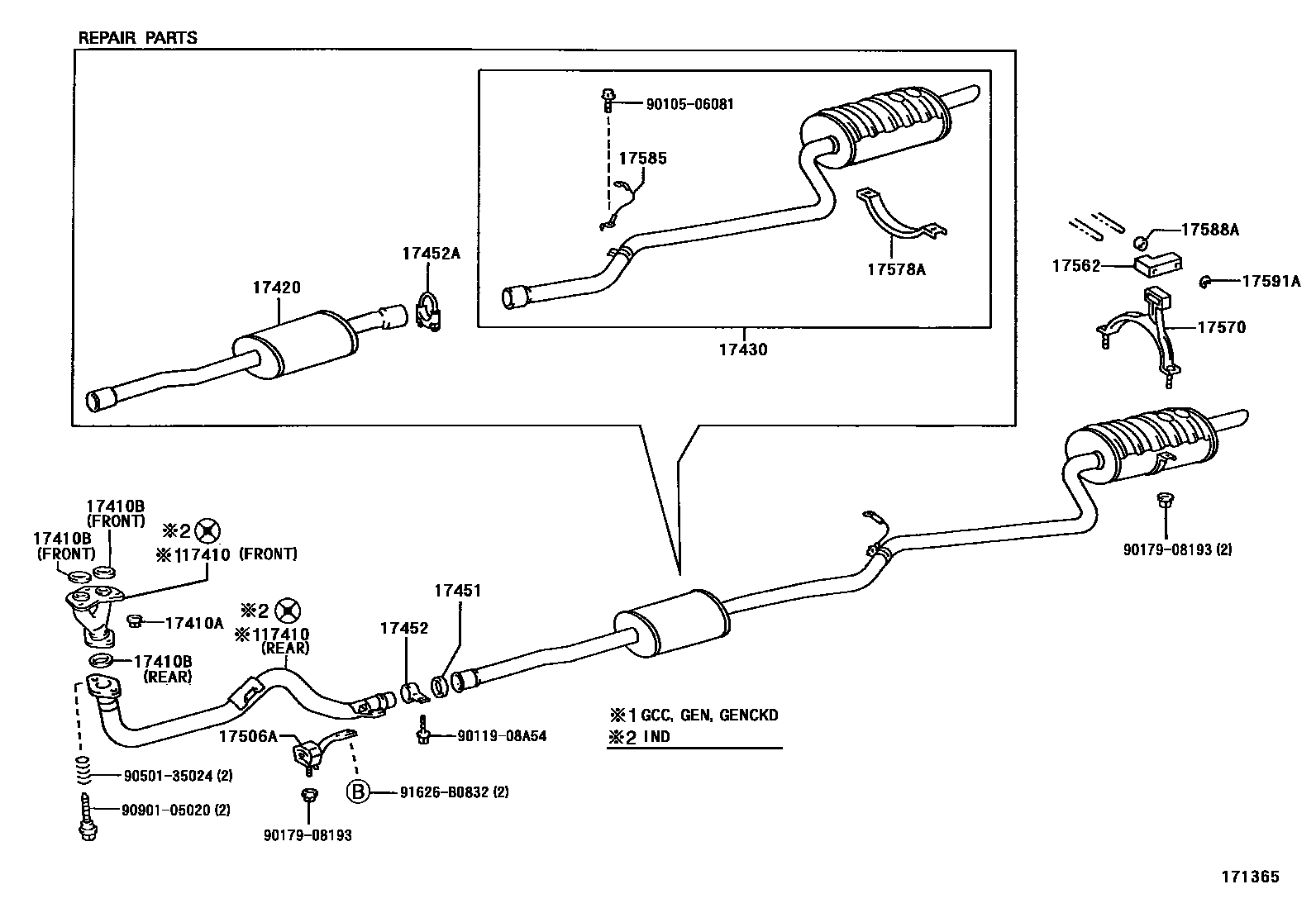

Toyota COROLLA Exhaust Pipe EPC diagram — 171365
Exhaust Pipe — 171365 (199505 – 999999)

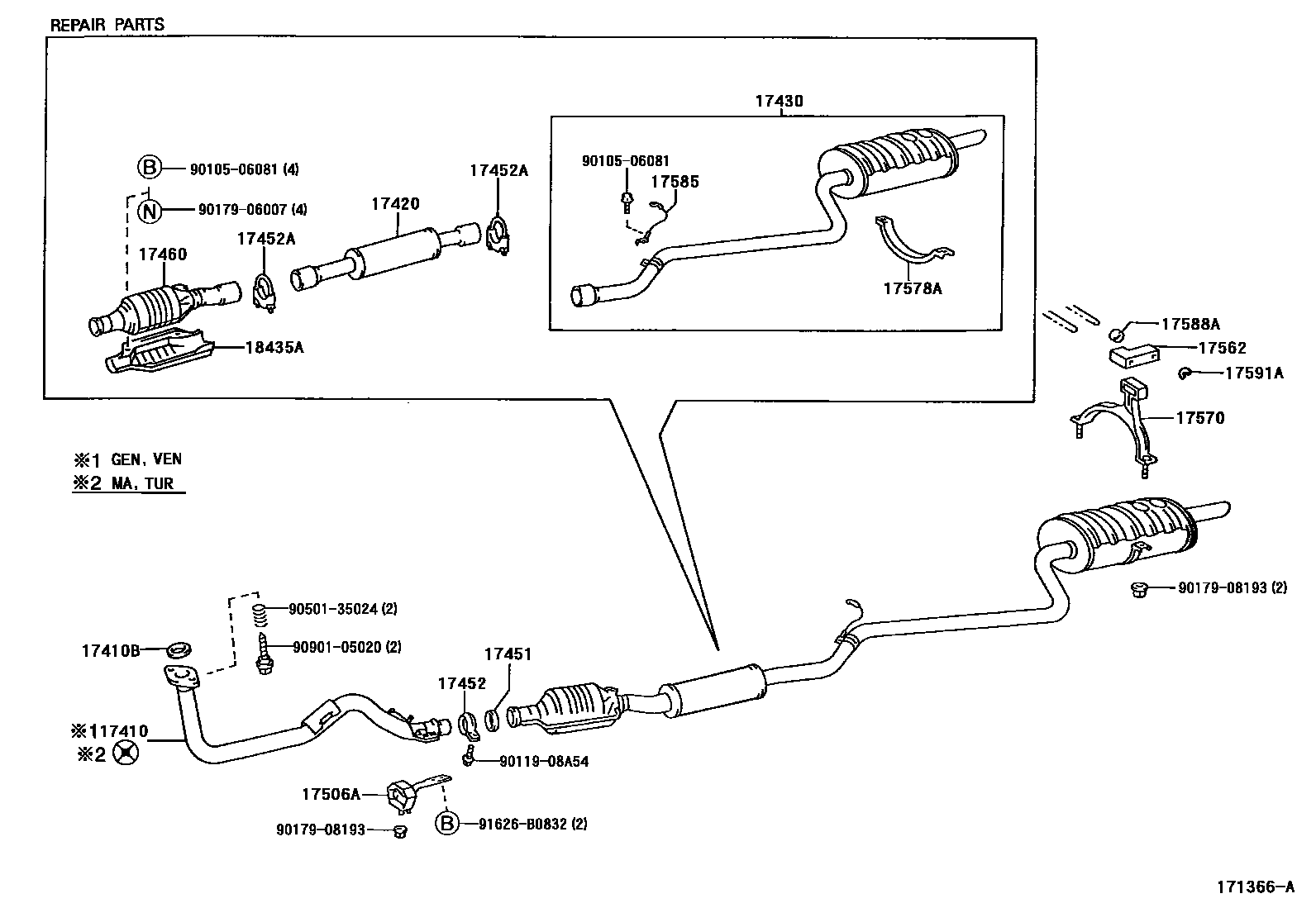

Toyota COROLLA Exhaust Pipe EPC diagram — 171366A
Exhaust Pipe — 171366A (199505 – 999999)

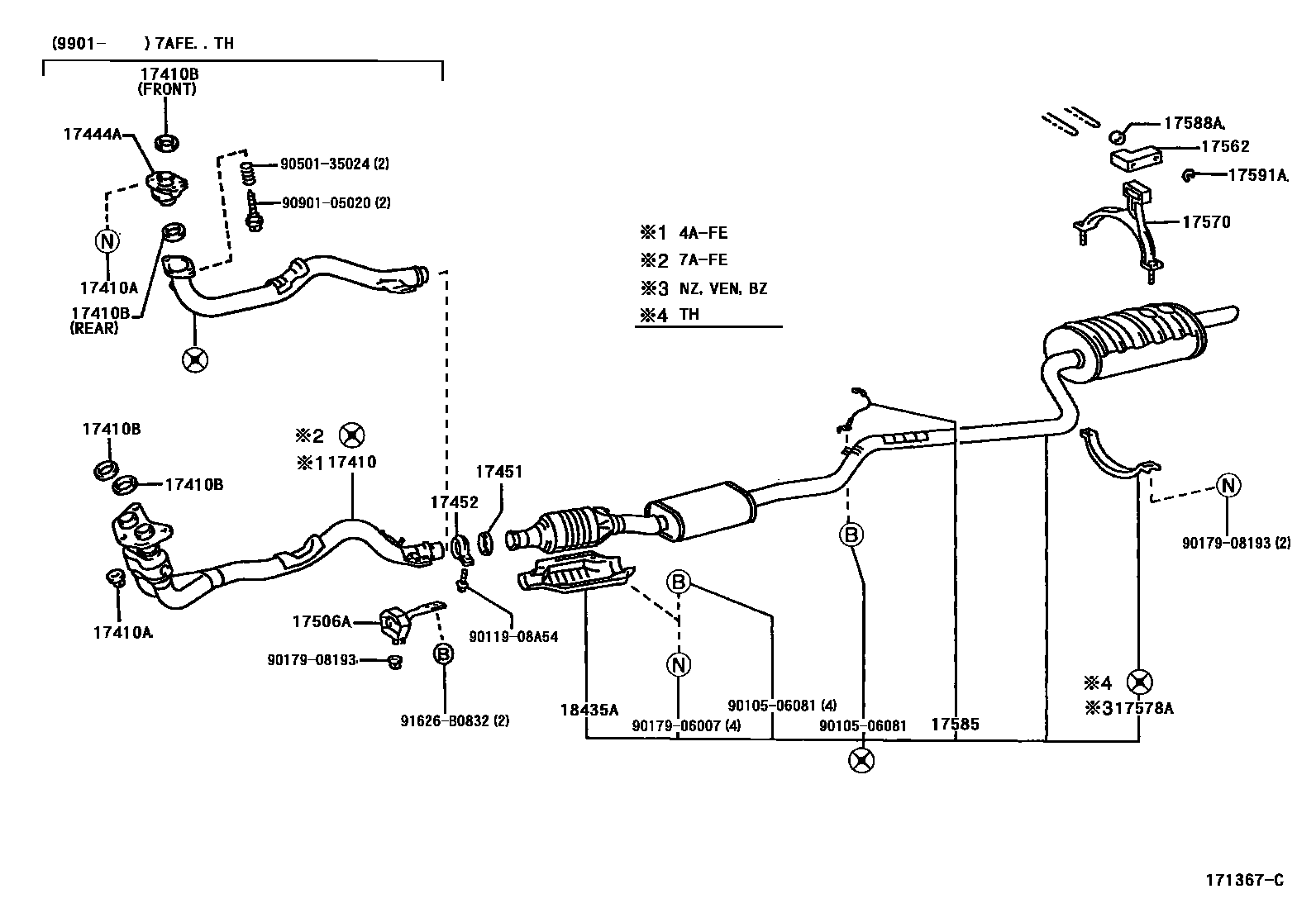

Toyota COROLLA Exhaust Pipe EPC diagram — 171367C
Exhaust Pipe — 171367C (199710 – 999999)

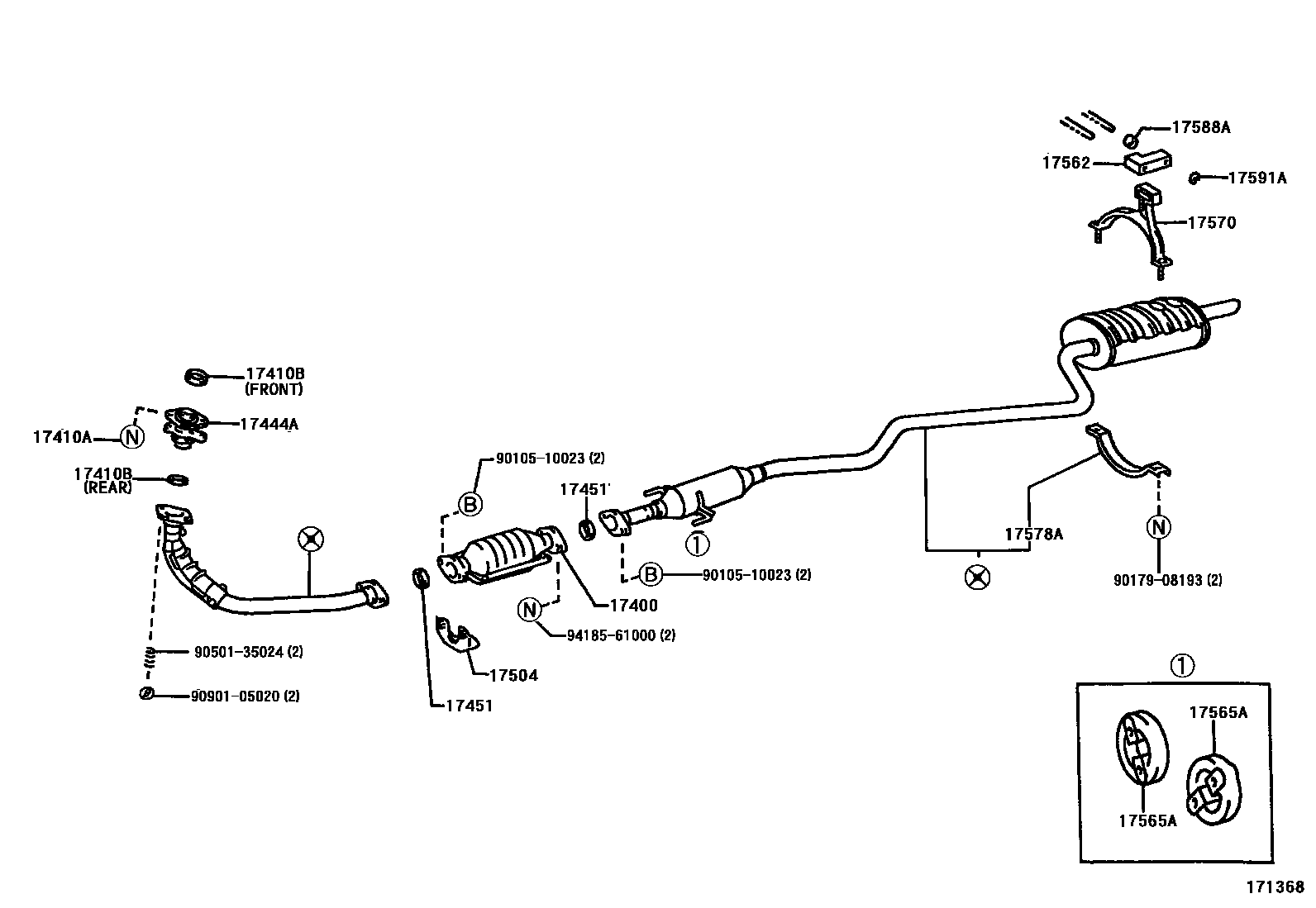

Toyota COROLLA Exhaust Pipe EPC diagram — 171368
Exhaust Pipe — 171368 (199710 – 199910)

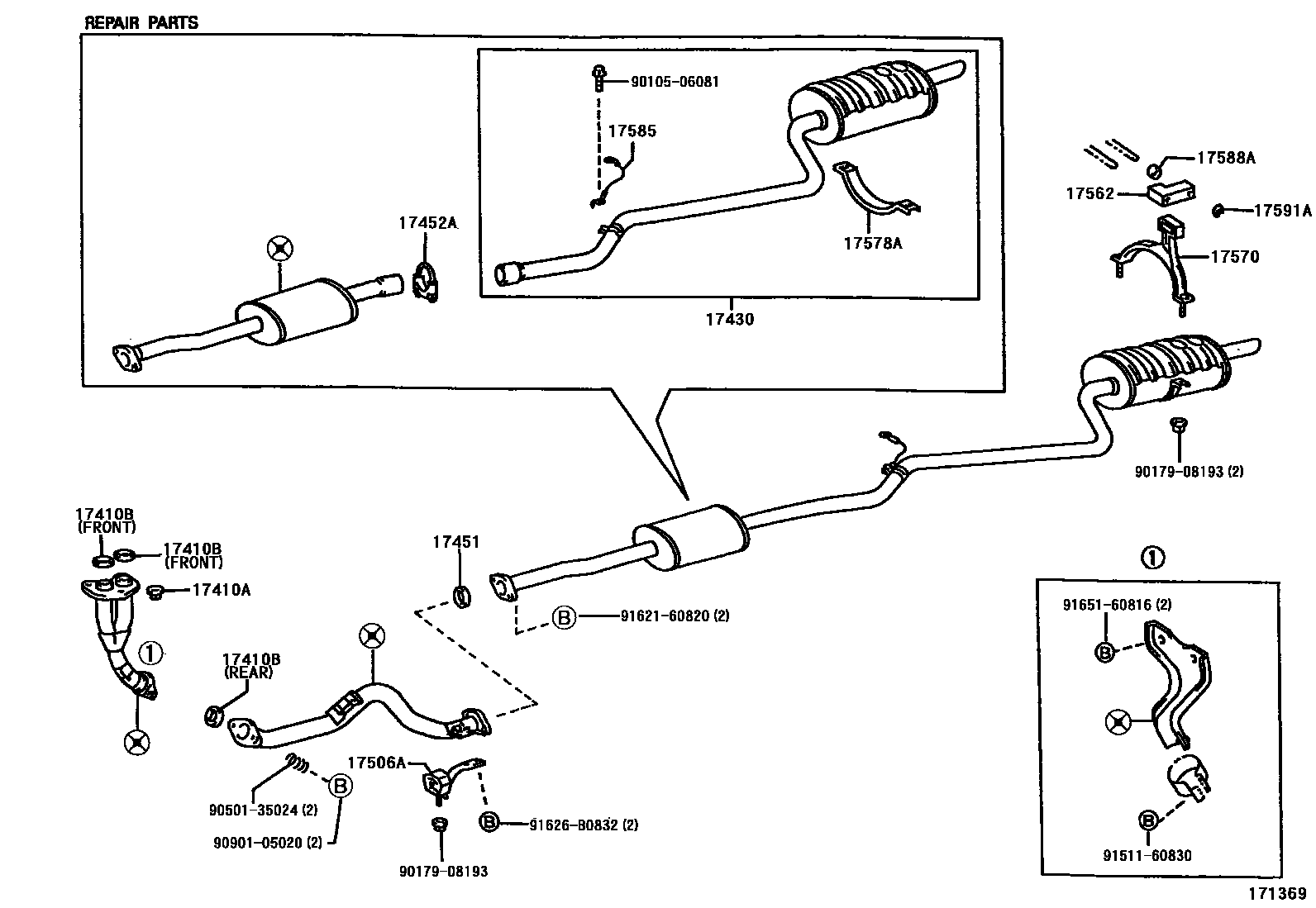

Toyota COROLLA Exhaust Pipe EPC diagram — 171369
Exhaust Pipe — 171369 (199711 – 999999)

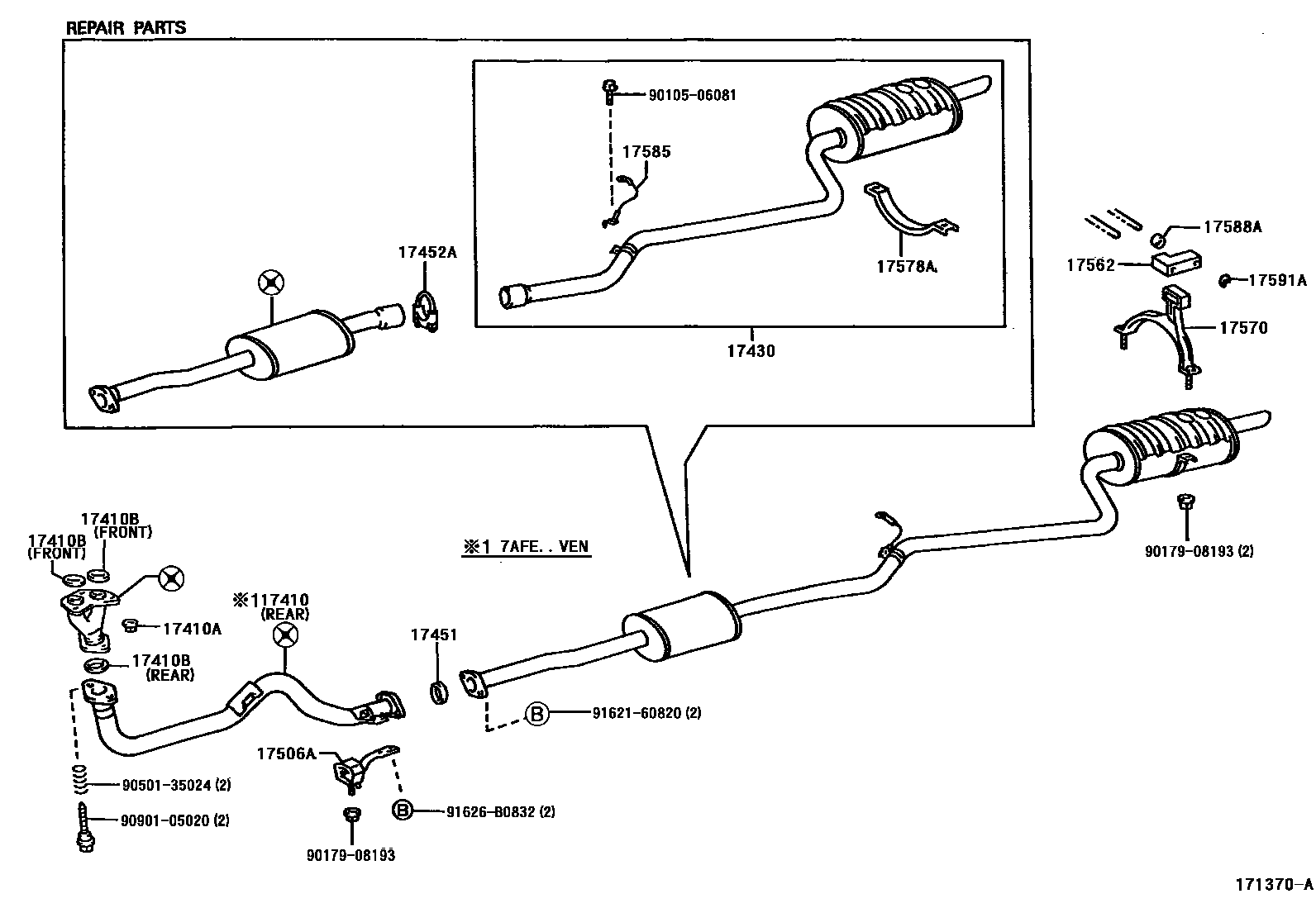

Toyota COROLLA Exhaust Pipe EPC diagram — 171370A
Exhaust Pipe — 171370A (199711 – 999999)

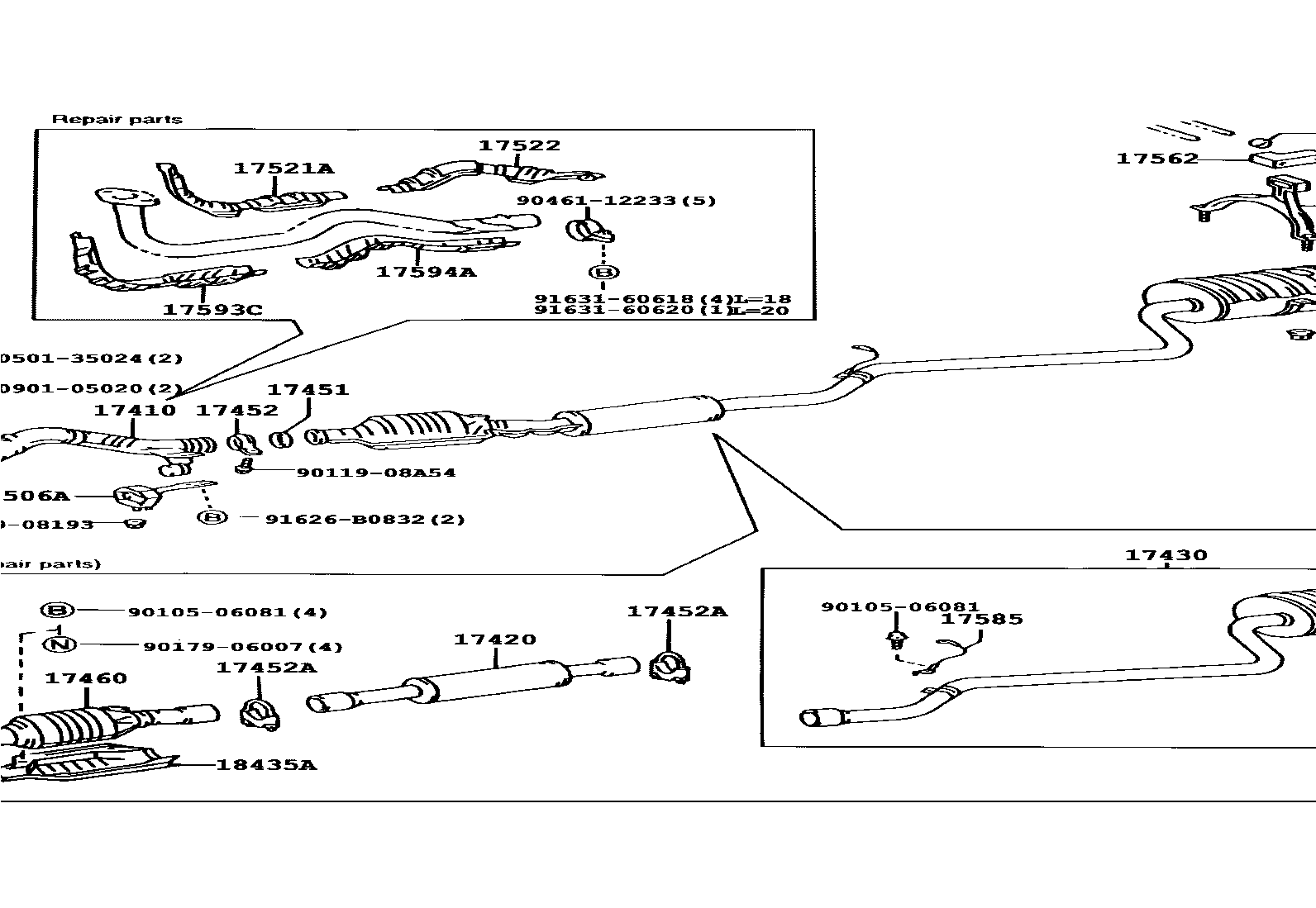

Toyota COROLLA Exhaust Pipe EPC diagram — 171372A
Exhaust Pipe — 171372A (199505 – 999999)

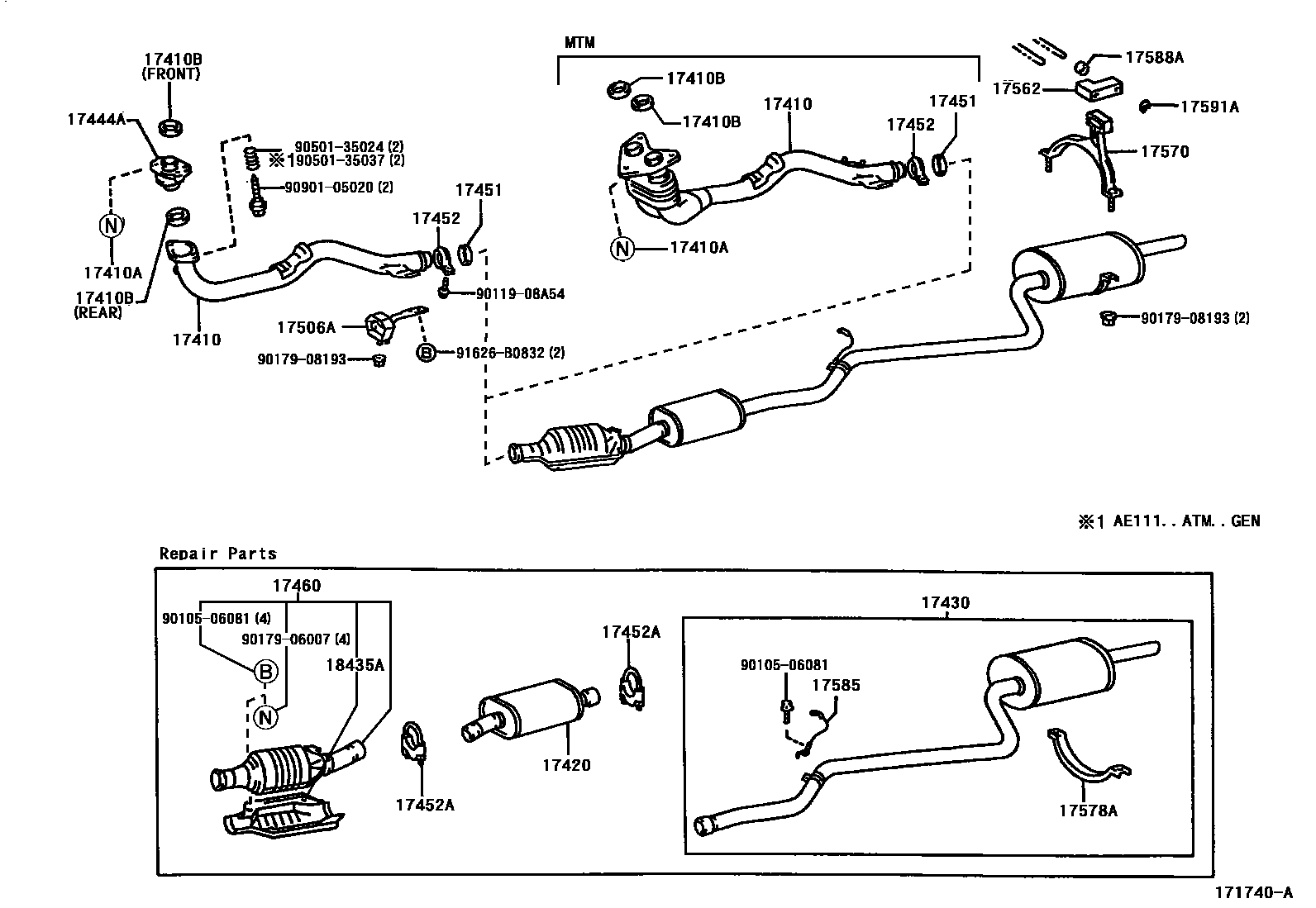

Toyota COROLLA Exhaust Pipe EPC diagram — 171740A
Exhaust Pipe — 171740A (199808 – 999999)

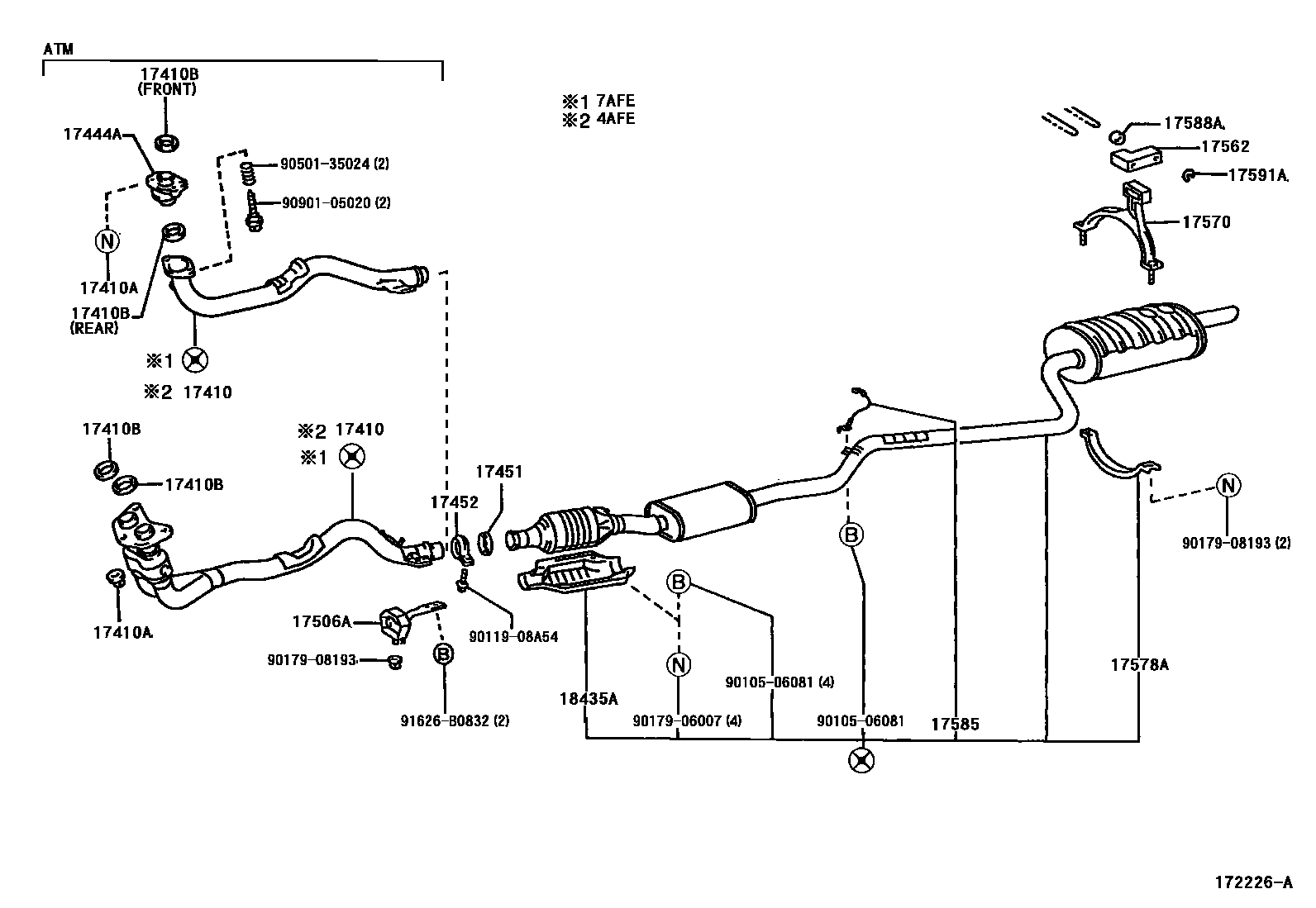

Toyota COROLLA Exhaust Pipe EPC diagram — 172226A
Exhaust Pipe — 172226A (199910 – 999999)

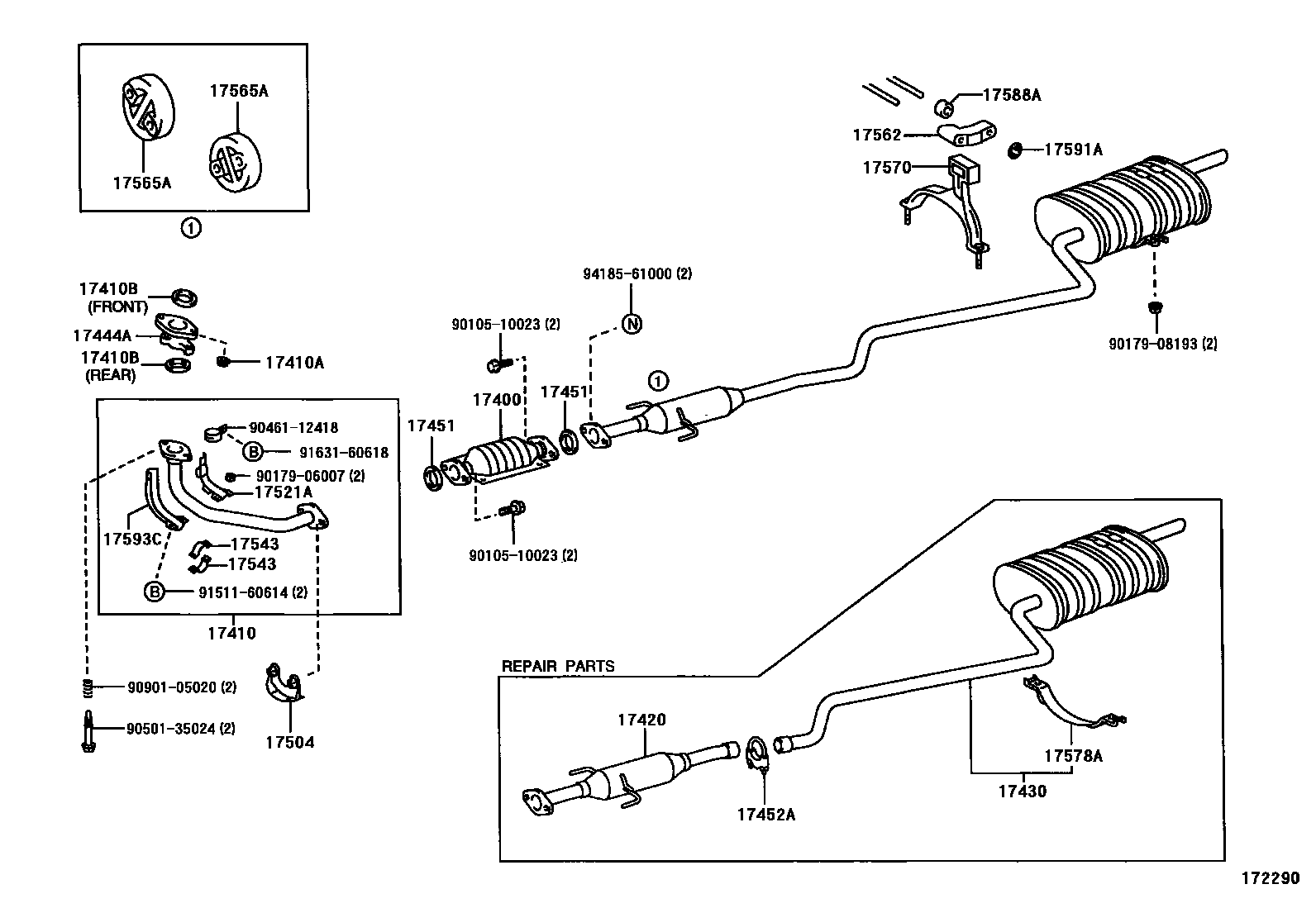

Toyota COROLLA Exhaust Pipe EPC diagram — 172290
Exhaust Pipe — 172290 (199910 – 999999)

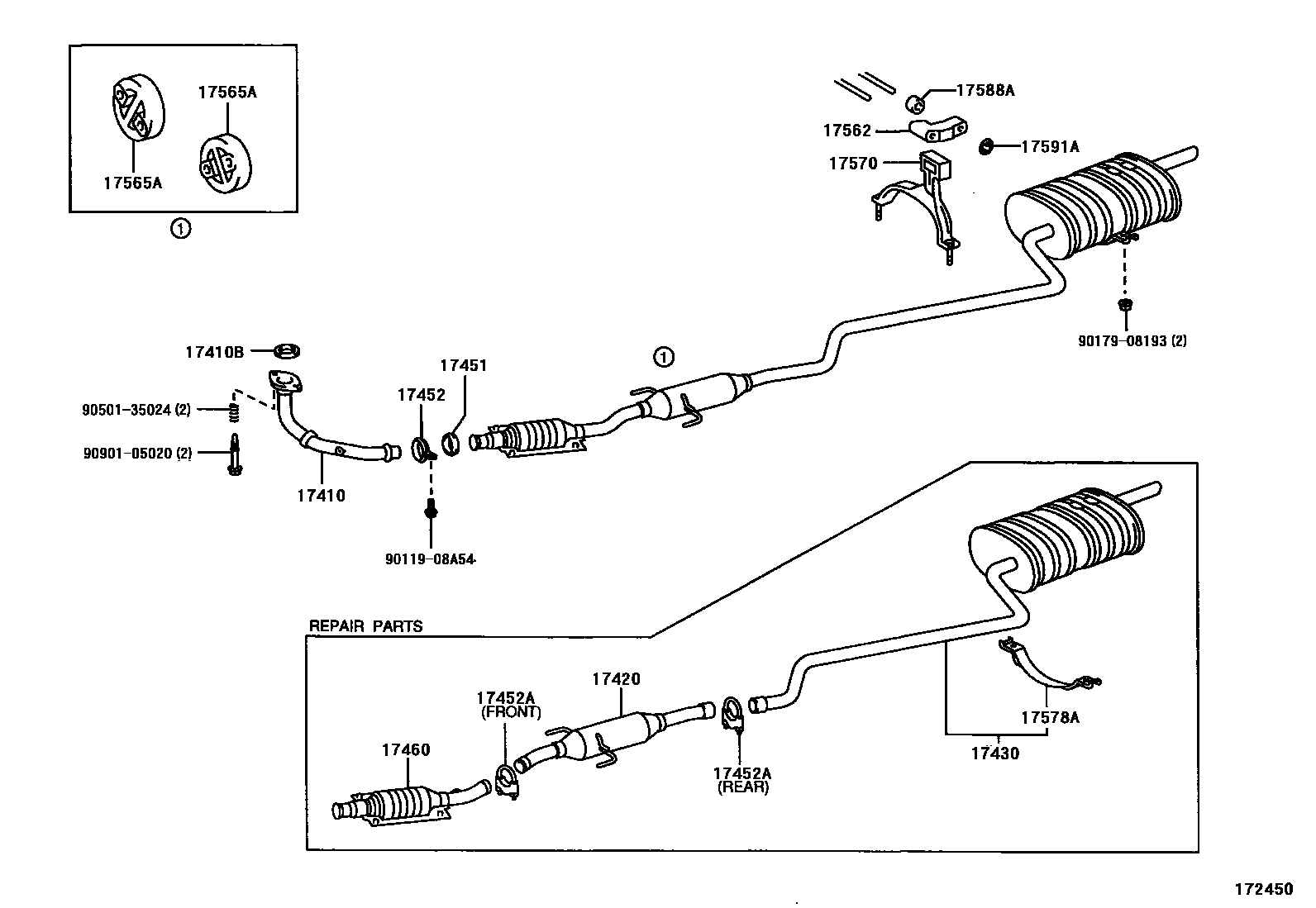

Toyota COROLLA Exhaust Pipe EPC diagram — 172450
Exhaust Pipe — 172450 (200005 – 999999)

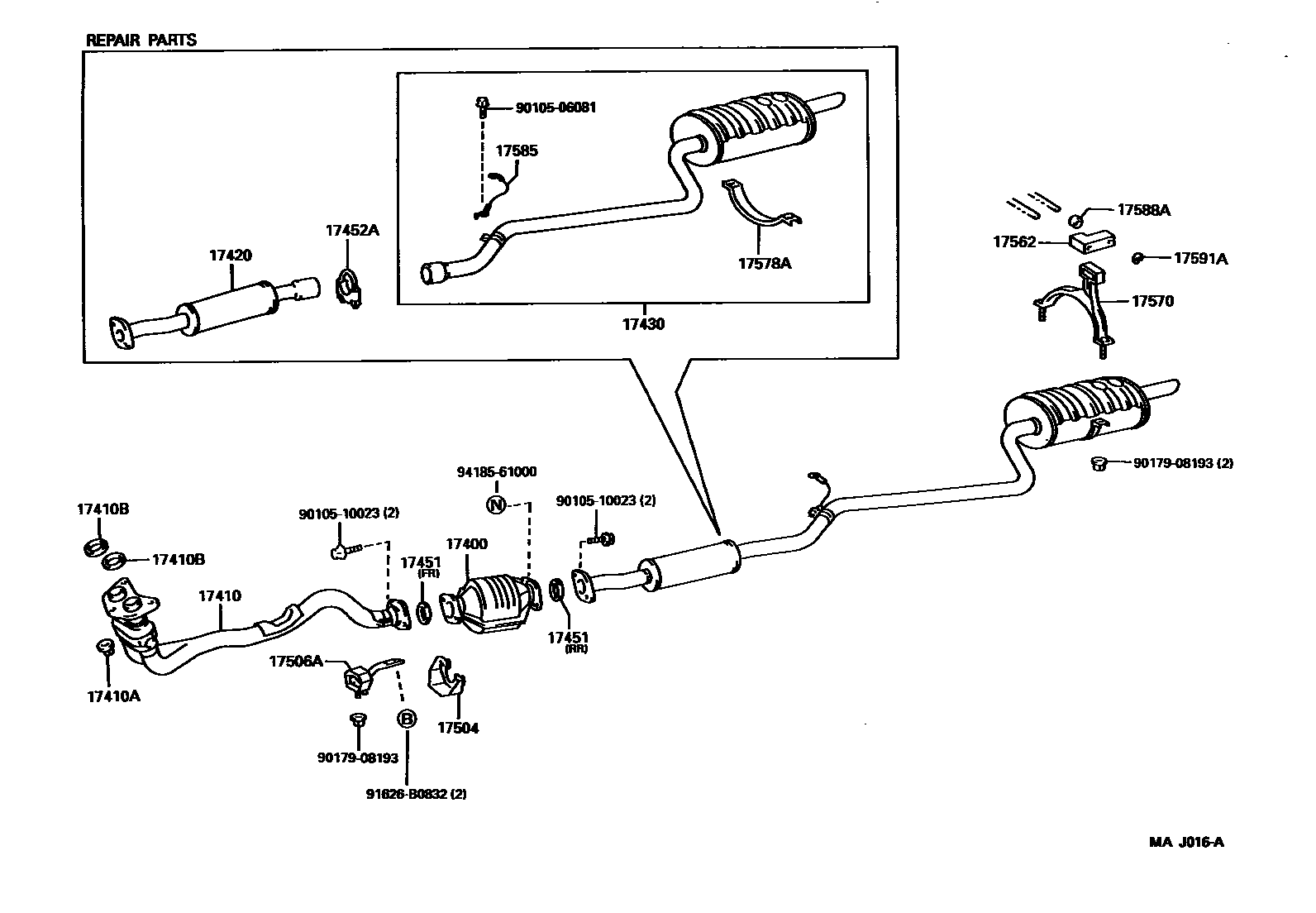

Toyota COROLLA Exhaust Pipe EPC diagram — MAJ016A
Exhaust Pipe — MAJ016A (199505 – 199704)

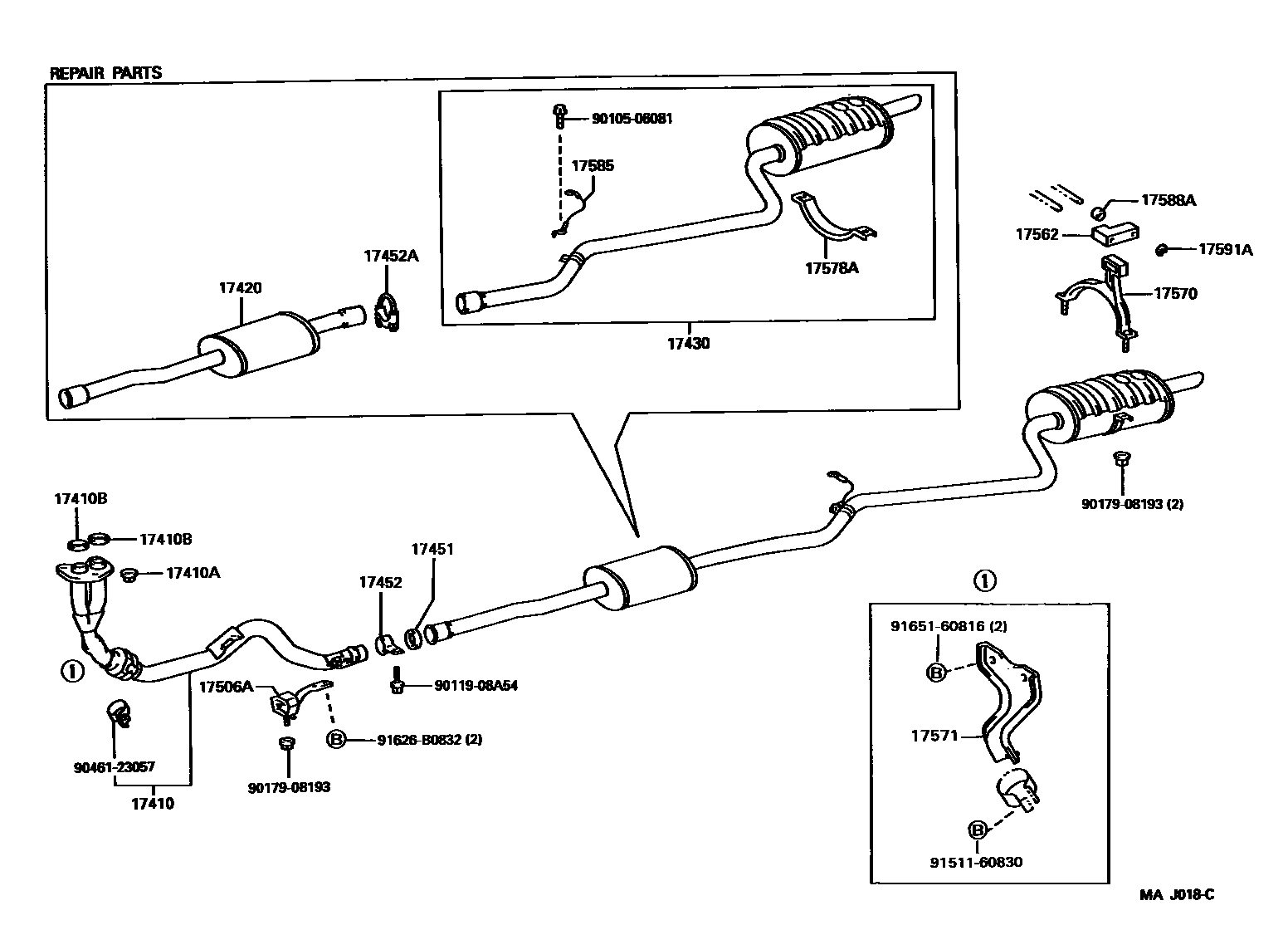

Toyota COROLLA Exhaust Pipe EPC diagram — MAJ018C
Exhaust Pipe — MAJ018C (199505 – 199704)

PNC and OE references

PNCPart nameOE numbers
17400Three-way catalytic converter assembly with catalyst18450-16730 · 18450-16890 · 18450-64010
17402No. 2 front exhaust pipe sub-assembly17402-11100
17410Front exhaust pipe assembly17401-11390 · 17401-11391 · 17410-11790 · 17410-11800 · 17410-11810 · 17410-1A260 · 17410-1A270 · 17410-1A330 · 17410-1A480 · 17410-1A481 · 17410-1A490 · 17410-1A510 · 17410-1A530 · 17410-1A550 · 17410-1A570 · 17410-1A630 · 17410-1B090 · 17410-22140 · 17410-64780 · 17410-64790
17410AExhaust pipe fixing studs and nuts90179-10070
17410BExhaust pipe gasket17451-16030 · 17451-16040 · 17451-22020 · 90917-06061 · 90917-06064 · 90917-06065 · 90917-06069 · 90917-06080
17420Central exhaust pipe assembly17420-11330 · 17420-11340 · 17420-11370 · 17420-15160 · 17420-16660 · 17420-16720 · 17420-16730 · 17420-22010 · 17420-64281 · 17420-64290 · 17420-64291
17430Exhaust tailpipe assembly17430-11820 · 17430-11821 · 17430-15590 · 17430-15591 · 17430-15620 · 17430-1A600 · 17430-1A601 · 17430-1A602 · 17430-1B070 · 17430-1D010 · 17430-22120 · 17430-6A210 · 17430-6A230 · 17430-6A231
17444Afront exhaust pipe spacer17444-16050 · 17444-64030
17451Exhaust pipe gasket90917-06039 · 90917-06043 · 90917-06045 · 90917-06057 · 90917-06082 · 90917-06084
17452Exhaust pipe clamp90461-15013 · 90461-15016
17452AExhaust pipe clamp17452-15020 · 17452-16120 · 17452-16160
17460Three-way catalytic converter assembly with tube17460-11010 · 17460-11030 · 17460-15040 · 17460-15050 · 17460-16170 · 17460-16180 · 17460-22010
17504Three-way catalytic converter bracket sub-assembly17504-42010 · 17582-41030
17506ANo. 1 exhaust pipe bracket sub-assembly17506-11100 · 17506-15080
17521ANo. 1 upper exhaust pipe protection device17521-11180 · 17521-64170 · 17521-64180
17522No. 2 upper exhaust pipe protection device17522-11120
17543No. 3 exhaust pipe protection device stay17543-26010
17562No. 2 exhaust pipe lifting lug17562-16240
17565ANo. 4 exhaust pipe lifting lug17565-11160
17570Exhaust pipe bracket assembly17570-11010 · 17570-16010 · 17570-16020 · 17570-16030 · 17570-16040
17571No. 1 exhaust pipe bracket17571-11240
17578Amuffler clip17578-11020 · 17578-11030 · 17578-16040 · 17578-64010
17585Exhaust pipe hanger17585-16060
17588AExhaust pipe hanger spacer17588-16020
17591AExhaust pipe bracket block17591-16020
17593CNo. 1 lower exhaust pipe protection device17593-11260 · 17593-64140 · 17593-64150
17594ANo. 2 lower exhaust pipe protection device17594-11300
18435AIntegrated three-way catalytic converter protection device18435-11020 · 18435-11030 · 18435-11040 · 18435-15060 · 18435-16170 · 18435-16190 · 18435-20020
