Toyota COROLLA Ventilation Hose — Figure 1201

Toyota COROLLA EPC diagram 1201, Ventilation Hose, with 6 images and 7 PNC and OE references.

Toyota COROLLA Ventilation Hose EPC diagram — 120012
Ventilation Hose — 120012 (199704 – 999999)
Toyota COROLLA Ventilation Hose EPC diagram — 120038
Ventilation Hose — 120038 (199505 – 999999)
Toyota COROLLA Ventilation Hose EPC diagram — 120081
Ventilation Hose — 120081 (199505 – 999999)

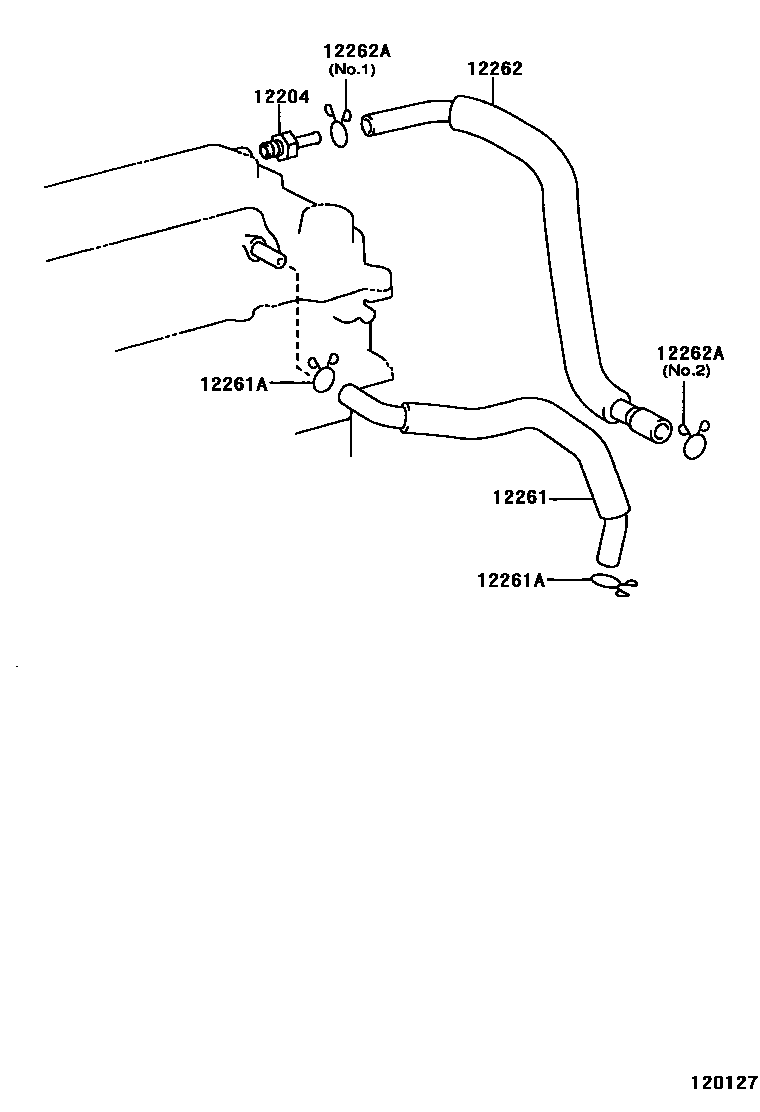

Toyota COROLLA Ventilation Hose EPC diagram — 120127
Ventilation Hose — 120127 (200005 – 999999)
Toyota COROLLA Ventilation Hose EPC diagram — NA0050
Ventilation Hose — NA0050 (199505 – 999999)

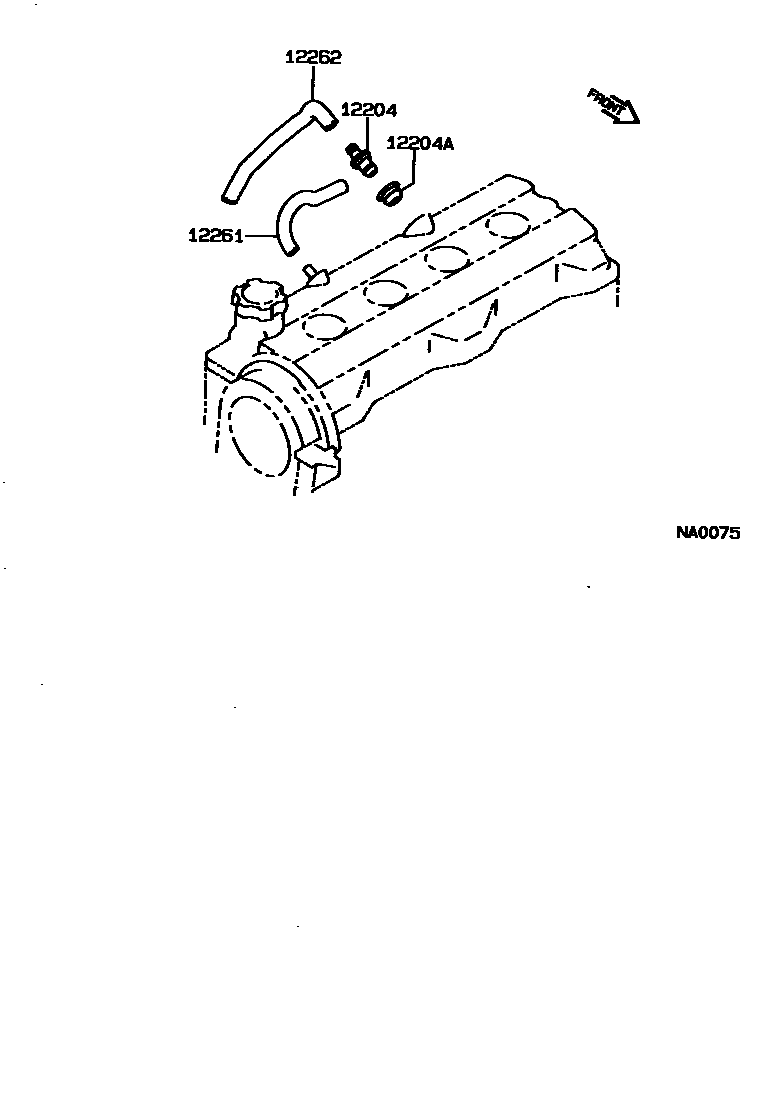

Toyota COROLLA Ventilation Hose EPC diagram — NA0075
Ventilation Hose — NA0075 (199704 – 999999)

PNC and OE references

PNCPart nameOE numbers
12204Ventilation valve sub-assembly12204-11040 · 12204-11050 · 12204-15040 · 12204-15050 · 12204-22050
12204AGasket (for ventilation system)90480-18001 · 90480-18006
12229ventilation duct12229-11020
12261Ventilation Hose12261-11020 · 12261-11180 · 12261-15090 · 12261-22040 · 12261-64210 · 12261-64260 · 90445-10064 · 90910-05222
12261AClip or clip (for vent hose)90467-10099 · 90467-18003 · 90467-21152 · 96132-51000
12262Ventilation hose No. 212262-10020 · 12262-11050 · 12262-15040 · 12262-22030 · 90445-15063 · 90445-15068
12262AClamp (for vent hose No. 2)90467-13103 · 90467-14001 · 90467-14017 · 90467-15027 · 90467-19003
