Toyota COROLLA Engine Mounting — Figure 1107

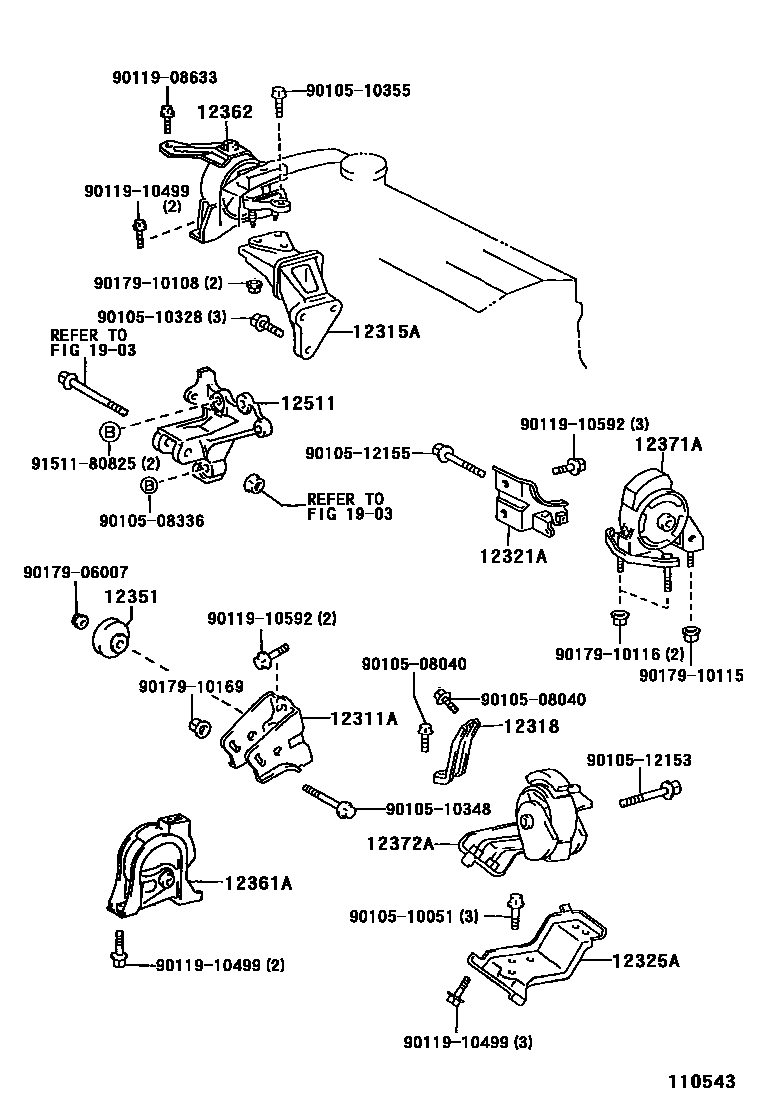

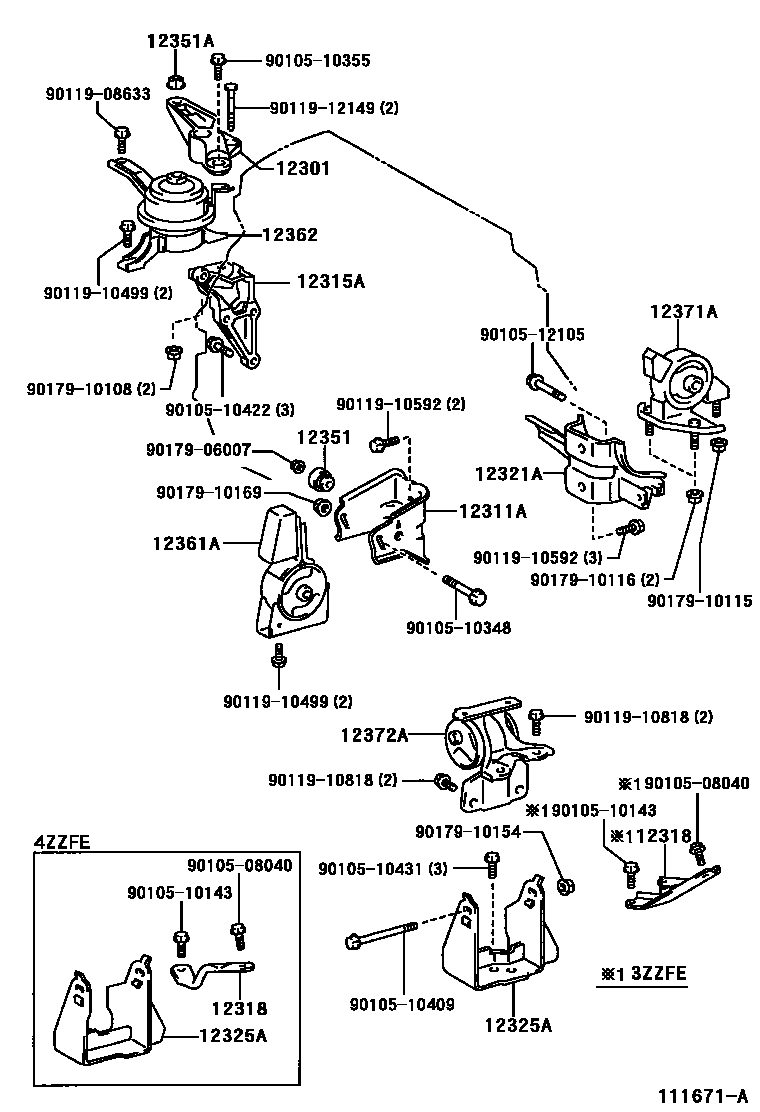

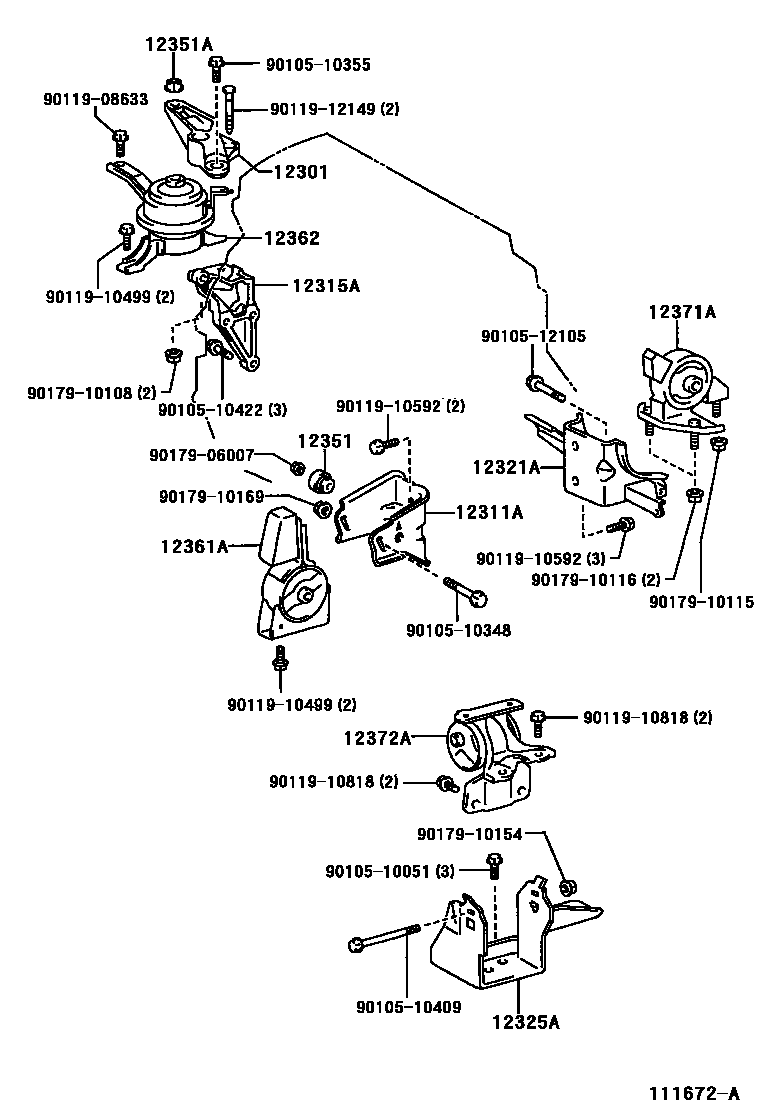

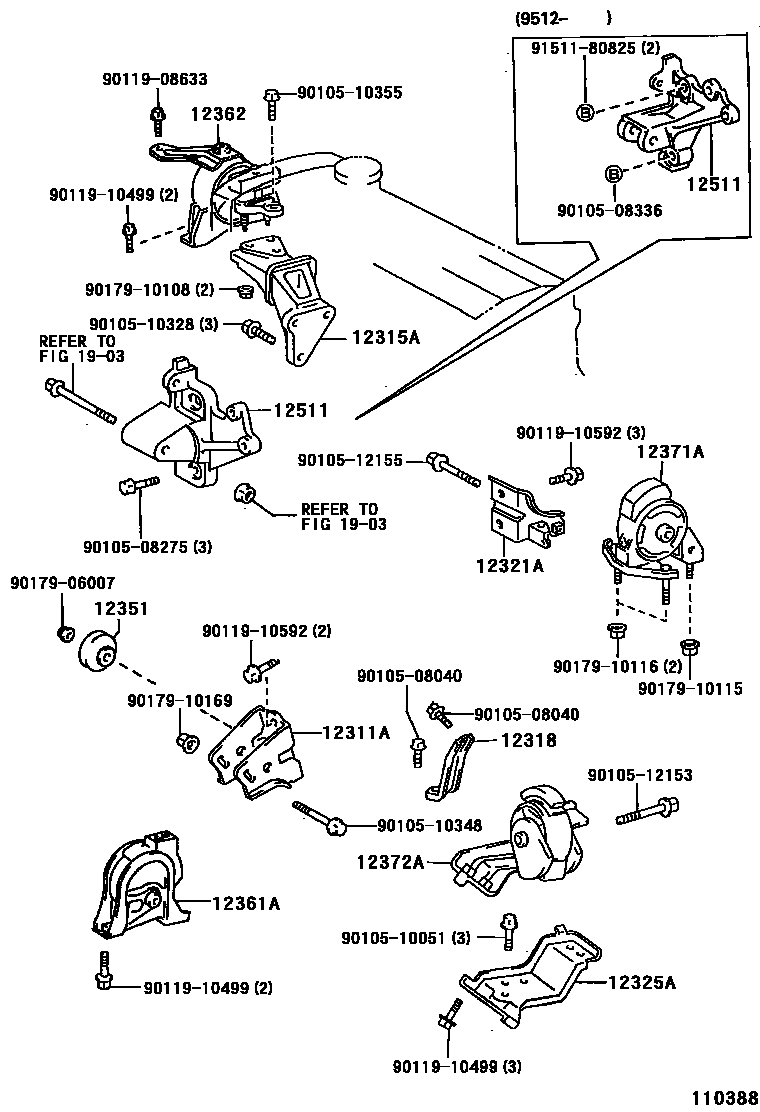

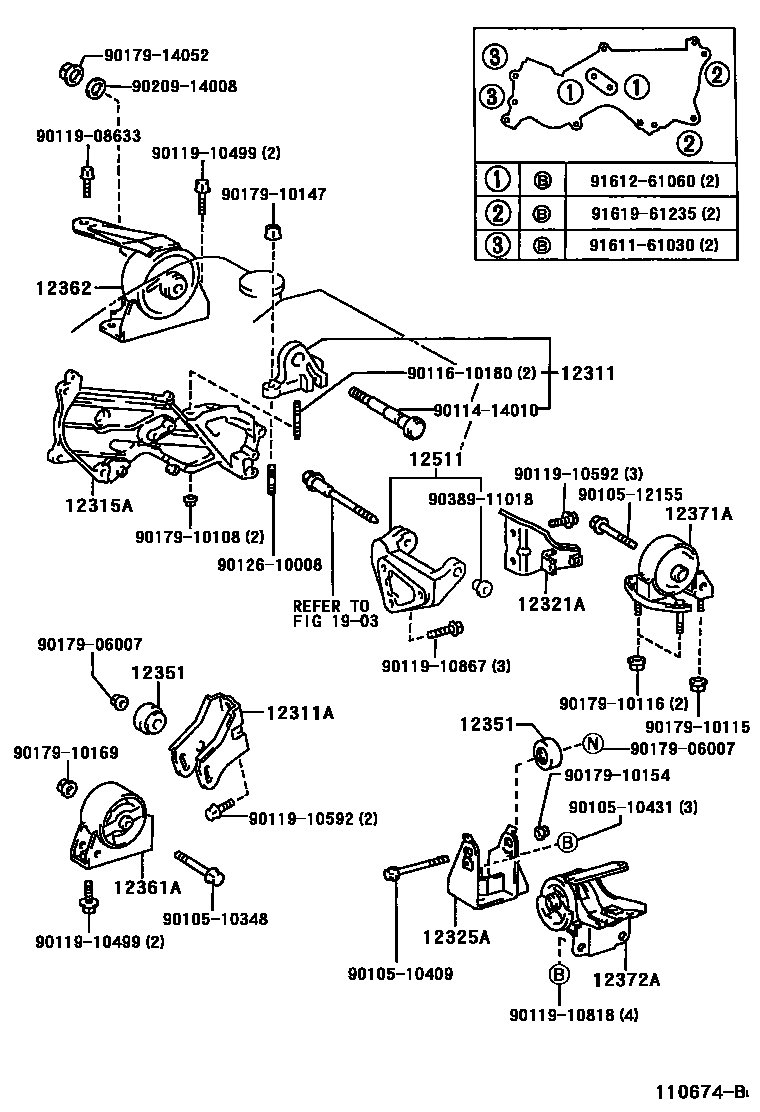

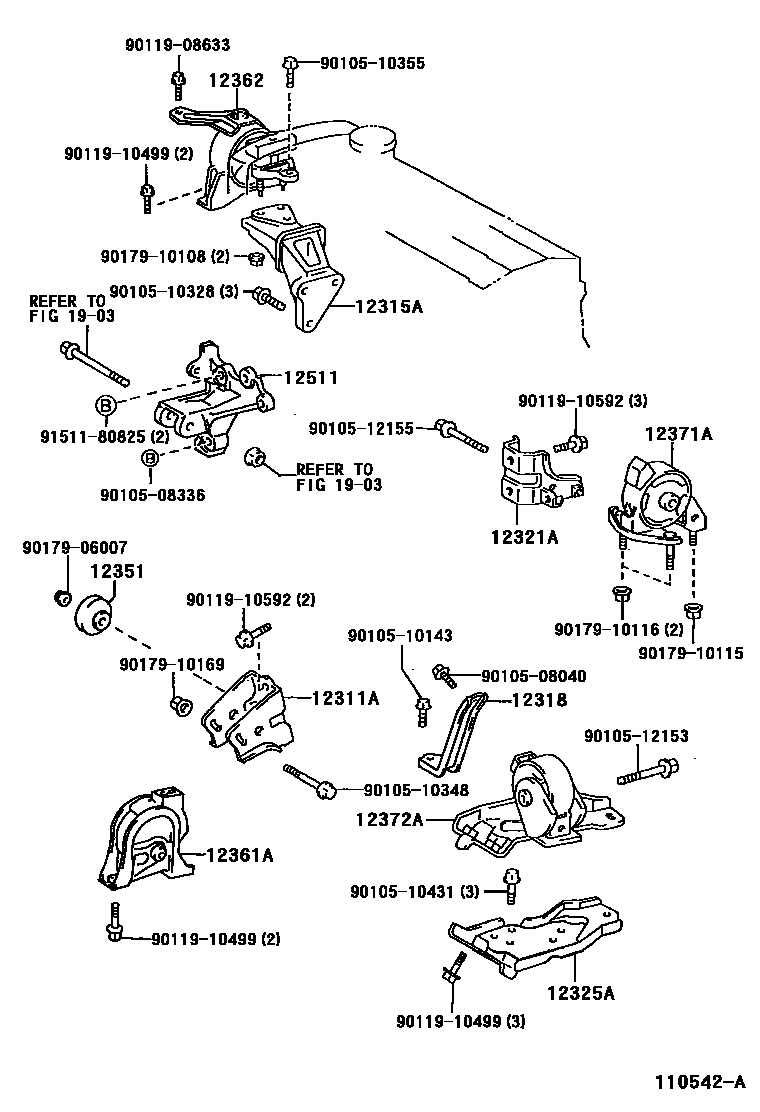

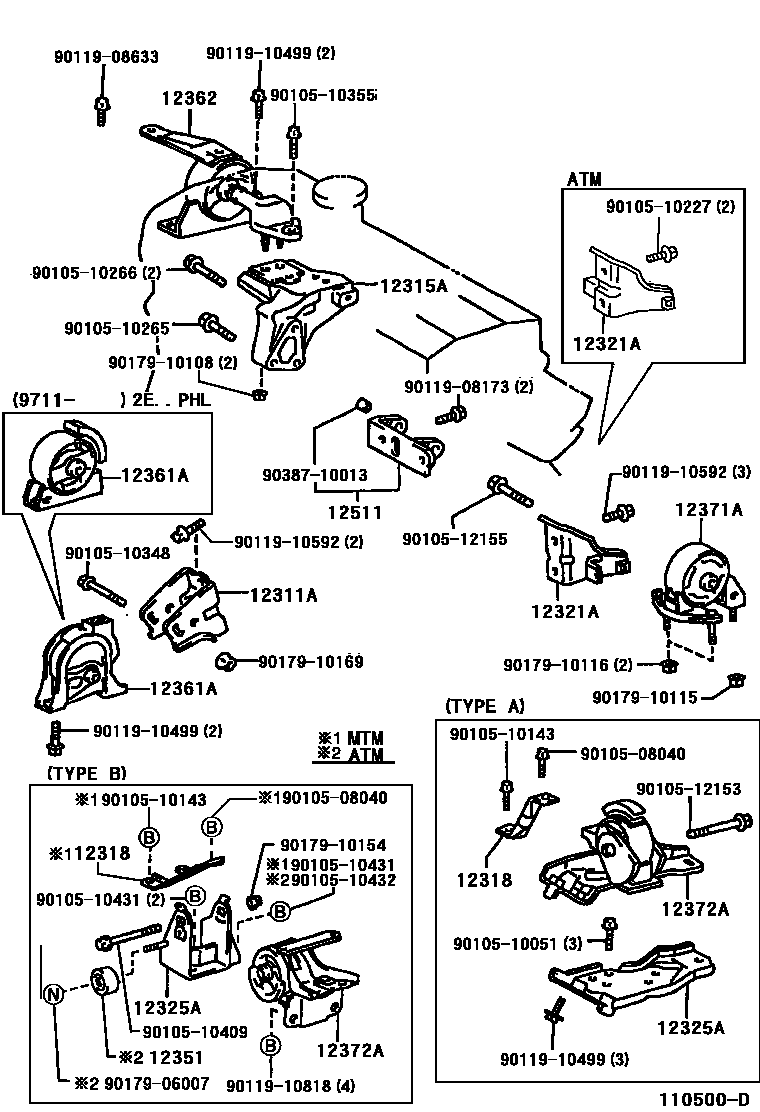

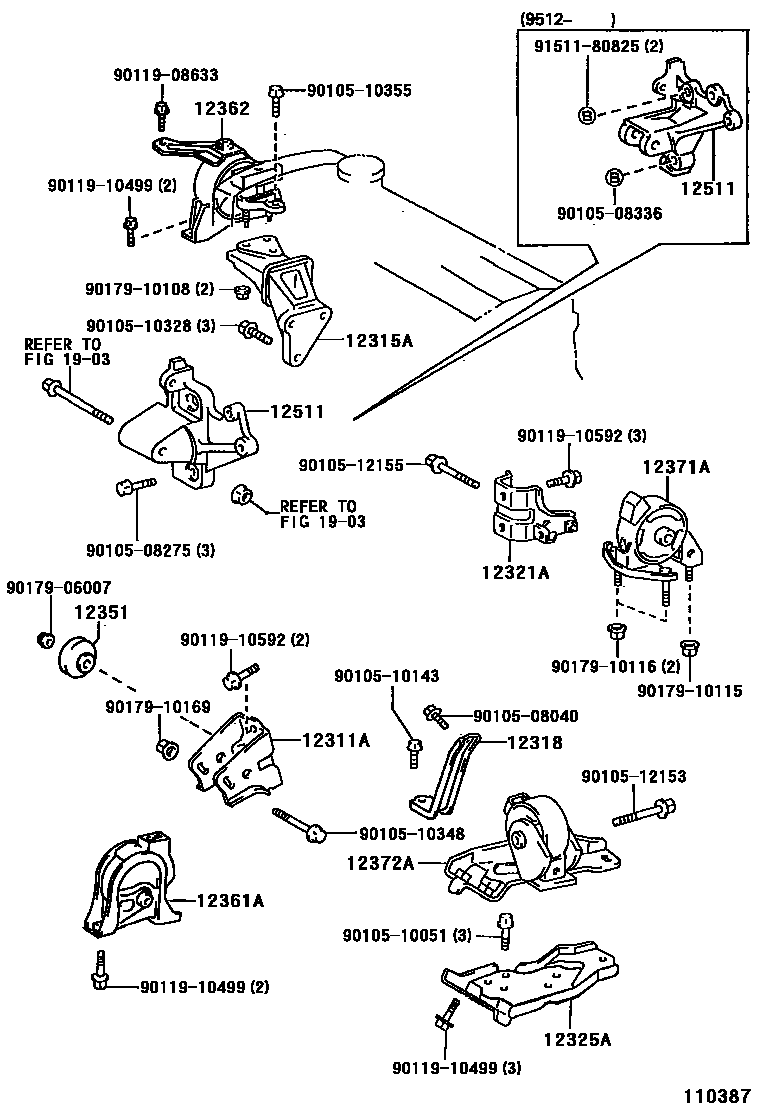

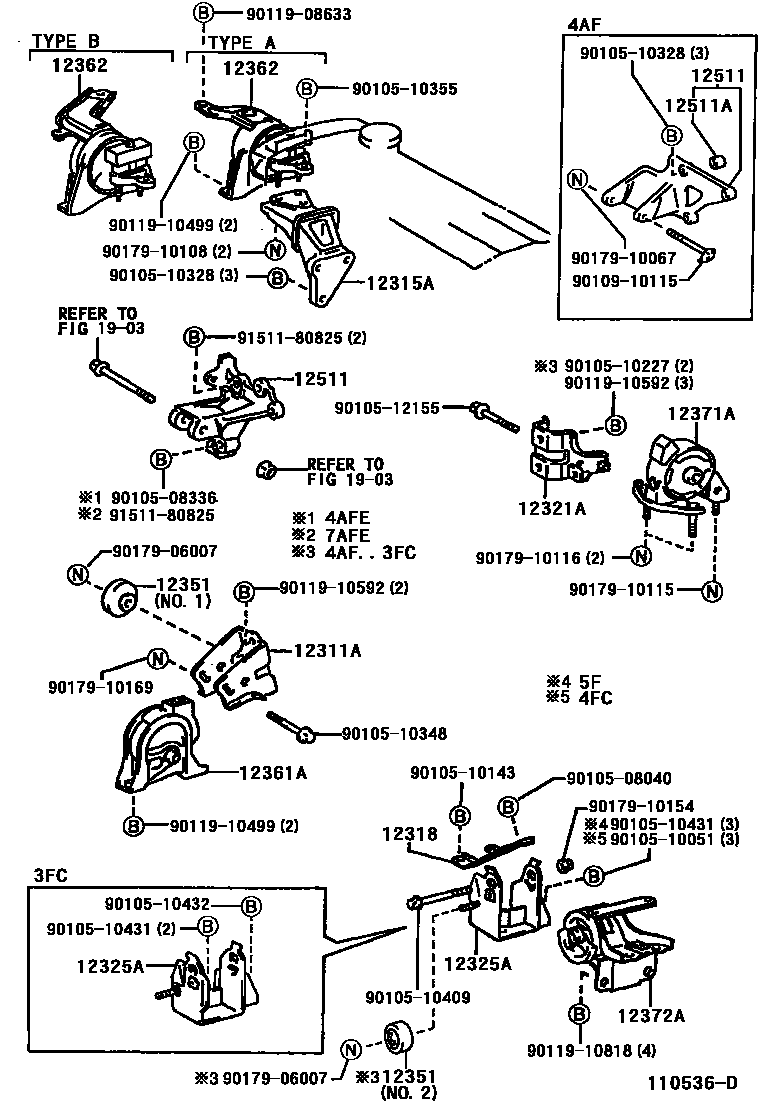

Toyota COROLLA EPC diagram 1107, Engine Mounting, with 9 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12301 | Engine right front mounting bracket sub-assembly | 12301-22040 |
| 12311 | Engine Mounting Bracket No. 1, Front RH | 12301-64020 |
| 12311A | Engine front mounting bracket (for transverse engine) | 12311-11090 · 12311-15130 · 12311-22050 · 12311-64120 |
| 12315A | Engine right side mounting bracket (for transversely mounted engine) | 12315-02040 · 12315-0D020 · 12315-11050 · 12315-11051 · 12315-15070 · 12315-15081 · 12315-22010 · 12315-64050 · 12315-64160 |
| 12318 | Engine left mounting bracket | 12318-11010 · 12318-11020 · 12318-11050 · 12318-15050 · 12318-15080 · 12318-16110 |
| 12321A | Rear engine mounting bracket (for transverse engine) | 12321-11191 · 12321-11200 · 12321-15120 · 12321-15130 · 12321-15140 · 12321-22020 · 12321-22050 · 12321-64190 · 12321-64191 |
| 12325A | Engine left side mounting bracket (for transversely mounted engine) | 12325-11120 · 12325-11130 · 12325-11160 · 12325-11180 · 12325-15080 · 12325-15090 · 12325-15100 · 12325-15110 · 12325-15131 · 12325-16120 · 12325-16130 · 12325-64130 |
| 12351 | engine mount shock absorber | 12351-15060 · 12351-15070 · 12351-15080 · 12351-15110 · 12351-64050 |
| 12351A | Engine mount shock absorber (for vibration isolation pad) | 12351-22040 |
| 12361A | Engine front mounting vibration isolation pad (for transversely mounted engine) | 12361-11180 · 12361-11181 · 12361-15170 · 12361-15171 · 12361-15180 · 12361-15181 · 12361-15190 · 12361-15200 · 12361-22010 · 12361-22020 · 12361-64241 |
| 12362 | Engine right side mounting vibration isolation pad (for transversely mounted engine) | 12305-11050 · 12305-11060 · 12305-15040 · 12305-16062 · 12362-22020 · 12362-64220 |
| 12371A | Engine rear mount vibration isolation pad | 12371-11600 · 12371-15240 · 12371-15241 · 12371-22040 · 12371-22050 · 12371-64210 |
| 12372A | Engine left-side mounting vibration isolation pad (for transversely mounted engines) | 12372-11240 · 12372-11250 · 12372-15171 · 12372-15181 · 12372-15200 · 12372-15210 · 12372-15220 · 12372-16380 · 12372-16390 · 12372-16400 · 12372-64250 · 12372-64251 |
| 12511 | No. 1 generator bracket | 12511-11020 · 12511-15040 · 12511-15050 · 12511-15060 · 12511-16110 · 12511-64060 |
| 12511A | Generator bracket bushing | 90387-10013 |
