Toyota COROLLA Timing Gear Cover & Rear End Plate — Figure 1106

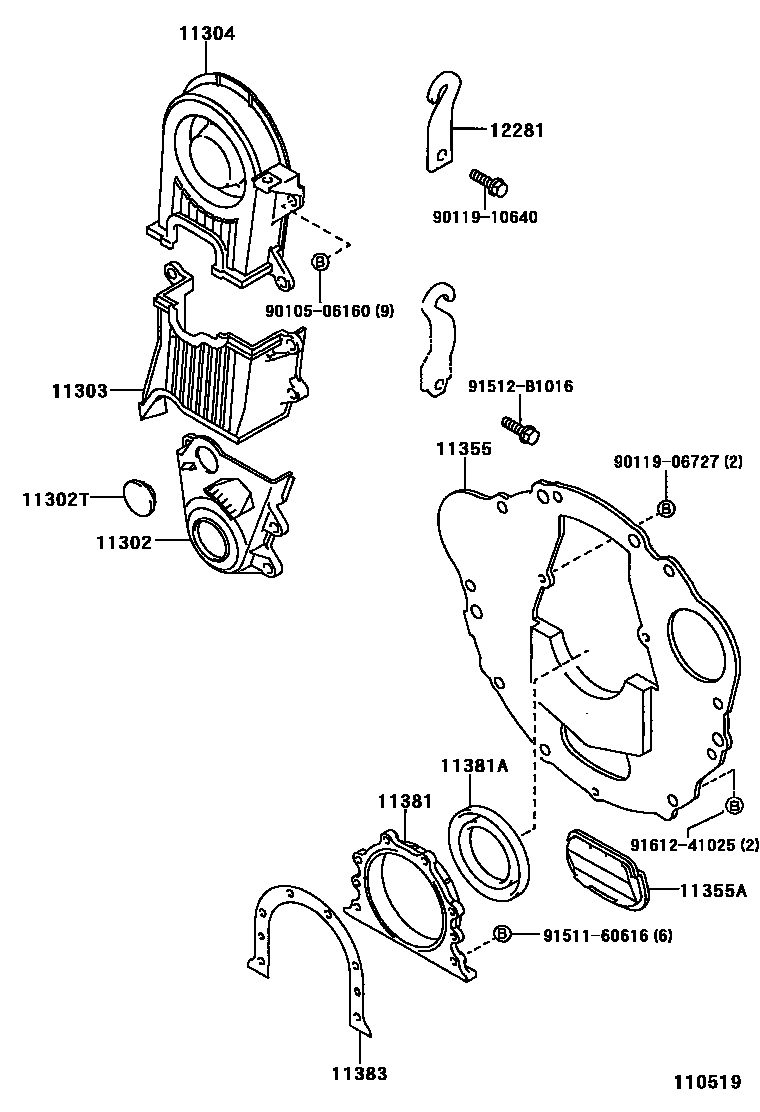

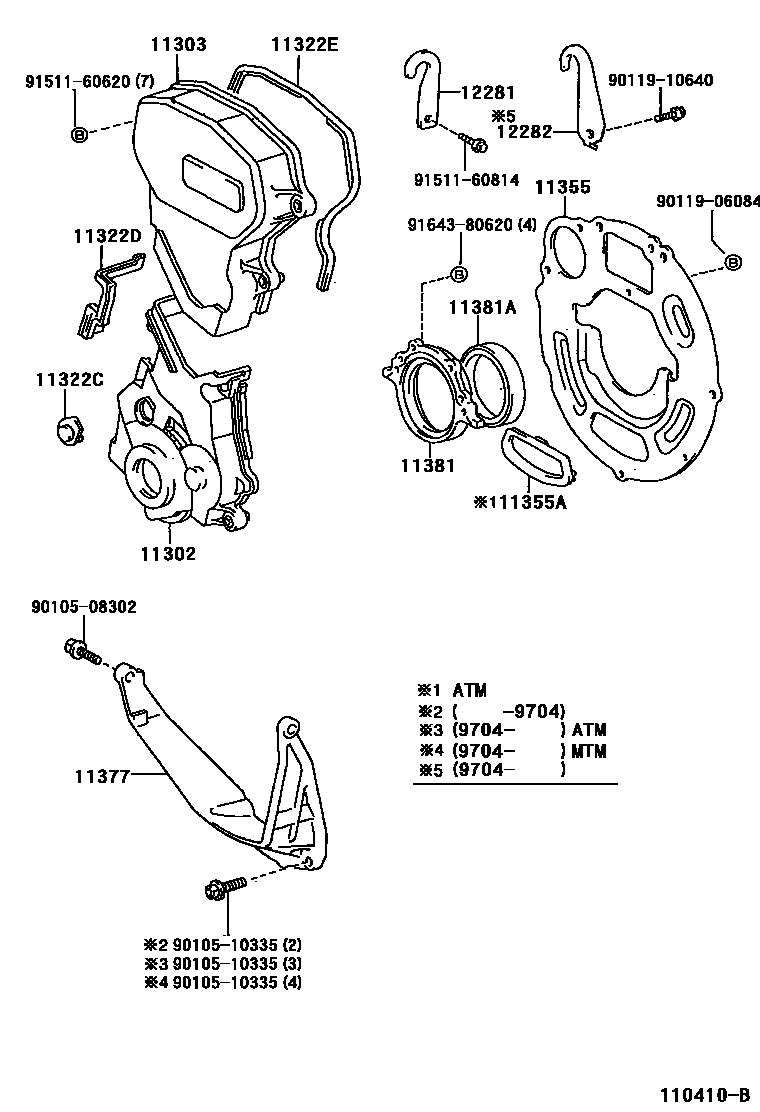

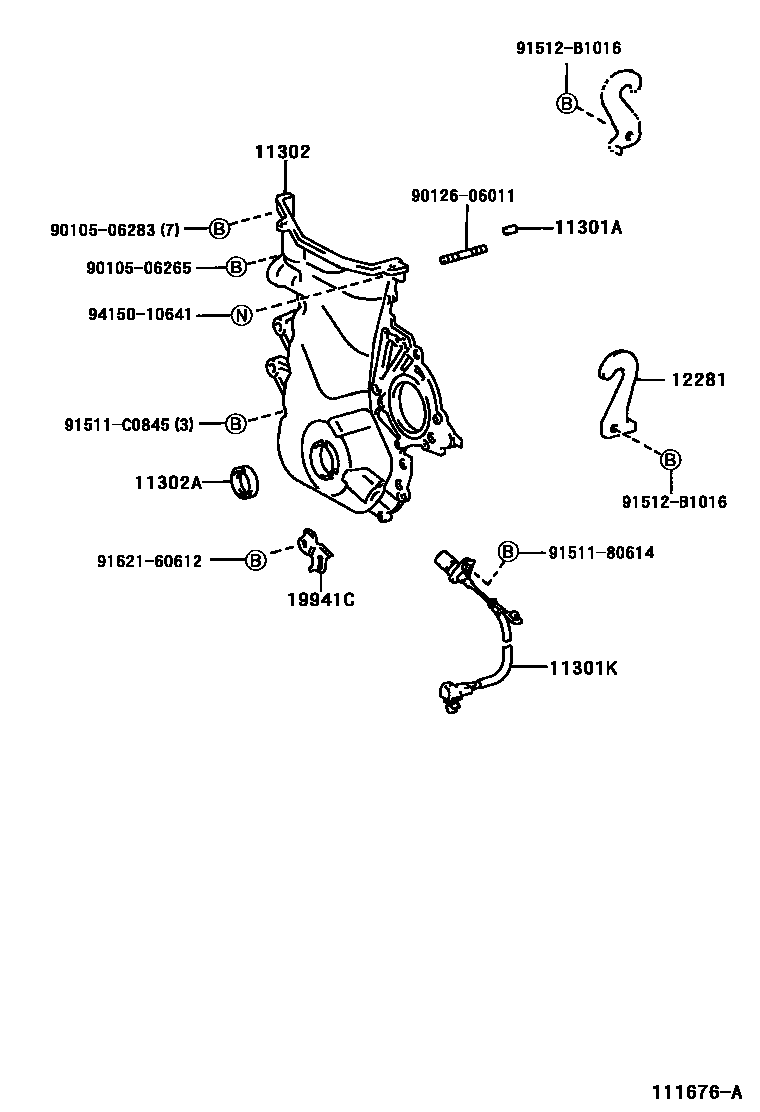

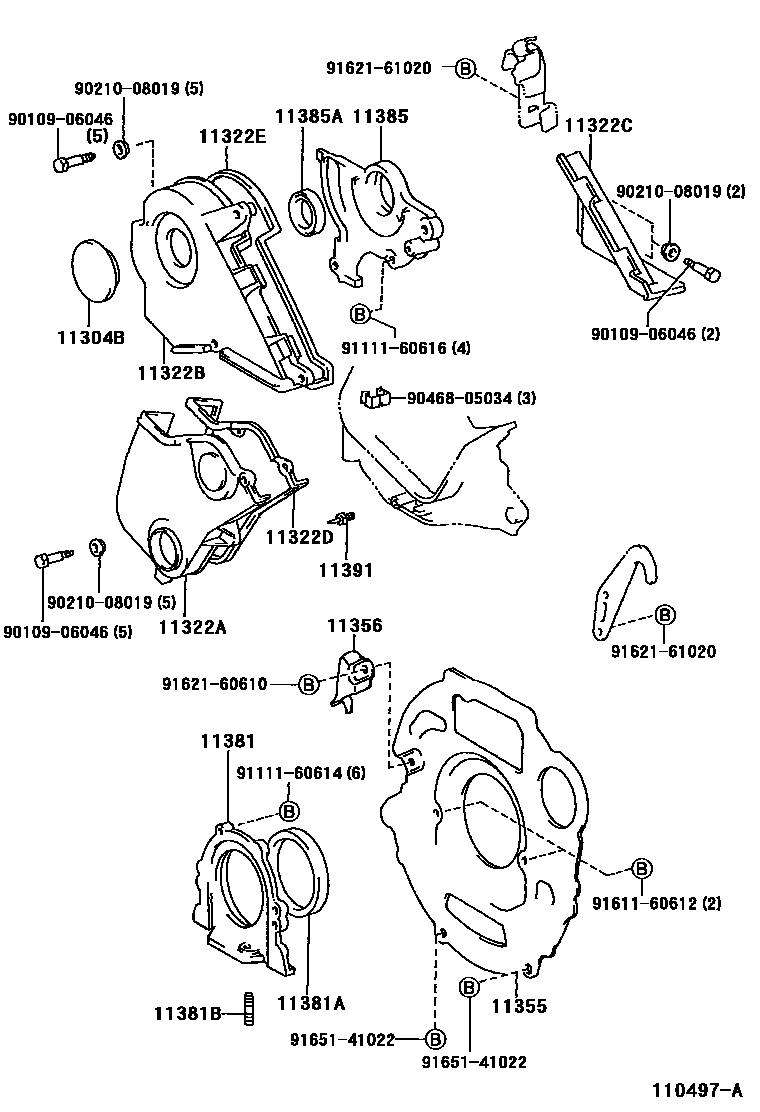

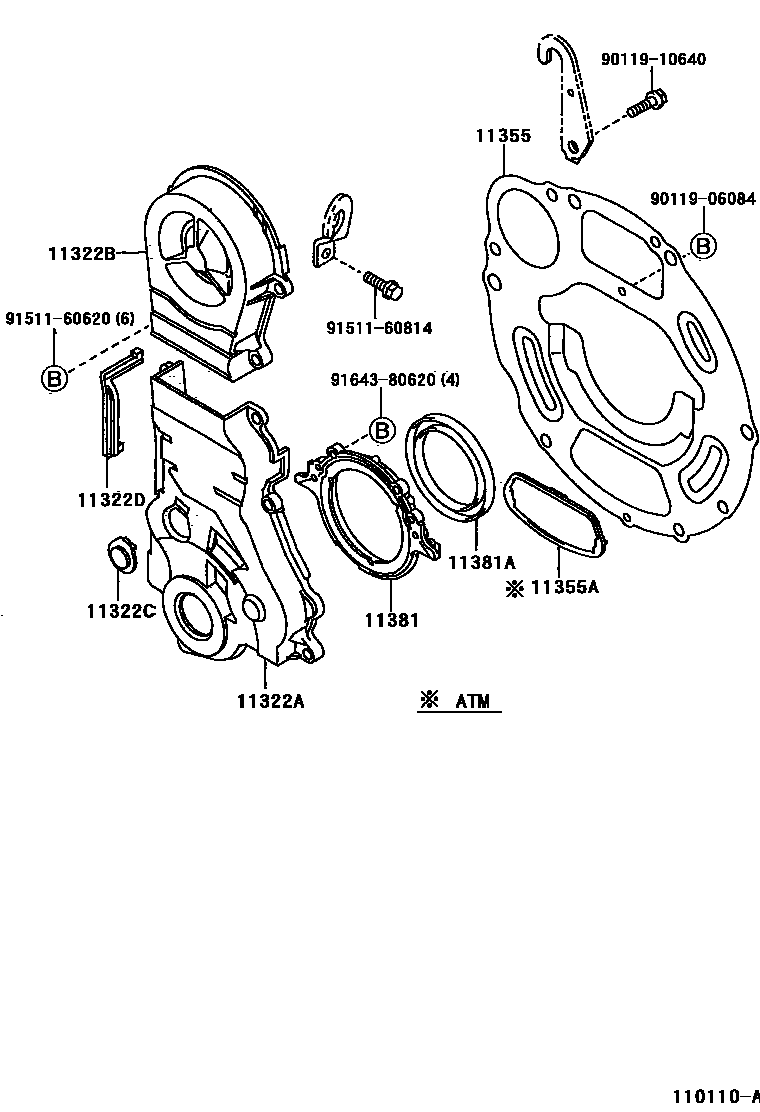

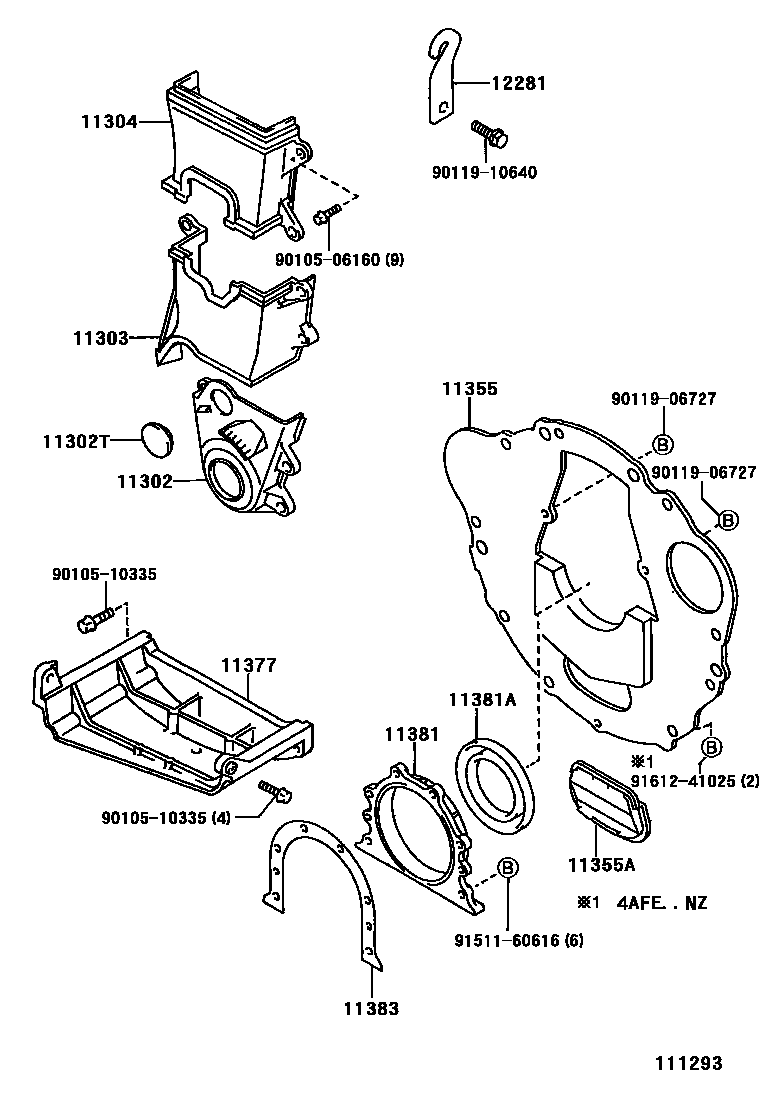

Toyota COROLLA EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 6 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11301A | Direct sales (for timing gearbox) | 90250-08074 |
| 11301K | crankshaft position sensor | 90919-05030 |
| 11302 | TIMING CHAIN OR BELT COVER SUB-ASSY | 11302-02040 · 11302-02080 · 11302-11062 · 11302-11110 · 11302-15041 · 11302-15050 · 11321-0D020 · 11321-22021 |
| 11302A | Oil seal (for timing chain or timing belt cover) | 90080-31060 · 90311-38059 |
| 11302T | hole plug | 90080-95011 · 90950-01391 · 90950-01783 |
| 11303 | Crankshaft gear or crankshaft pulley cover sub-assembly | 11303-02040 · 11303-02090 · 11303-11031 · 11303-15040 · 11303-15050 · 11303-16050 |
| 11304 | No. 2 timing chain or timing belt cover | 11304-02030 · 11304-02070 · 11304-15020 · 11304-15030 · 11304-16060 |
| 11304B | Half-round plug (for No. 2 timing chain cover) | 90950-01357 |
| 11322A | No. 1 timing belt cover | 11302-11072 · 11321-64020 · 11321-64070 |
| 11322B | No. 2 timing belt cover | 11303-10023 · 11322-64010 |
| 11322C | No. 3 timing belt cover | 11323-10011 · 11323-64011 |
| 11322D | No. 1 timing belt cover gasket | 11328-11041 · 11328-64040 · 11328-64070 |
| 11322E | No. 2 timing belt cover gasket | 11329-11010 · 11329-64020 |
| 11355 | rear end plate | 11355-02020 · 11355-02030 · 11355-10011 · 11355-10012 · 11355-11011 · 11355-11012 · 11355-15070 · 11355-15080 · 11355-64051 · 11355-64052 |
| 11355A | Hole plug (for rear end plate) | 90950-01264 · 90950-01548 |
| 11356 | No. 2 rear end plate | 11356-64040 |
| 11377 | Rear end plate reinforcement | 11377-02011 · 11377-11011 · 11377-11020 · 11377-15012 |
| 11381 | RETAINER, ENGINE REAR OIL SEAL | 11381-02020 · 11381-02030 · 11381-10021 · 11381-15010 · 11381-64012 · 11381-64020 |
| 11381A | SEAL, ENGINE REAR OIL | 90080-31012 · 90080-31076 · 90311-70007 · 90311-75009 · 90311-90008 |
| 11381B | Stud bolts (for engine rear oil seal race) | 90116-06134 |
| 11383 | Engine rear oil seal seat gasket | 11383-02020 · 11383-02040 · 11383-16010 |
| 11385 | Camshaft oil seal race | 11382-64011 |
| 11385A | Oil seal (for camshaft) | 90311-38061 · 90311-38081 |
| 11391 | Timing pointer | 11391-64010 |
| 12281 | Engine No. 1 hanger | 12281-02020 · 12281-11031 · 12281-15050 · 12281-22021 |
| 12282 | ENGINE HANGER, NO.2 | 12282-11022 |
| 19941C | Wire clamp (for crankshaft position sensor) | 19941-22010 |
