Toyota COROLLA Engine Overhaul Gasket Kit — Figure 1103
Toyota COROLLA EPC diagram 1103, Engine Overhaul Gasket Kit, with 24 images and 2 PNC and OE references.

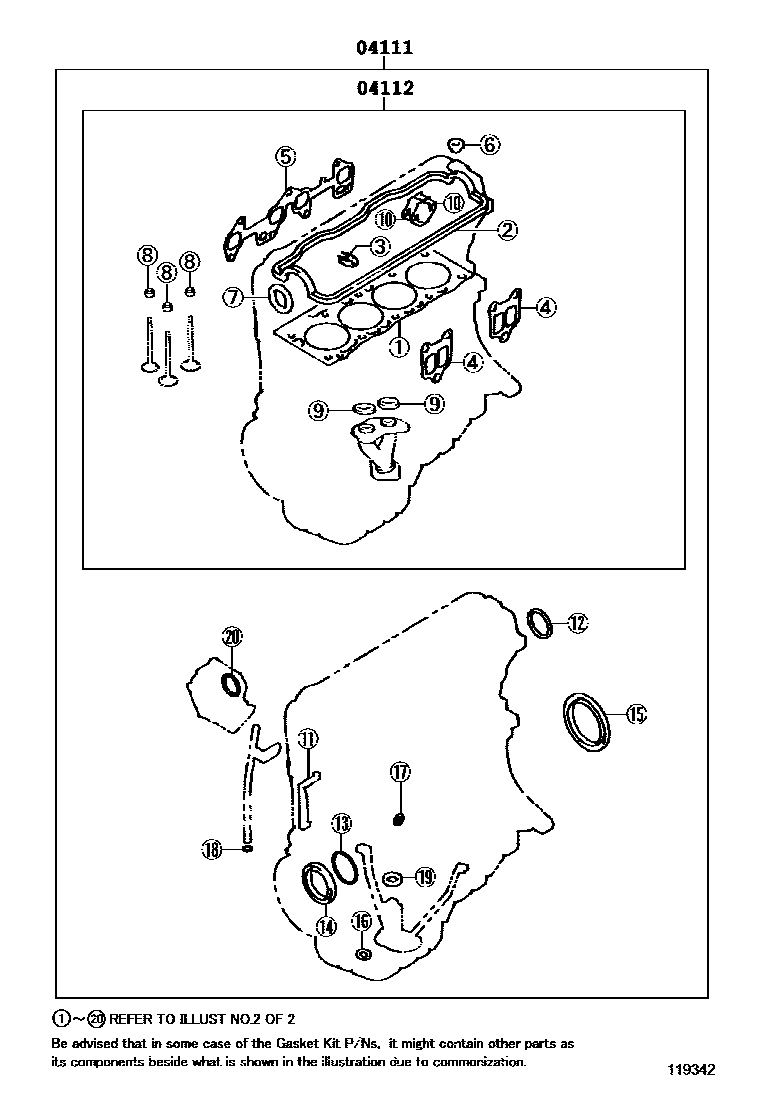

Engine Overhaul Gasket Kit — 119342 (199505 – 999999)

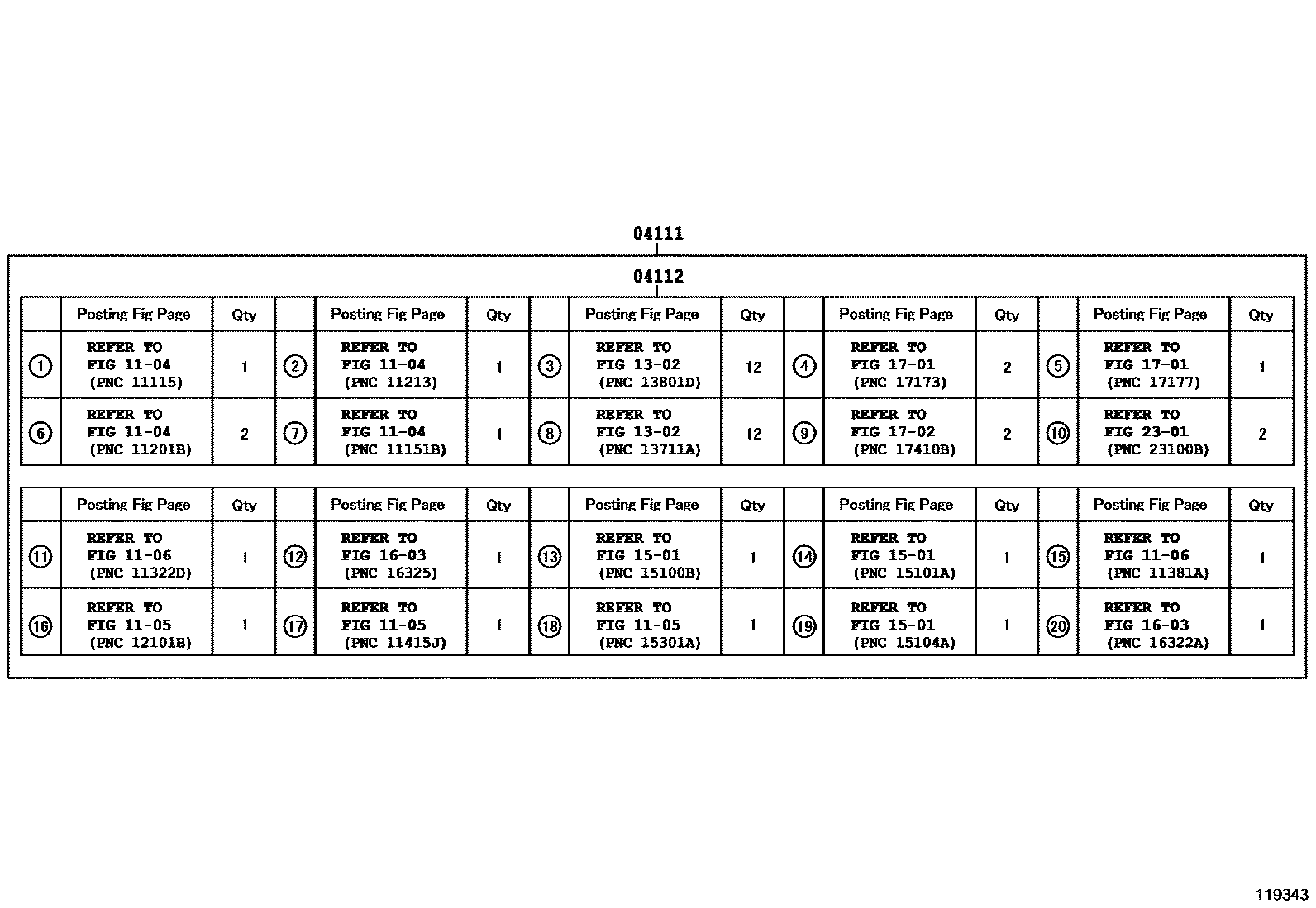

Engine Overhaul Gasket Kit — 119343 (199505 – 999999)

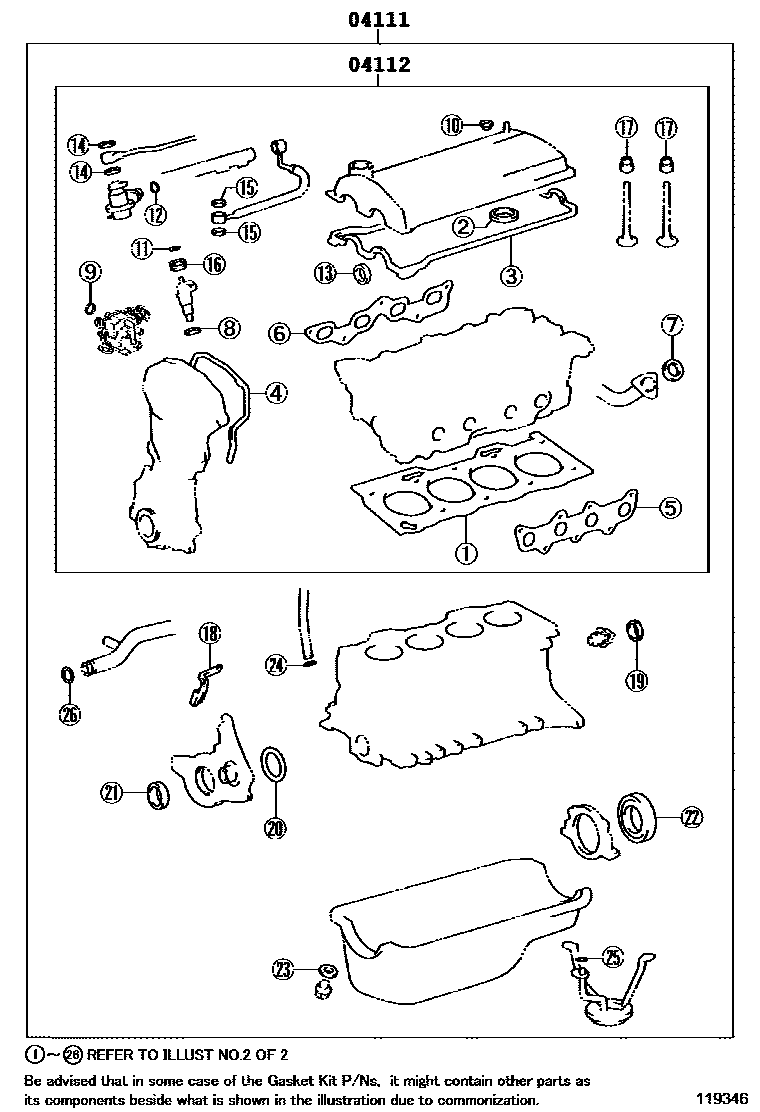

Engine Overhaul Gasket Kit — 119346 (199505 – 999999)

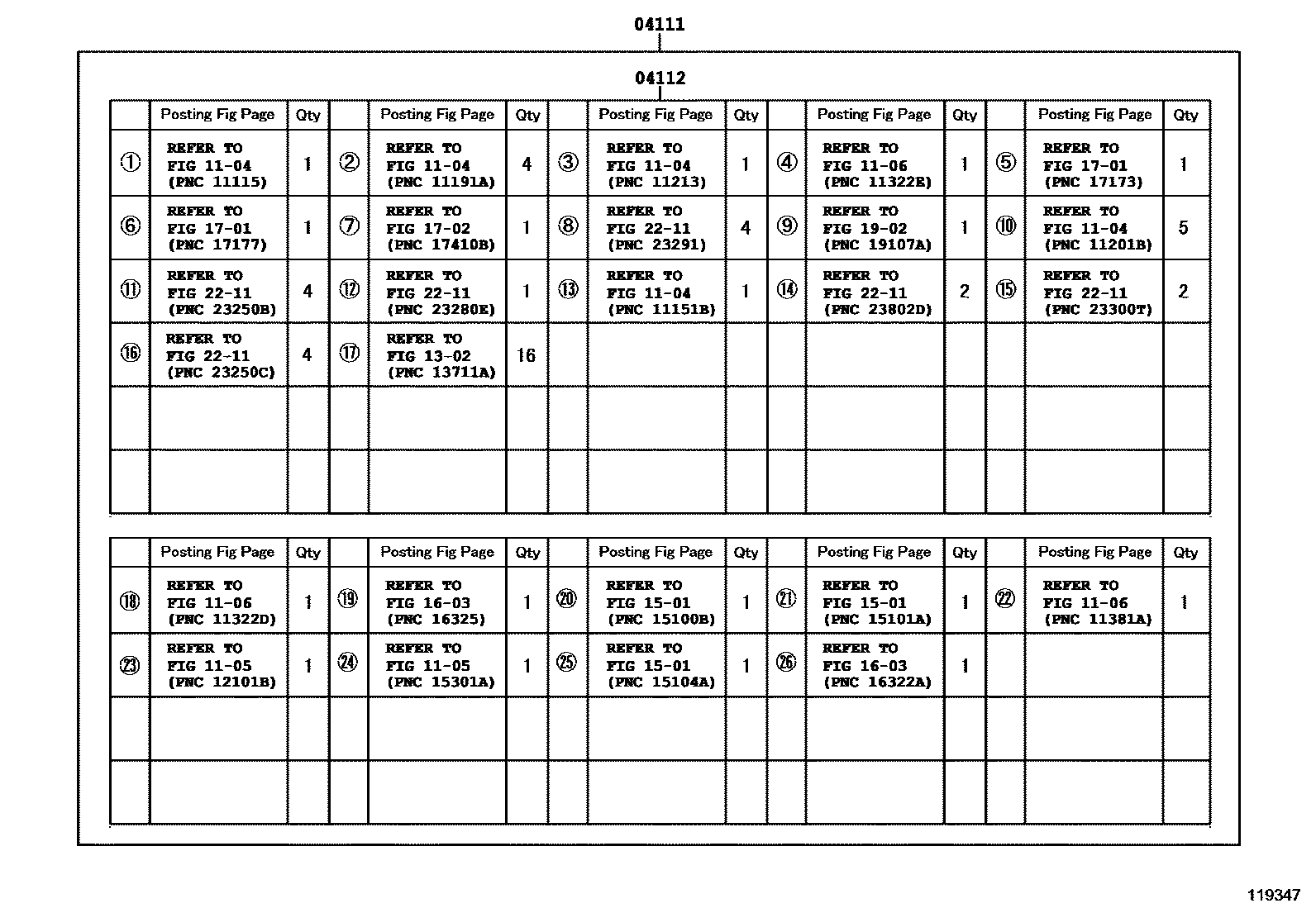

Engine Overhaul Gasket Kit — 119347 (199505 – 999999)

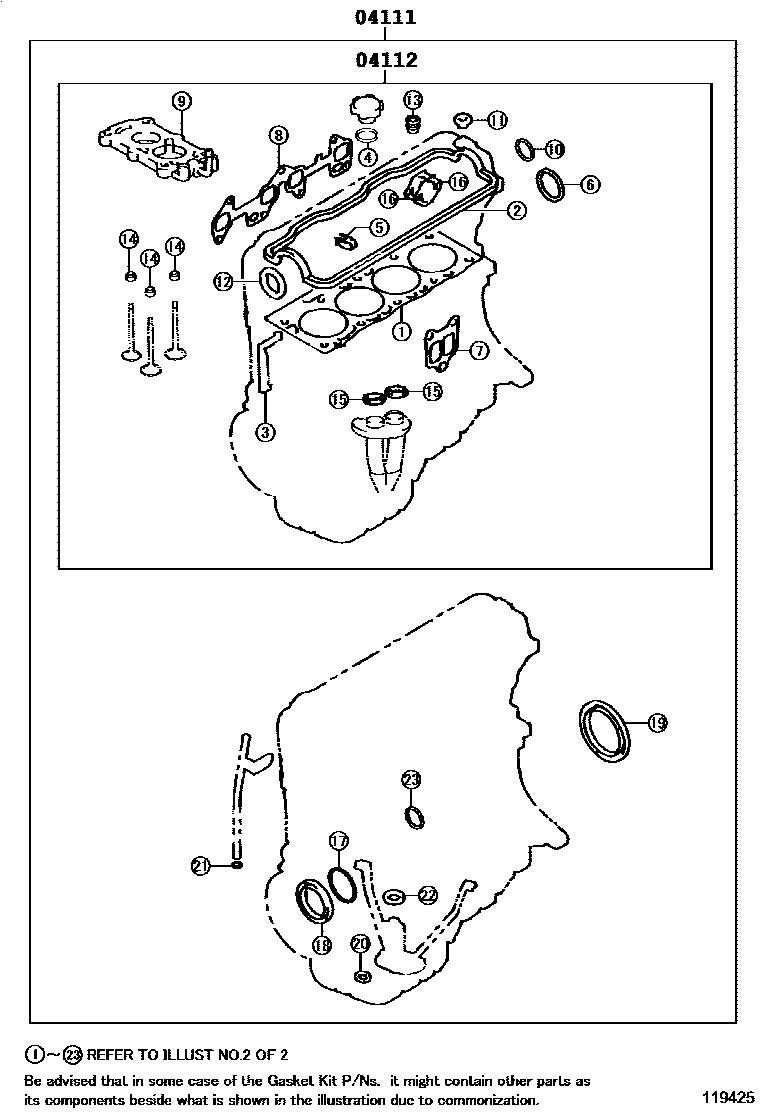

Engine Overhaul Gasket Kit — 119425 (199505 – 999999)

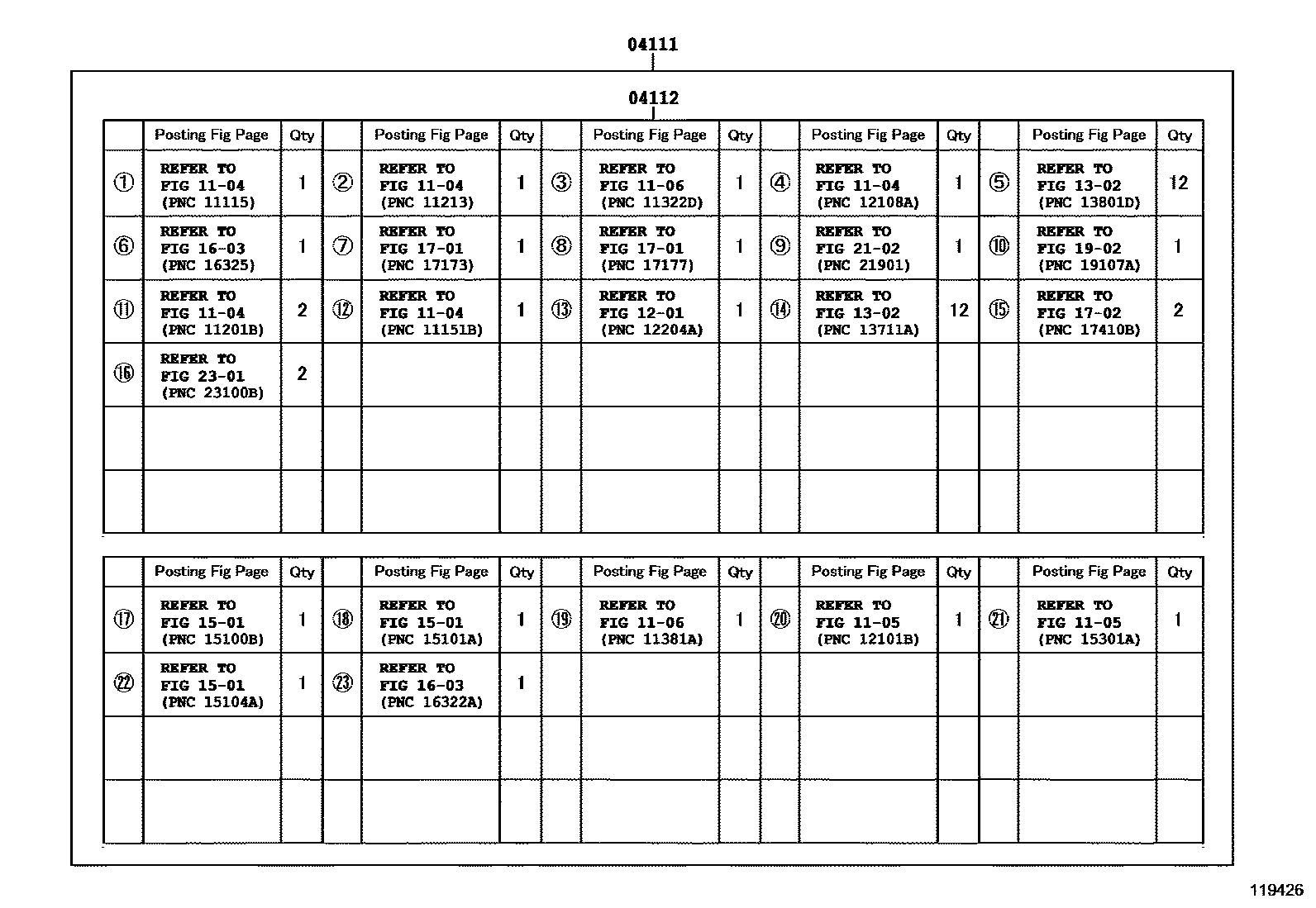

Engine Overhaul Gasket Kit — 119426 (199505 – 999999)

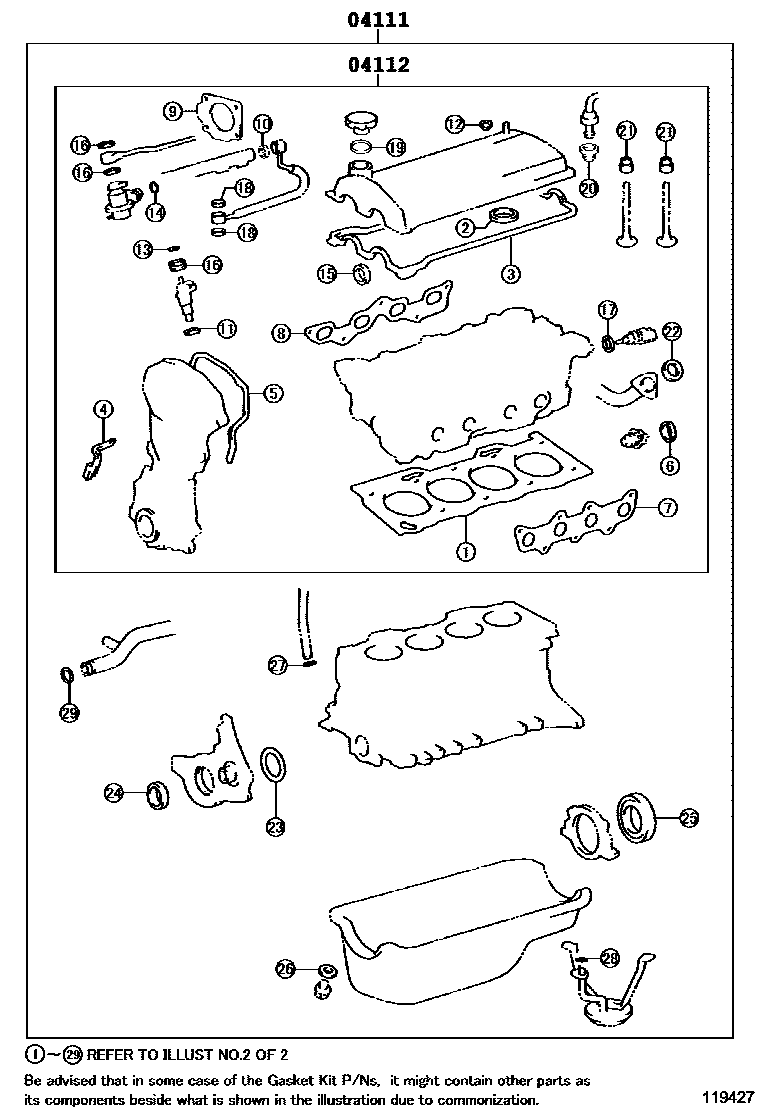

Engine Overhaul Gasket Kit — 119427 (199505 – 999999)

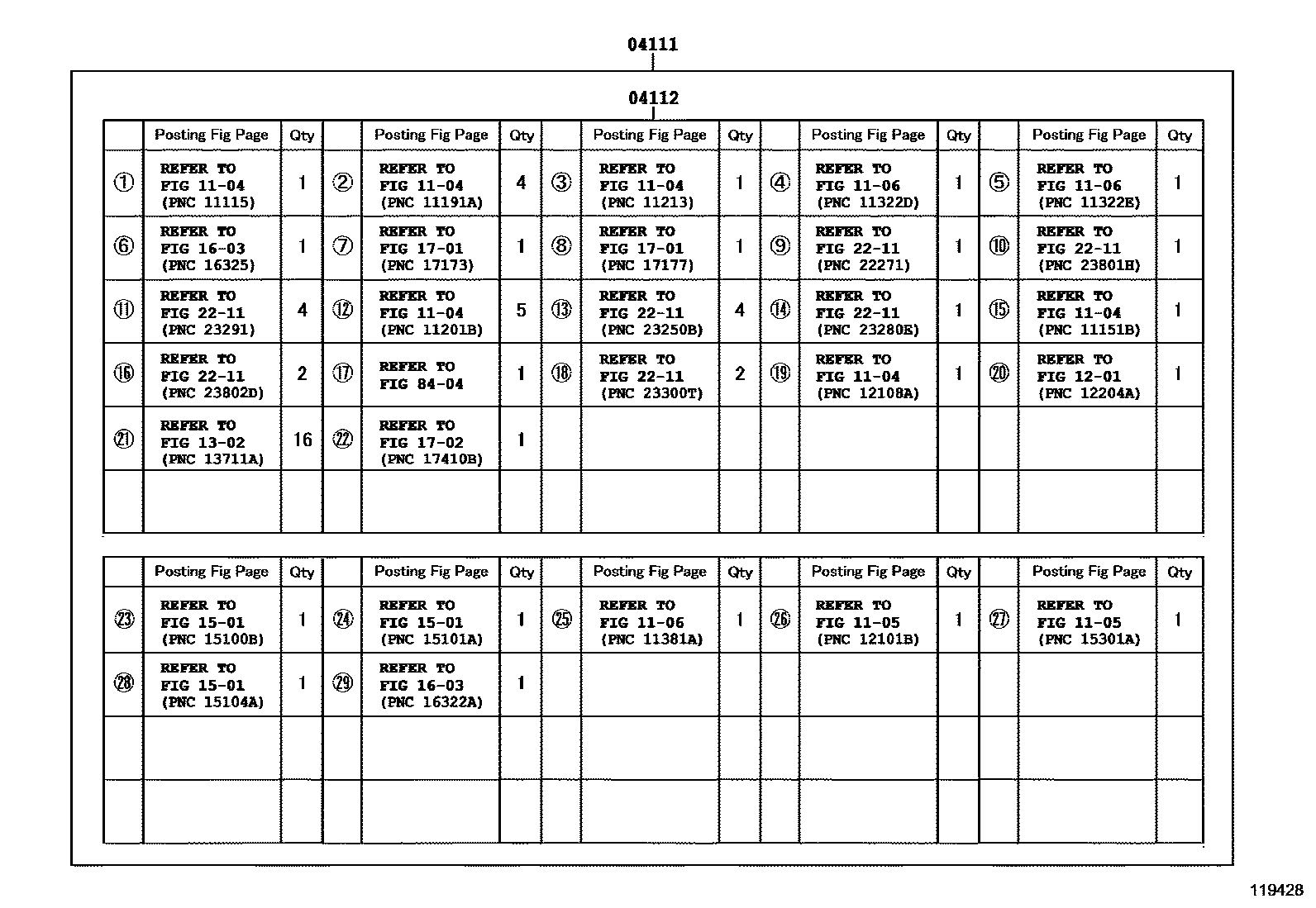

Engine Overhaul Gasket Kit — 119428 (199505 – 999999)

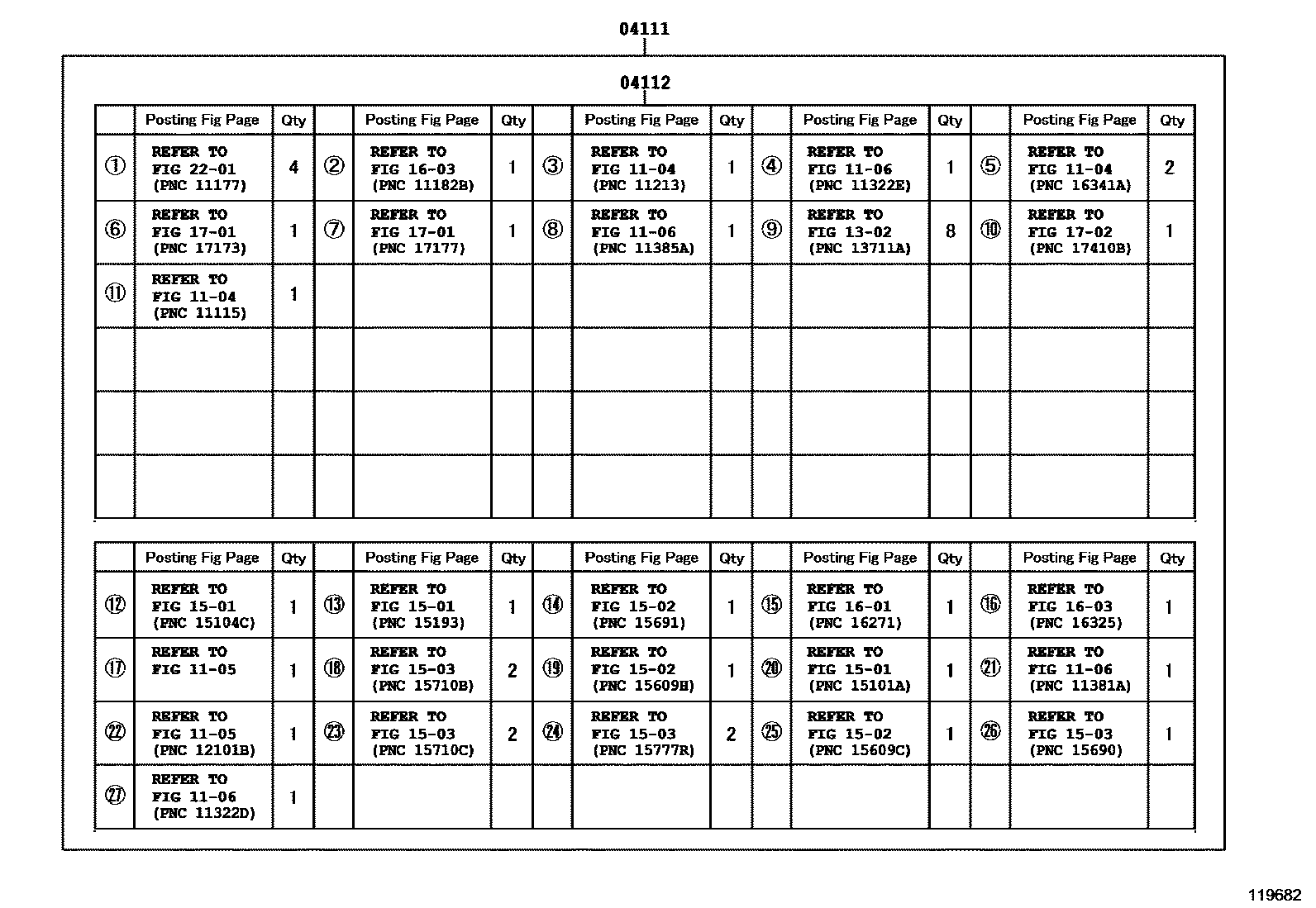

Engine Overhaul Gasket Kit — 119682 (199704 – 199708)

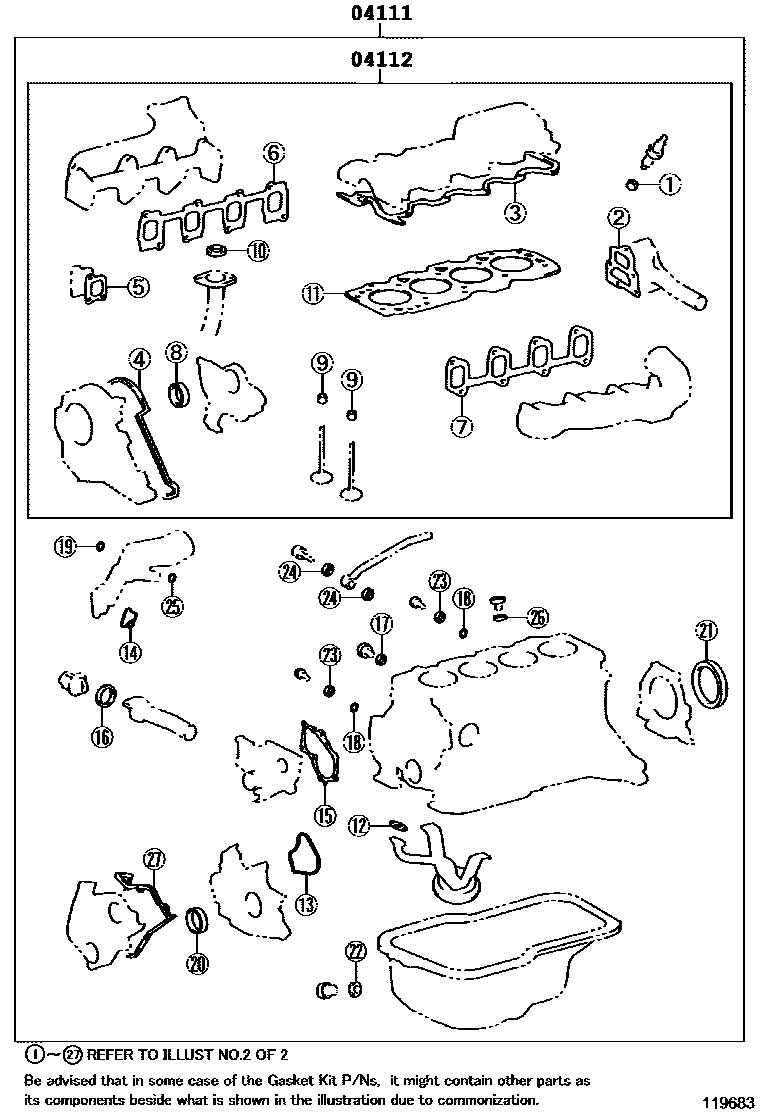

Engine Overhaul Gasket Kit — 119683 (199704 – 199708)

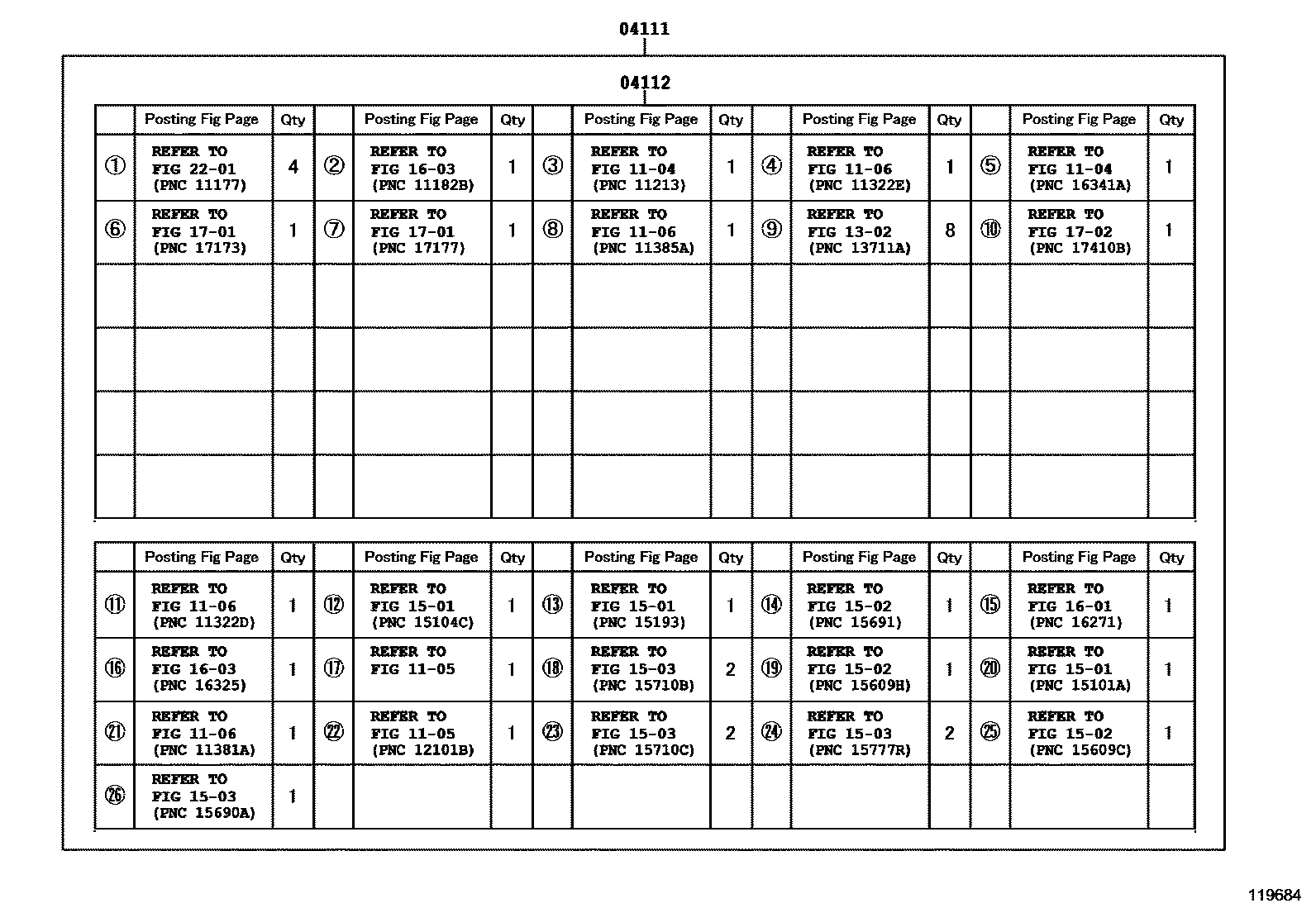

Engine Overhaul Gasket Kit — 119684 (199708 – 999999)

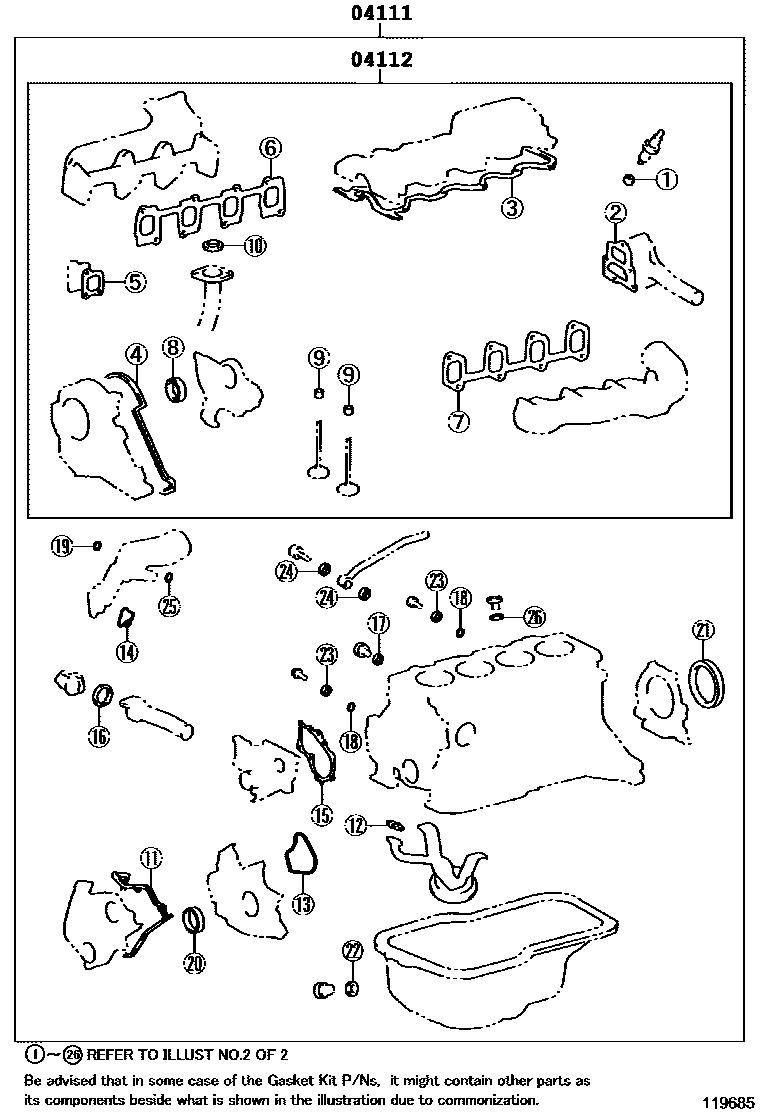

Engine Overhaul Gasket Kit — 119685 (199708 – 999999)

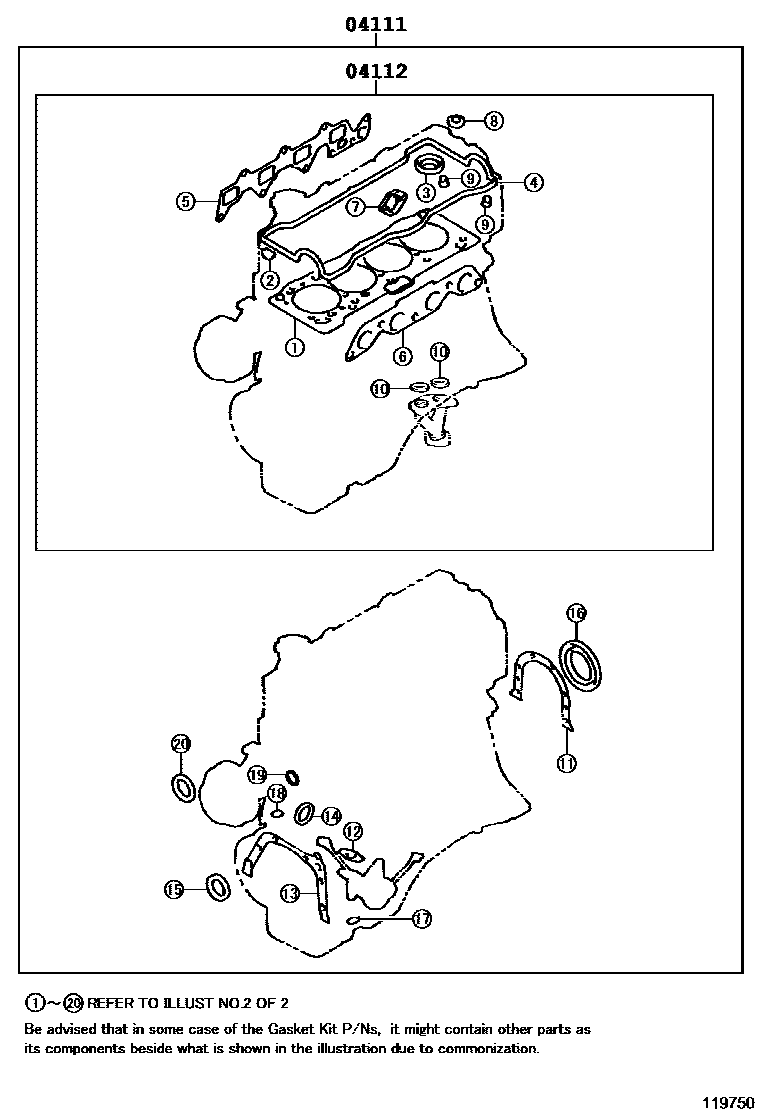

Engine Overhaul Gasket Kit — 119750 (199704 – 999999)

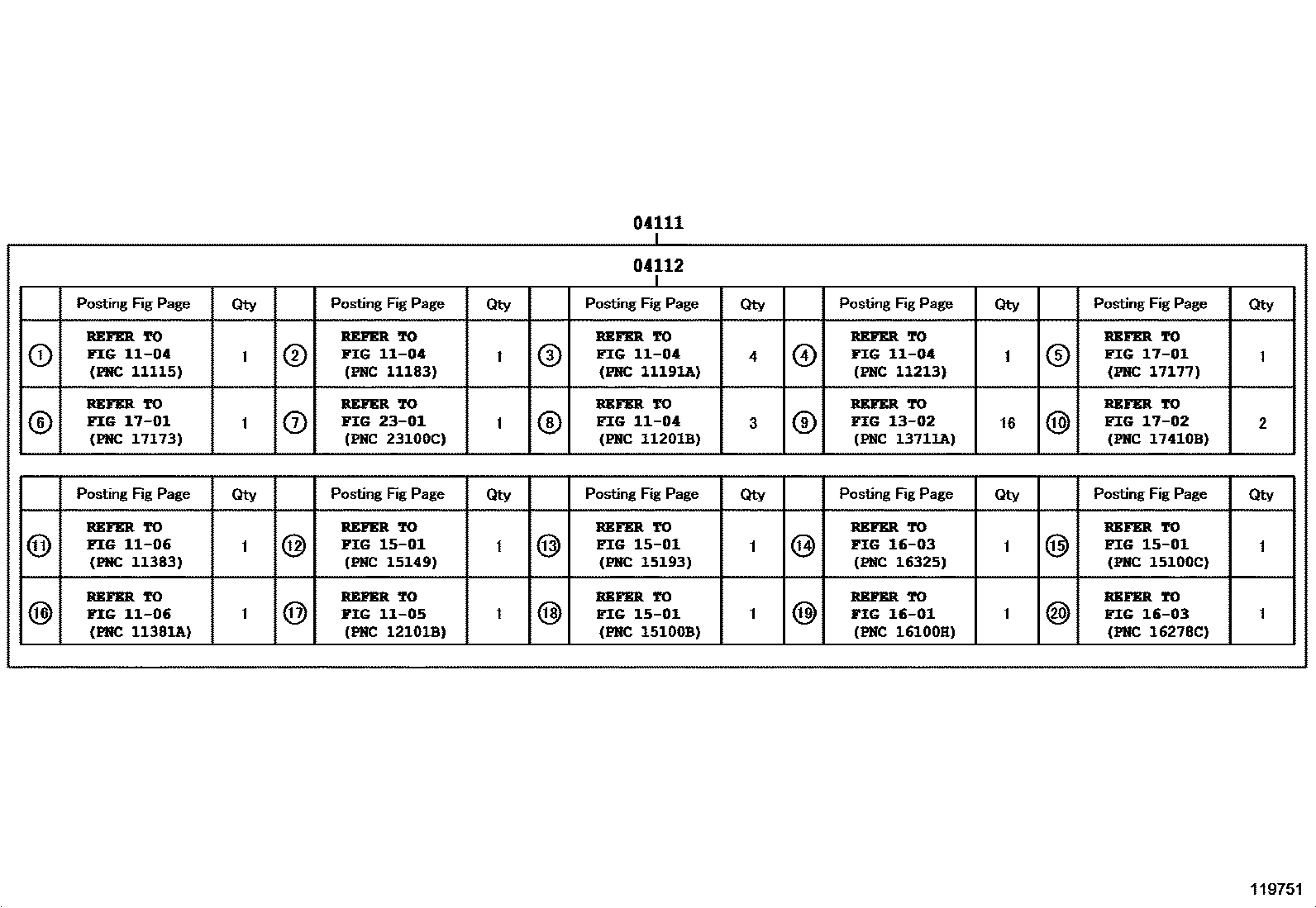

Engine Overhaul Gasket Kit — 119751 (199704 – 999999)

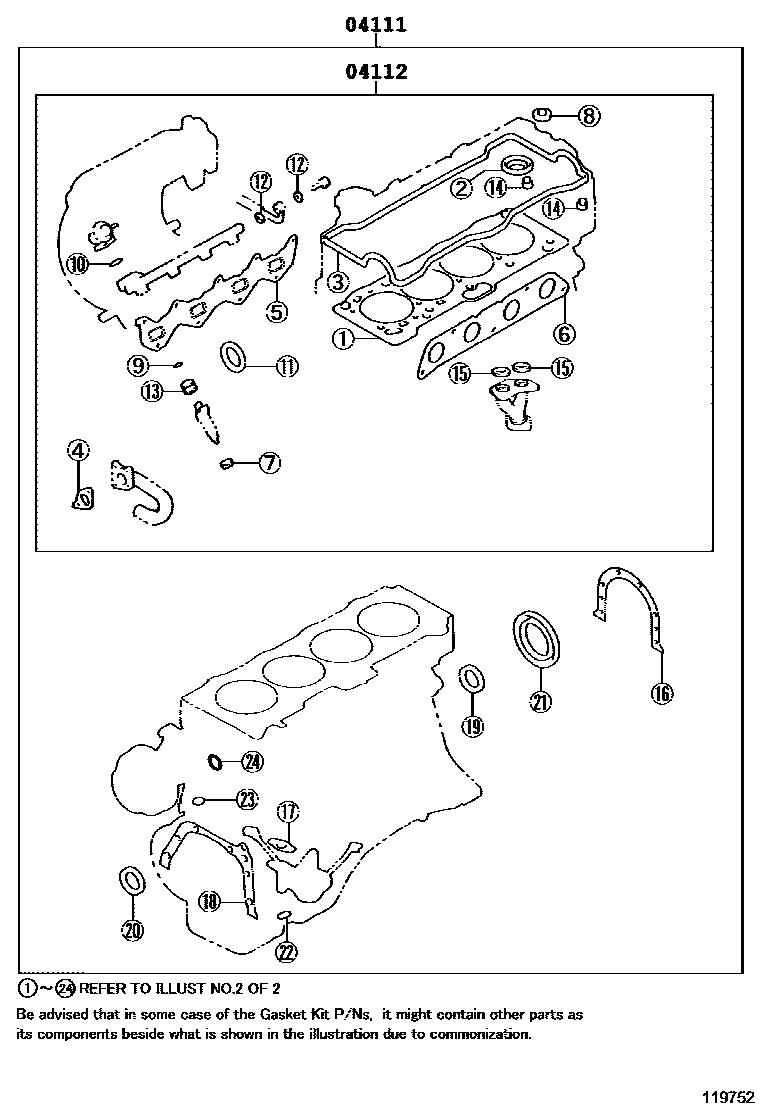

Engine Overhaul Gasket Kit — 119752 (199505 – 999999)

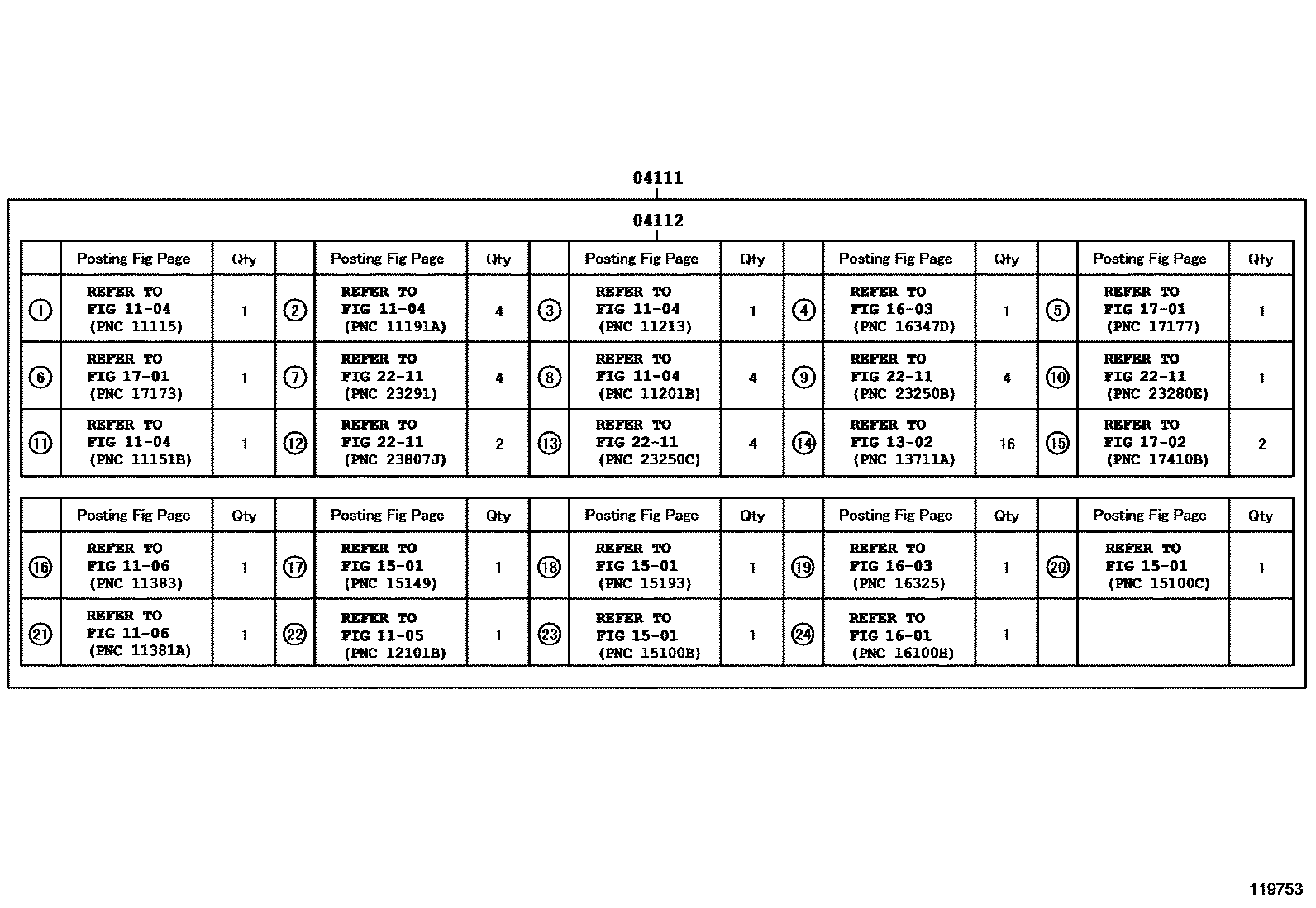

Engine Overhaul Gasket Kit — 119753 (199505 – 999999)

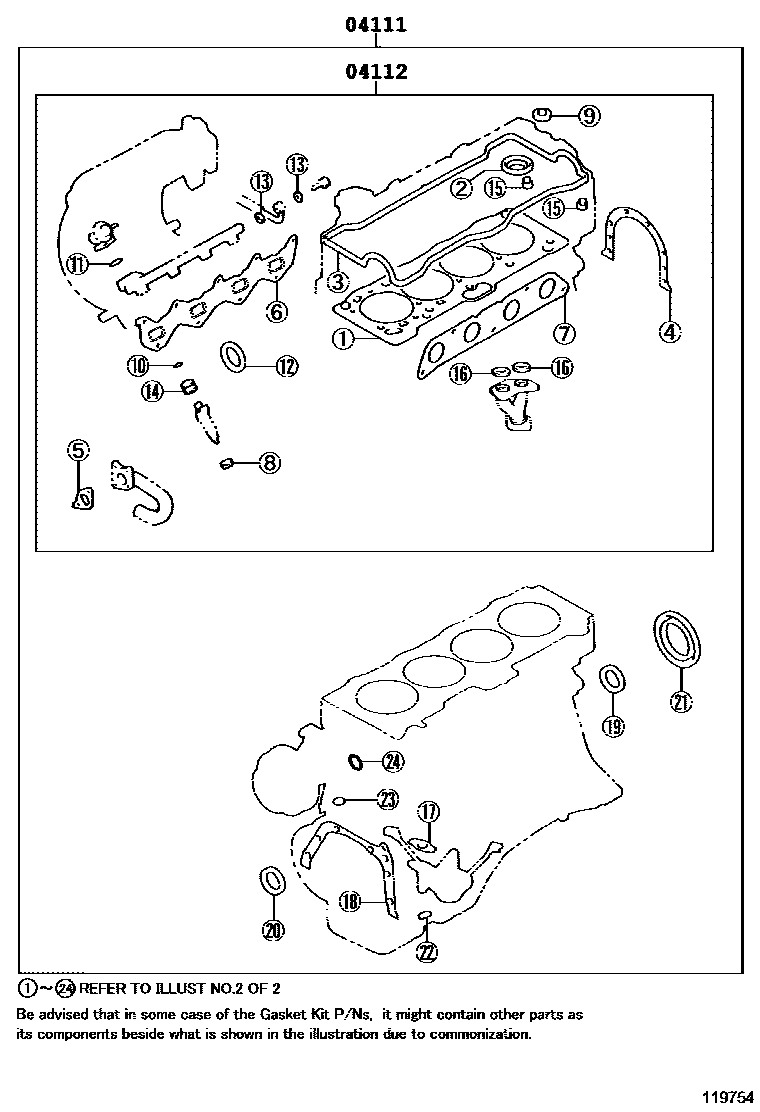

Engine Overhaul Gasket Kit — 119754 (199505 – 999999)

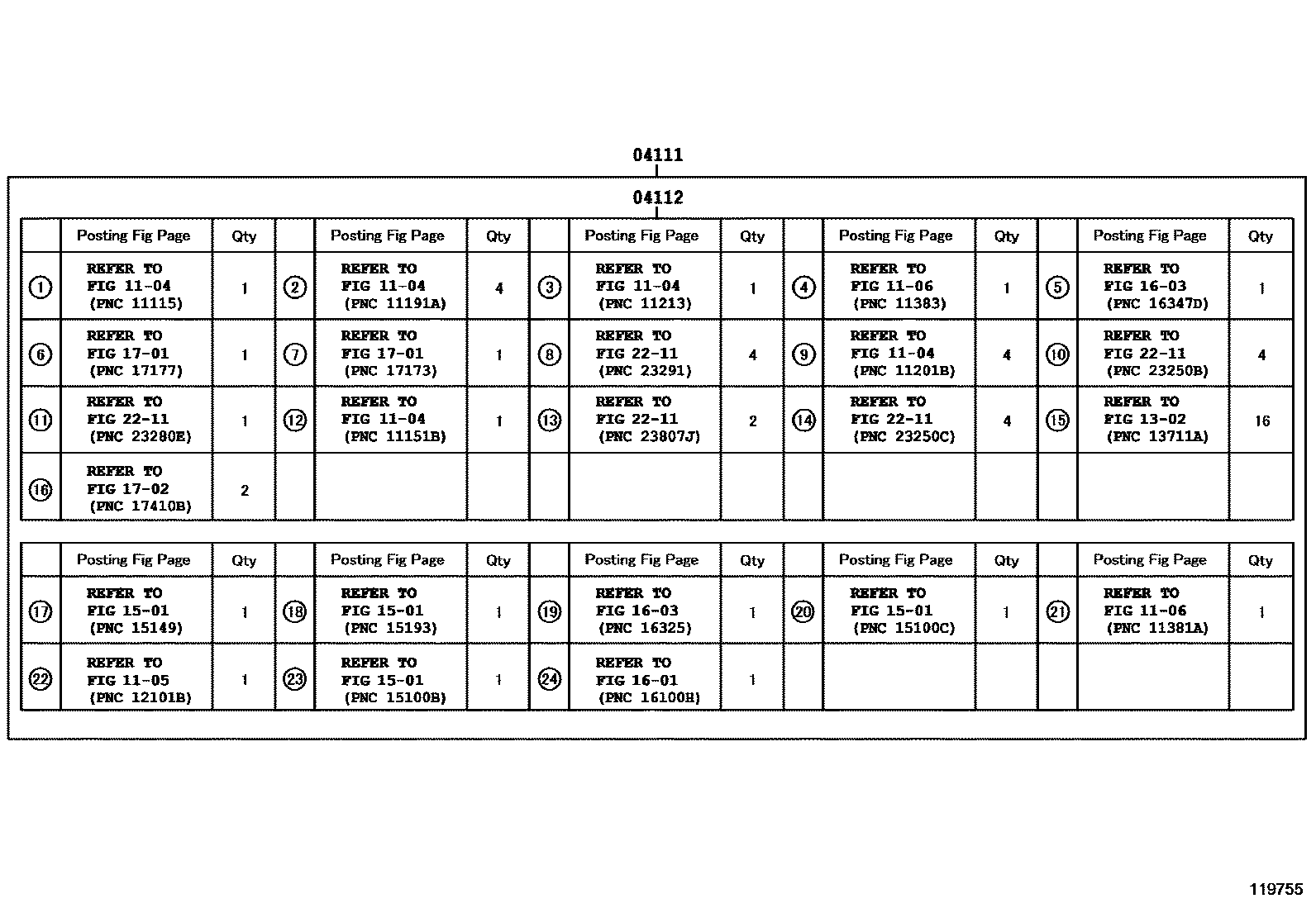

Engine Overhaul Gasket Kit — 119755 (199505 – 999999)

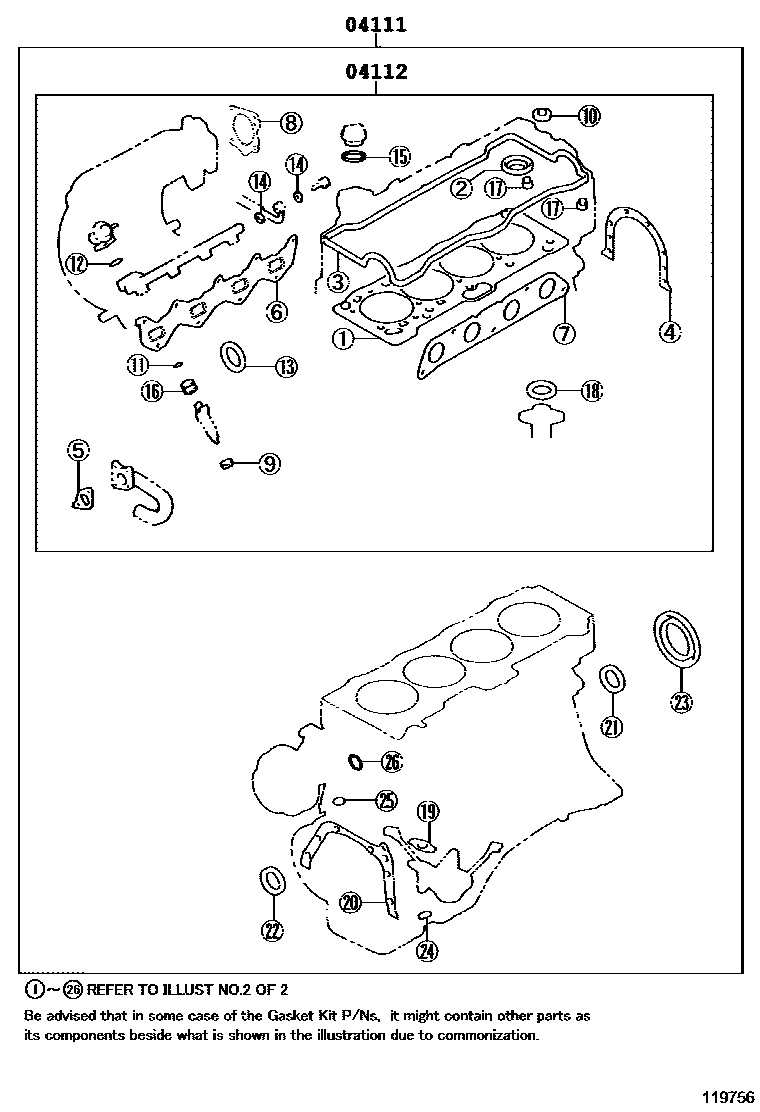

Engine Overhaul Gasket Kit — 119756 (199505 – 999999)

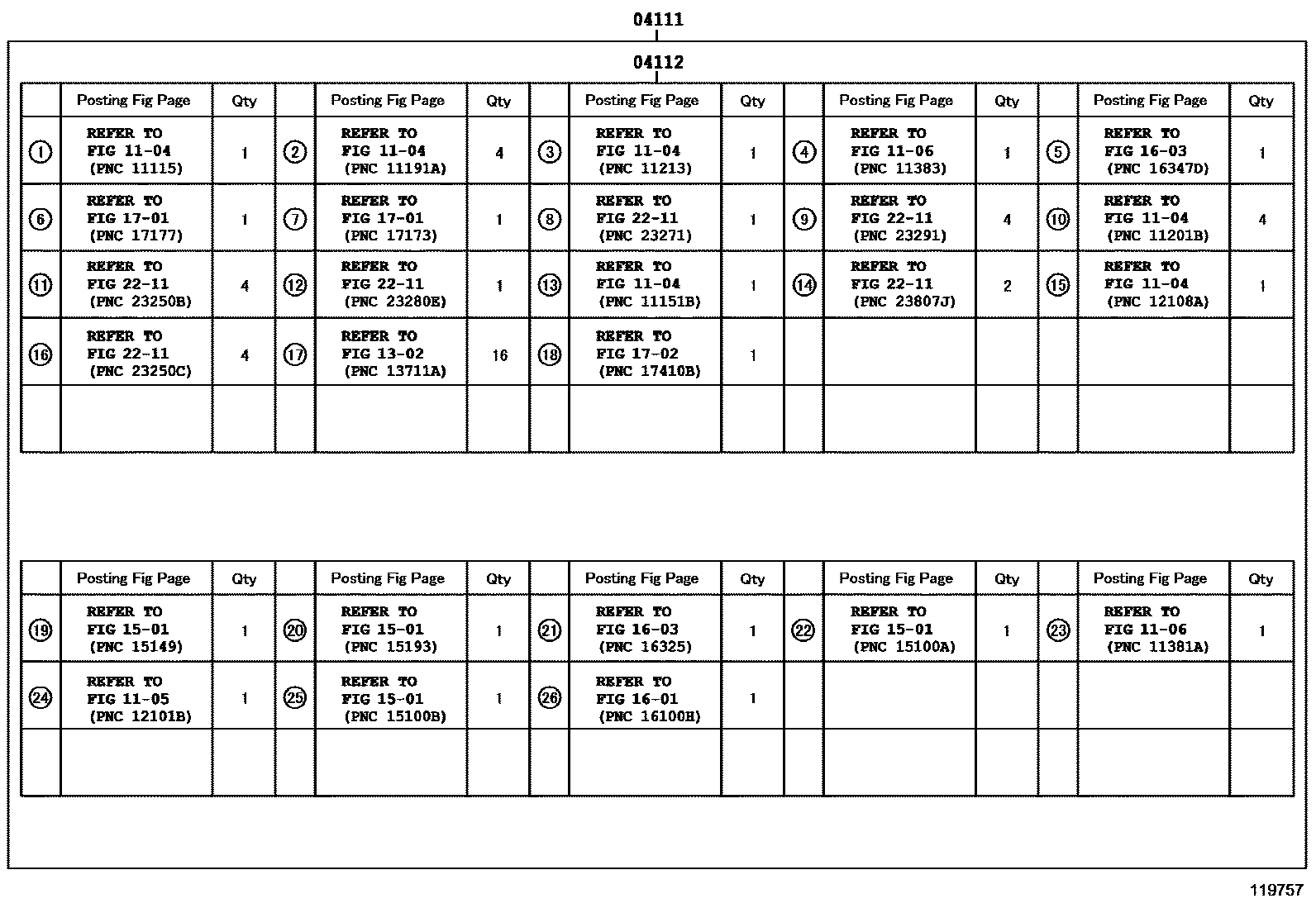

Engine Overhaul Gasket Kit — 119757 (199505 – 999999)

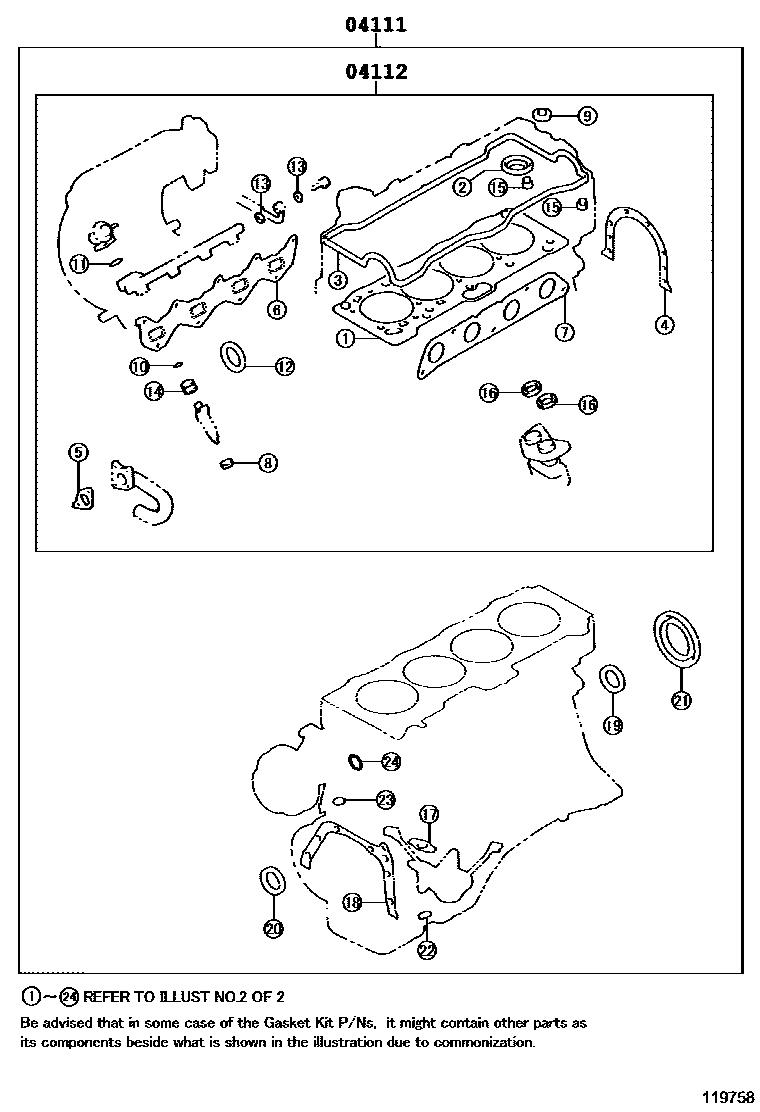

Engine Overhaul Gasket Kit — 119758 (199505 – 999999)

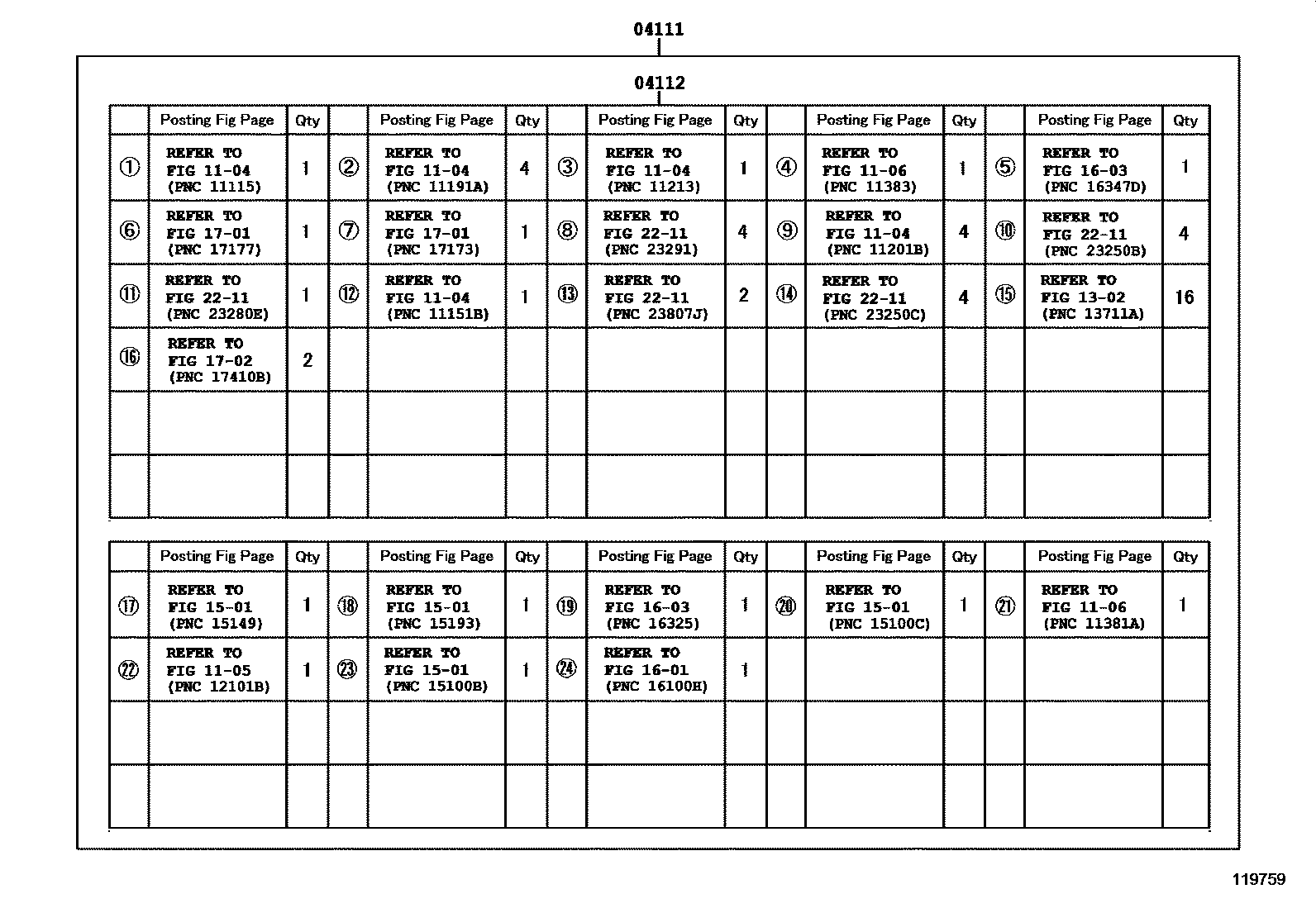

Engine Overhaul Gasket Kit — 119759 (199505 – 999999)

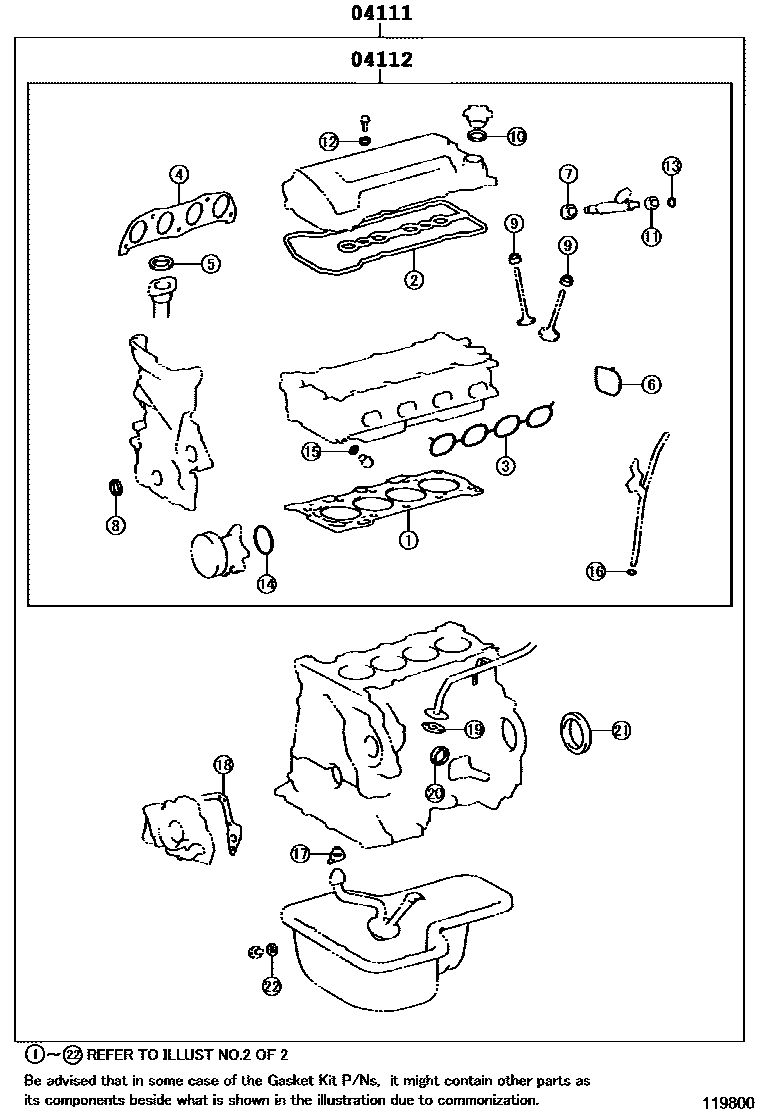

Engine Overhaul Gasket Kit — 119800 (200005 – 999999)

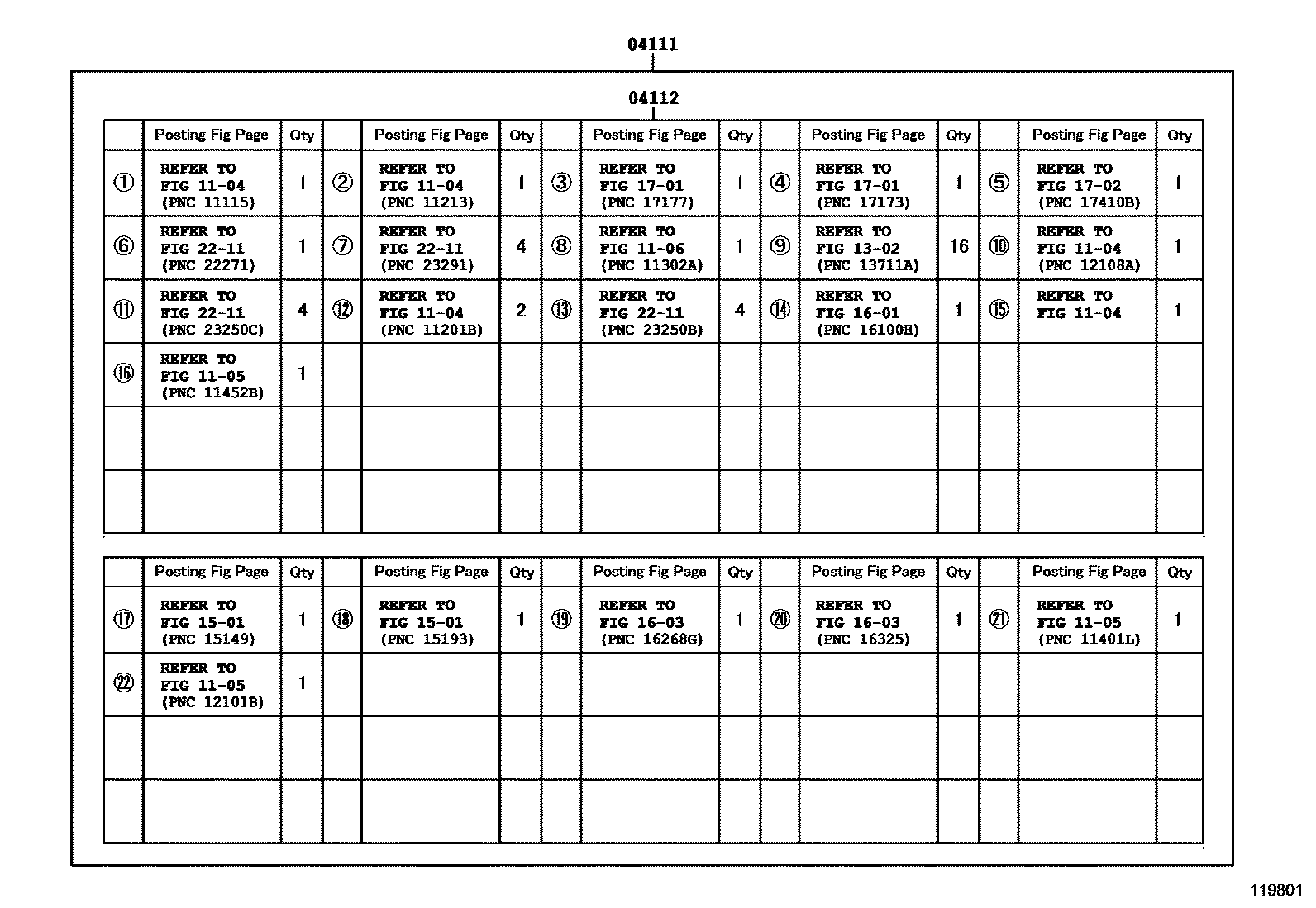

Engine Overhaul Gasket Kit — 119801 (200005 – 999999)PNC and OE references
| PNC | Part name | OE numbers |
|---|
| 04111 | Engine overhaul gasket assembly | 04111-02080 · 04111-02100 · 04111-0D060 · 04111-0D110 · 04111-11025 · 04111-11026 · 04111-11092 · 04111-11141 · 04111-11200 · 04111-11210 · 04111-16124 · 04111-16221 · 04111-16231 · 04111-16241 · 04111-16320 · 04111-64292 · 04111-64293 · 04111-64294 · 04111-64295 · 04111-64296 |
| 04112 | Engine valve grinding pad assembly | 04112-02080 · 04112-02100 · 04112-0D060 · 04112-0D110 · 04112-11012 · 04112-11081 · 04112-11121 · 04112-11170 · 04112-11180 · 04112-16123 · 04112-16220 · 04112-16230 · 04112-16240 · 04112-16320 · 04112-64222 · 04112-64223 · 04112-64224 |
