Toyota COROLLA Standard Tools — Figure 0901

Toyota COROLLA EPC diagram 0901, Standard Tools, with 1 images and 10 PNC and OE references.

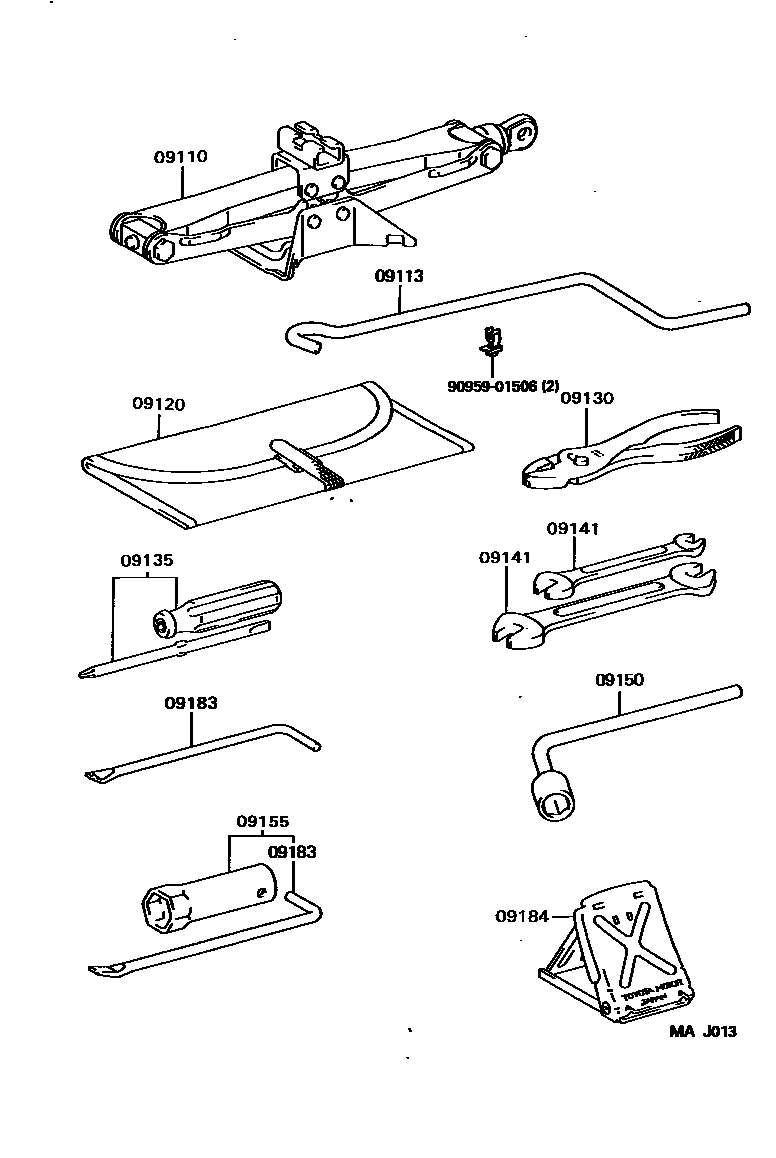

Toyota COROLLA Standard Tools EPC diagram — MAJ013
Standard Tools — MAJ013 (199505 – 999999)

PNC and OE references

PNCPart nameOE numbers
09110Jack Assembly09110-12060 · 09111-0W020
09113Jack Handle09113-12010 · 09113-12020 · 09113-12030
09120Tool Bag09120-16030
09130Pliers99913-11500
09135Screwdriver99915-10700
09141Wrench99914-10810 · 99914-11214
09150Wheel Nut Wrench Case09150-26010 · 09150-40010
09155Spark Plug Wrench09155-41010 · 09155-41020 · 09155-74010 · 09155-74020
09183Wheel Cap Remover09183-00010
09184Wheel Chock09184-00010
