Toyota COROLLA 空气净化器或离子发生器 — Figure 8724

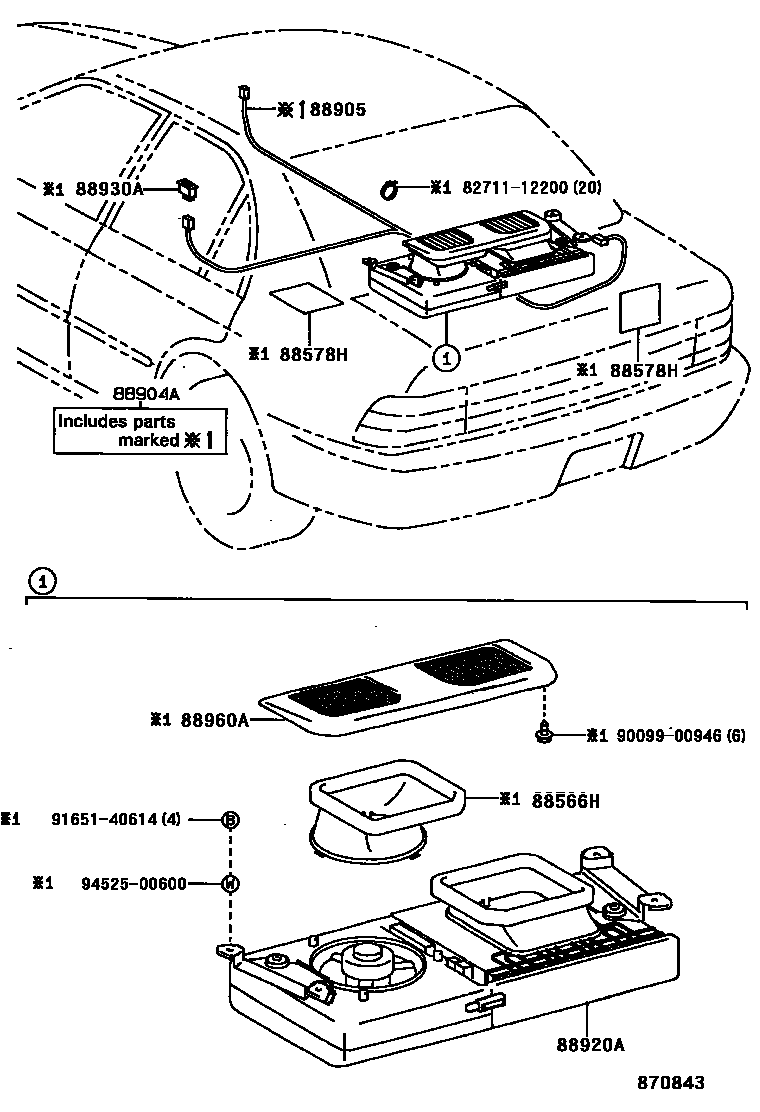

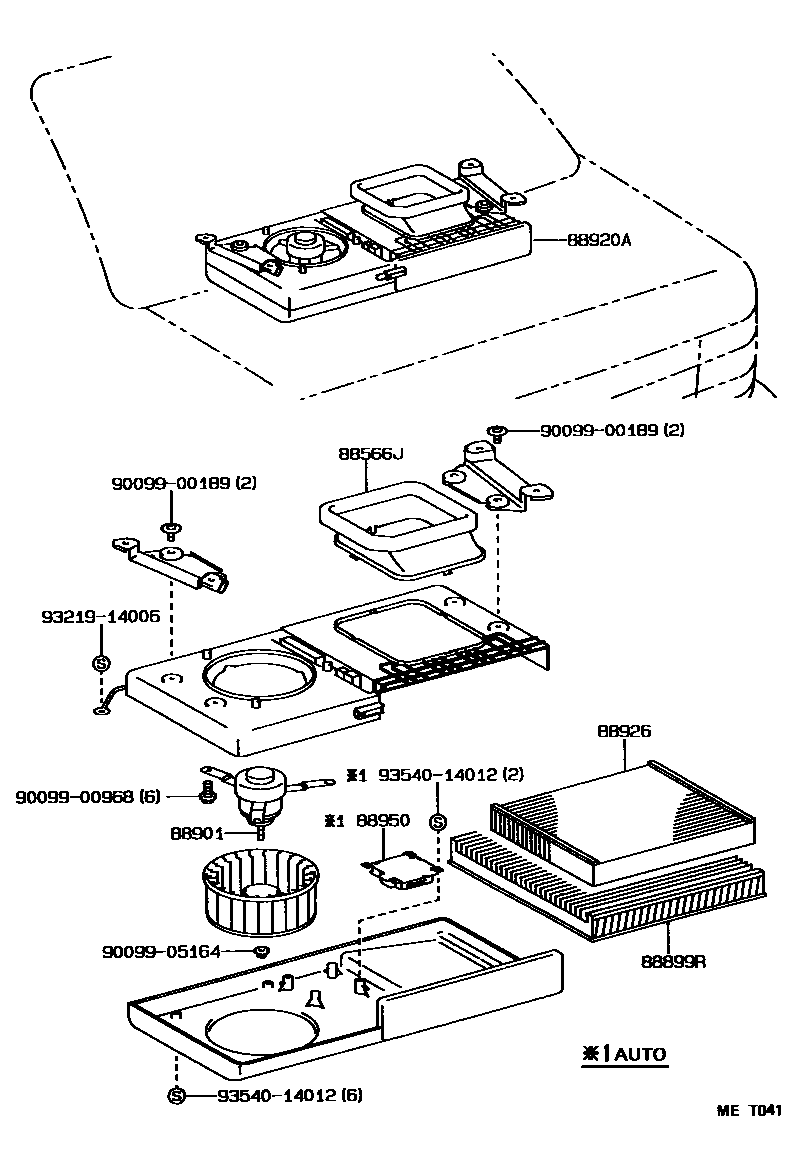

Toyota COROLLA EPC diagram 8724, 空气净化器或离子发生器, with 4 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88566H | No. 1 air duct | 88566-12030 · 88566-12070 · 88566-12080 |
| 88566J | Duct No. 2 | 88566-12040 · 88566-12050 · 88566-12060 |
| 88578H | No. 2 air purifier seal | 88578-12170 · 88578-89105 |
| 88899R | air purifier frame | 88899-12080 |
| 88901 | Air purifier motor sub-assembly | 88901-12010 |
| 88904A | Air purifier accessory sub-assembly | 88904-12030 · 88904-12040 |
| 88905 | Air purifier No. 1 wiring harness sub-assembly | 88905-12010 · 88905-12020 · 88905-12030 · 88905-12040 |
| 88920A | Air purifier assembly | 88920-12030 · 88920-12040 · 88920-12140 |
| 88926 | air purifier filter | 88926-12020 |
| 88930A | Air purifier switch assembly | 88930-12010 · 88930-12020 |
| 88950 | Air purifier amplifier assembly | 88950-12010 |
