Toyota COROLLA 暖风和空调系统 - 真空管 — Figure 8717

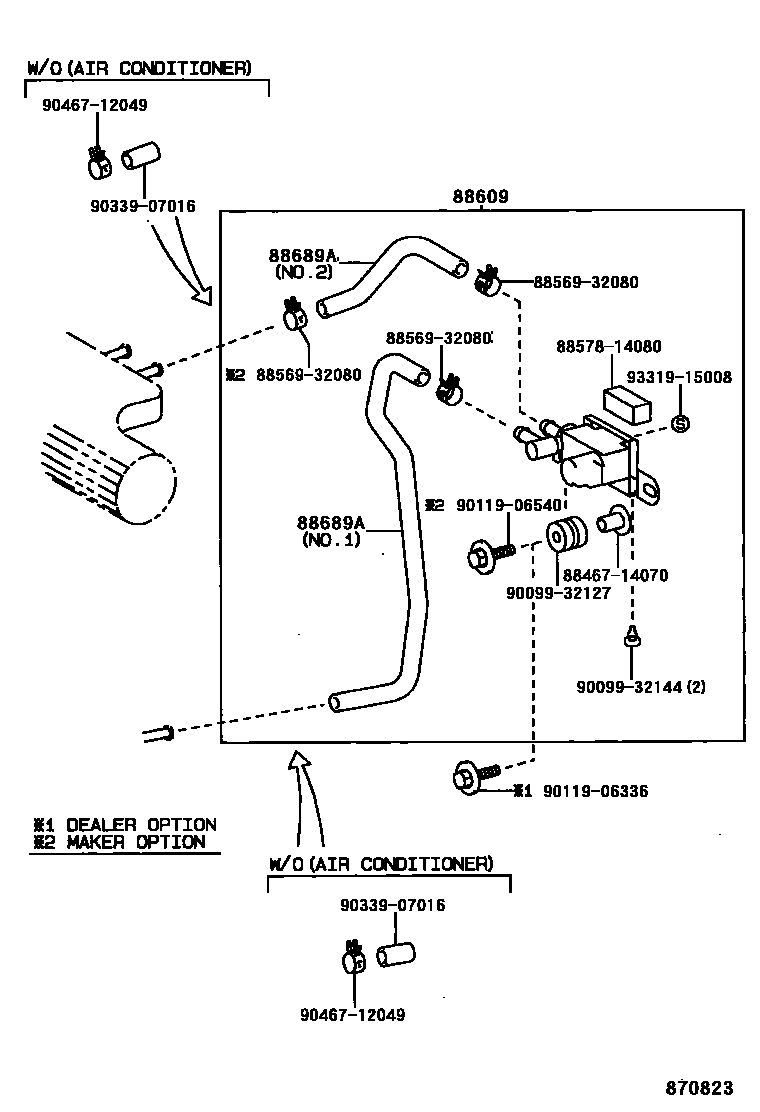

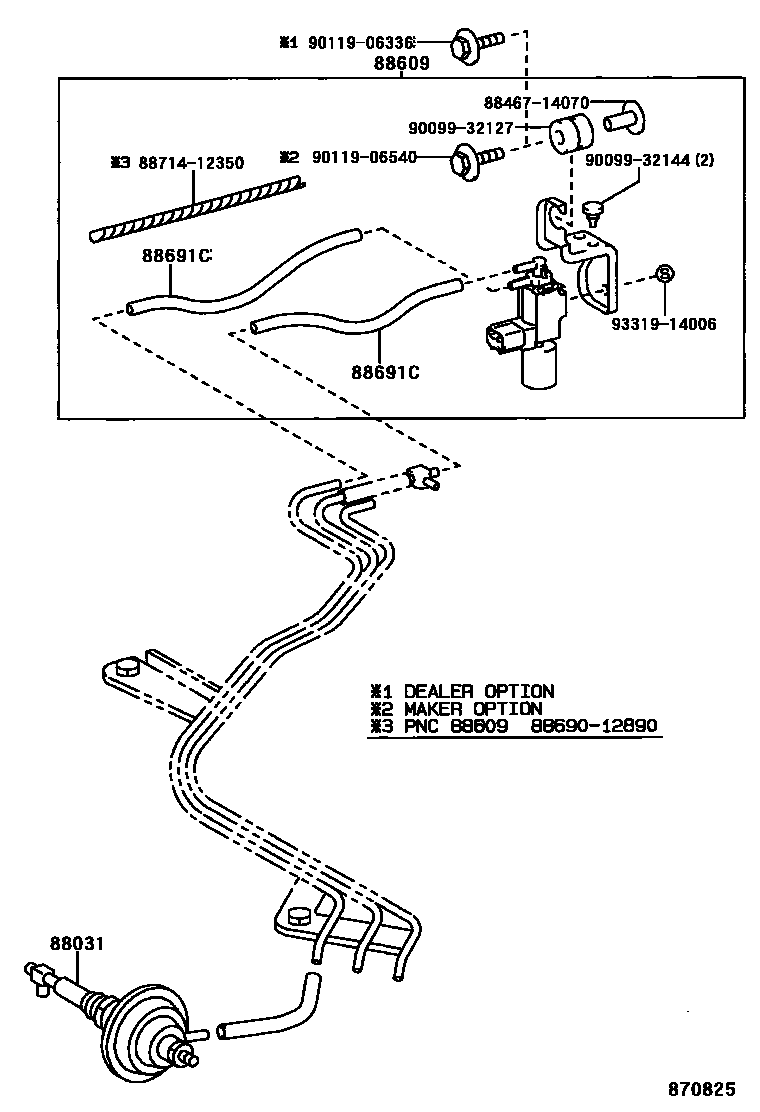

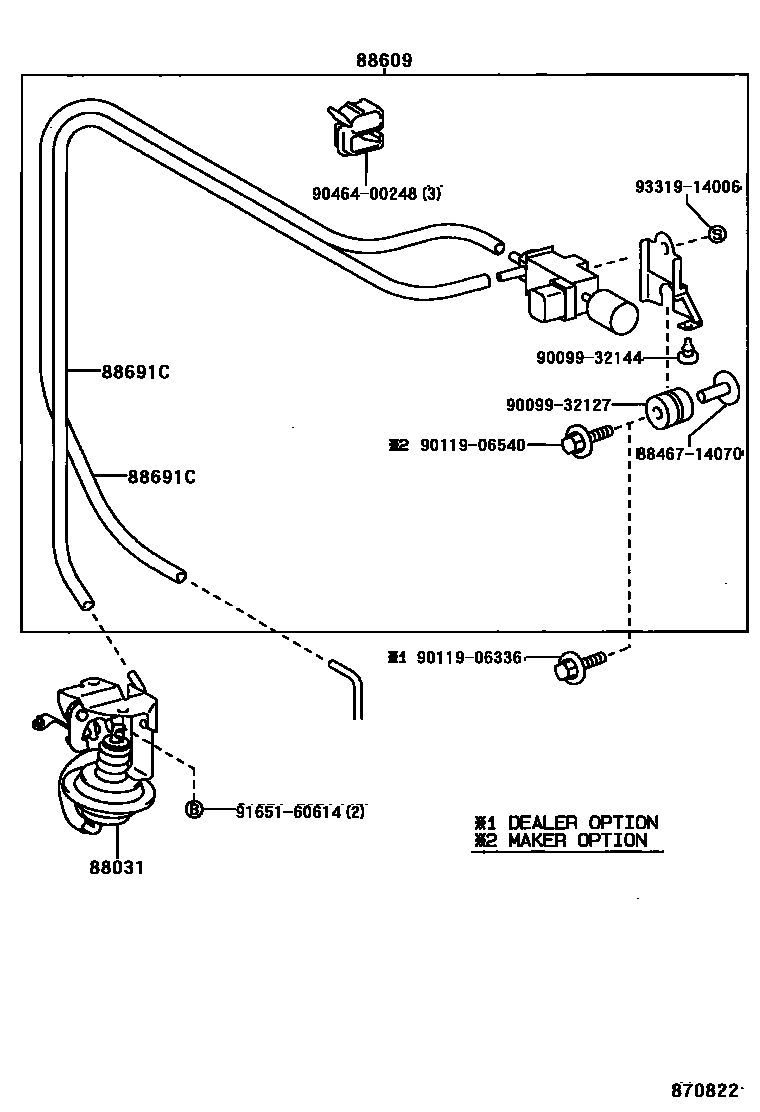

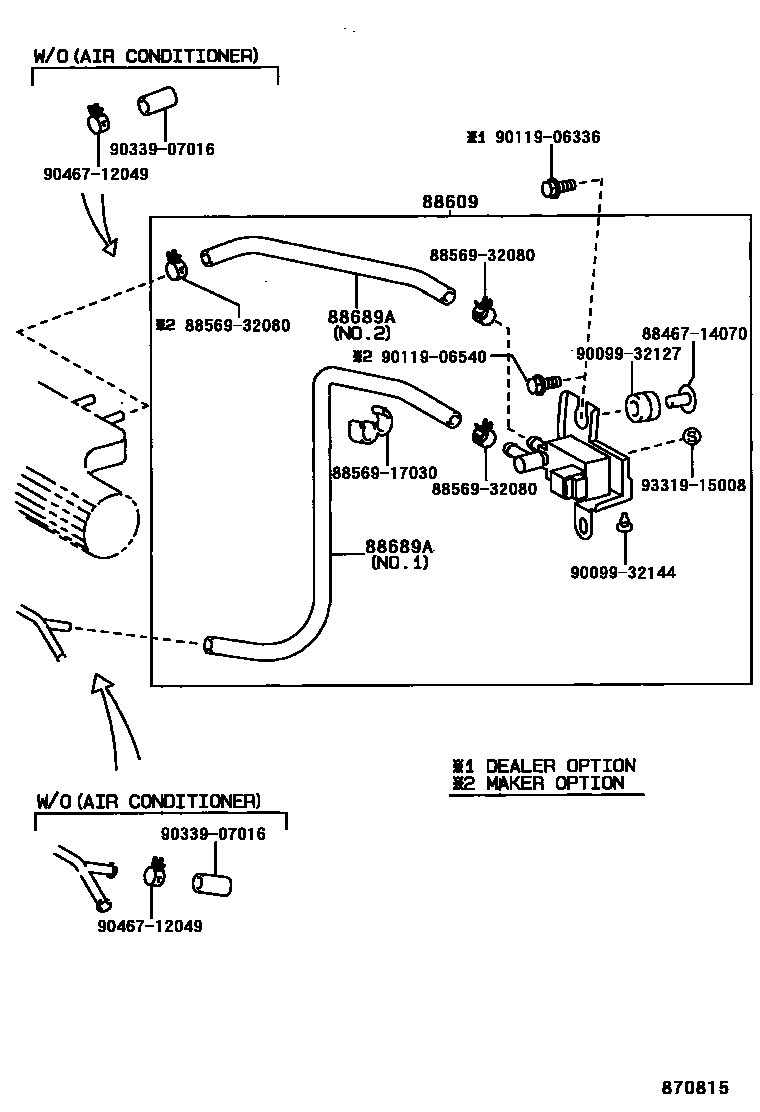

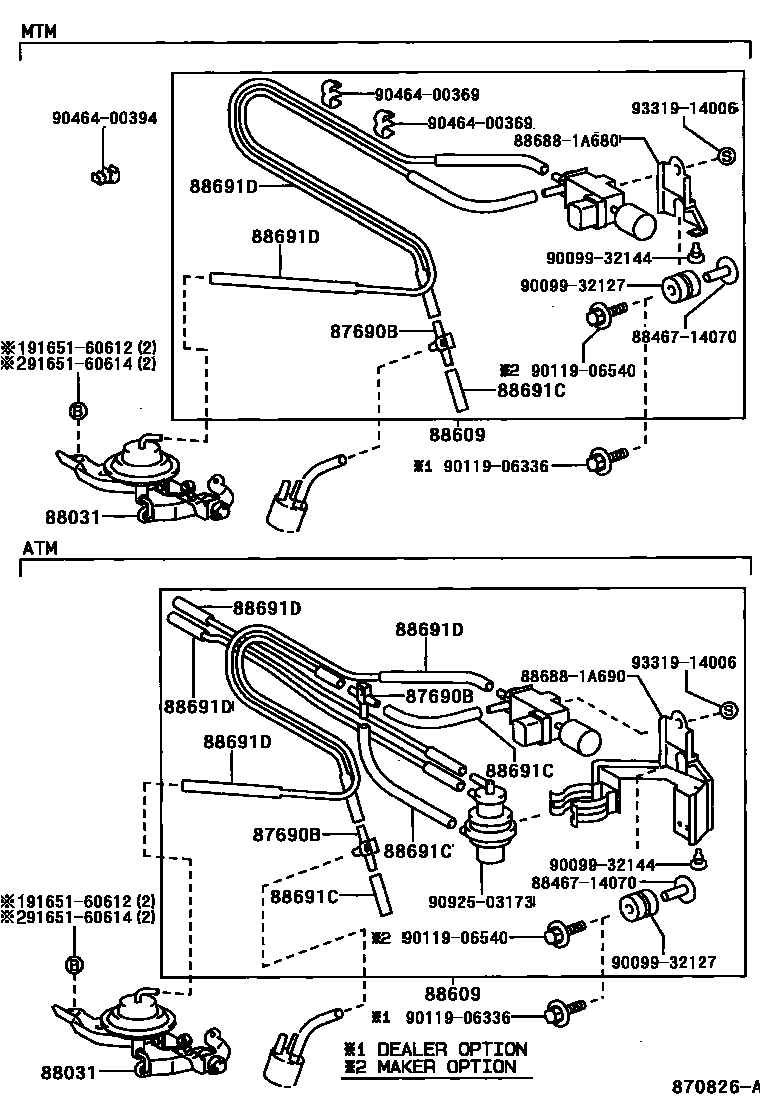

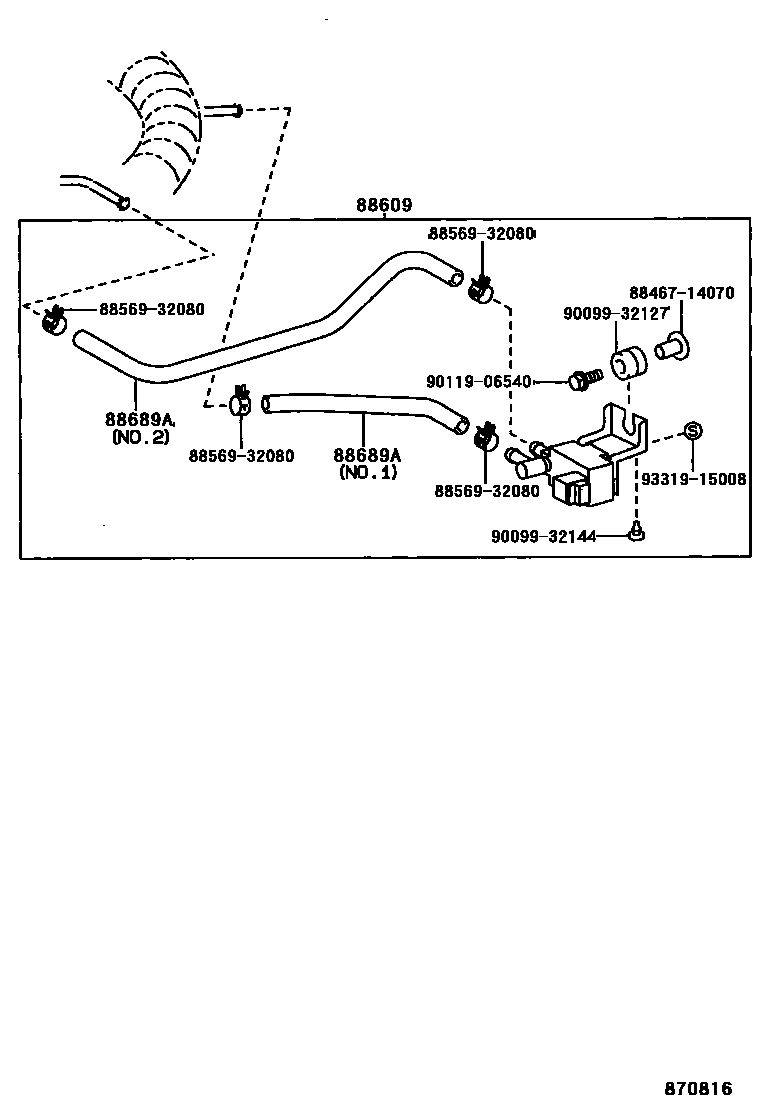

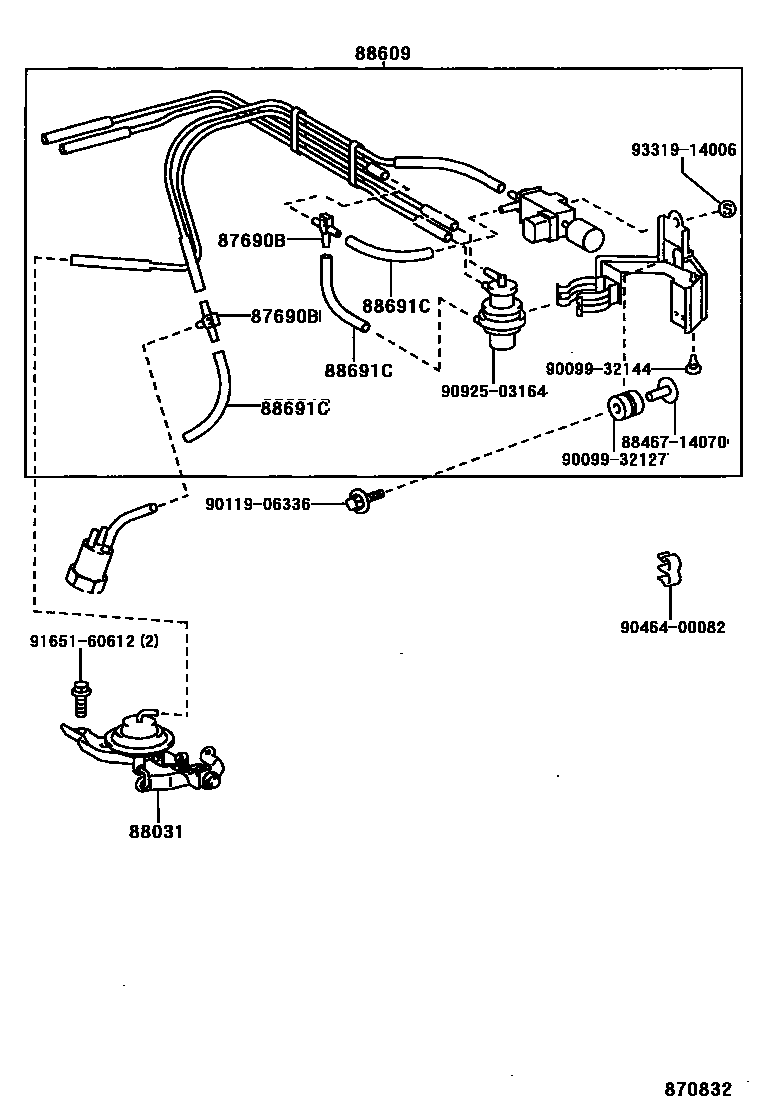

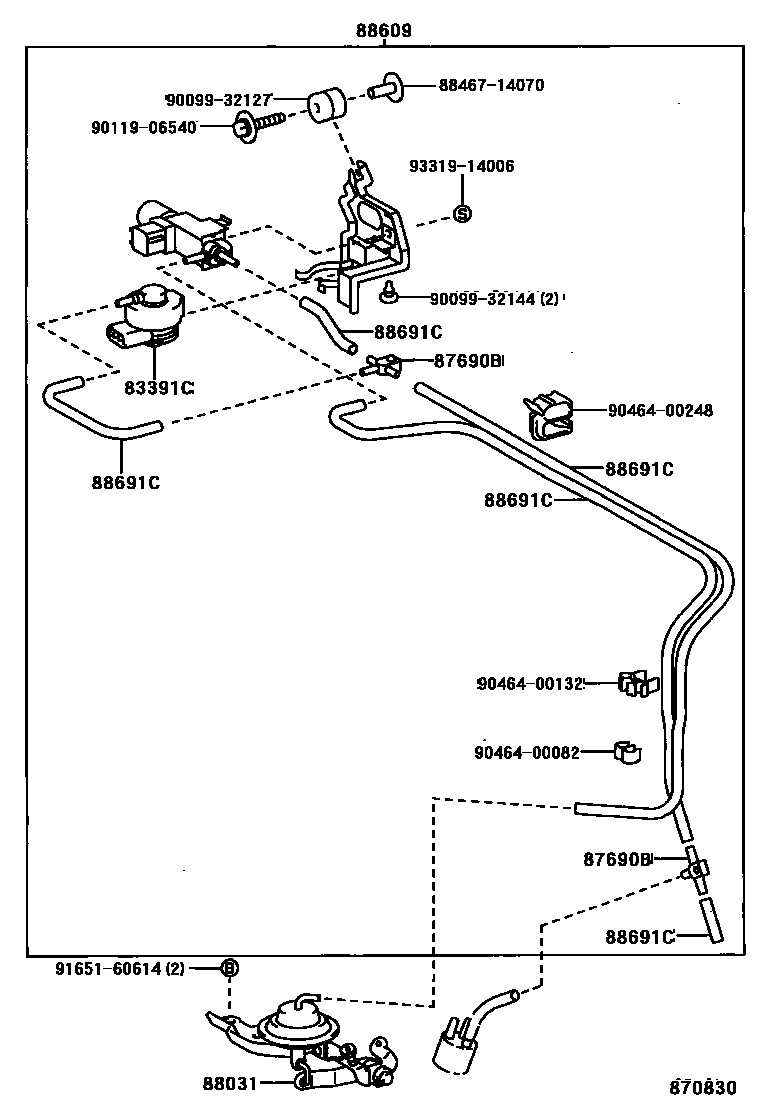

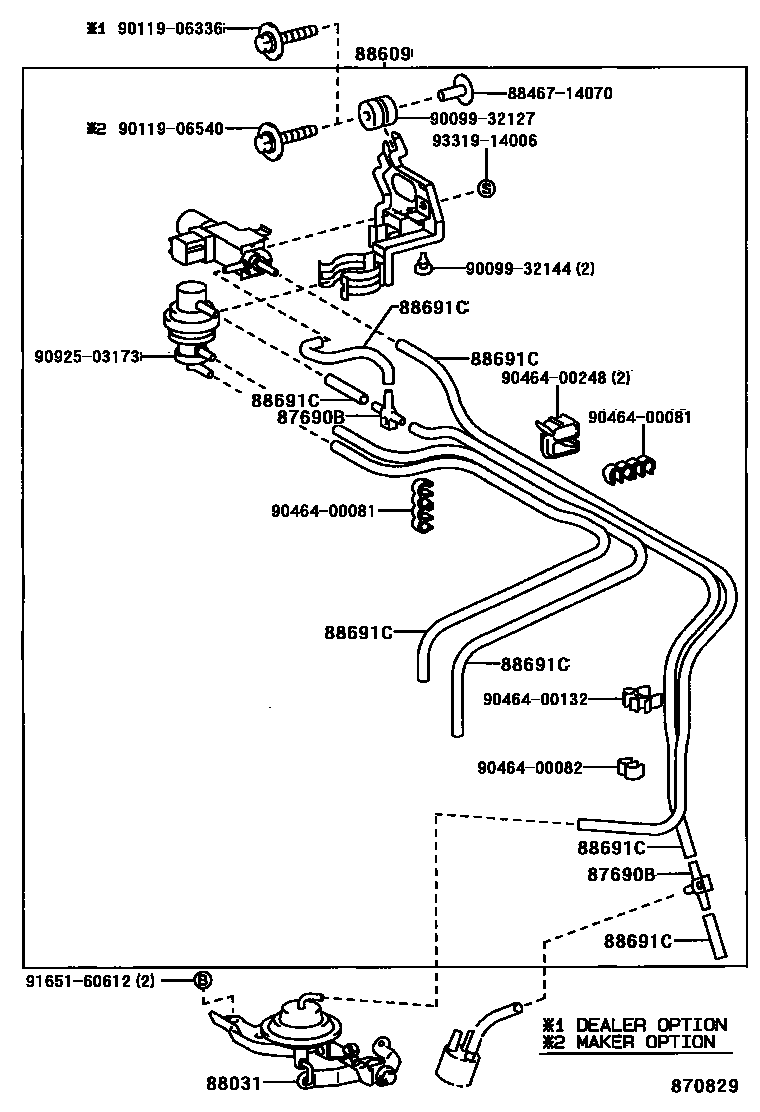

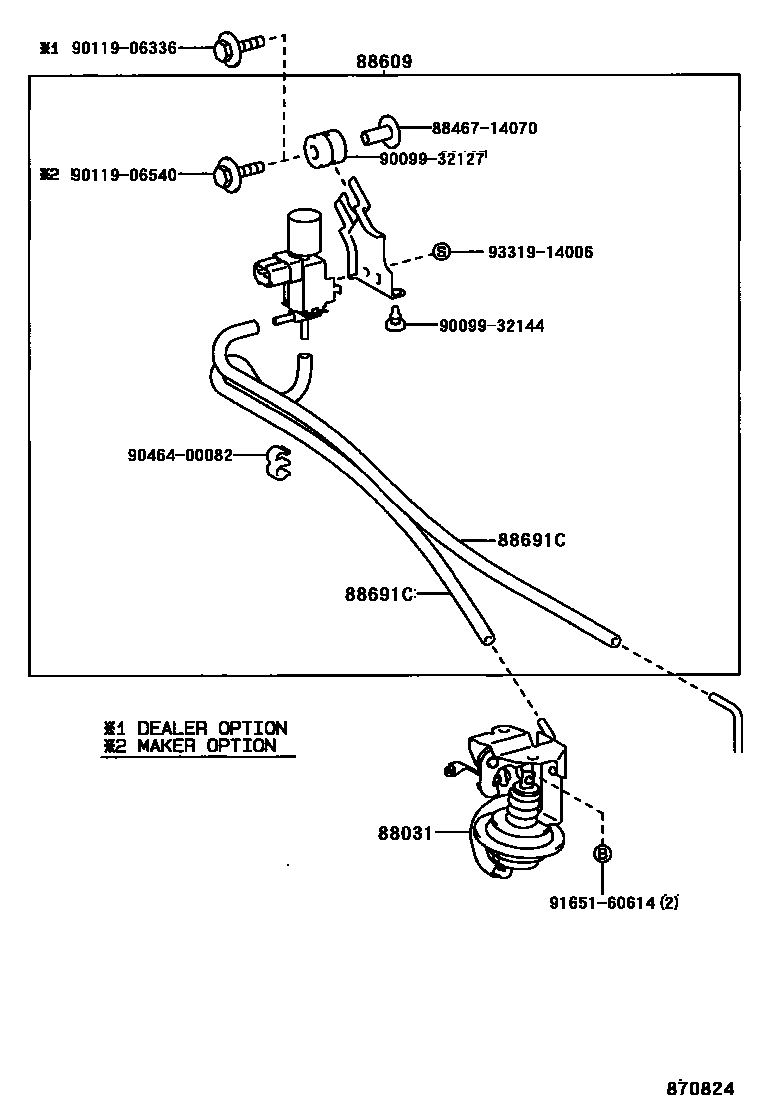

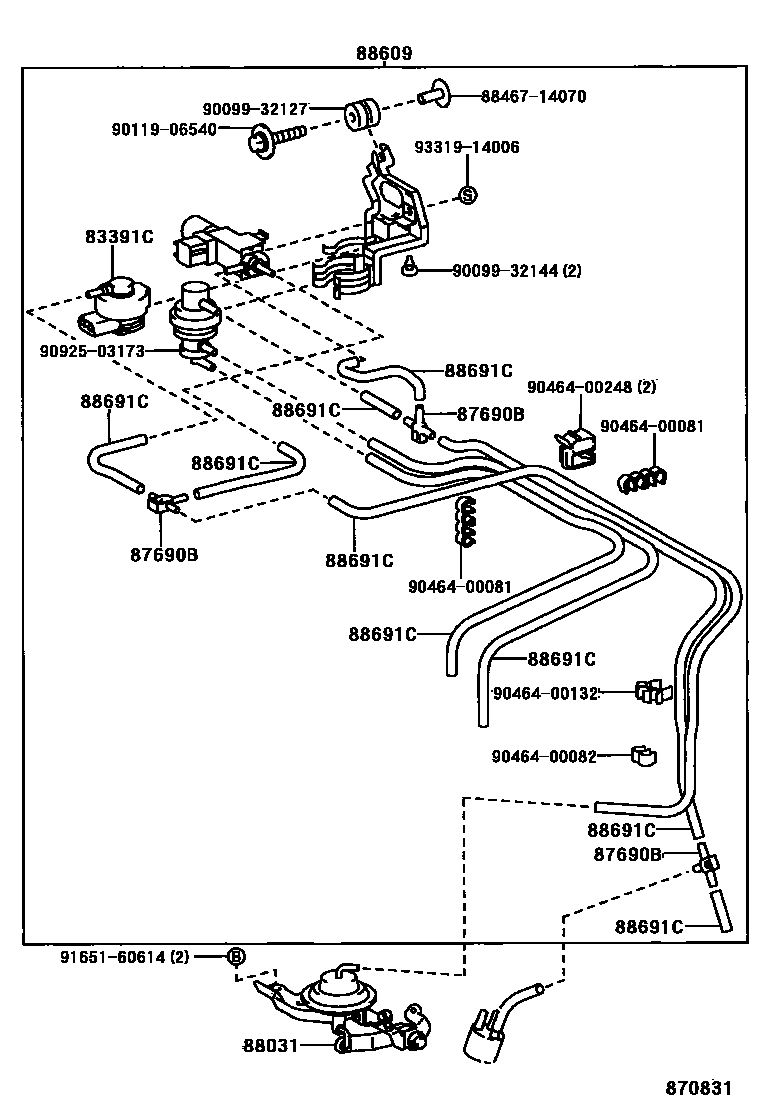

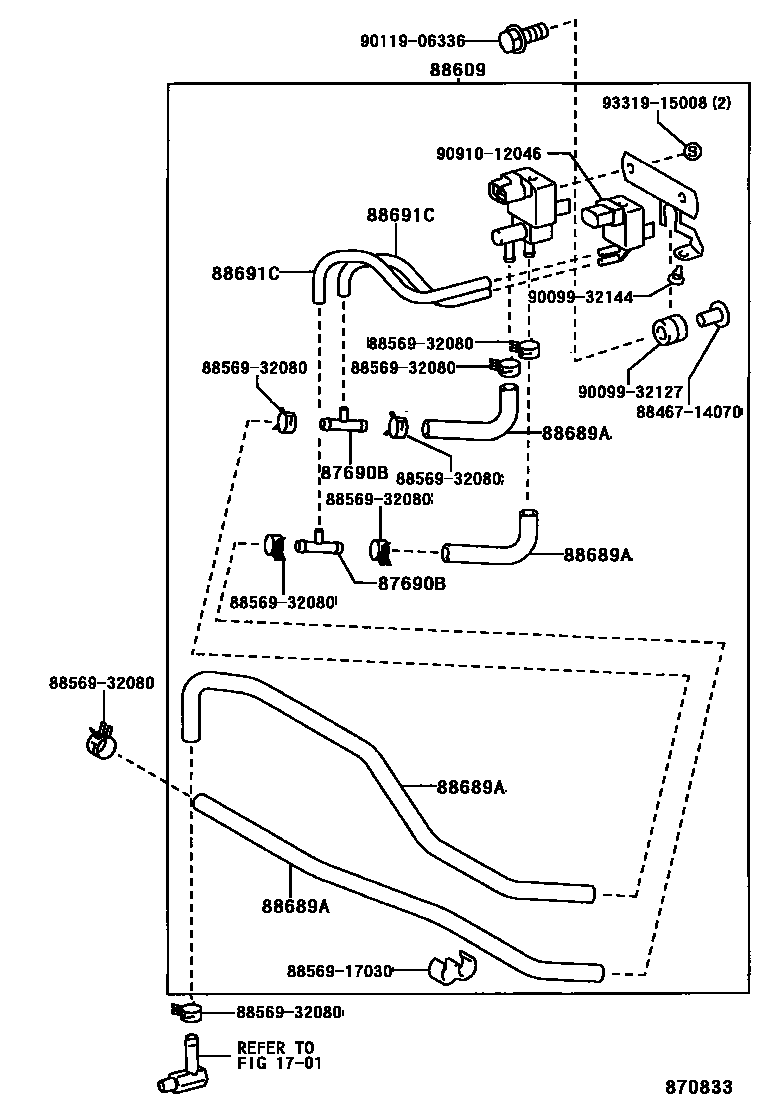

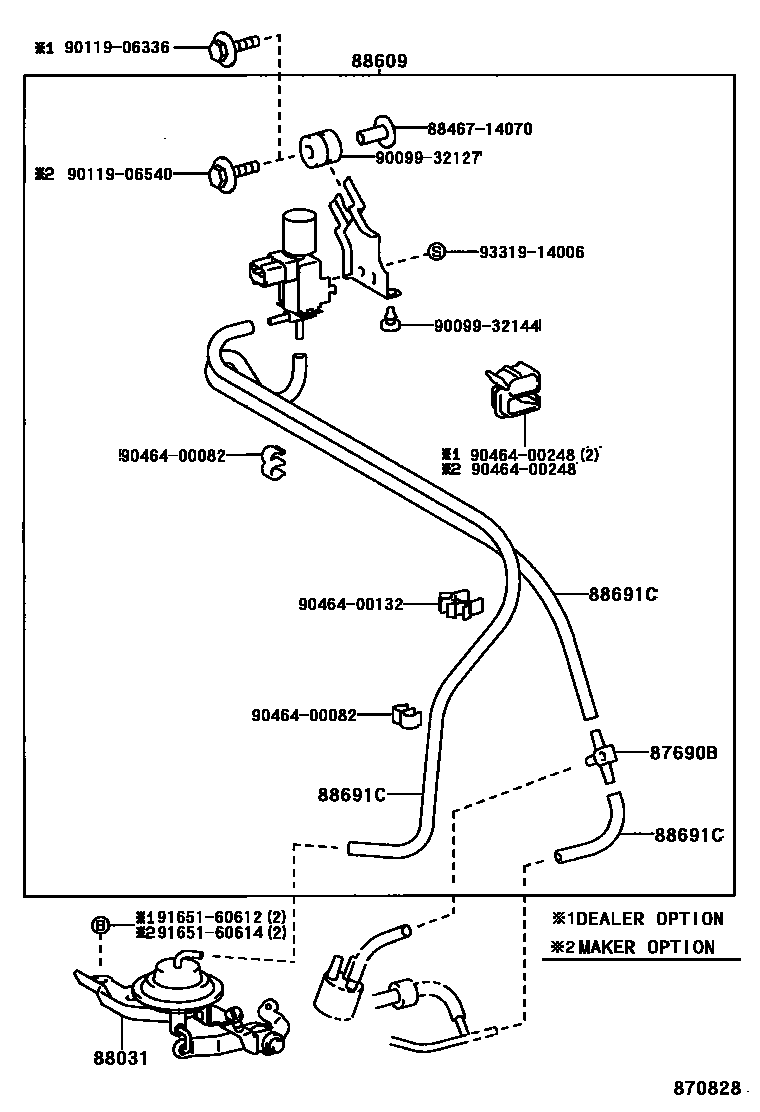

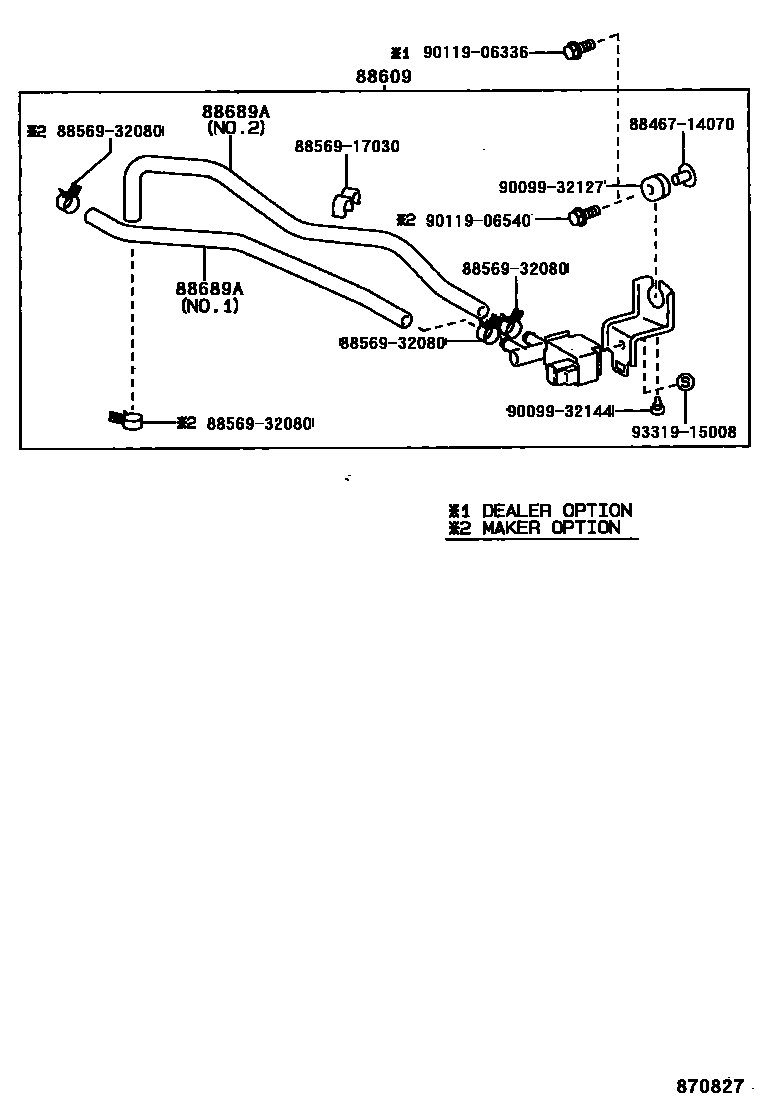

Toyota COROLLA EPC diagram 8717, 暖风和空调系统 - 真空管, with 14 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 83391C | Cooler vacuum switch | 83391-20060 · 88680-16010 |
| 87690B | tee pipe | 90413-04005 · 90413-08005 |
| 88031 | Idle speed lift actuator assembly | 88031-12140 · 88031-12200 · 88031-20080 |
| 88609 | Idle speed lifting device sub-assembly | 88609-12670 · 88609-12730 · 88609-12740 · 88609-12750 · 88609-12760 · 88609-12770 · 88609-12780 · 88609-12790 · 88609-12800 · 88609-12810 · 88609-12830 · 88609-12840 · 88609-12850 · 88609-12860 · 88609-12870 · 88609-12880 · 88609-12890 · 88609-1A010 · 88690-12811 · 88690-12820 · 88690-12870 · 88690-12890 · 88690-1A020 · 88690-1A040 · 88690-1A050 · 88690-1A070 · 88690-1A140 |
| 88689A | Cooler Vacuum Hose No. 1 | 88689-12430 · 88689-12440 · 88689-12450 · 88689-12460 · 88689-12490 · 88689-12500 · 88689-12510 · 88689-12540 · 88689-12550 · 88689-12580 · 88689-12590 |
| 88691D | Vacuum hose No. 2 (for idle lift) | 17303-11680 · 17303-11770 · 90099-45003 · 90099-45004 · 90099-45005 |
