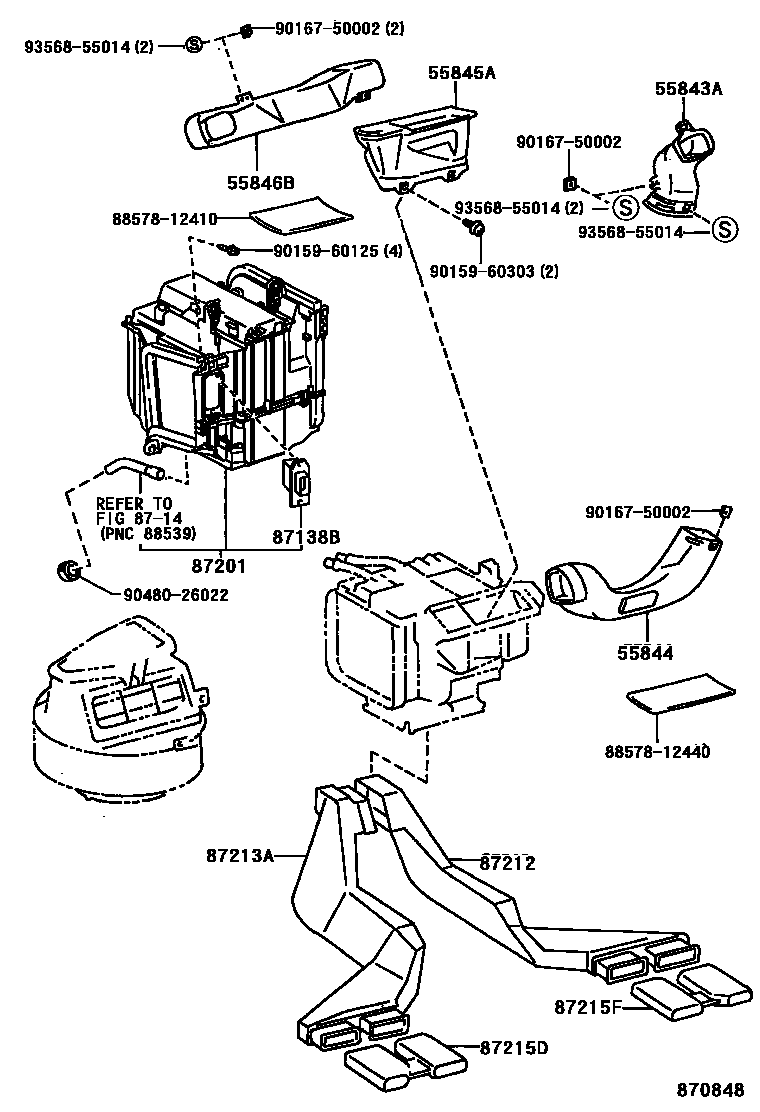

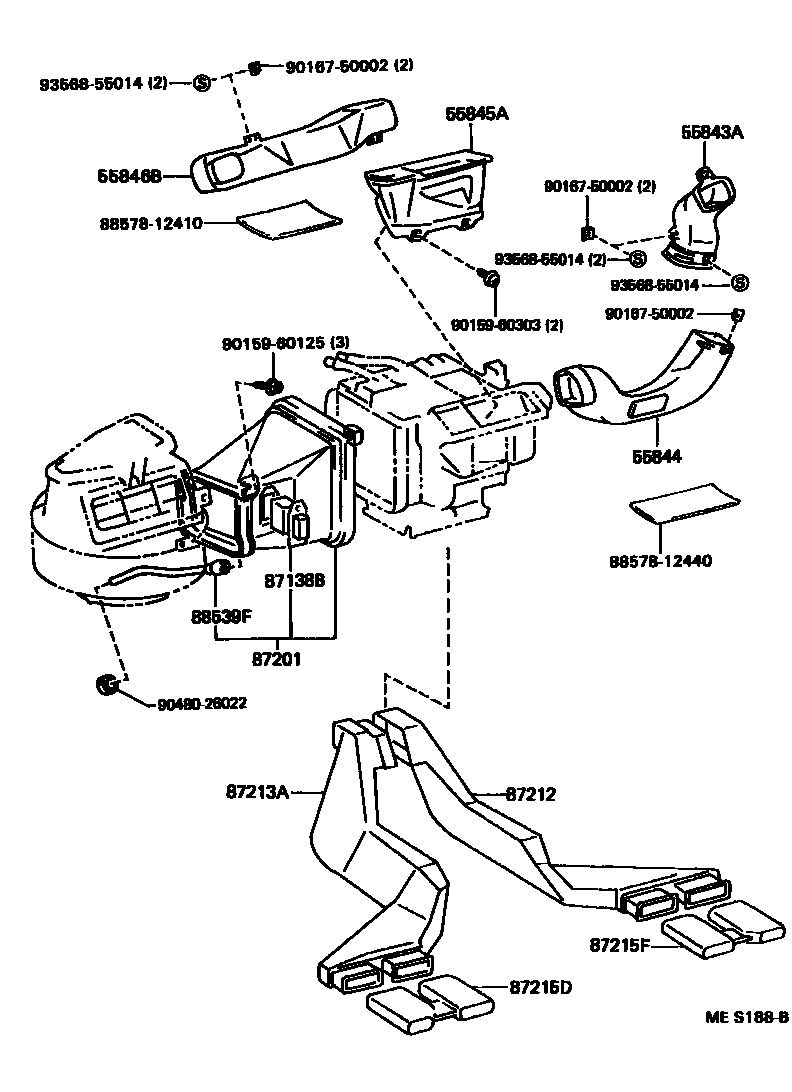

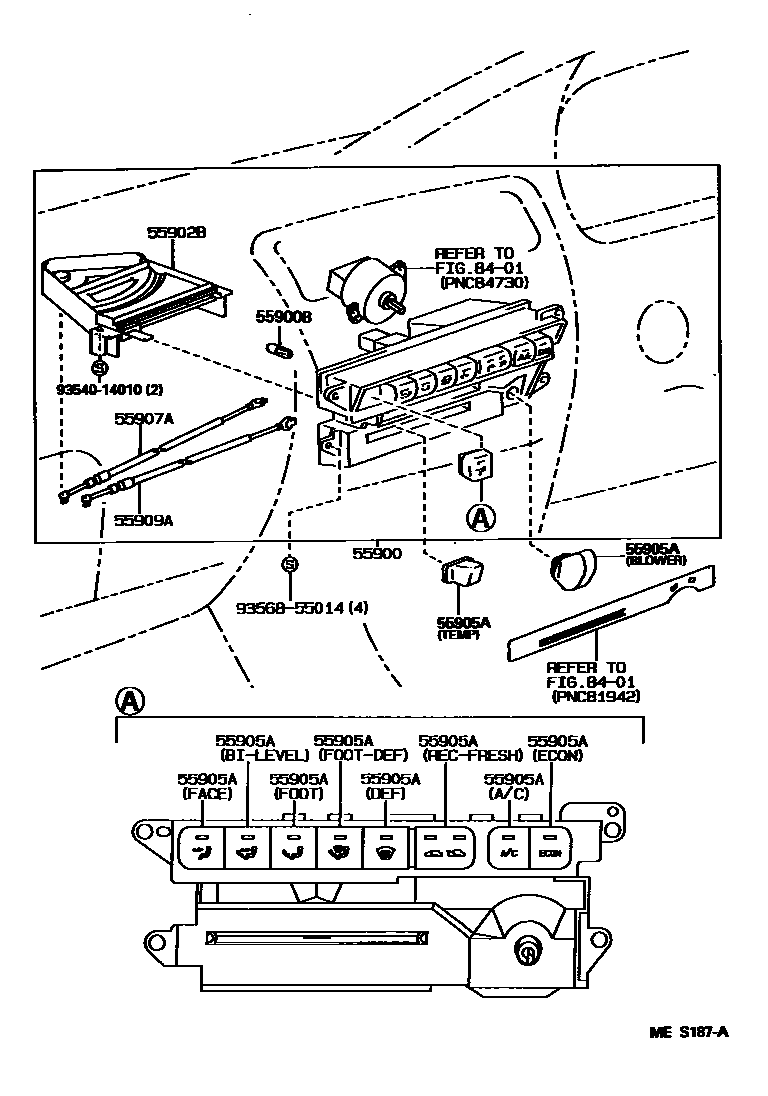

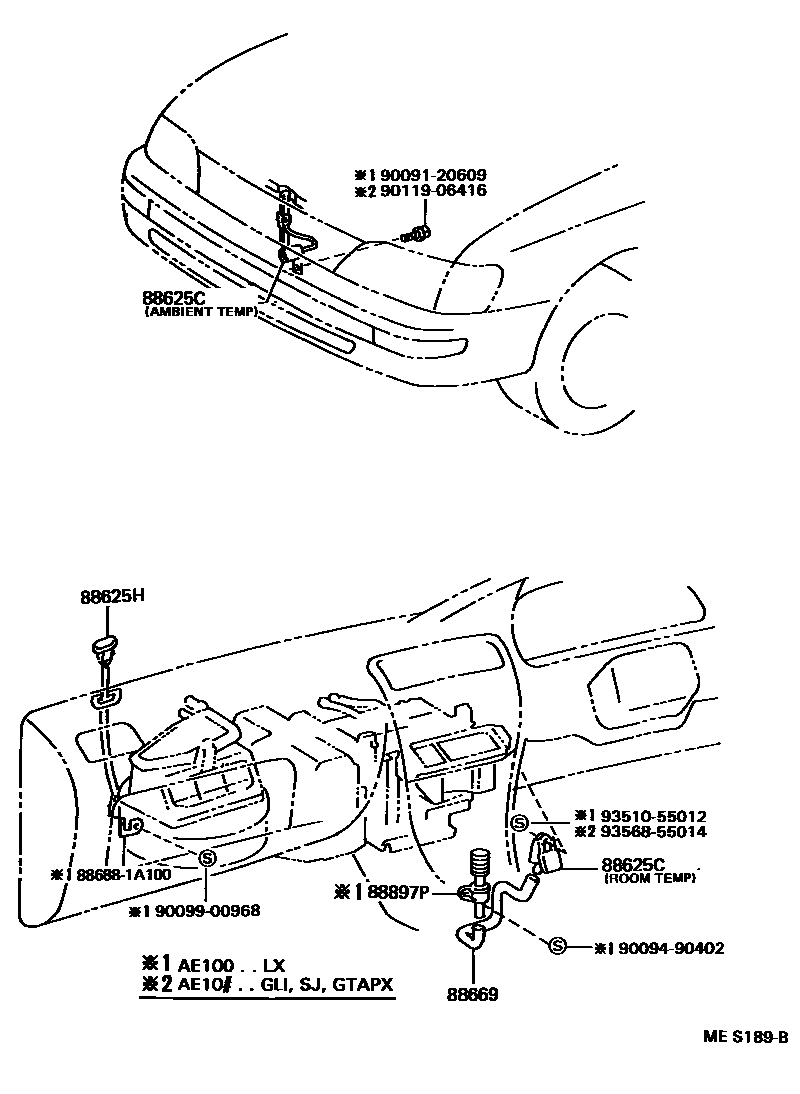

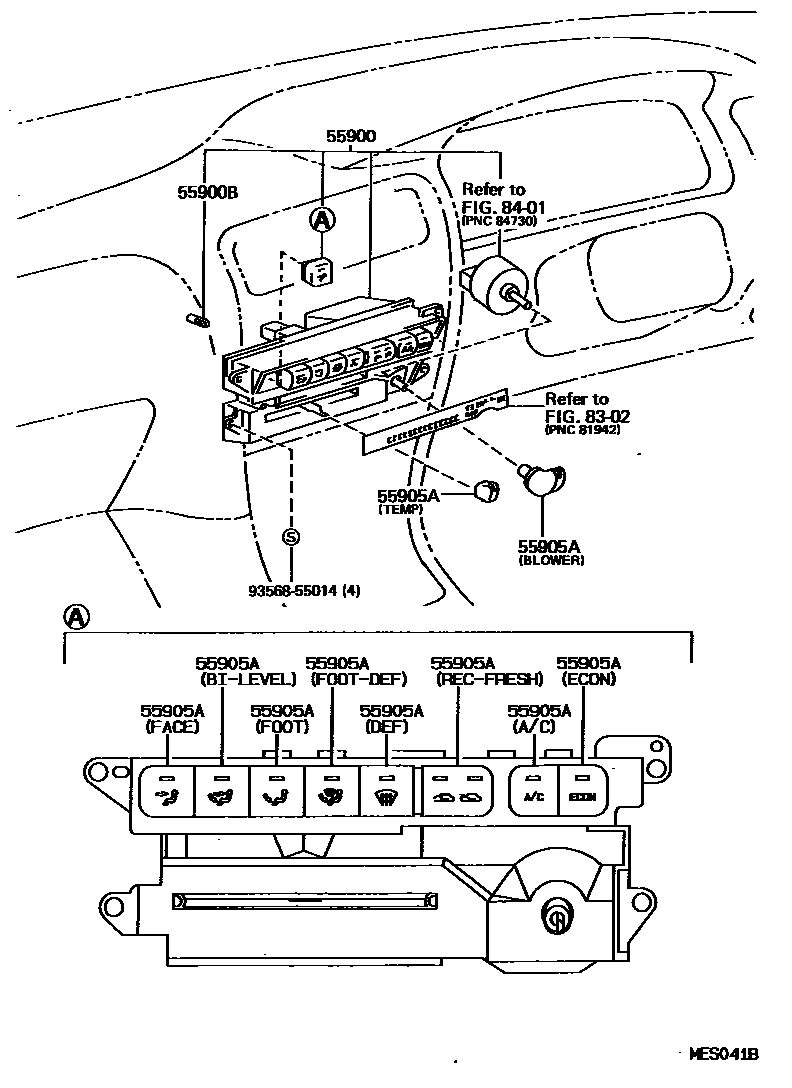

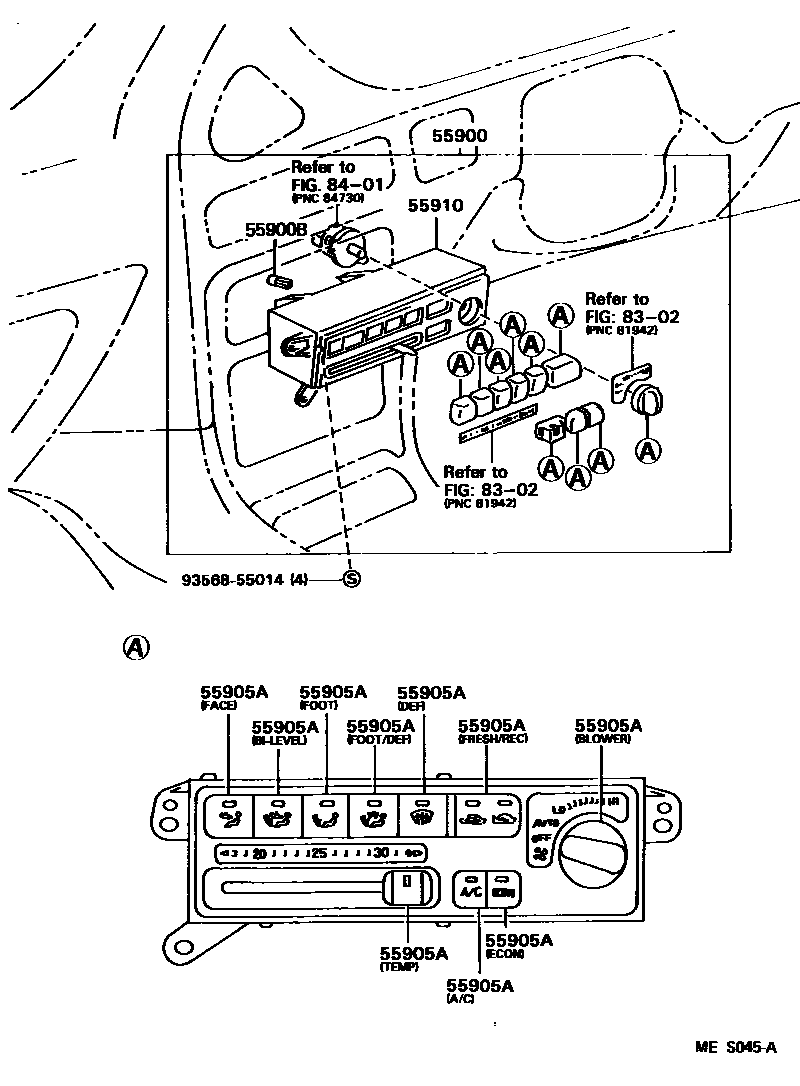

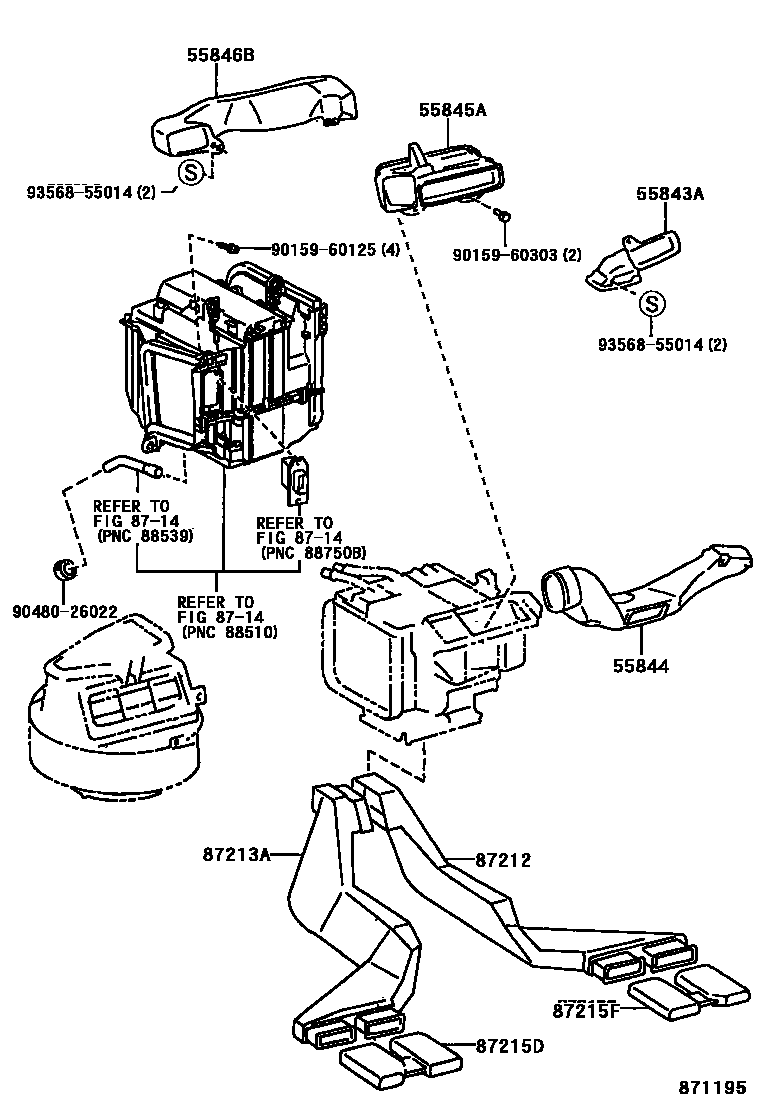

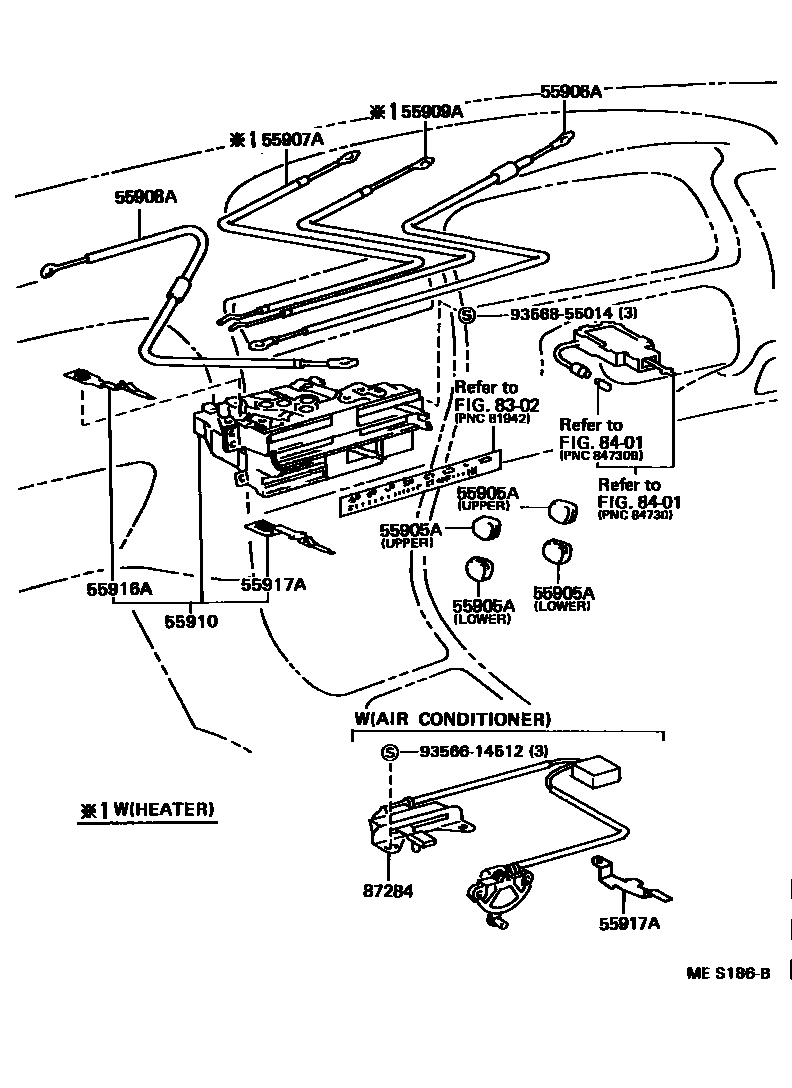

Toyota COROLLA 暖风和空调系统 - 控制器和风管 — Figure 8715
Toyota COROLLA EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 8 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55843A | Air duct No. 1 from heater to air register | 55843-12210 · 55843-12220 · 55843-12230 |
| 55844 | Air duct No. 2 from heater to air regulator | 55844-12290 · 55844-12300 · 55844-12320 · 55844-12350 · 55844-12360 · 55844-12370 · 55844-12380 · 55844-12440 · 55844-12450 |
| 55845A | Air duct No. 3 from heater to air regulator | 55845-12150 · 55845-12160 · 55845-12170 · 55845-12180 · 55845-12210 |
| 55846B | Air duct No. 4 from heater to air register | 55846-12150 · 55846-12160 · 55846-12170 · 55846-12180 · 55846-12190 · 55846-12200 · 55846-12210 · 55846-12240 |
| 55900 | Air conditioning control assembly | 55900-12610 · 55900-12620 · 55900-12630 · 55900-12640 |
| 55900B | air conditioning control light bulb | 84999-70001 · 84999-70002 |
| 55902B | Heater control sub-assembly | 55902-12010 |
| 55905A | Heater control button | 55905-12140 · 55905-12150 · 55905-12160 · 55905-12170 · 55905-12180 · 55905-12190 · 55905-12200 · 55905-12210 · 55905-12220 · 55905-12230 · 55905-12240 · 55905-12250 · 55905-12251 · 55905-12260 · 55905-12261 · 55905-12270 · 55905-12280 · 55905-12290 · 55905-12370 · 55905-12380 · 55905-12390 · 55905-12400 · 55905-12410 · 55905-12420 · 55905-12430 · 55905-89115 |
| 55906A | Defroster damper control cable sub-assembly | 55906-12330 · 55906-12340 · 55906-12341 · 55906-12350 |
| 55907A | Water valve control cable sub-assembly | 55907-12360 · 55907-12361 · 55907-12370 · 55907-12371 · 55907-12380 · 55907-12400 · 55907-12401 |
| 55908A | Intake air valve control cable sub-assembly | 55908-12260 · 55908-12270 · 55908-12271 · 55908-12280 |
| 55909A | Air mix damper control cable sub-assembly | 55909-12240 · 55909-12250 · 55909-12251 · 55909-12260 · 55909-12270 |
| 55910 | Heater or auxiliary ventilation control assembly | 55910-12550 · 55910-12551 · 55910-12560 · 55910-12561 · 55910-12570 · 55910-12571 · 55910-12580 · 55910-12581 · 55910-12590 · 55910-12600 · 55910-12610 |
| 55916A | cooler control lever | 55916-12050 · 55916-12060 |
| 55917A | Temperature damper control lever | 55917-12110 · 55917-12120 · 55917-12140 |
| 87138B | Heater Blower Resistor | 87138-02010 · 87138-12130 · 87138-12140 |
| 87201 | No. 1 air duct sub-assembly | 87201-02040 · 87201-02050 · 87201-12340 · 87201-12350 · 87201-12420 · 87201-12430 · 87201-12470 · 87201-12560 · 87201-12580 |
| 87212 | No. 1 rear air duct | 87212-12080 |
| 87213A | No. 2 rear air duct | 87213-12050 |
| 87215D | No. 4 rear air duct | 87216-12010 |
| 87215F | No. 3 rear air duct | 87215-12020 |
| 87284 | Variable resistor sub-assembly | 88032-12110 · 88032-12130 · 88032-12150 |
| 88539F | discharge hose | 88539-02010 · 88539-12110 |
| 88625C | Cooler thermistor | 88625-12260 · 88790-12020 |
| 88625H | Cooler thermistor (sunlight sensor) | 88625-12250 · 88625-12290 |
| 88669 | Cooler air hose | 88669-12030 · 88669-12040 |
| 88897P | aspirator | 88897-24030 |
