Toyota COROLLA 后视镜 — Figure 8701

Toyota COROLLA EPC diagram 8701, 后视镜, with 1 images and 9 PNC and OE references.

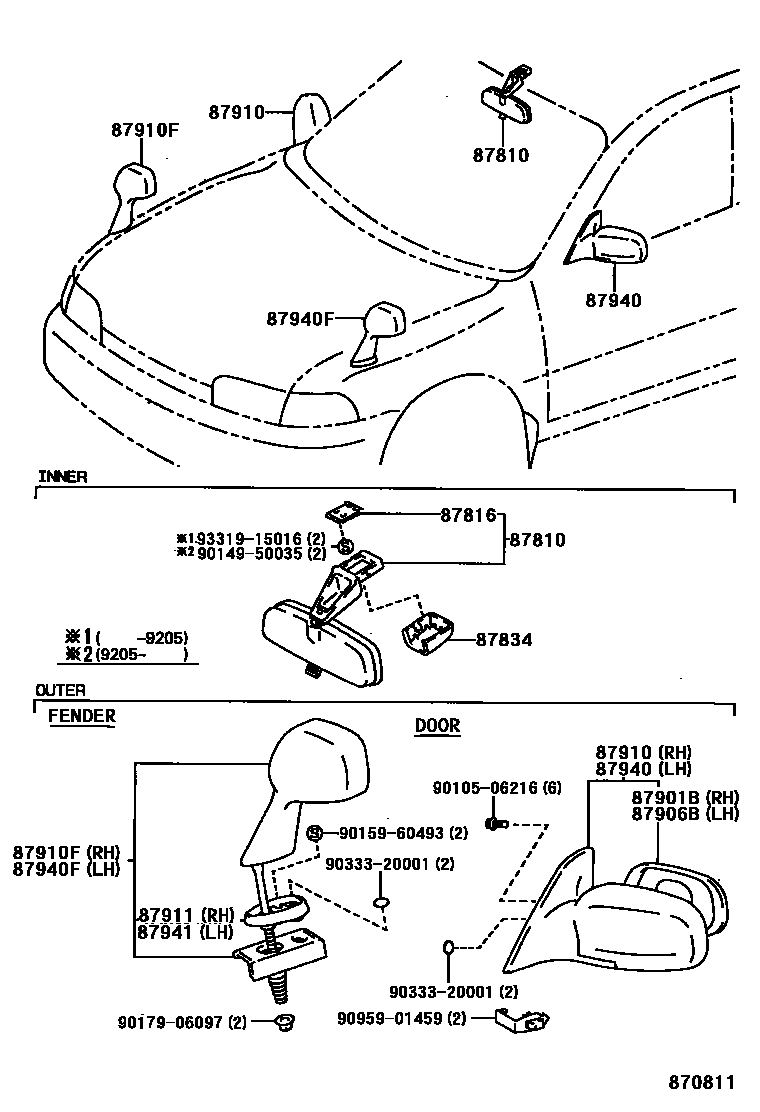

Toyota COROLLA 后视镜 EPC diagram — 870811
后视镜 — 870811 (199108 – 999999)

PNC and OE references

PNCPart nameOE numbers
87816Interior rearview mirror spring74372-30030
87901BRight exterior rearview mirror sub-assembly87931-1A770 · 87931-1A780 · 87931-1E030 · 87931-1E060 · 87931-1E070 · 87931-1E080
87906BLeft exterior rearview mirror sub-assembly87961-1E030 · 87961-1E060 · 87961-1E070 · 87961-1E080 · 87961-1E770 · 87961-1E780
87910Right exterior rearview mirror assembly87910-13050 · 87910-1A770 · 87910-1A780 · 87910-1A890 · 87910-1E040 · 87910-1E070 · 87910-1E080 · 87910-1E090 · 87910-1E190 · 87910-1E210 · 87910-1E220 · 87910-1E410 · 87910-1E420
87910FRight fender rearview mirror assembly87910-1A850 · 87910-1E011
87911Right exterior mirror pad87911-12260 · 87911-12270
87940Left exterior rearview mirror assembly87940-13050 · 87940-1A890 · 87940-1E040 · 87940-1E080 · 87940-1E090 · 87940-1E180 · 87940-1E190 · 87940-1E220 · 87940-1E410 · 87940-1E420 · 87940-1E770 · 87940-1E780
87940FLeft fender rearview mirror assembly87940-1A850 · 87940-1E011
87941Left exterior mirror pad87941-12240 · 87941-12250
