Toyota COROLLA 喇叭 — Figure 8611

Toyota COROLLA EPC diagram 8611, 喇叭, with 2 images and 3 PNC and OE references.

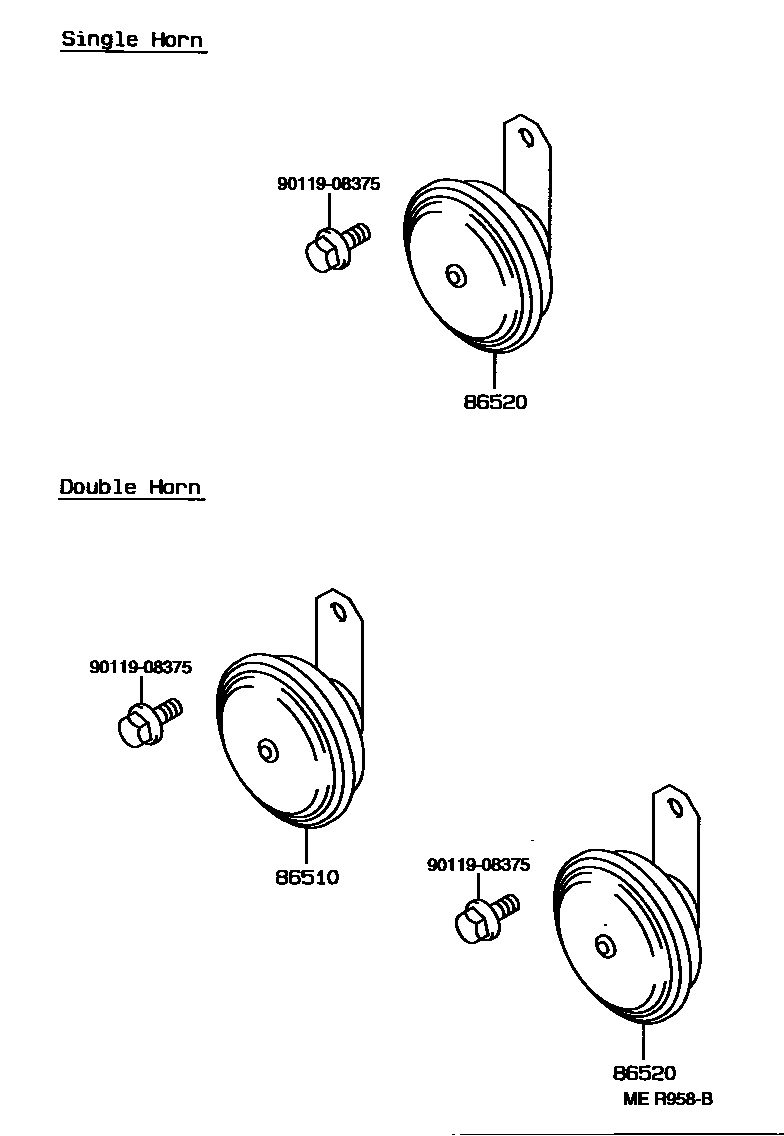

Toyota COROLLA 喇叭 EPC diagram — MER958B — 喇叭 — MER958B (199108 – 999999)

Toyota COROLLA 喇叭 EPC diagram — MEX265A — 喇叭 — MEX265A (199309 – 999999)

PNC and OE references

PNC	Part name	OE numbers
86510	tweeter assembly	86510-12390 · 86510-12530 · 86510-12550 · 86510-12570 · 86510-20210 · 86510-20220 · 86510-20230 · 86510-30500
86510A	Alarm horn assembly	86510-12460
86520	Subwoofer assembly	86520-12510 · 86520-12550 · 86520-12570 · 86520-12580 · 86520-17090 · 86520-22220 · 86520-22230 · 86520-95D01
