Toyota COROLLA antenna — Figure 8604

Toyota COROLLA EPC diagram 8604, antenna, with 3 images and 4 PNC and OE references.

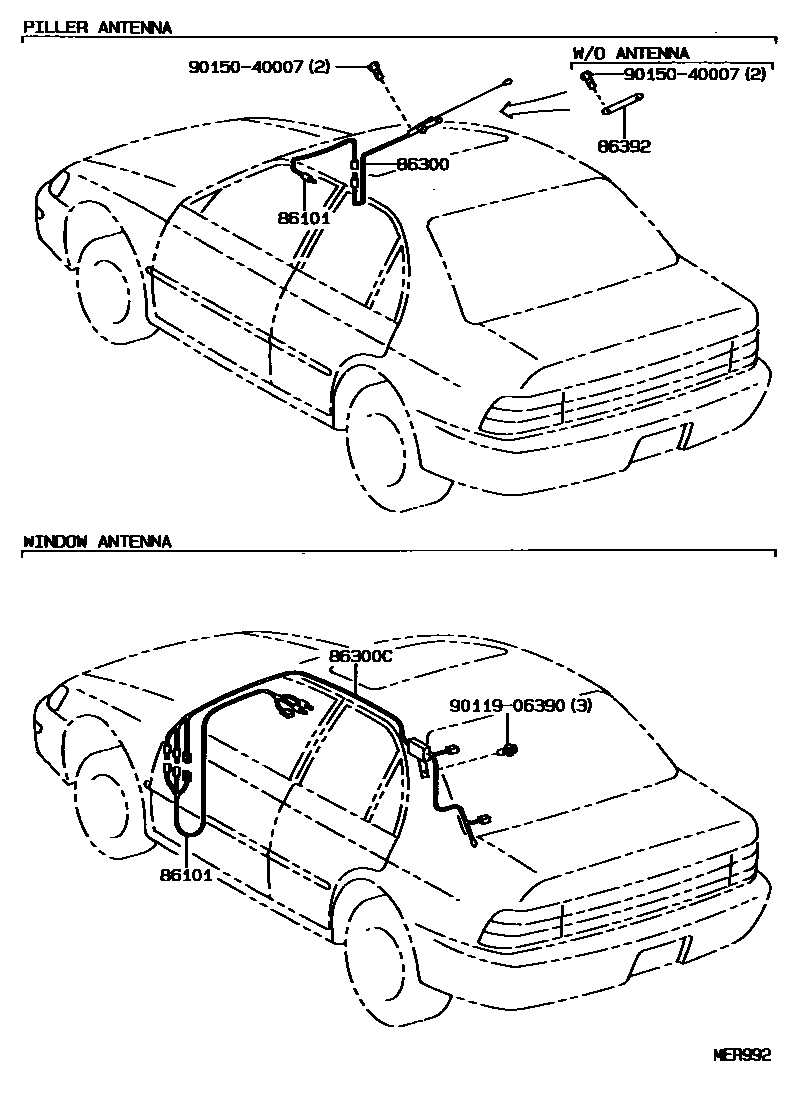

Toyota COROLLA antenna EPC diagram — MER992
antenna — MER992 (199108 – 999999)

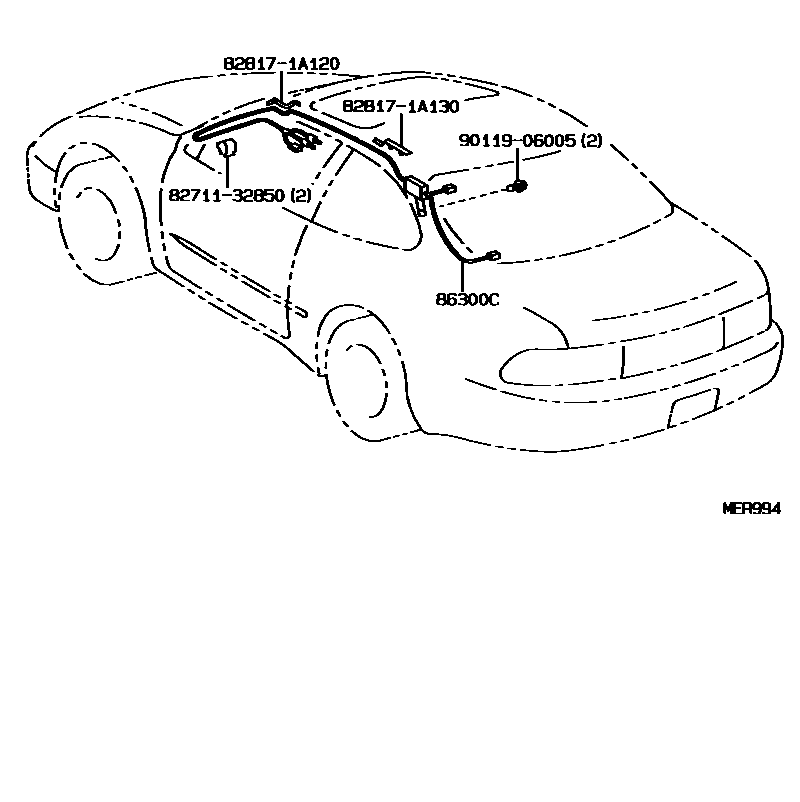

Toyota COROLLA antenna EPC diagram — MER994
antenna — MER994 (199108 – 999999)

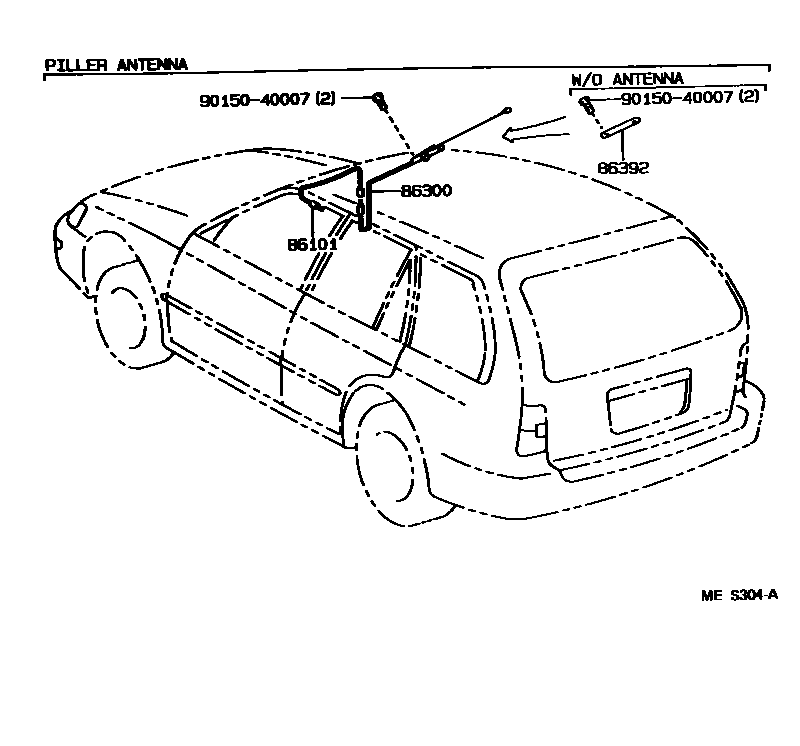

Toyota COROLLA antenna EPC diagram — MES304A
antenna — MES304A (199108 – 999999)

PNC and OE references

PNCPart nameOE numbers
86101Antenna wire sub-assembly86101-12120 · 86101-12130 · 86101-12140 · 86101-12180
86300Antenna assembly with fixing parts86300-12390 · 86300-12391
86300CNo. 2 amplifier antenna assembly86300-12420 · 86300-12430 · 86300-12460 · 86300-12470 · 86300-12490 · 86300-12510
86392Antenna decorative parts86392-12100
