Toyota COROLLA 车门电机和车门电磁阀 — Figure 8511
Toyota COROLLA EPC diagram 8511, 车门电机和车门电磁阀, with 2 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

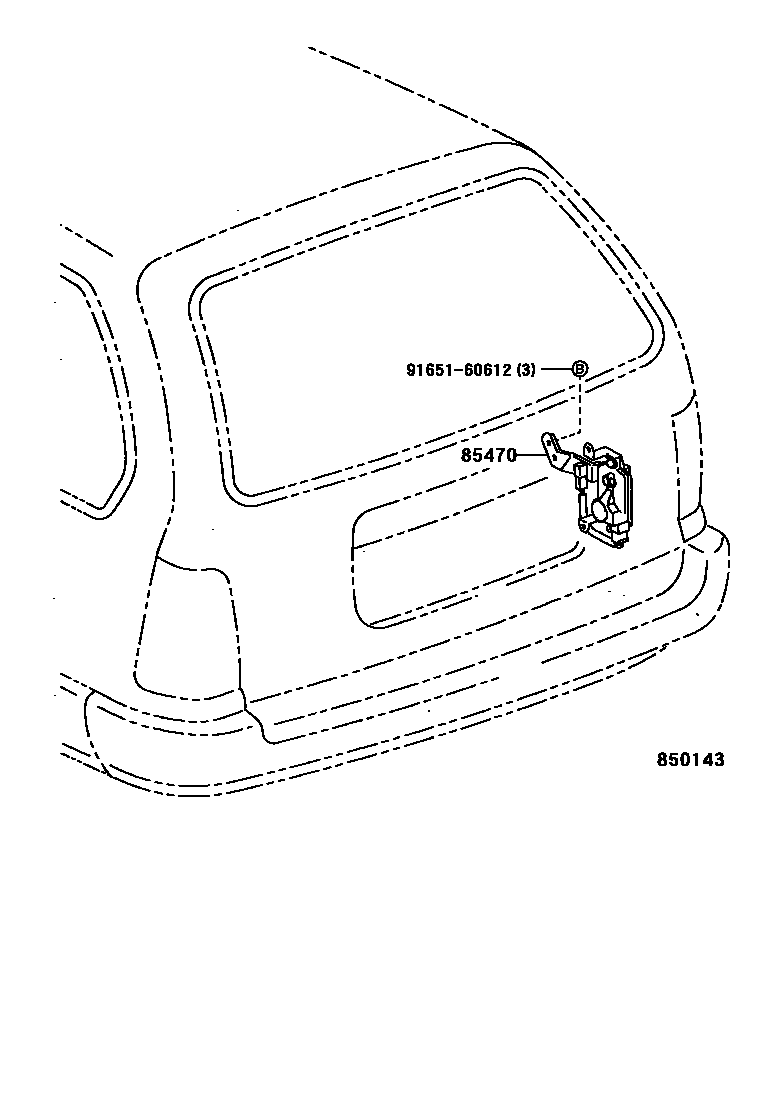

| 85470 | Right rear door control solenoid valve assembly | 85470-13010 · 85470-13040 |

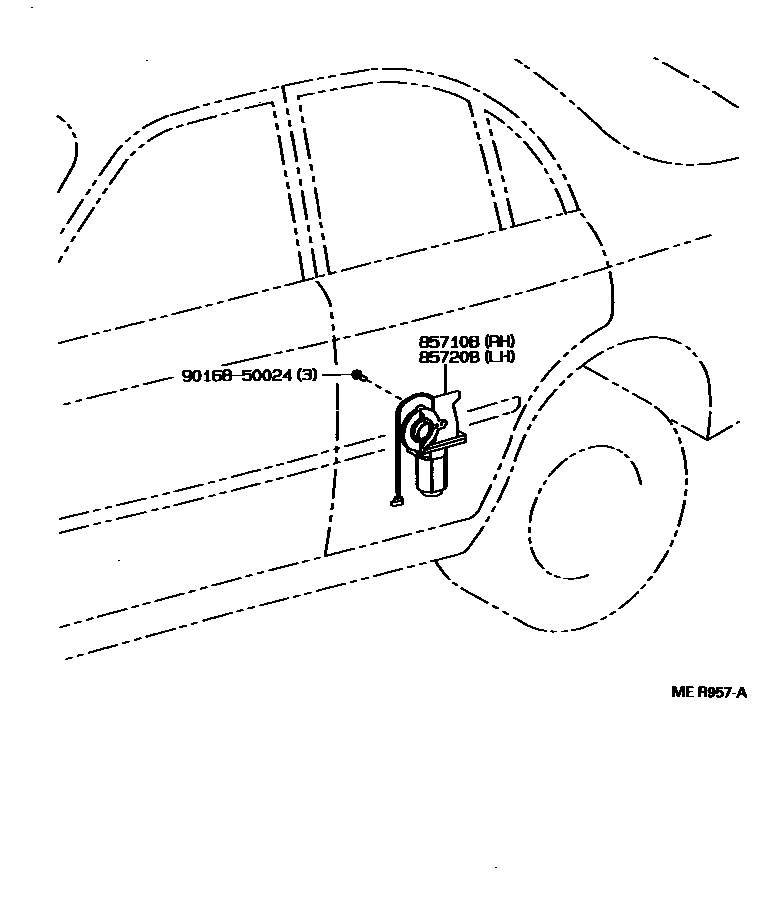

| 85710B | Right rear electric window lift motor assembly | 85710-12090 · 85710-12091 · 85710-12260 |
| 85720B | Left rear electric window lift motor assembly | 85720-12090 · 85720-12091 · 85720-12260 |
