Toyota COROLLA 挡风玻璃清洗器 — Figure 8503

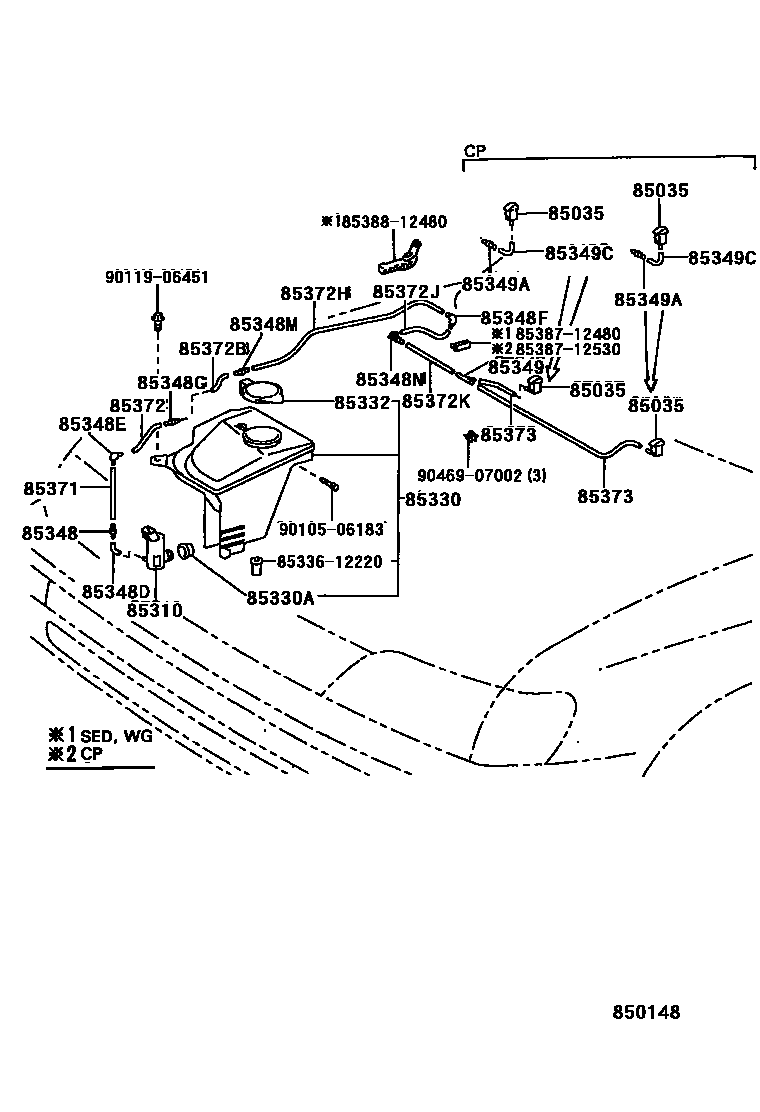

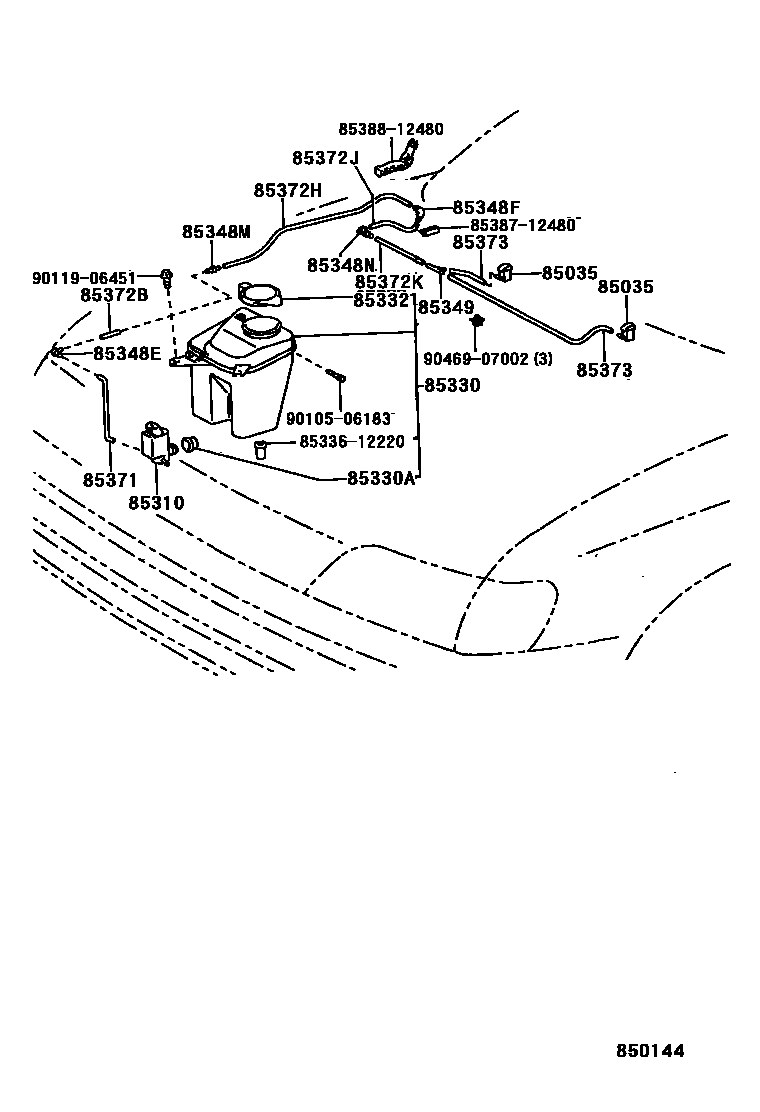

Toyota COROLLA EPC diagram 8503, 挡风玻璃清洗器, with 2 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035 | Cleaner nozzle sub-assembly | 85381-12030 · 85381-12050 · 85381-12060 |
| 85310 | Windshield washer motor and pump assembly | 85310-20170 · 85310-20190 · 85310-20210 · 85330-10280 · 85330-12280 · 85330-33010 · 85330-33020 · 85330-44010 |
| 85330 | Windshield washer fluid tank assembly | 85315-12220 · 85315-12221 · 85315-12281 · 85315-12282 |
| 85330A | Windshield washer fluid tank bushing | 90099-32089 |
| 85332 | Windshield washer fluid tank cap | 85316-12220 · 85316-12221 · 85316-12280 · 85316-12290 · 85316-20300 · 85316-20340 |
| 85348 | Windshield washer hose connector No. 1 | 85334-22480 · 85375-10260 |
| 85348D | No. 1 windshield washer elbow joint | 85336-12230 · 85336-12410 |
| 85348E | No. 2 windshield washer elbow joint | 85317-12230 · 85317-12410 |
| 85348F | No. 3 windshield washer elbow joint | 85317-12230 · 85355-20200 |
| 85348G | Windshield washer hose connector No. 2 | 85317-12220 · 85319-12410 |
| 85348M | No. 3 windshield washer hose connector | 85334-22470 · 85375-10260 |
| 85348N | No. 4 windshield washer hose connector | 85375-16160 · 85378-12480 |
| 85349 | Windshield washer hose connector No. 1 | 85348-14390 |
| 85349A | Windshield washer hose connector No. 2 | 85348-14390 |
| 85349C | No. 4 windshield washer elbow joint | 85355-14481 |
| 85371 | Windshield washer hose (from motor to connector) | 85319-12421 |
| 85372 | Windshield washer hose No. 1 (from connector to connector) | 85319-12221 |
| 85372J | No. 4 windshield washer hose (from connector to connector) | 90099-33080 |
| 85372K | No. 5 windshield washer hose (from connector to connector) | 90099-33080 |
| 85373 | Windshield washer hose (from connector to nozzle) | 90099-33081 |
