Toyota COROLLA 后刮水器 — Figure 8502

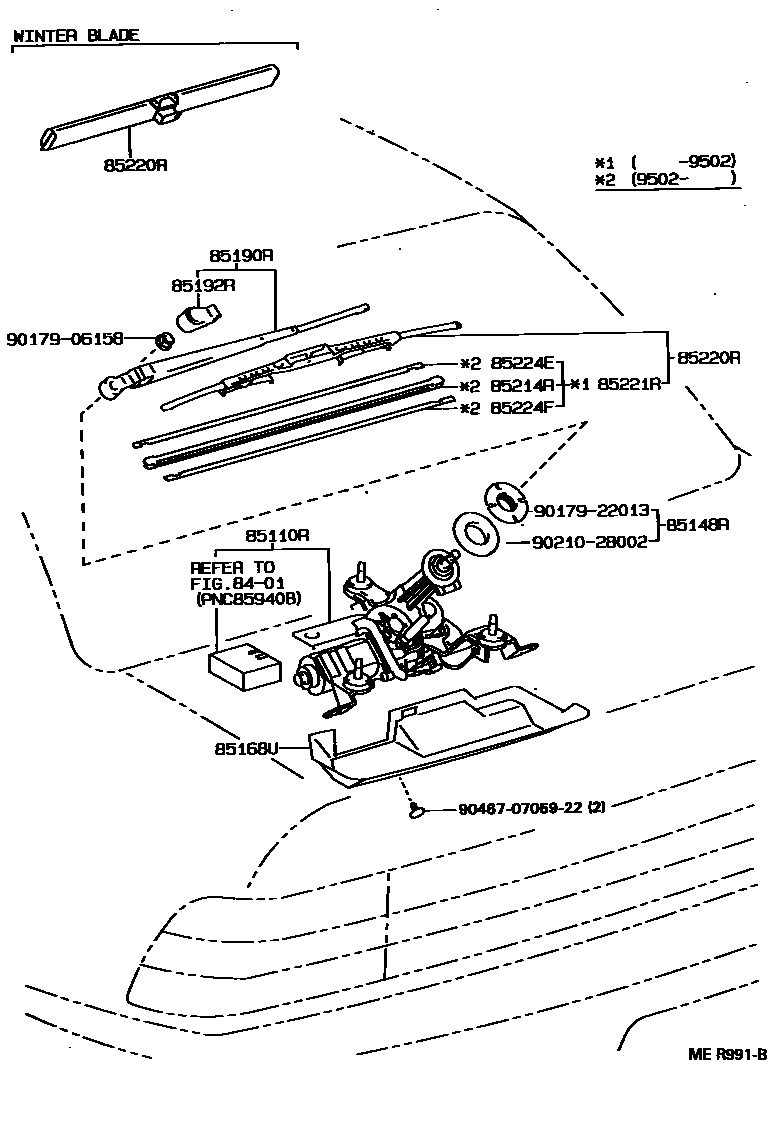

Toyota COROLLA EPC diagram 8502, 后刮水器, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85110R | Rear wiper motor assembly | 85130-12770 · 85130-13060 · 85130-13070 |
| 85148R | Rear wiper link pivot nut with gasket seal | 85133-12770 · 85148-12020 |
| 85168U | rear wiper cover | 85131-12770 |
| 85169R | No. 1 rear wiper link pivot washer | 85134-13060 |
| 85176R | Rear wiper connecting rod cover | 85176-13070 |
| 85190R | Rear wiper arm assembly | 85241-12010 · 85241-12011 · 85241-13010 · 85241-13030 |
| 85192R | Rear wiper arm cover | 85192-13060 · 85245-13030 |
| 85214R | Rear wiper rubber strip | 85214-12290 · 85214-20340 · 85214-22360 |
| 85220R | Rear wiper blade assembly | 85242-12010 · 85242-12060 · 85242-12061 · 85242-12080 · 85242-13010 · 85242-13030 · 85291-13020 · 85291-33010 |
| 85221R | Rear wiper blade | 85243-12030 · 85243-13010 · 85243-32010 |
| 85224E | No. 1 rear wiper rubber strip back plate | 85224-28100 · 85224-30430 · 85224-44030 |
| 85224F | No. 2 rear wiper rubber strip back plate | 85224-28100 · 85224-30420 · 85224-44030 |
