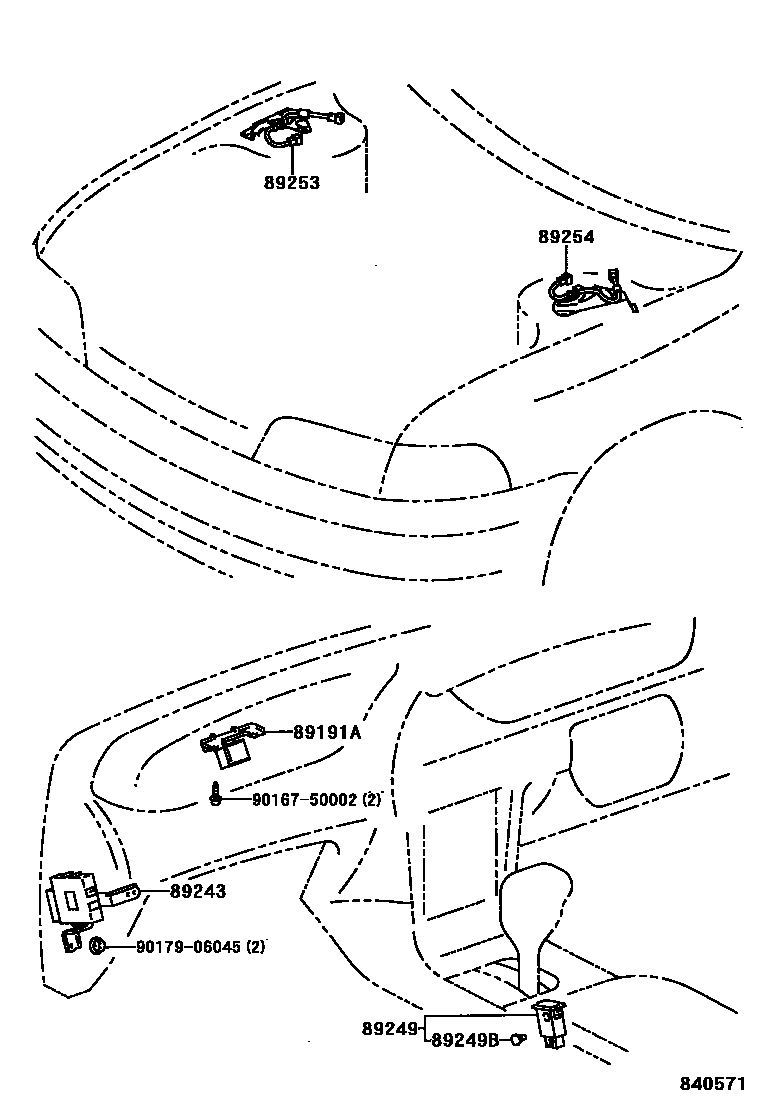

Toyota COROLLA 电子调节悬架 — Figure 8419
Toyota COROLLA EPC diagram 8419, 电子调节悬架, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89191A | acceleration sensor | 89191-12010 · 89191-12020 |
| 89243 | Damper control ECU | 89243-12050 |
| 89249 | Damper control switch | 89249-12020 |
| 89249B | Damper control switch bulb | 84999-10320 |
| 89253 | Right front damper control harness | 89253-12020 |
| 89254 | Left front shock absorber control harness | 89254-12020 |
