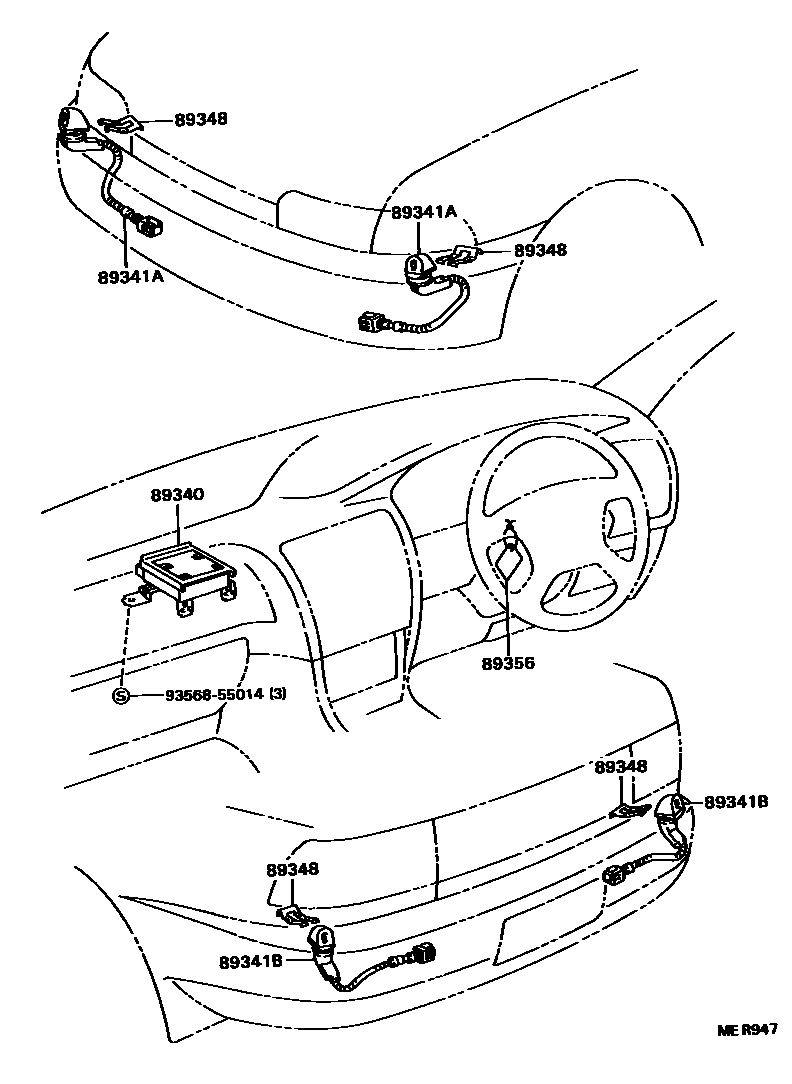

Toyota COROLLA 测距雷达和倒车雷达 — Figure 8417
Toyota COROLLA EPC diagram 8417, 测距雷达和倒车雷达, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89340 | Rear distance warning ECU assembly | 89340-12010 |
| 89348 | Ultrasonic sensor holder No. 1 | 89348-22020 |
| 89356 | distance warning information label | 89356-22010 |
