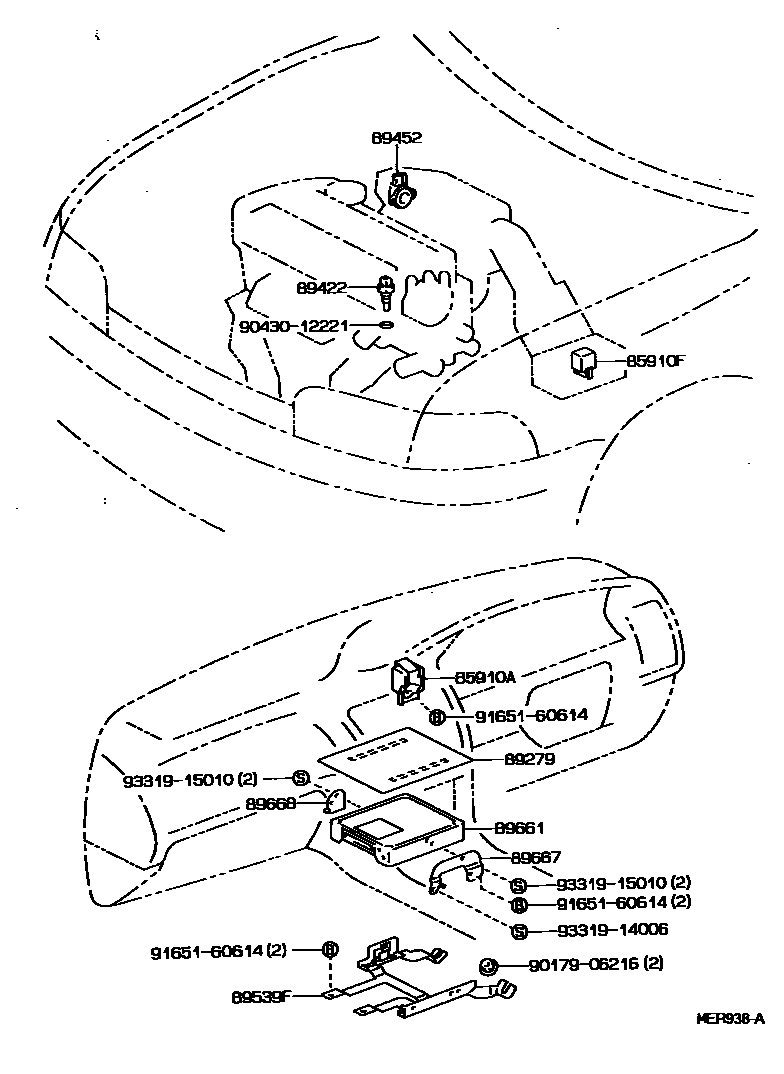

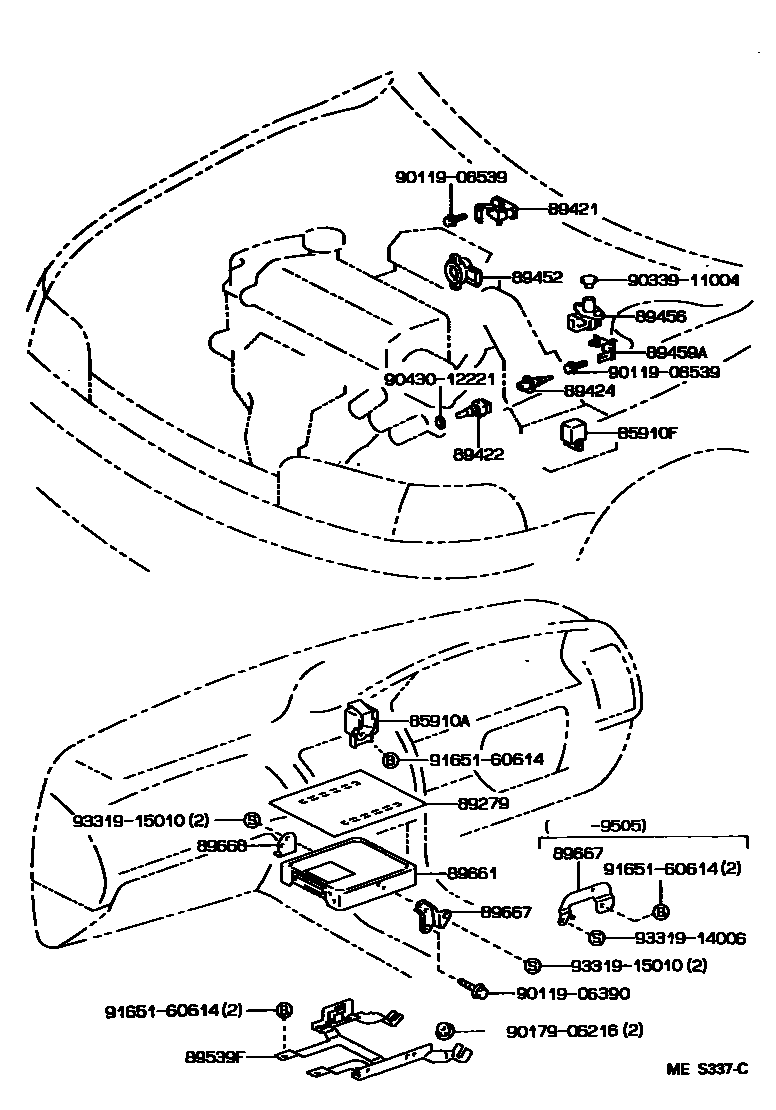

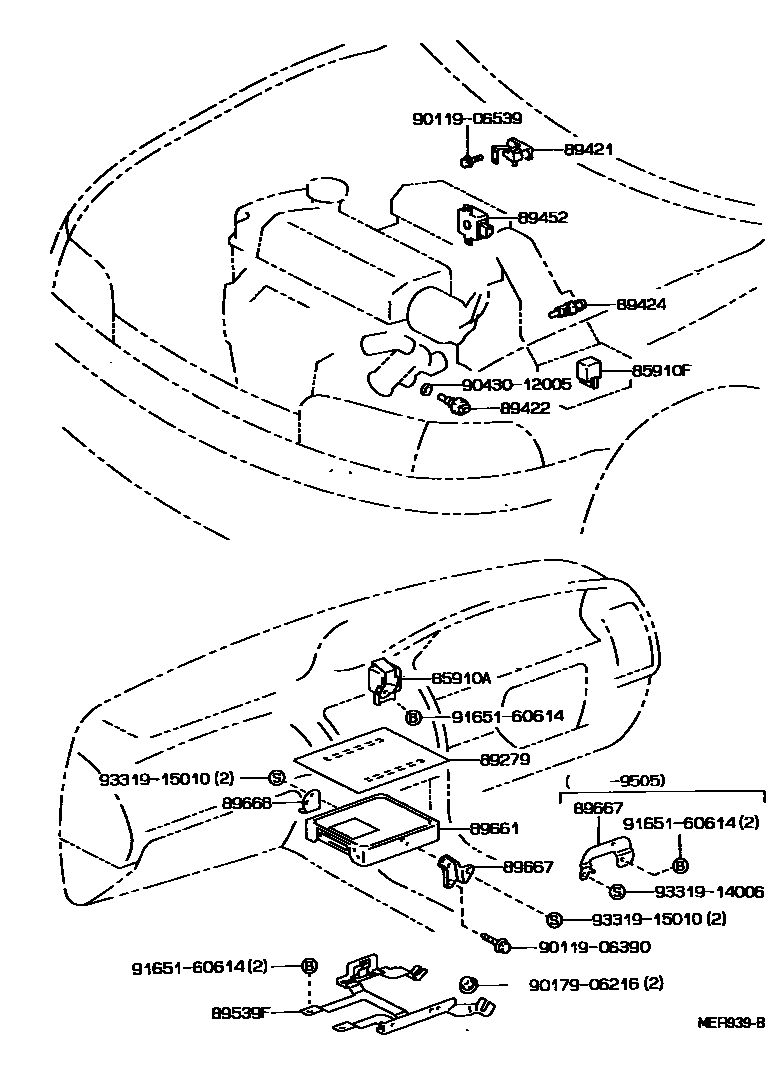

Toyota COROLLA 电子燃油喷射系统 — Figure 8404
Toyota COROLLA EPC diagram 8404, 电子燃油喷射系统, with 3 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85910A | Circuit breaking relay assembly (for EFI) | 85910-12020 · 85910-12060 · 85910-12070 · 85910-12080 |
| 85910F | ECU relay (for EFI) | 90987-02009 |
| 89279 | Engine control ECU cover | 89279-12080 · 89279-12100 · 89279-12110 |
| 89421 | Vacuum sensor assembly (for E.F.I.) | 89420-02010 · 89420-12060 · 89420-12070 · 89420-12090 · 89420-12120 |
| 89422 | Water temperature sensor (for E.F.I.) | 89422-20010 · 89422-35010 |
| 89424 | Intake air temperature sensor (for E.F.I.) | 89424-12010 |
| 89452 | Throttle position sensor (for E.F.I.) | 89452-10010 · 89452-12060 · 89452-22080 · 89452-22090 |
| 89456 | variable resistor | 89456-50010 |
| 89459A | Variable resistor bracket | 89459-12010 |
| 89539F | ECU bracket | 89539-12050 |
| 89661 | Engine control ECU | 89661-12730 · 89661-12740 · 89661-12750 · 89661-12751 · 89661-12752 · 89661-12753 · 89661-12760 · 89661-12761 · 89661-12770 · 89661-12771 · 89661-12800 · 89661-12880 · 89661-1A080 · 89661-1A090 · 89661-1A120 · 89661-1A130 · 89661-1A140 · 89661-1A190 · 89661-1A270 · 89661-1A340 · 89661-1A810 |
| 89667 | Engine control ECU bracket | 89667-12110 · 89667-12120 |
| 89668 | No. 2 engine control ECU bracket | 89668-12050 |
