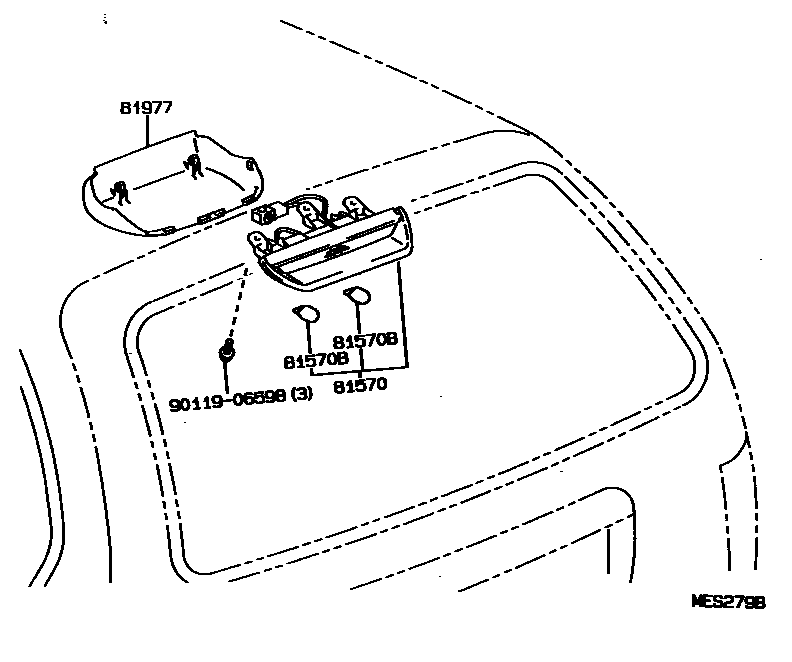

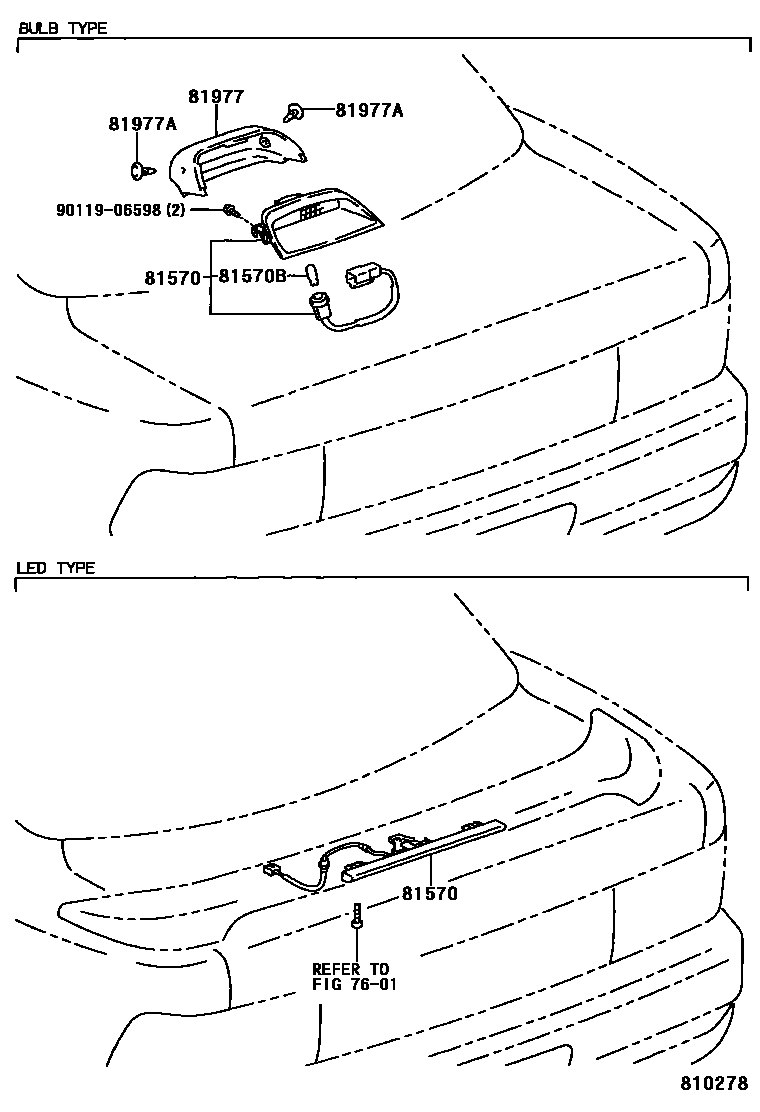

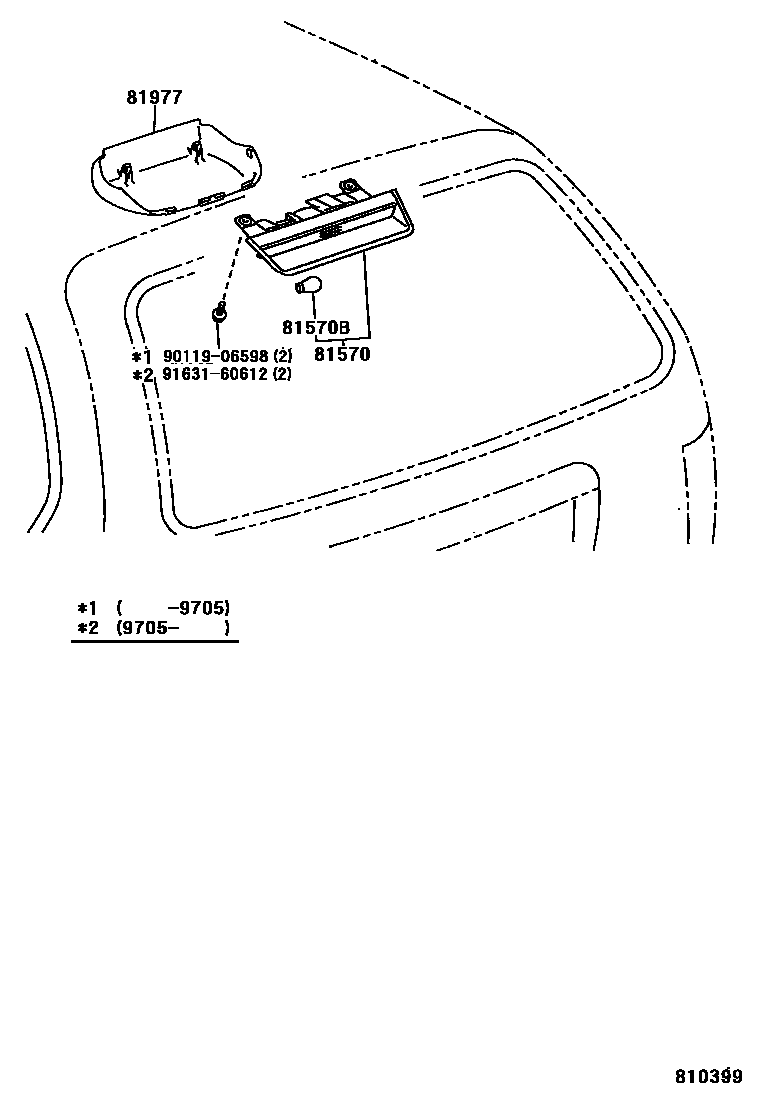

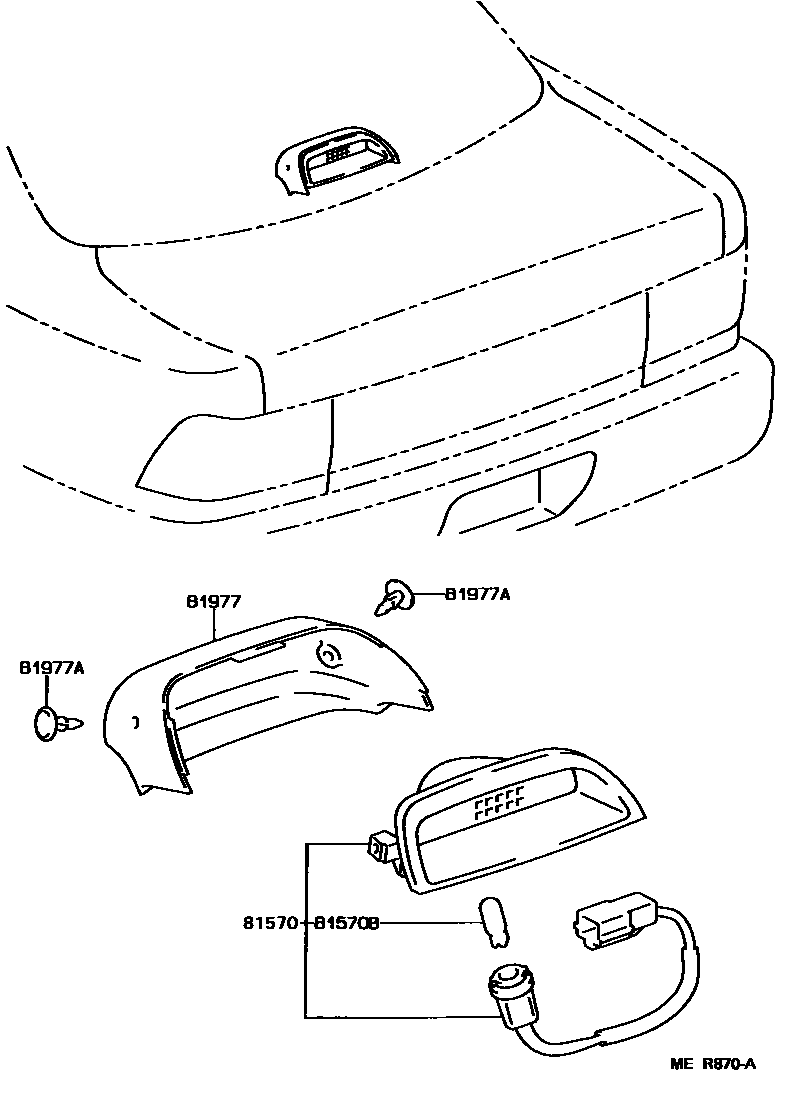

Toyota COROLLA 高位刹车灯 — Figure 8117
Toyota COROLLA EPC diagram 8117, 高位刹车灯, with 5 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81570 | Central brake light assembly | 81570-12160 · 81570-12200 · 81570-12270 · 81570-13030 · 81570-13050 · 81570-13060 · 81570-13070 · 81570-13080 · 81570-13110 |
| 81570B | Bulb (for center brake light) | 90981-11039 · 99132-11210 |
| 81977 | Central brake light cover | 81977-12140 |
