Toyota COROLLA 后牌照灯 — Figure 8113

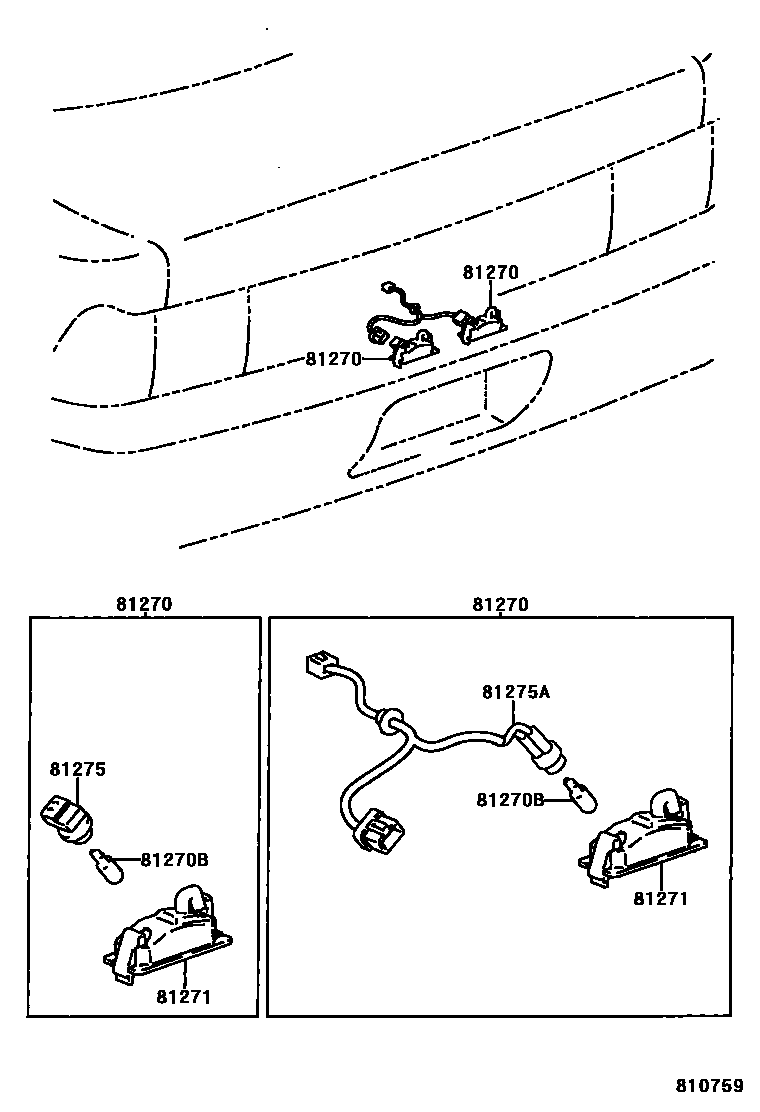

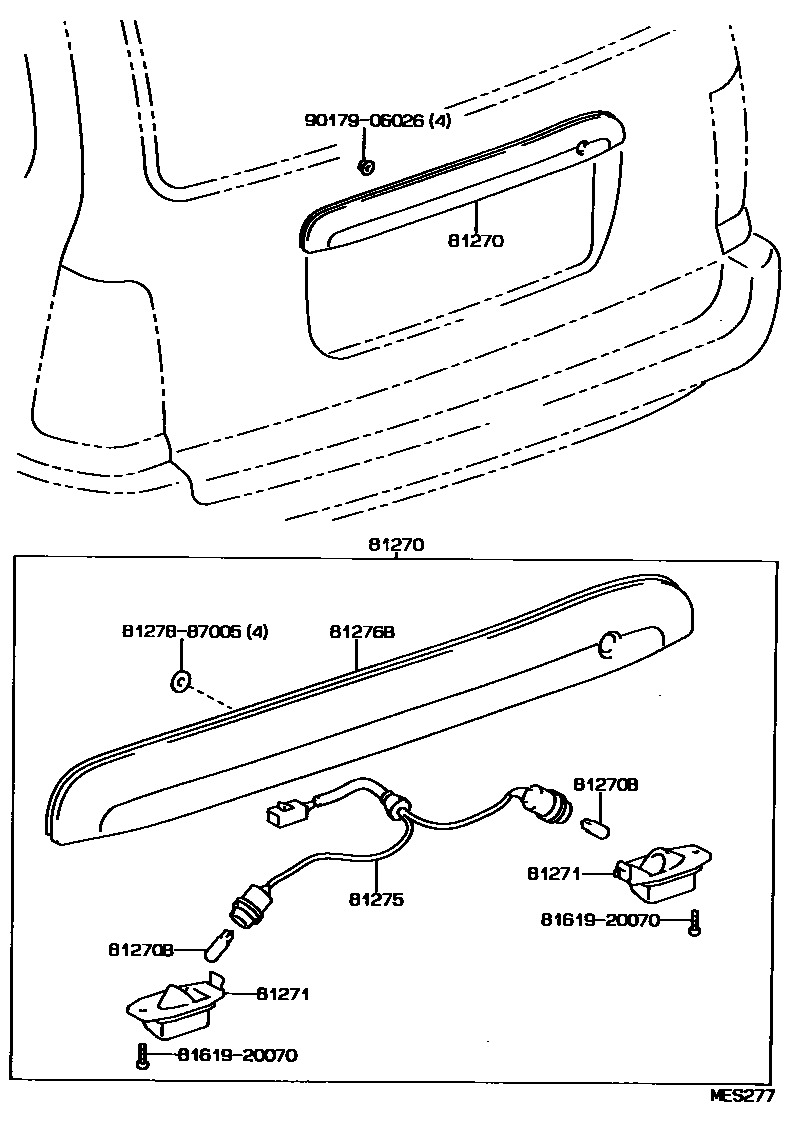

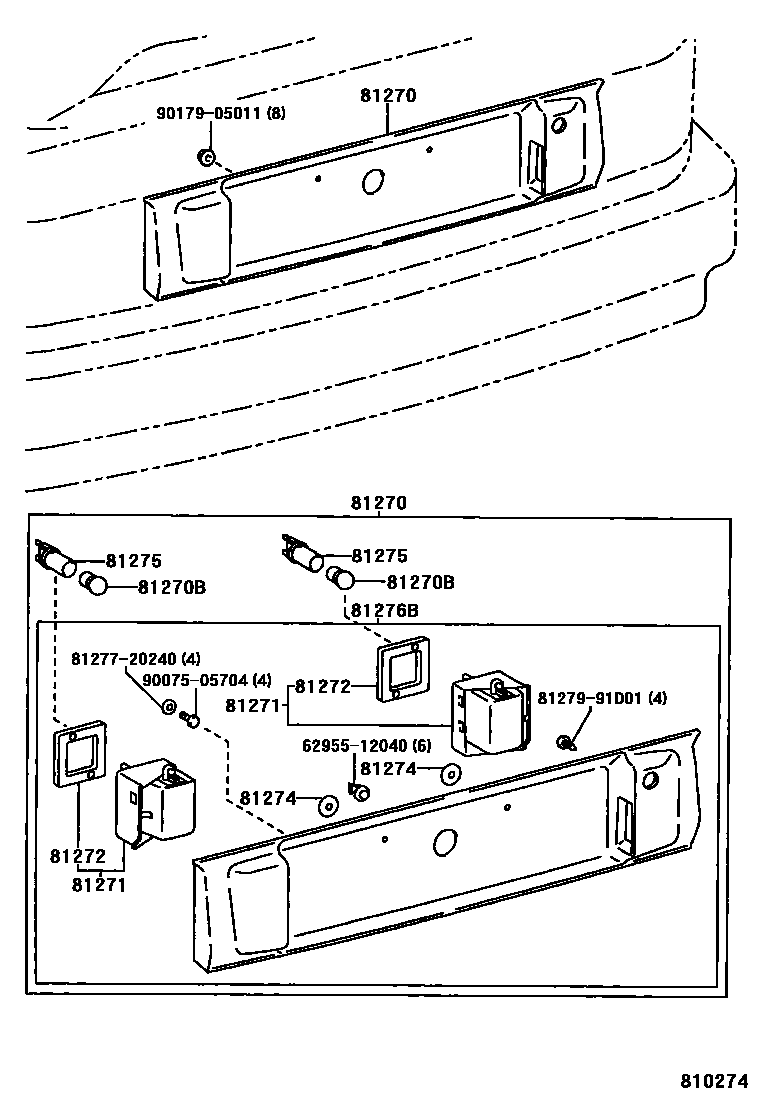

Toyota COROLLA EPC diagram 8113, 后牌照灯, with 3 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81270 | License plate light assembly | 81270-12430 · 81270-12431 · 81270-12460 · 81270-13240 · 81270-13280 · 81690-12110 |
| 81270B | Bulb (for license plate light) | 90981-12013 · 99132-12050 |
| 81271 | license plate lamp shade | 81271-12430 · 81271-12460 · 81273-12460 · 81273-13240 · 81274-13240 |
| 81272 | License plate lamp shade gasket | 81274-12460 |
| 81274 | License plate light body gasket | 81272-12460 |
| 81275 | License plate lamp holder and wiring harness | 81275-13240 · 90075-99012 · 90075-99093 |
| 81275A | License plate light wire | 81275-12431 · 81695-12110 |
| 81276B | license plate light cover | 81276-12460 · 81276-13240 · 81276-13280 |
