Toyota COROLLA 前转向灯 — Figure 8103

Toyota COROLLA EPC diagram 8103, 前转向灯, with 6 images and 7 PNC and OE references.

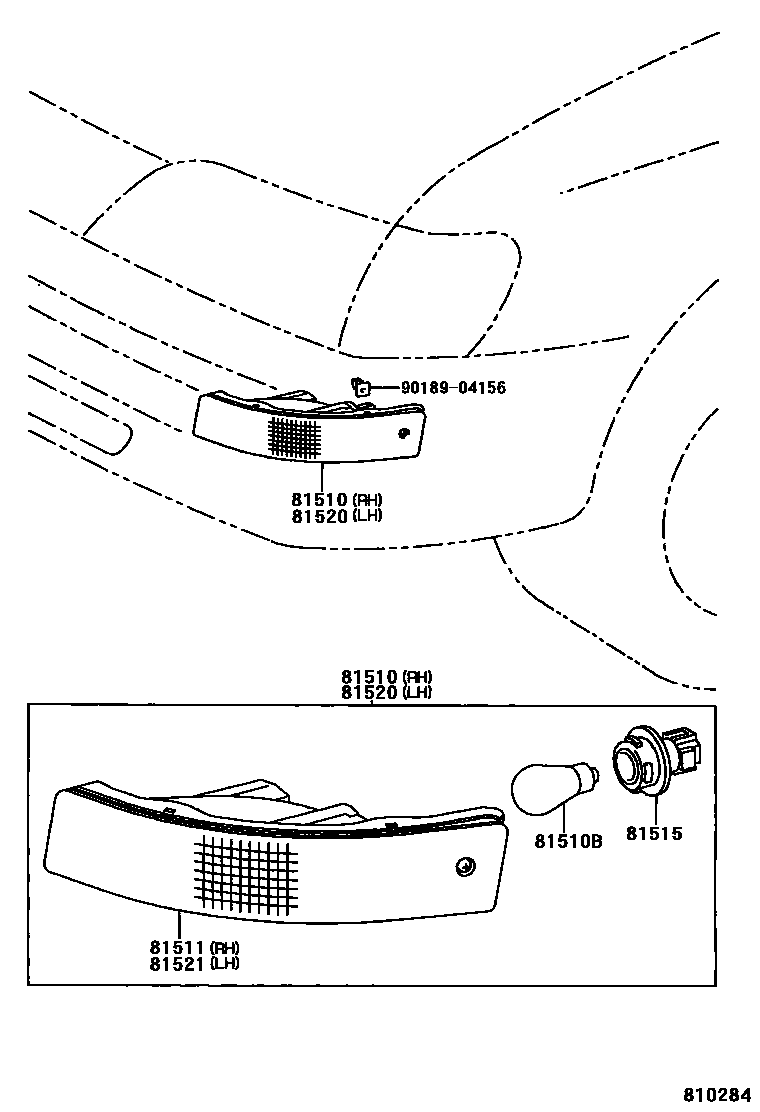

Toyota COROLLA 前转向灯 EPC diagram — 810284
前转向灯 — 810284 (199305 – 999999)

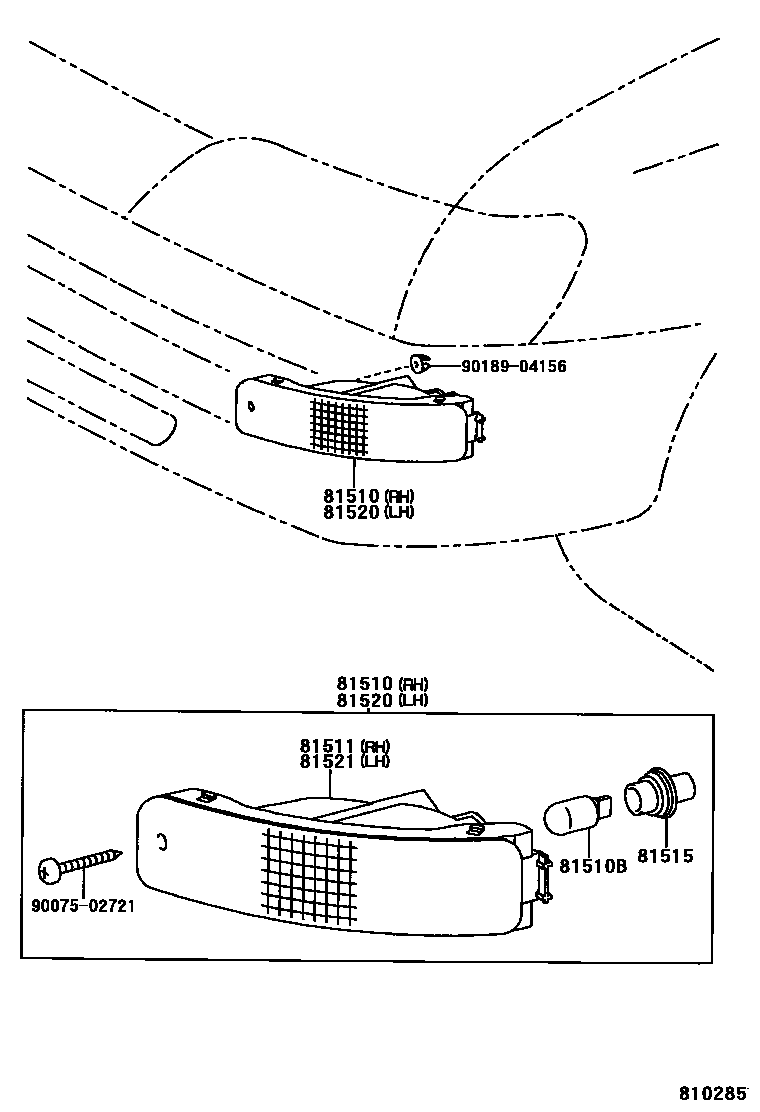

Toyota COROLLA 前转向灯 EPC diagram — 810285
前转向灯 — 810285 (199305 – 999999)
Toyota COROLLA 前转向灯 EPC diagram — 810289
前转向灯 — 810289 (199305 – 999999)

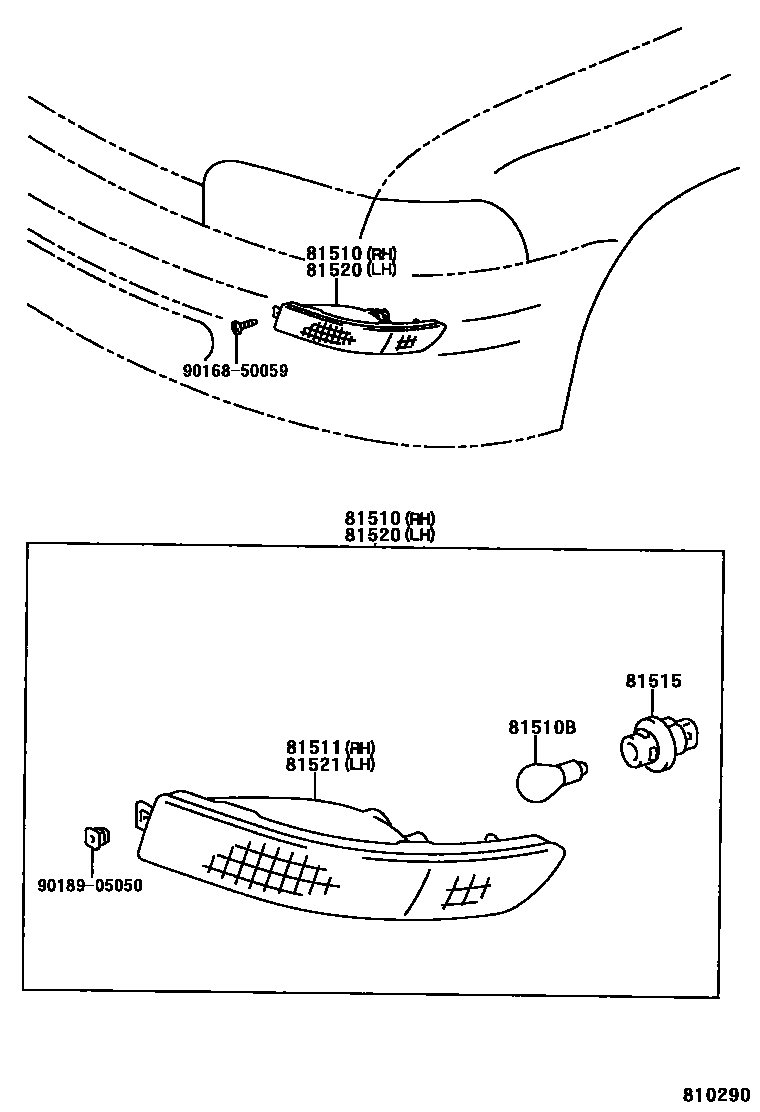

Toyota COROLLA 前转向灯 EPC diagram — 810290
前转向灯 — 810290 (199108 – 199704)

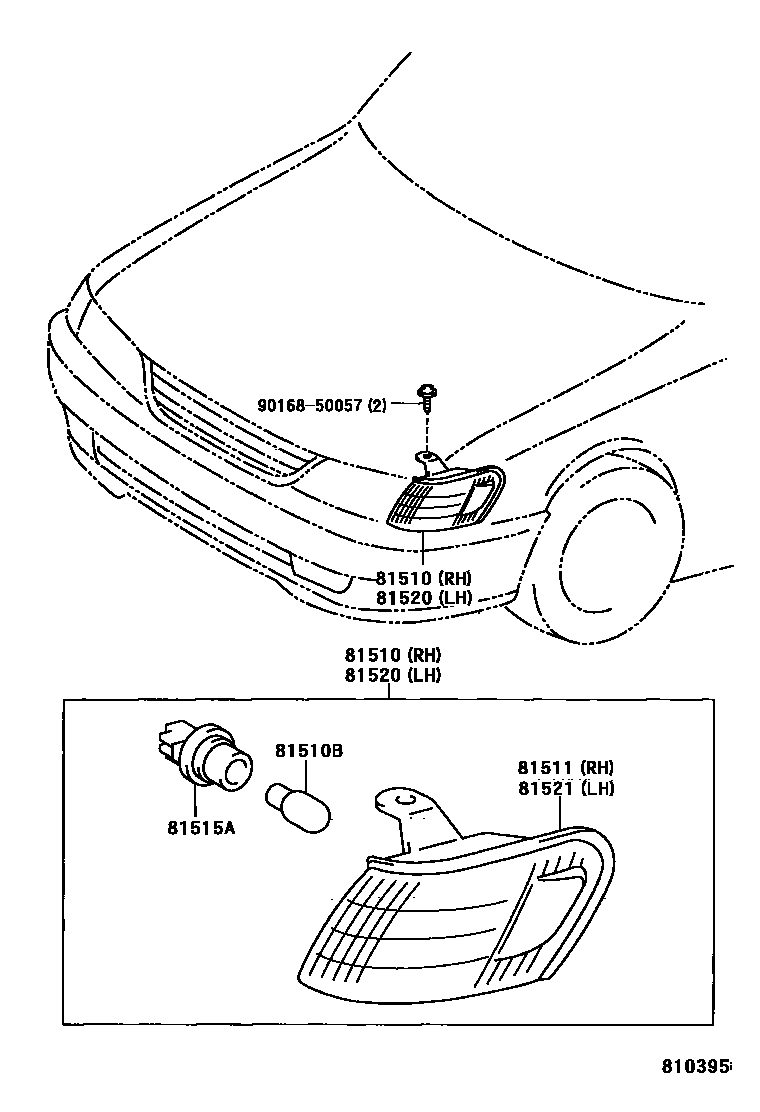

Toyota COROLLA 前转向灯 EPC diagram — 810395
前转向灯 — 810395 (199907 – 999999)

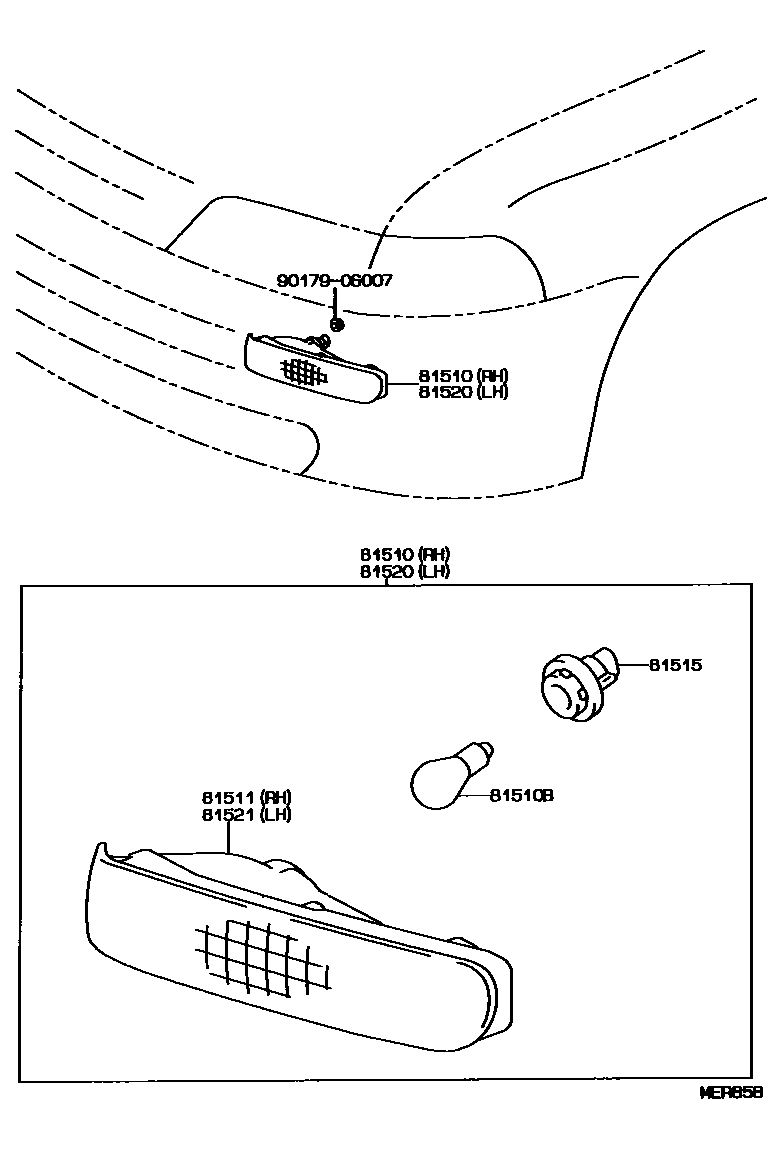

Toyota COROLLA 前转向灯 EPC diagram — MER858
前转向灯 — MER858 (199108 – 199305)

PNC and OE references

PNCPart nameOE numbers
81510Right front turn signal lamp assembly81510-12650 · 81510-12670 · 81510-12730 · 81510-12750 · 81510-12770 · 81510-12771 · 81510-12850 · 81510-13060
81510BBulb (for front turn signal lamp)90981-13043 · 99132-11210
81511Right front turn signal lamp cover81511-12650 · 81511-12670 · 81511-12730 · 81511-12750 · 81511-12770 · 81511-12850 · 81511-13060
81515Front turn signal light body wiring harness sub-assembly81515-12520 · 90075-99020 · 90075-99078 · 90075-99080 · 90075-99092
81515AFront turn signal light plug assembly90075-99080
81520Left front turn signal lamp assembly81520-12520 · 81520-12650 · 81520-12710 · 81520-12730 · 81520-12750 · 81520-12751 · 81520-12810 · 81520-13060
81521Left front turn signal lamp cover81521-12520 · 81521-12650 · 81521-12710 · 81521-12730 · 81521-12750 · 81521-12810 · 81521-13060
