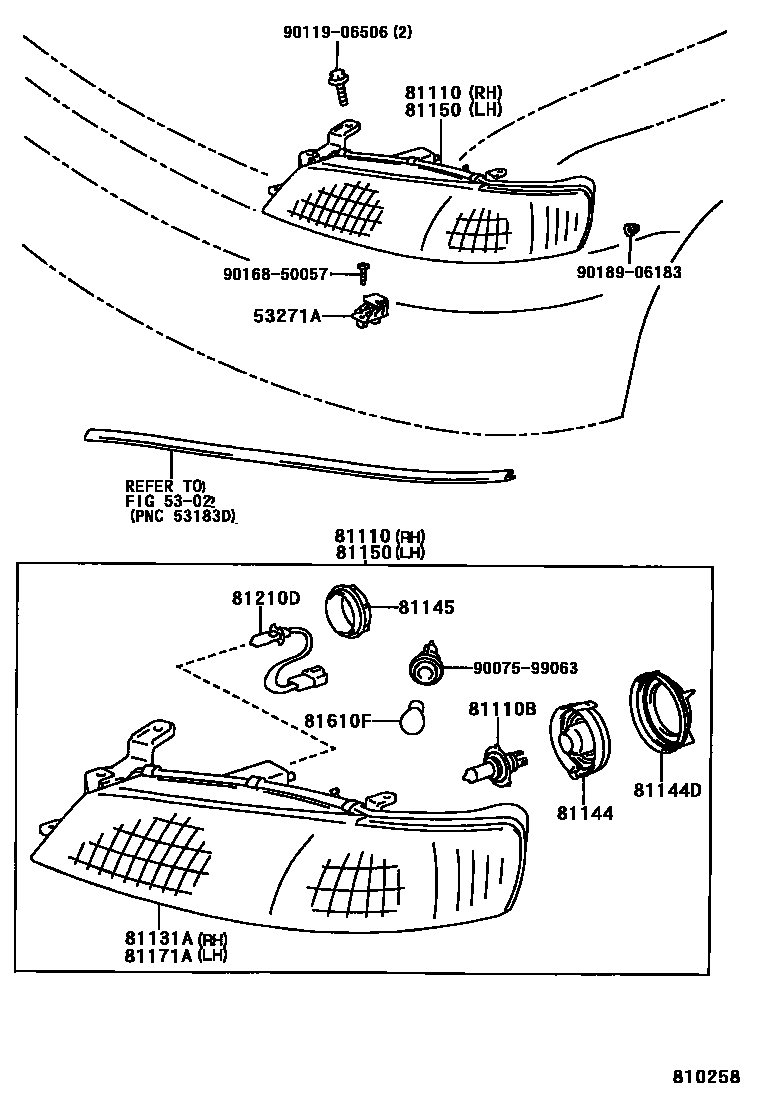

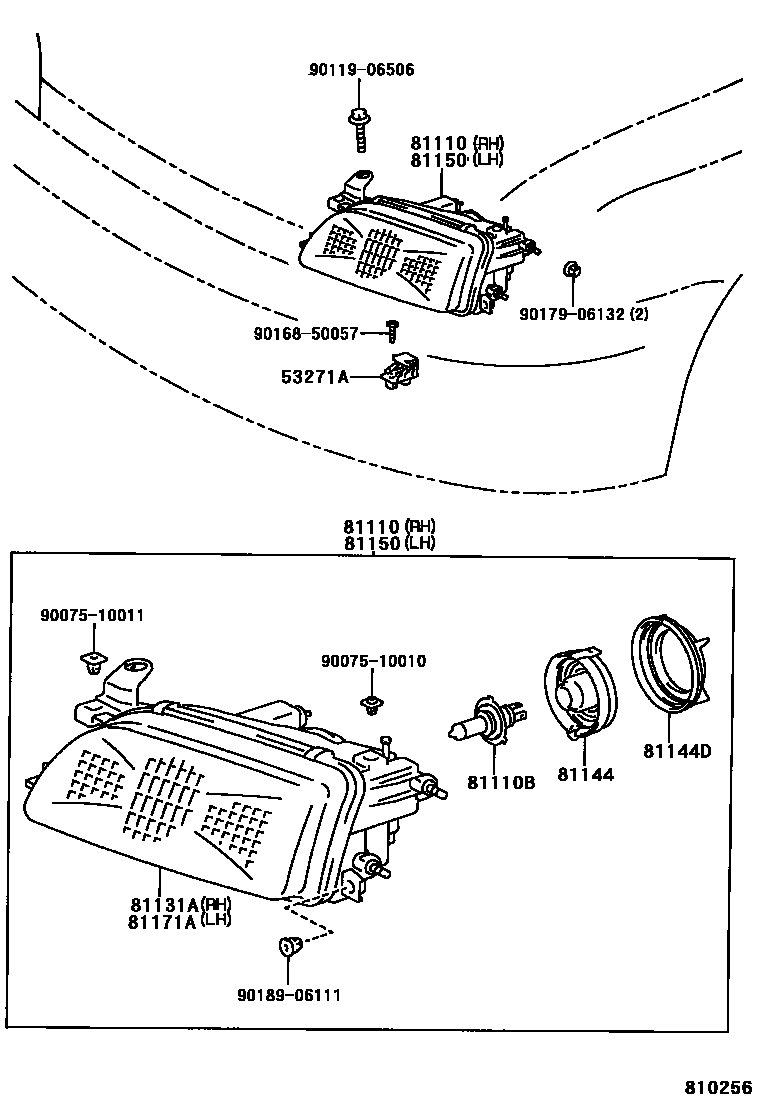

Toyota COROLLA Headlamp — Figure 8101
Toyota COROLLA EPC diagram 8101, Headlamp, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53271A | Headlight mounting bracket | 53271-12040 · 53271-12060 |
| 81110 | Right headlight assembly | 81110-1E180 · 81110-1E181 · 81110-1E182 · 81110-1E280 · 81110-1E281 · 81110-1E282 · 81110-1E300 · 81110-1E301 · 81110-1E302 · 81120-1A570 · 81120-1A571 |
| 81110B | Bulb (for headlight No. 1) | 90981-13015 · 90981-13016 · 90981-22004 |
| 81131A | Right headlight assembly | 81130-1A570 · 81130-1A571 · 81130-1E180 · 81130-1E181 · 81130-1E182 · 81130-1E280 · 81130-1E281 · 81130-1E282 |
| 81144 | No. 1 headlight cover | 90075-99058 |
| 81144D | headlight lock cover | 90075-99057 |
| 81145 | No. 2 headlight cover | 90075-99065 |
| 81150 | Left headlight assembly | 81150-1A440 · 81150-1A441 · 81150-1A442 · 81150-1A550 · 81150-1A551 · 81150-1A552 · 81150-1E180 · 81150-1E181 · 81150-1E182 · 81160-1A570 · 81160-1A571 |
| 81171A | Left headlight assembly | 81170-1A440 · 81170-1A441 · 81170-1A442 · 81170-1A550 · 81170-1A551 · 81170-1A552 · 81170-1A570 · 81170-1A571 |
| 81210D | fog light bulb | 90981-13040 |
| 81610F | Light bulb (for width indicator light) | 90981-13036 |
