Toyota COROLLA 挡泥板和扰流板 — Figure 7601

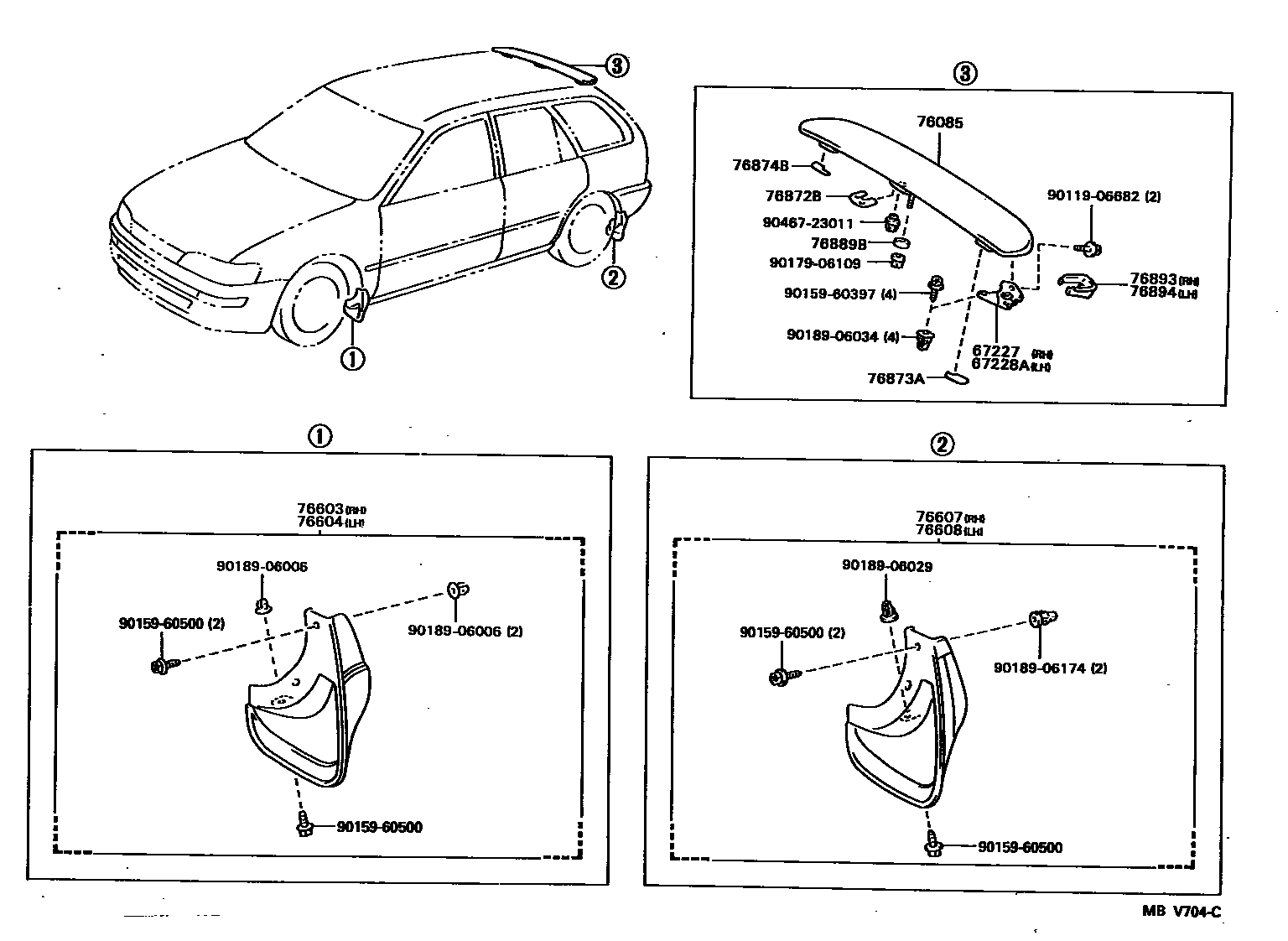

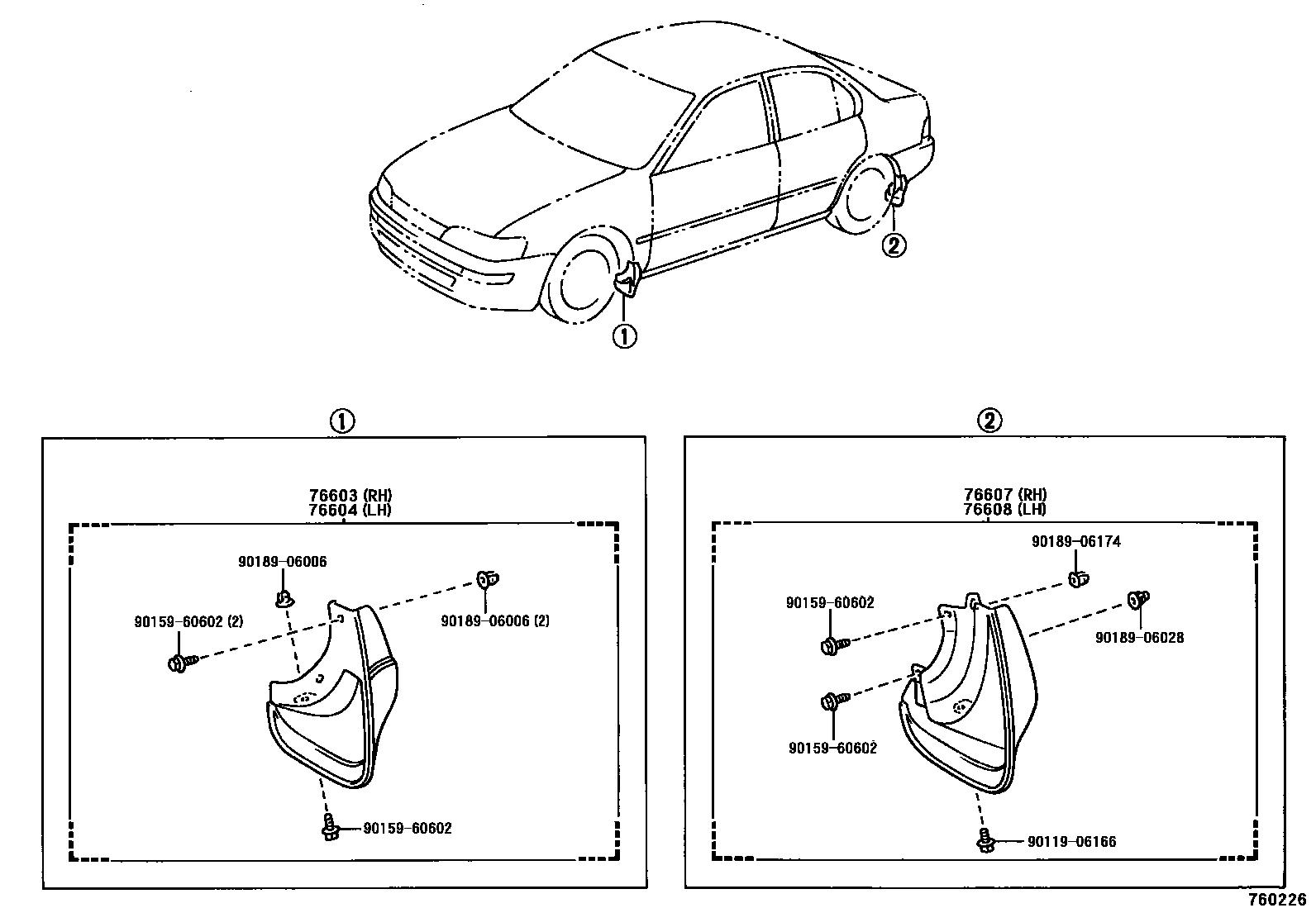

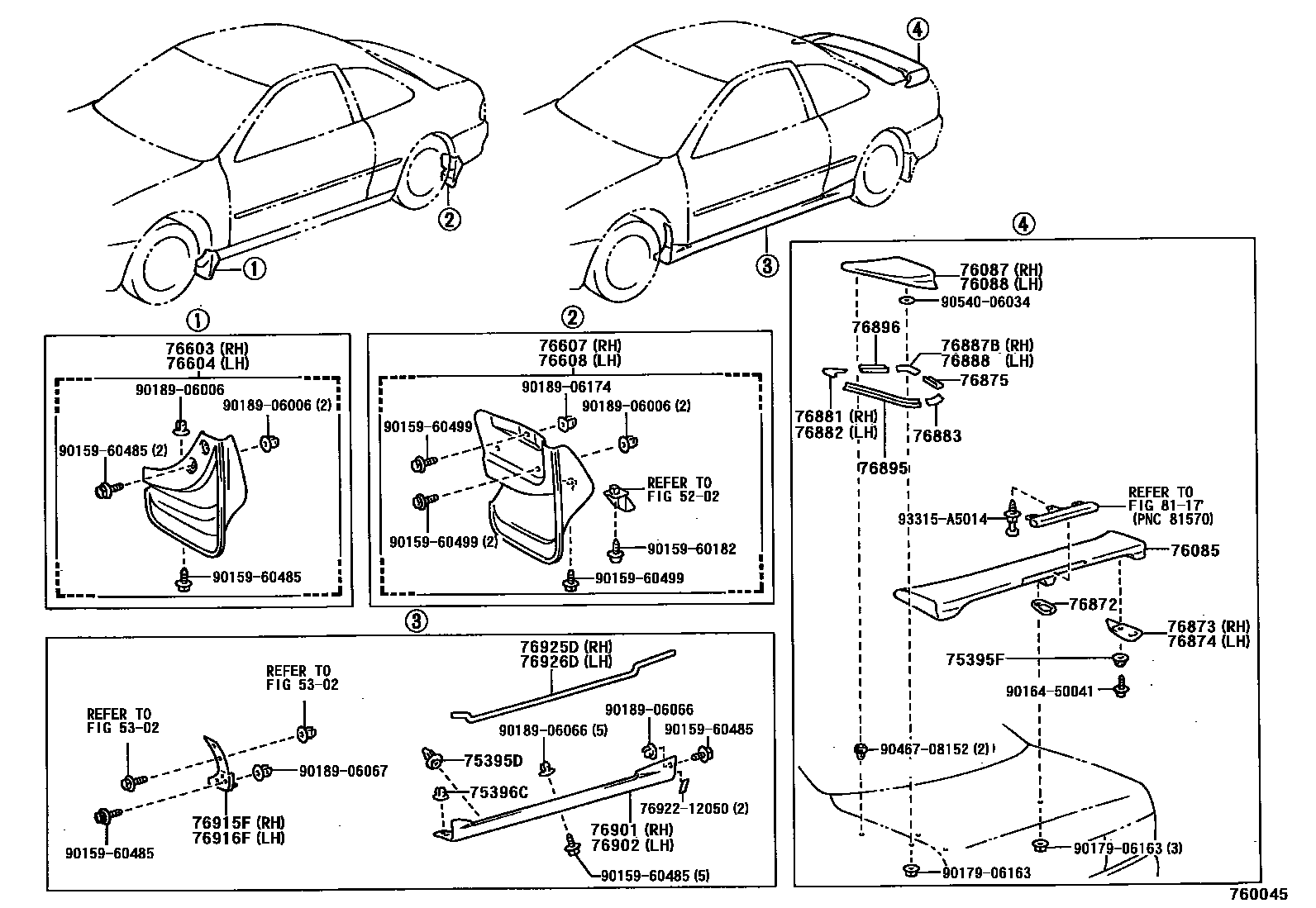

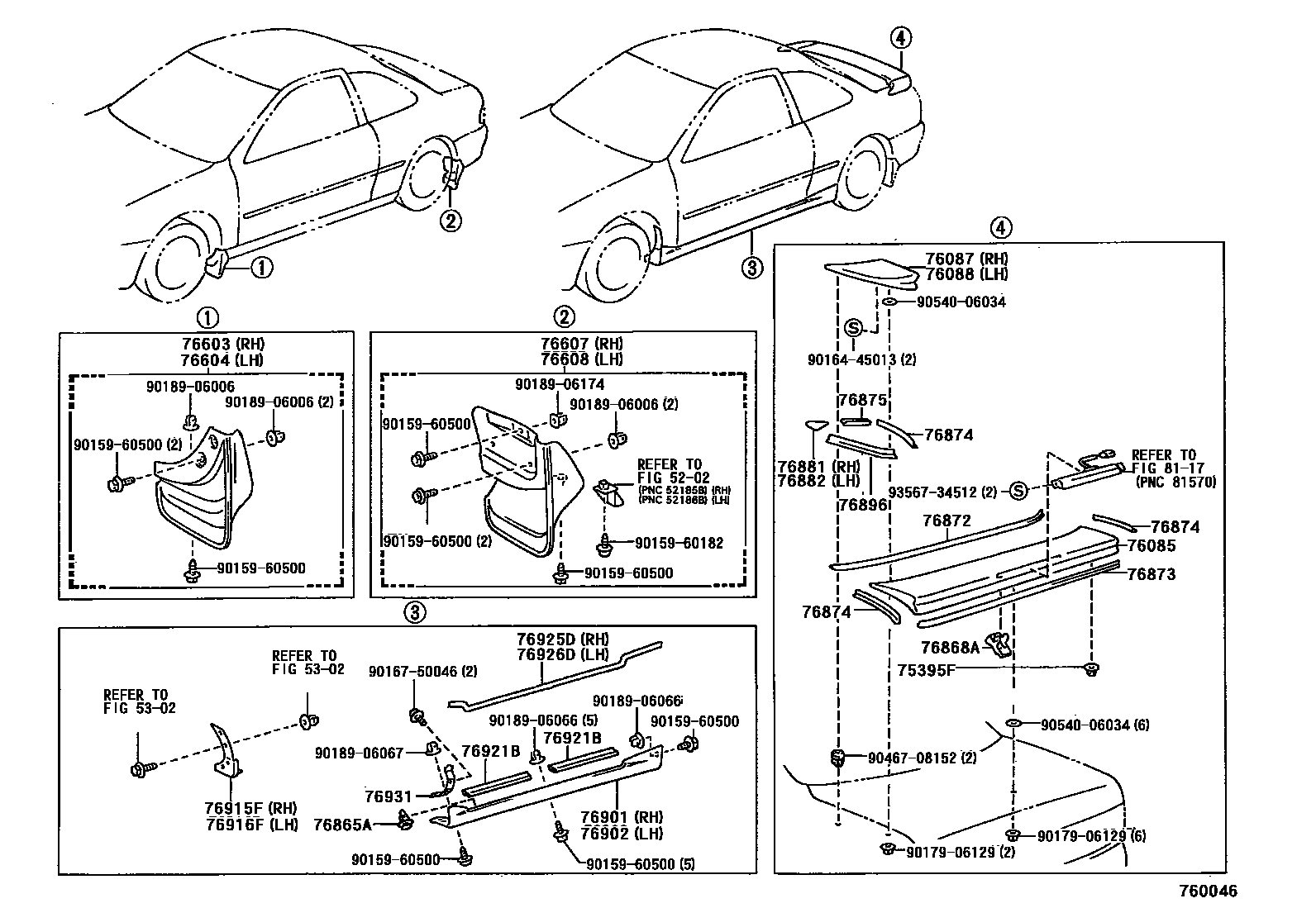

Toyota COROLLA EPC diagram 7601, 挡泥板和扰流板, with 4 images and 37 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67227 | Right rear spoiler fixing | 67227-13010 |
| 67228A | Left rear spoiler fixing | 67228-13010 |
| 75395D | No. 1 outer protective strip clip | 75395-12110 |
| 75395F | No. 1 outer protective strip clip | 75395-12090 |
| 75396C | No. 2 outer rear protective strip clip | 75396-12110 |
| 76085 | Rear spoiler sub-assembly | 76085-12911 · 76085-12915 |
| 76087 | No. 1 rear spoiler sub-assembly | 76087-12902 · 76891-12902 |
| 76088 | No. 2 rear spoiler sub-assembly | 76088-12902 · 76892-12902 |
| 76603 | Right front fender fender sub-assembly | 76621-19215 |
| 76604 | Left front fender fender sub-assembly | 76622-19215 |
| 76607 | Right rear side fender sub-assembly | 76625-19445 · 76625-19505 · 76625-19515 |
| 76608 | Left rear side fender sub-assembly | 76626-19445 · 76626-19505 · 76626-19515 |
| 76865A | Side fender fixings | 67771-12070 |
| 76868A | No. 4 rear spoiler fixing piece | 76868-12100 |
| 76872 | No. 1 rear spoiler protective strip | 76872-12110 · 76872-12140 |
| 76872B | Rear center spoiler protective strip | 76872-13010 |
| 76873 | No. 2 rear spoiler protective strip | 76873-12120 · 76873-12150 |
| 76873A | Right rear spoiler protective strip | 76873-13010 |
| 76874 | No. 3 rear spoiler protective strip | 76874-12130 · 76874-12160 |
| 76874B | Left rear spoiler protective strip | 76874-13010 |
| 76875 | No. 4 rear spoiler protective strip | 76875-12020 · 76875-12070 |
| 76881 | No. 1 right rear spoiler protective strip | 76881-12020 · 76881-12040 |
| 76882 | No. 1 left rear spoiler protective strip | 76881-12020 · 76882-12040 |
| 76883 | No. 7 right rear spoiler protective strip | 76883-12020 |
| 76887B | No. 2 rear spoiler protection strip | 76887-12020 |
| 76888 | No. 3 rear spoiler protection strip | 76887-12020 |
| 76889B | No. 1 rear spoiler seal | 76889-13010 |
| 76895 | No. 5 rear spoiler protective strip | 76895-12050 |
| 76896 | No. 6 rear spoiler protective strip | 76896-12010 · 76896-12030 |
| 76901 | Right fender sub-assembly | 76901-12900 · 76901-12901 |
| 76902 | Left fender sub-assembly | 76902-12900 · 76902-12901 |
| 76915F | Right front fender | 76915-12050 · 76915-12070 |
| 76916F | Left front fender | 76916-12050 · 76916-12070 |
| 76921B | No. 1 side fender protection strip | 76921-12060 |
| 76925D | Right fender protection strip | 76925-12020 · 76925-12030 |
| 76926D | Left fender protection strip | 76926-12020 · 76926-12030 |
| 76931 | No. 3 side fender fixing piece | 76931-12020 |
