Toyota COROLLA 后防护条 — Figure 7504

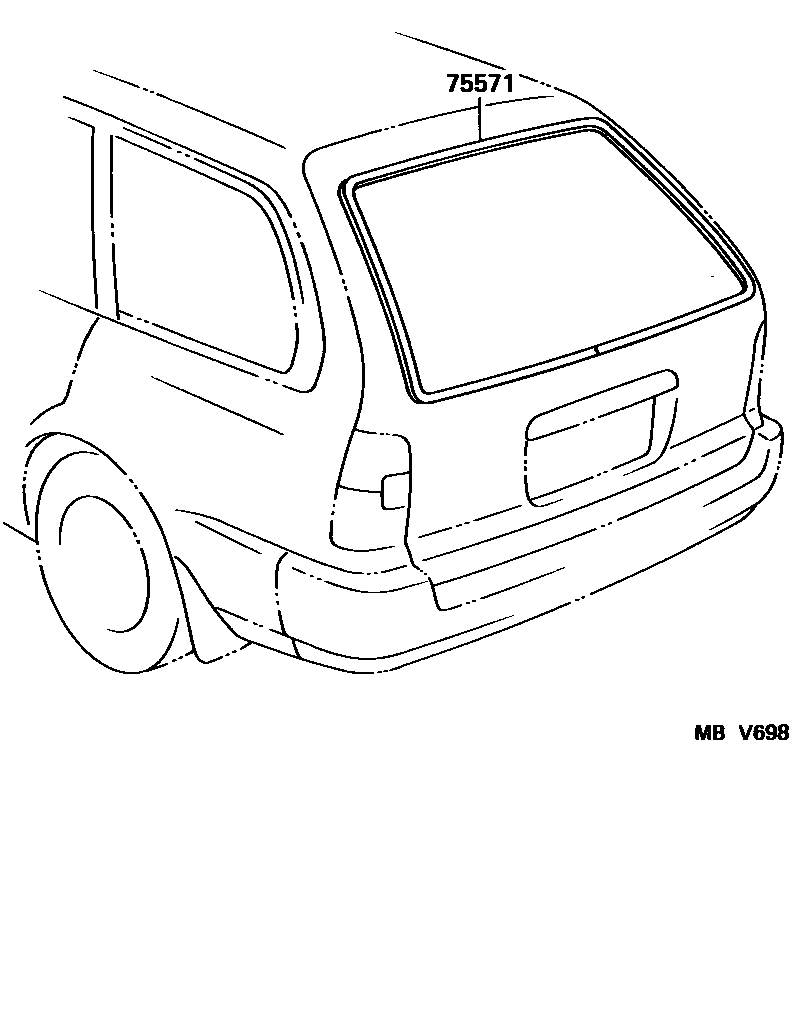

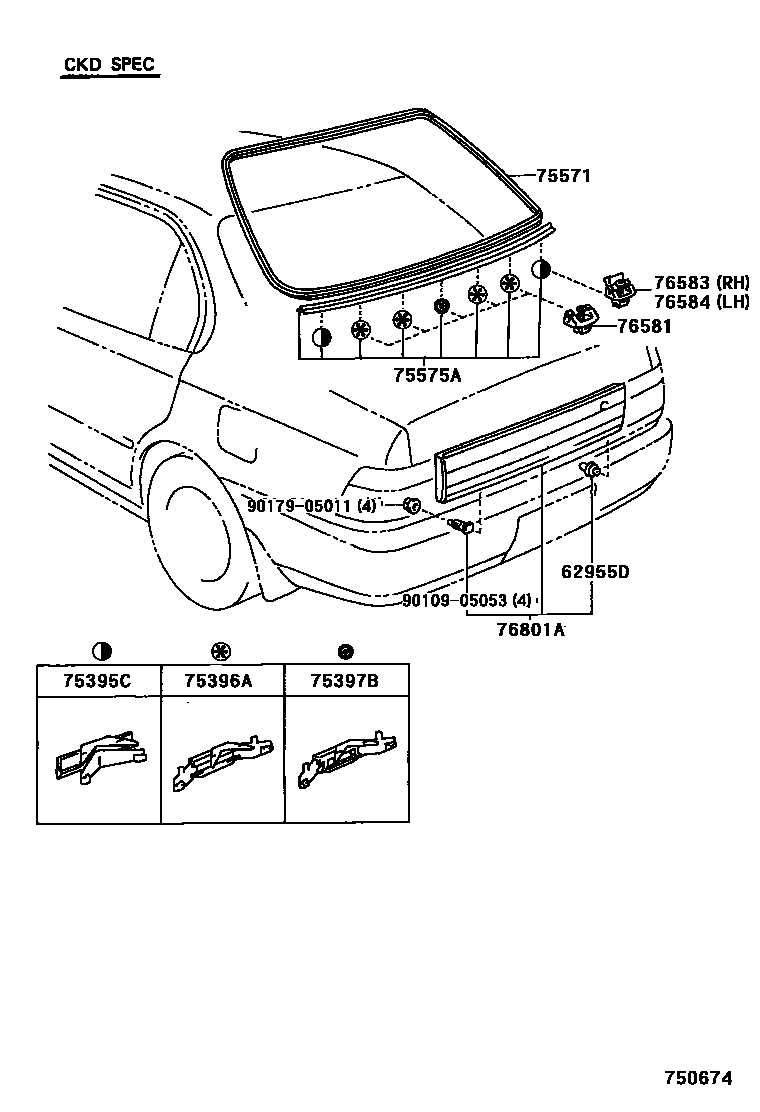

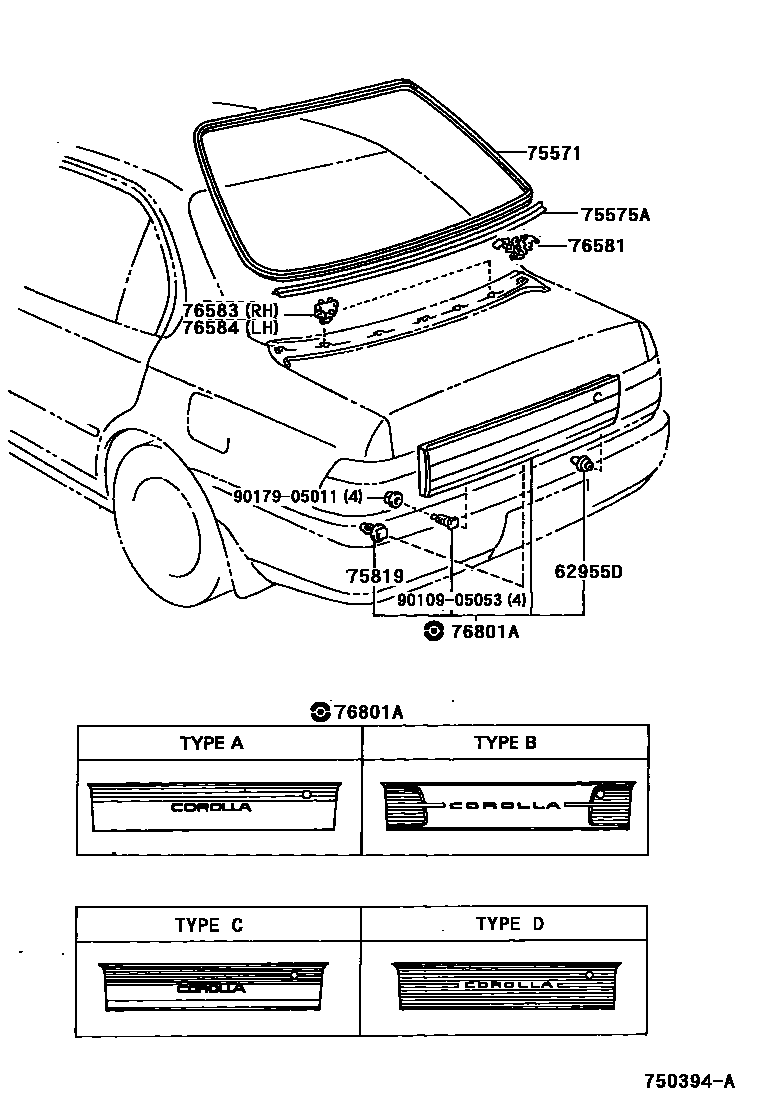

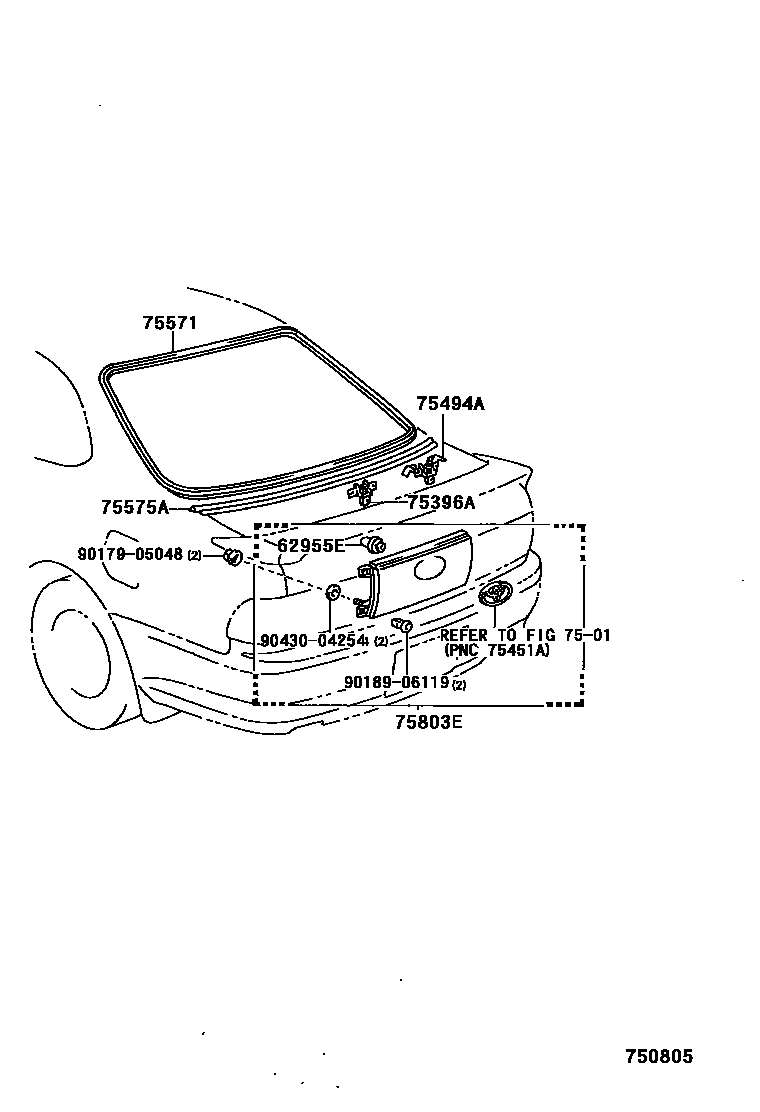

Toyota COROLLA EPC diagram 7504, 后防护条, with 4 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62955D | Trunk door trim strip fasteners | 62955-12040 |
| 62955E | Rear lower trim panel fixings | 62955-20040 |
| 75395C | No. 1 outer protective strip clip | 75395-12100 |
| 75396A | No. 2 outer protective strip clip | 75396-12100 · 75396-12120 |
| 75397B | No. 3 rear window protective strip clip | 75397-12080 |
| 75494A | No. 3 outer protective strip clip | 75496-12030 · 75497-12020 |
| 75571 | Protective strips on the outside of the rear window | 75571-12570 · 75571-12580 · 75571-12620 · 75571-12650 · 75571-12660 · 75571-13040 |
| 75575A | Lower protective strip on the outside of the rear window | 75575-12360 · 75575-12380 · 75575-12390 · 75575-12400 |
| 75803E | Lower back panel protective strip sub-assembly | 75803-12120 · 75803-12140 |
| 75819 | Trunk door protective strip clip | 62955-12040 · 75819-12040 |
| 76581 | Rear window protective strip fixings | 75394-12030 · 76581-12080 |
| 76583 | Fixing piece for the lower right protective strip outside the rear window | 75393-12050 · 76583-12080 |
| 76584 | Lower left protective strip fixing piece on the outer side of the rear window | 75393-12050 · 76584-12050 |
| 76801A | Trunk door outer decorative strip sub-assembly | 76801-02070 · 76801-02080 · 76801-12410 · 76801-12420 · 76801-12440 · 76801-12450 |
