Toyota COROLLA 侧防护条 — Figure 7503

Toyota COROLLA EPC diagram 7503, 侧防护条, with 3 images and 24 PNC and OE references.

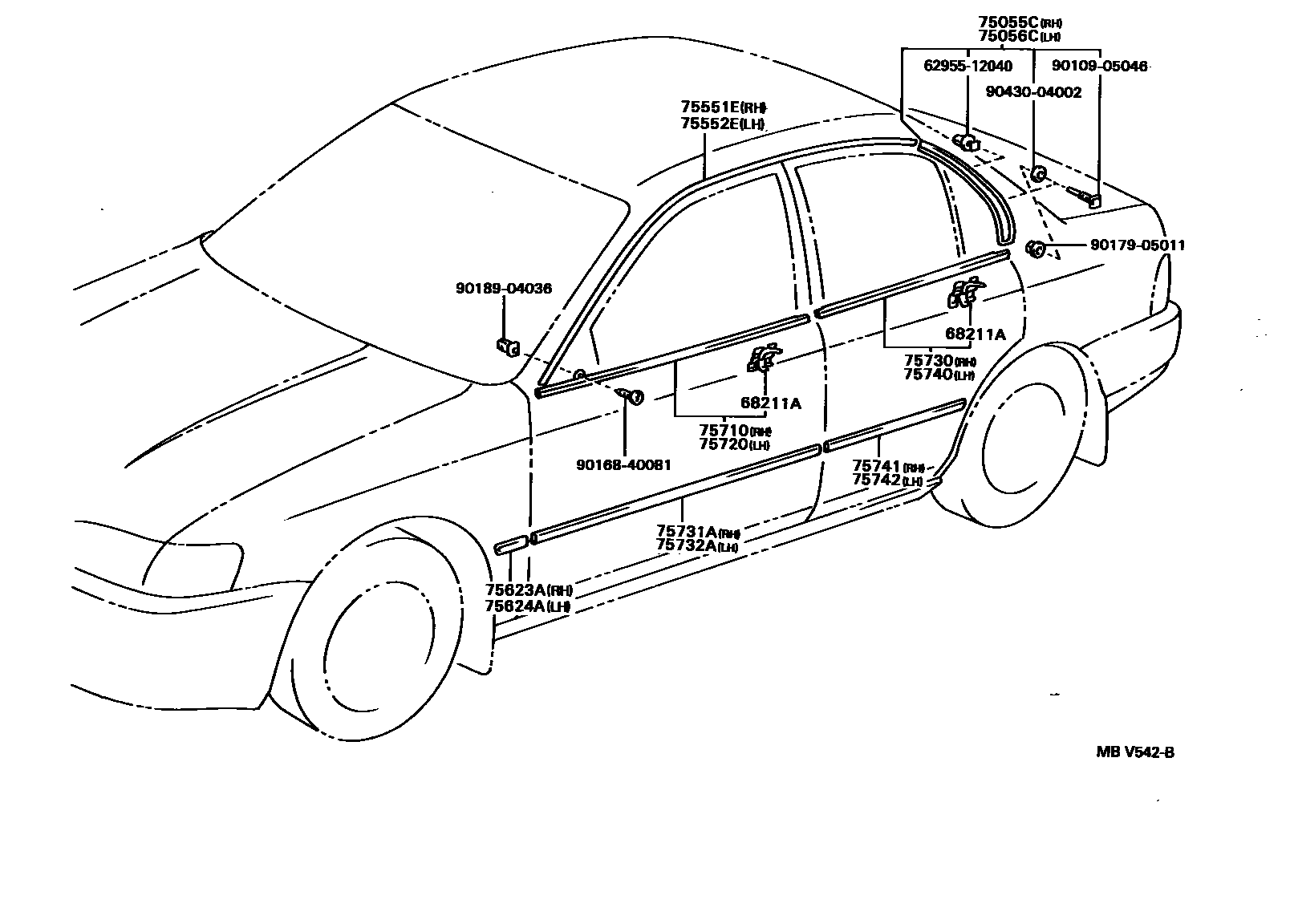

Toyota COROLLA 侧防护条 EPC diagram — MBV542B
侧防护条 — MBV542B (199108 – 999999)

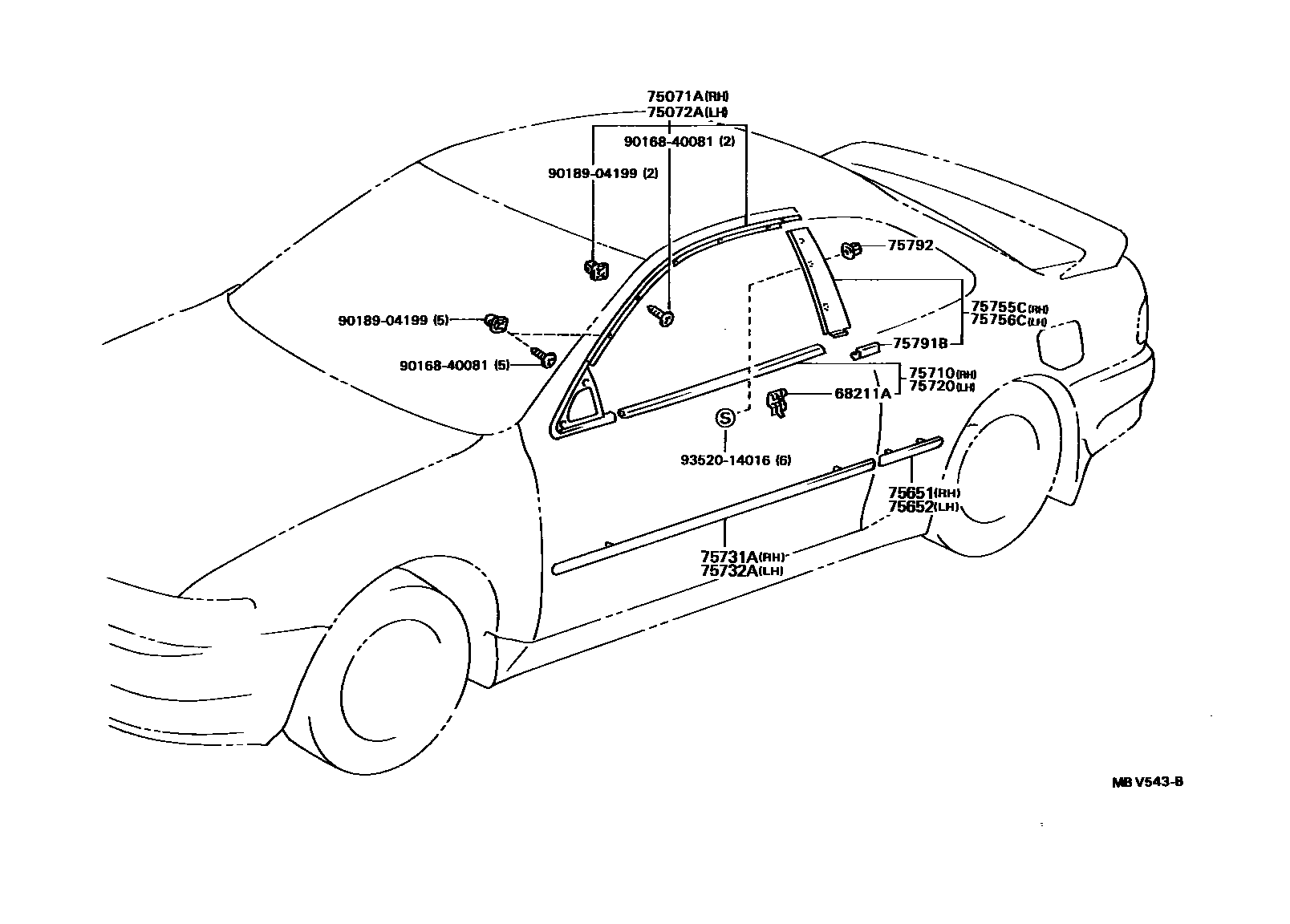

Toyota COROLLA 侧防护条 EPC diagram — MBV543B
侧防护条 — MBV543B (199108 – 199505)

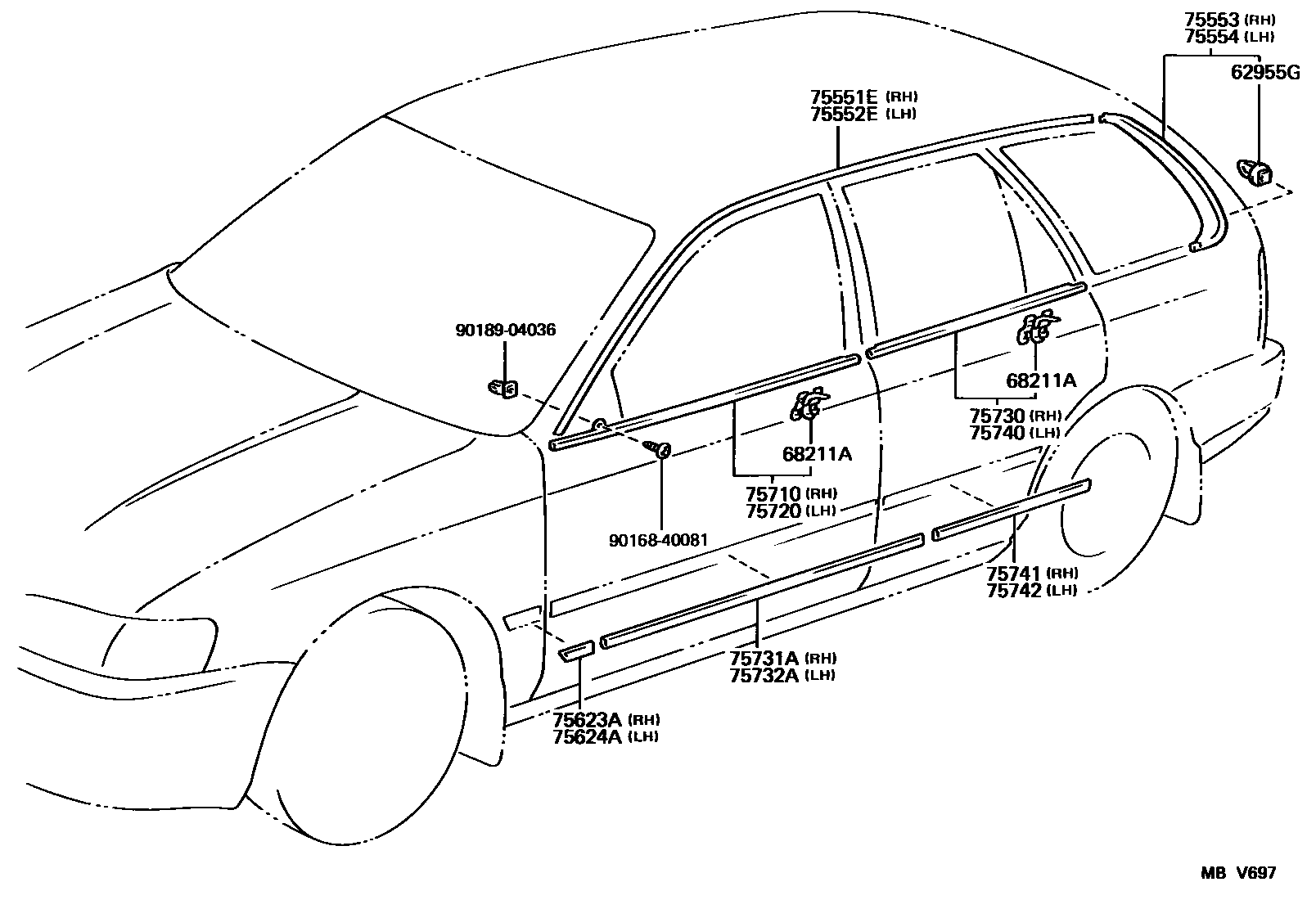

Toyota COROLLA 侧防护条 EPC diagram — MBV697
侧防护条 — MBV697 (199109 – 999999)

PNC and OE references

PNCPart nameOE numbers
62955GSide ventilation grille fixings62955-12010 · 62955-20020
68211ADoor belt line protection strip clip68211-12190 · 68211-13010 · 68212-12030
75055CRoof right rear gutter side decorative strip sub-assembly75055-12120 · 75055-12130
75056CRoof left rear gutter side decorative strip sub-assembly75056-12120 · 75056-12130
75071ARight front door outer protective strip sub-assembly75071-12030
75072ALeft front door outer protective strip sub-assembly75072-12040
75551EDrainage groove side decorative strip on the right side of the roof75551-12490 · 75551-12500 · 75551-13100 · 75551-13110
75552EDrainage groove side decorative strip on the left side of the roof75552-12490 · 75552-12500 · 75552-13100 · 75552-13110
75553Drainage groove side decorative strip on the right side of the roof75505-13010 · 75505-13030
75554Drainage groove side decorative strip on the left side of the roof75506-13010 · 75506-13030
75623ARight front fender outer rear protective strip75623-12640
75624ALeft front fender outer rear protective strip75624-12640
75710Right front door waistline protection strip assembly75710-12490 · 75710-12500 · 75710-12550
75720Left front door waistline protection strip assembly75720-12490 · 75720-12500 · 75720-12550
75730Right rear door waistline protection strip assembly75730-12160 · 75730-12170 · 75730-13040
75731ARight front door outer protective strip75731-1A330
75732ALeft front door outer protective strip75732-1A170
75740Left rear door waistline protection strip assembly75740-12250 · 75740-12260 · 75740-13040
75741Right rear door outer protective strip75741-12840
75742Left rear door outer protective strip75742-12830
75755CRight front door window frame rear protective strip75755-12100
75756CLeft front door window frame rear protective strip75756-12120
75791BWaistline side protective strip clip75791-12030
75792Car door window frame protective strip clip75792-12010
