Toyota COROLLA 警示铭牌(车外和车内) — Figure 7403

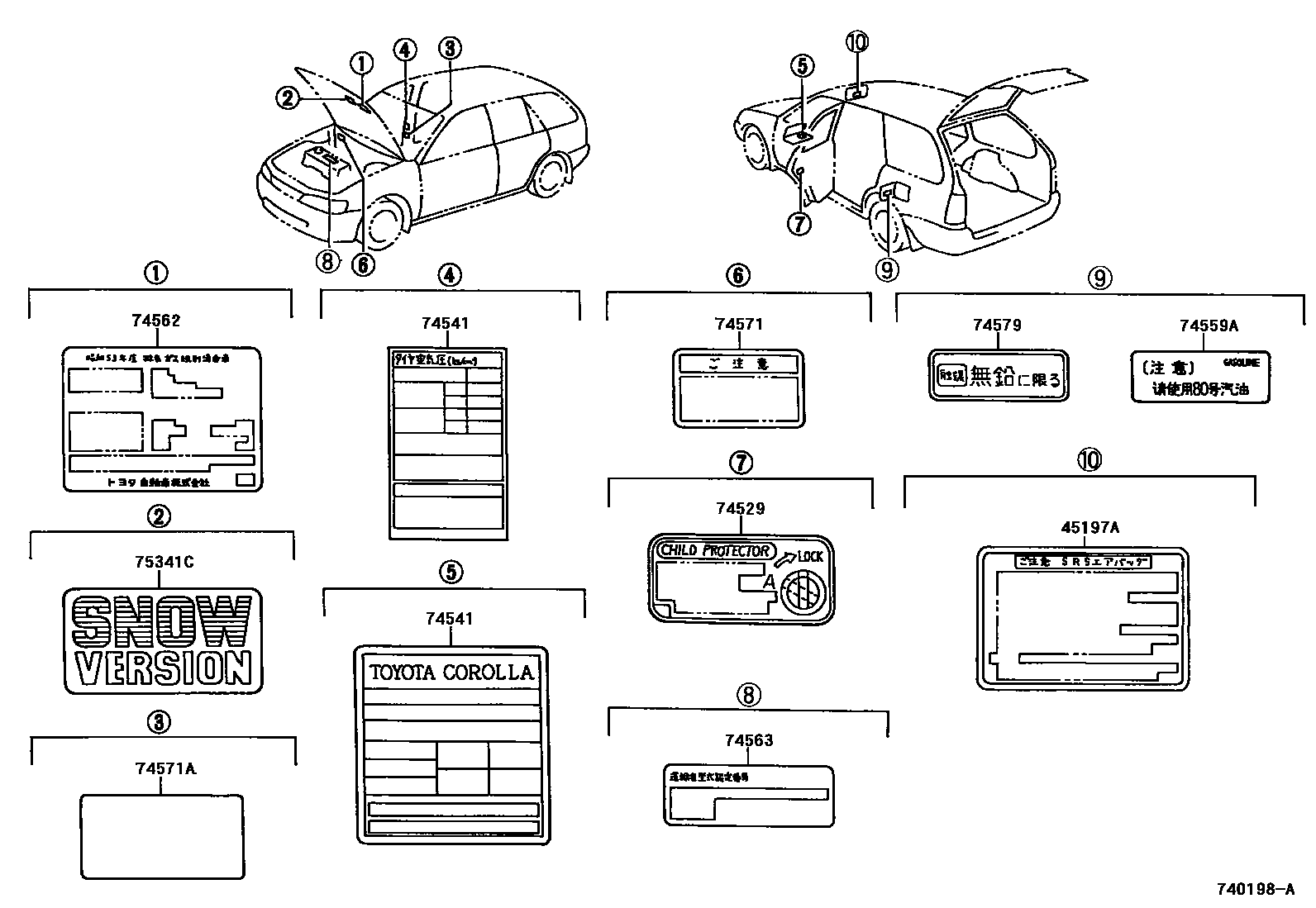

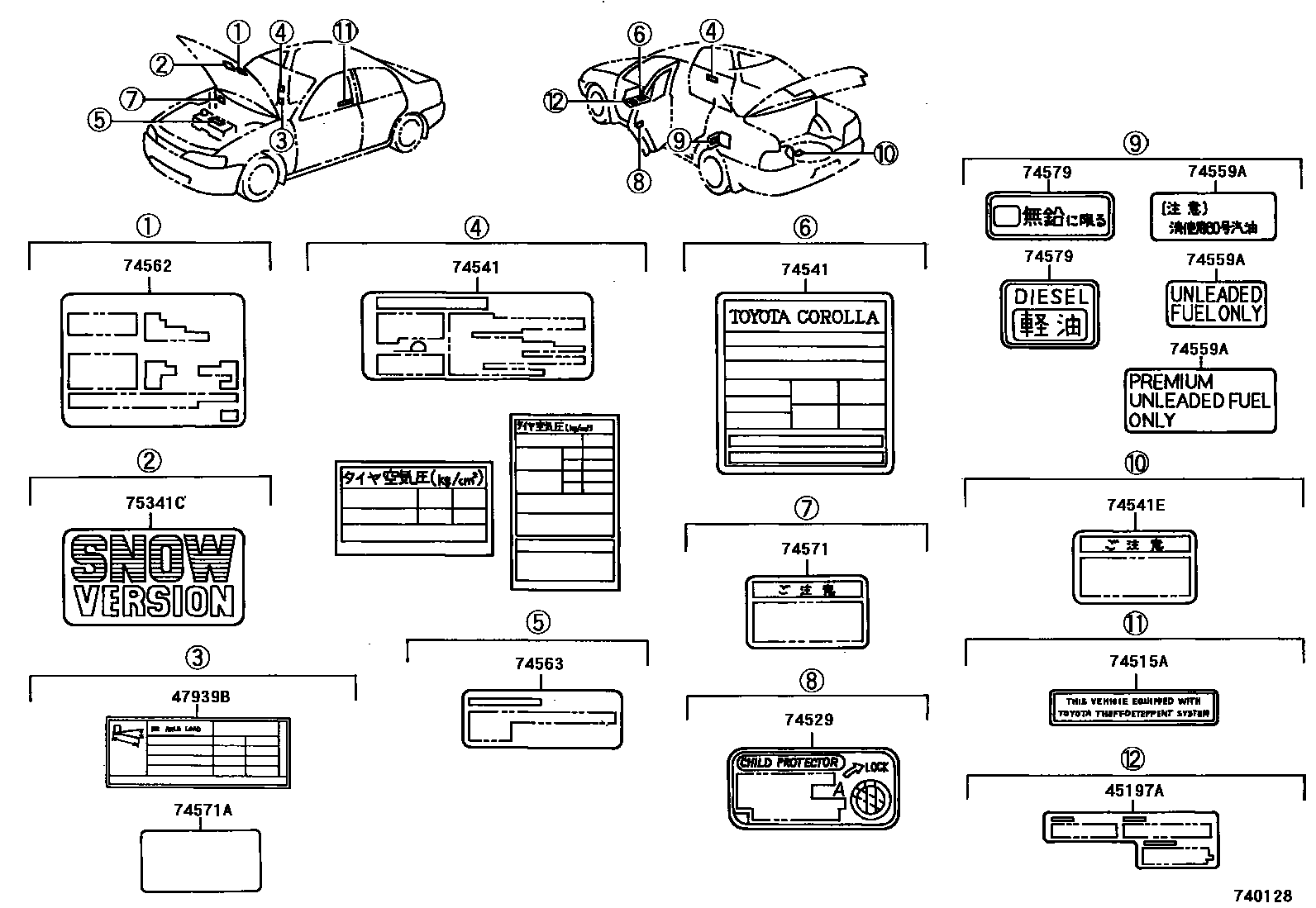

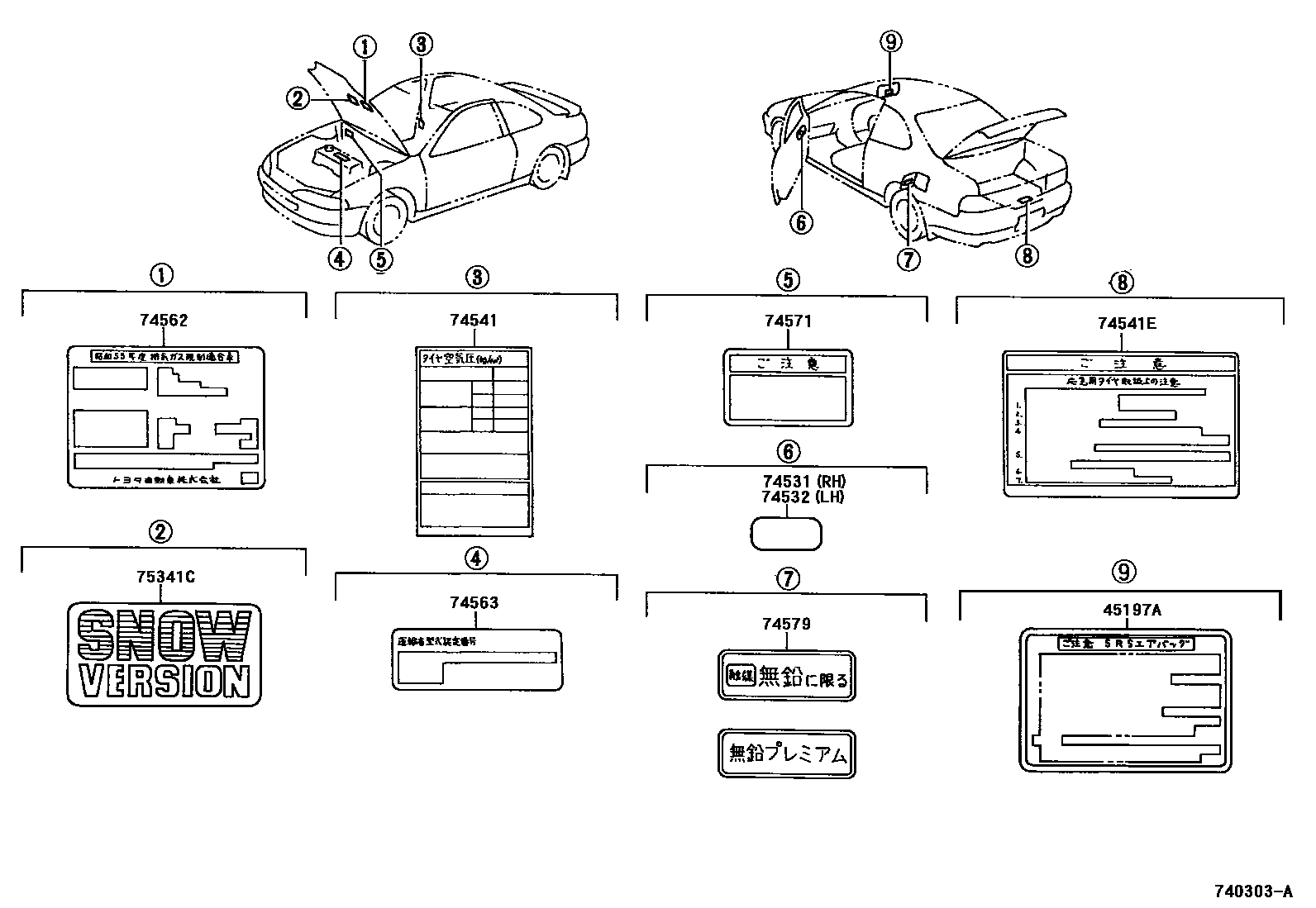

Toyota COROLLA EPC diagram 7403, 警示铭牌(车外和车内), with 3 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45197A | air bag warning label | 45197-12070 · 45197-32030 |
| 47939B | Load sensing valve marking information label | 47939-12030 |
| 74515A | Anti-theft warning nameplate | 74515-14010 |
| 74529 | Child safety or child restraint lock warning nameplate | 69339-32010 · 69349-32010 |
| 74531 | Right door inner handle warning plate | 74531-12010 |
| 74532 | Left door inner handle warning plate | 74531-12010 |
| 74541 | tire pressure warning plate | 42661-12750 · 42661-1A180 · 42661-1A240 · 42661-1A250 · 42661-1A270 · 42661-1A271 · 42661-1A280 · 42661-1A281 · 42661-1A310 · 42661-1A330 · 42661-1A340 · 42661-1A360 · 42661-1A370 · 42661-1A390 · 42661-1A391 · 42661-1A540 · 42661-1A580 · 42661-1A600 · 42661-1A620 · 42661-1A640 · 42661-1A650 · 42661-1A670 · 42661-1A750 |
| 74541E | Small spare tire warning plate | 42668-32010 |
| 74559A | Fuel warning plate | 74559-14050 · 74559-16010 · 74559-28010 · 74559-50010 |
| 74562 | Emission control system information plate | 74562-12490 · 74562-12510 · 74562-12530 · 74562-12560 · 74562-13140 · 74562-16260 · 74562-20400 · 74562-20610 |
| 74563 | Emission control equipment identification plate | 74563-12170 · 74563-12171 · 74563-12180 · 74563-12181 · 74563-13130 |
| 74571 | Brake fluid warning plate | 47288-32010 |
| 74571A | Label cover protective film | 74571-32010 |
| 74579 | Unleaded fuel warning nameplate | 74559-14030 · 74579-24010 · 74579-30011 |
| 75341C | engine cover plate | 75341-20060 |
