Toyota COROLLA 扶手和遮阳板 — Figure 7401

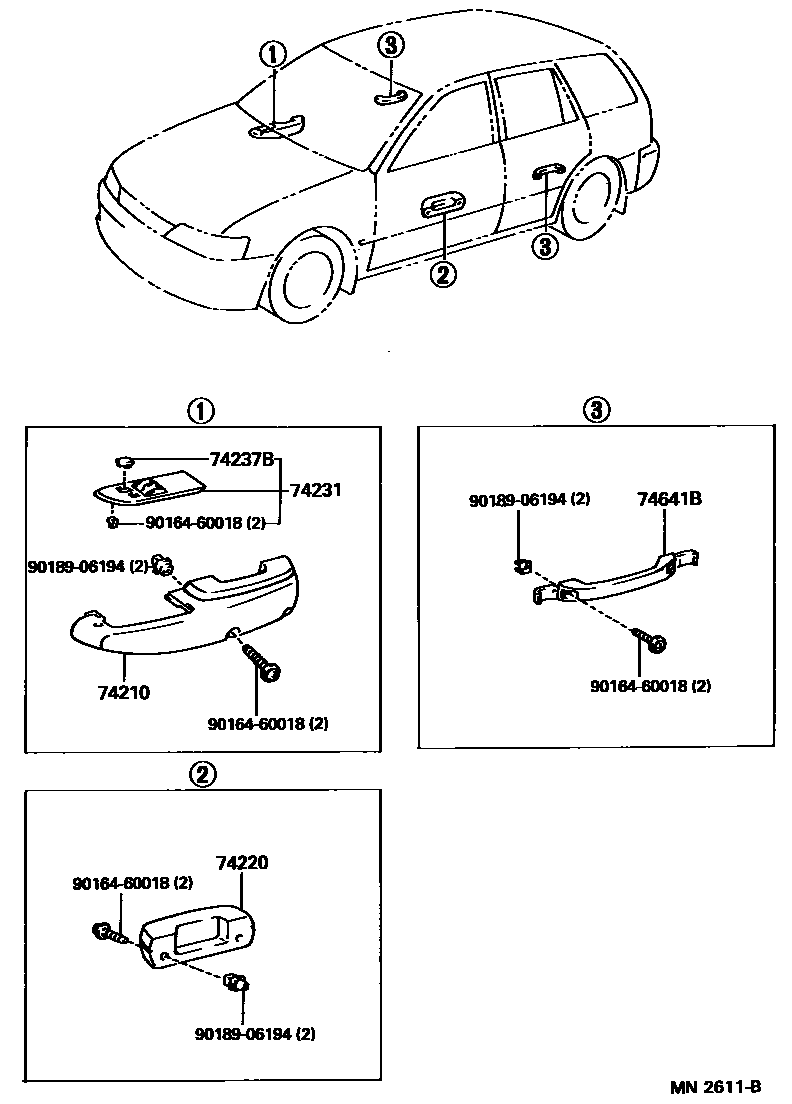

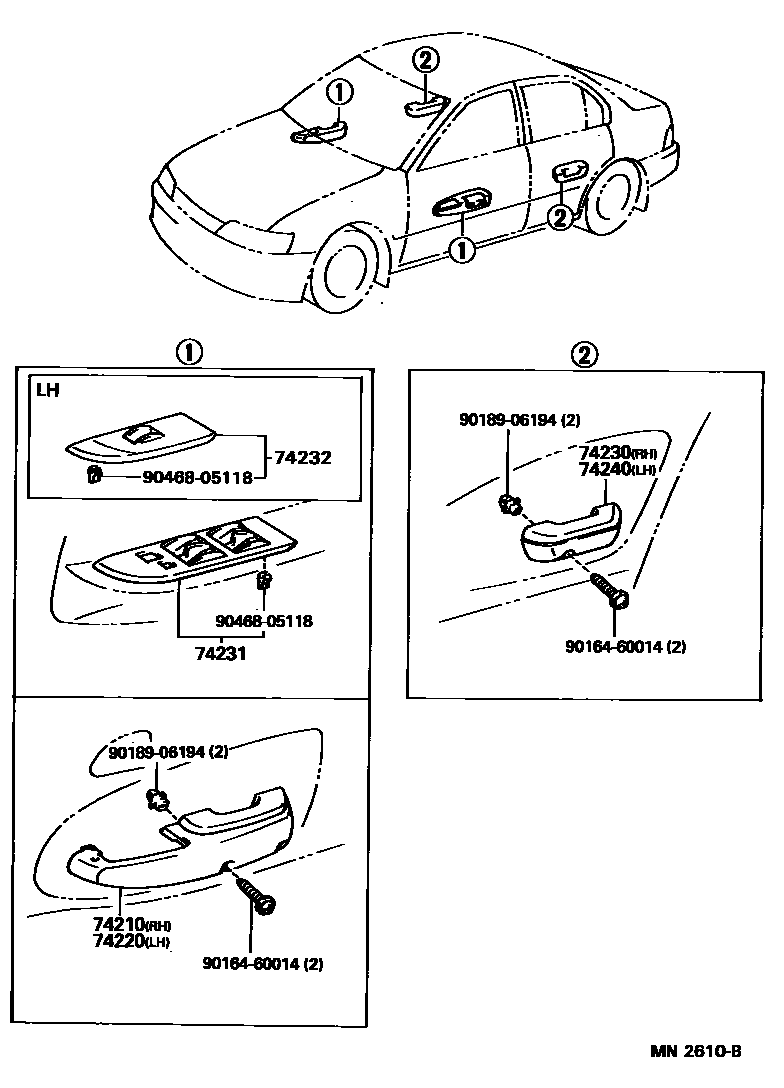

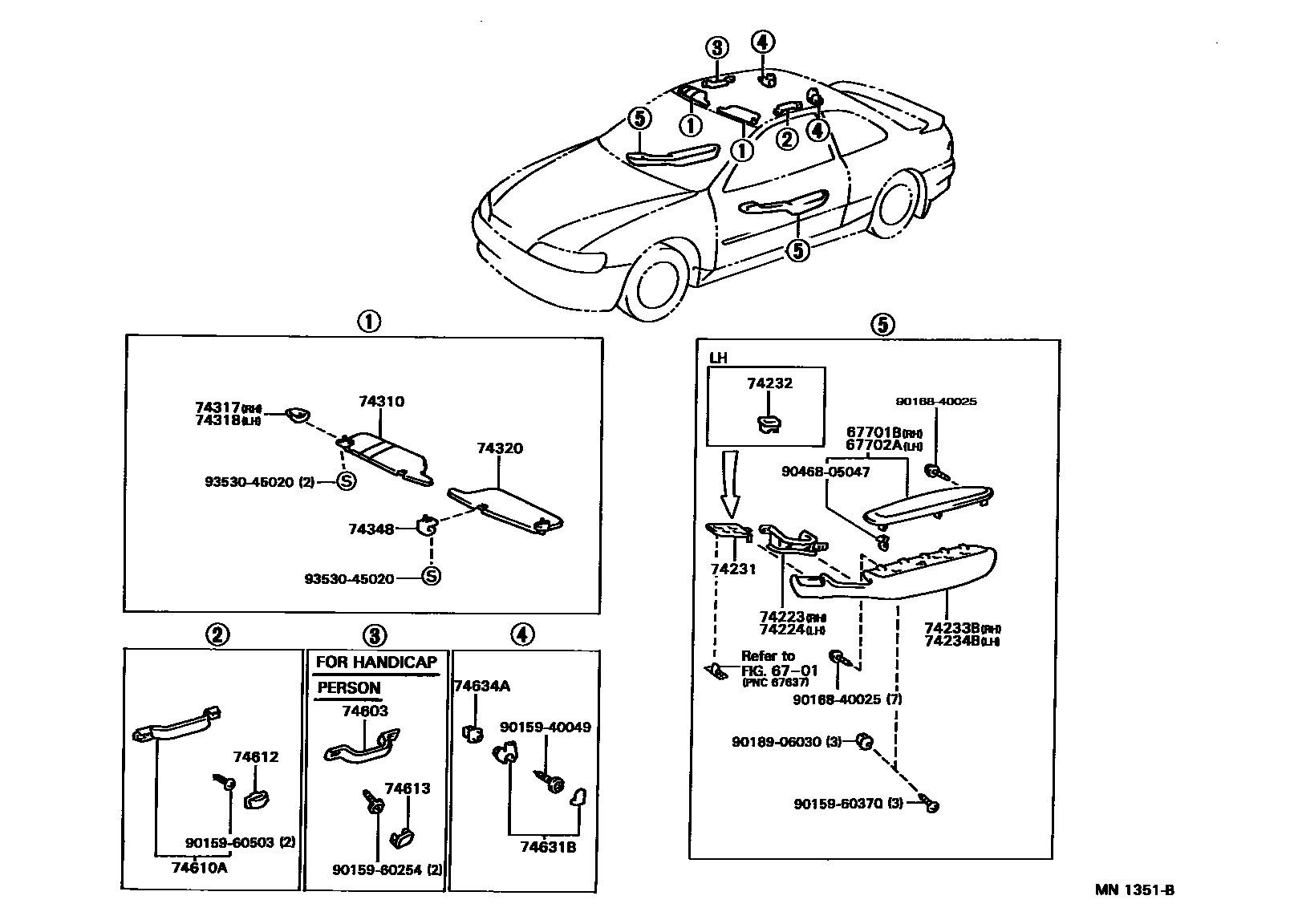

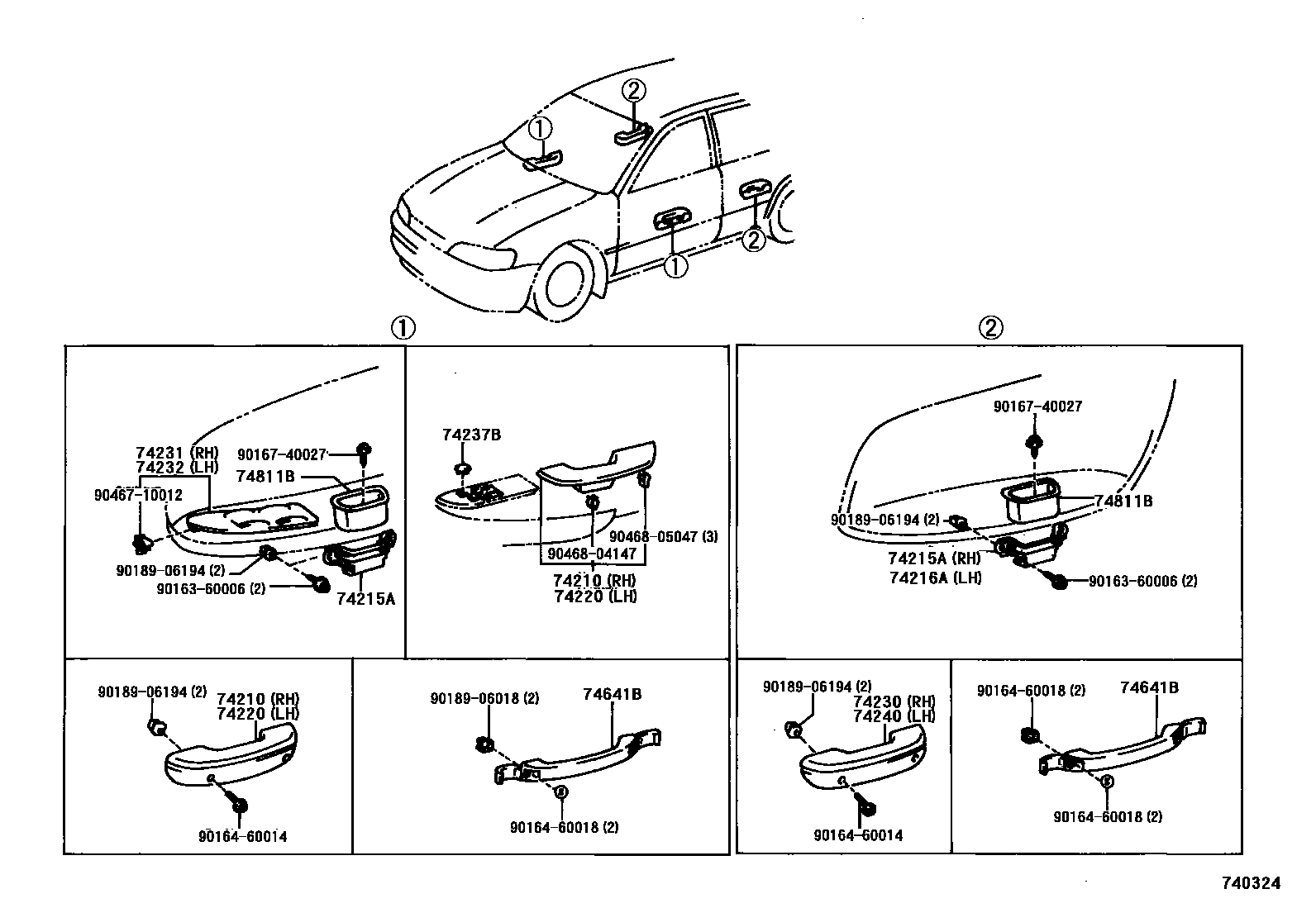

Toyota COROLLA EPC diagram 7401, 扶手和遮阳板, with 5 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 74215A | Right door armrest seat | 74215-12050 |
| 74216A | Left door armrest seat | 74215-12050 |
| 74237B | door armrest seat cover | 74237-13010 |
| 74310 | Right sun visor assembly | 74310-1A390 |
| 74634A | Coat hook collar | 74634-12010 · 74634-12040 |
