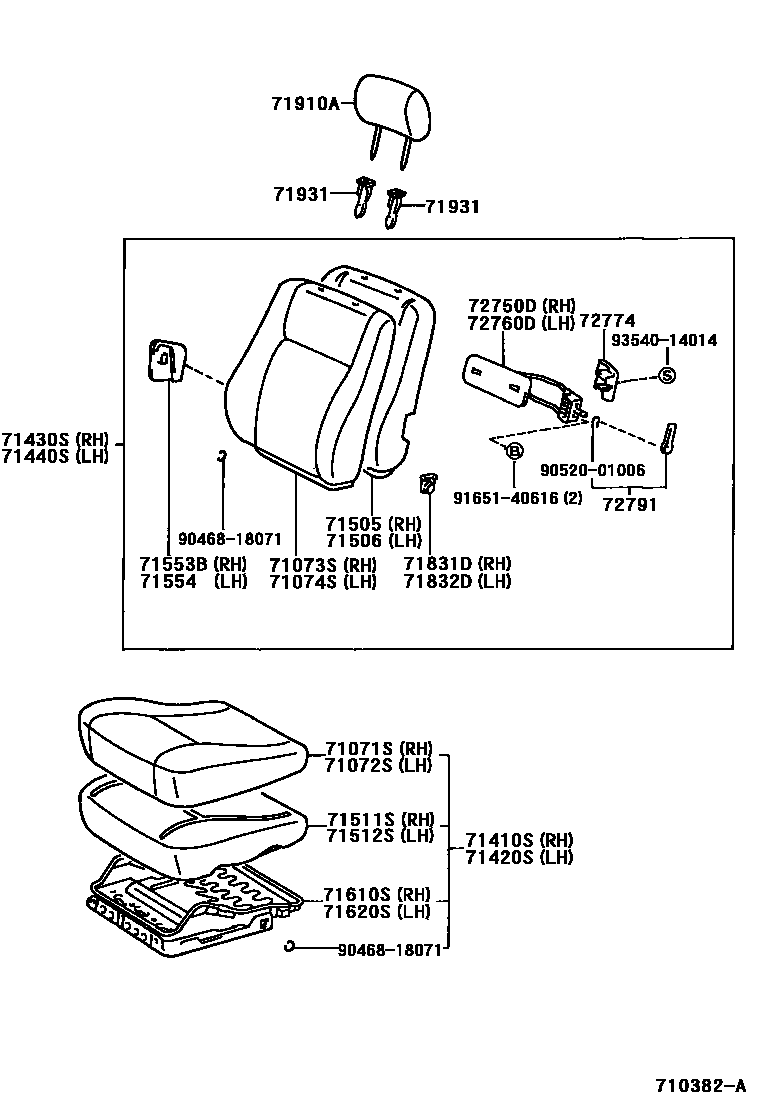

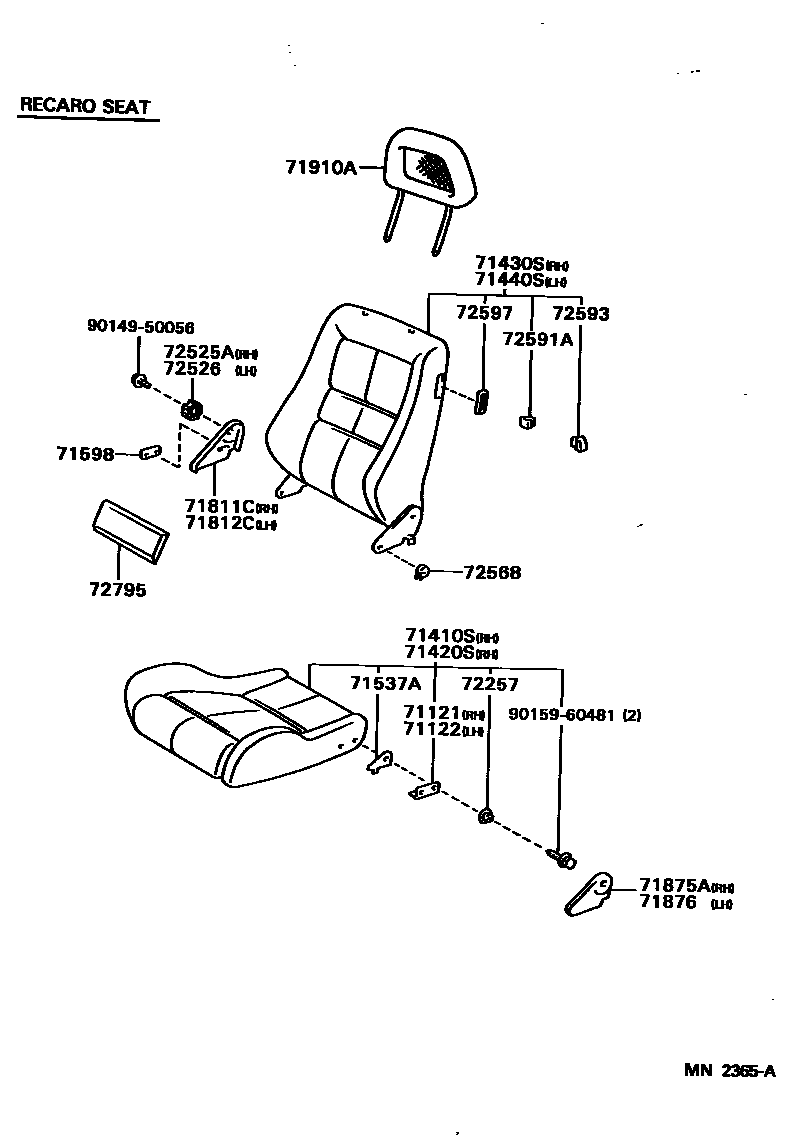

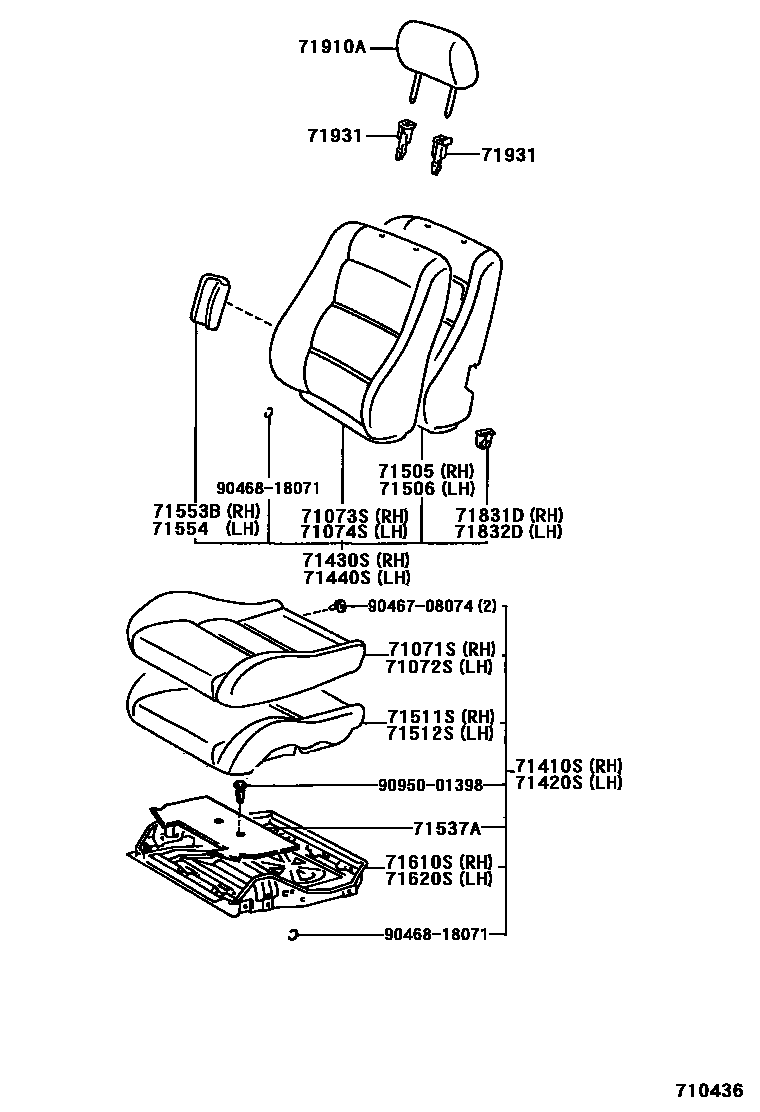

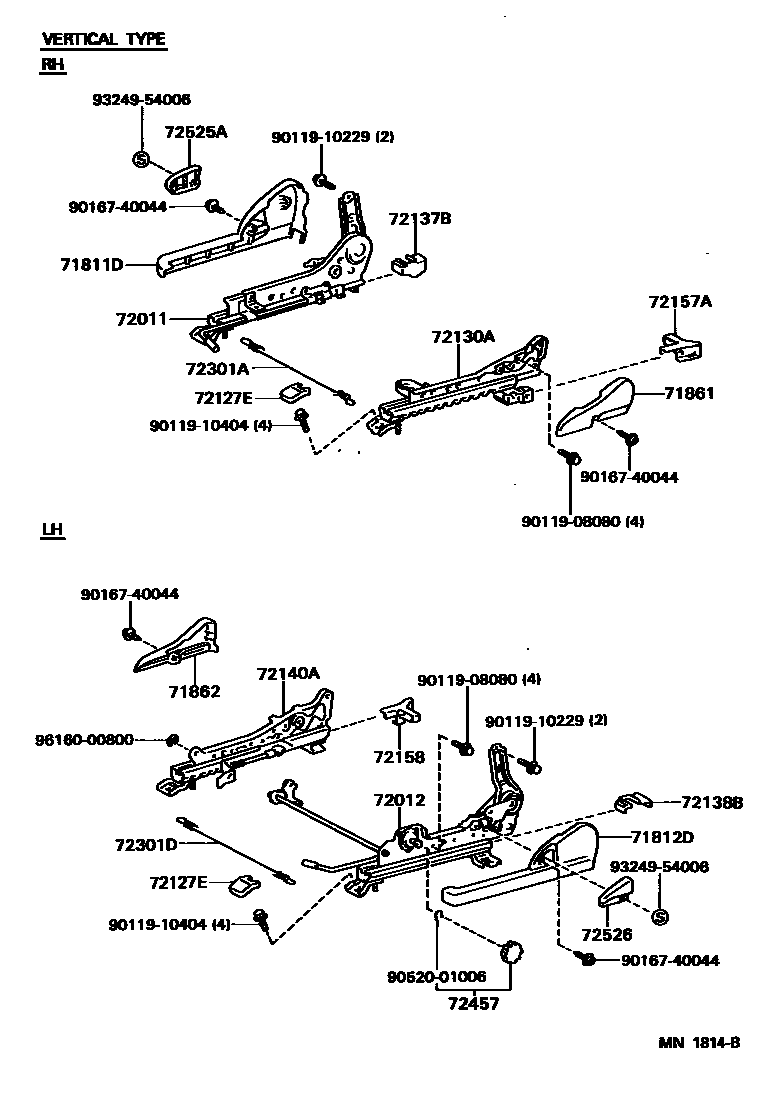

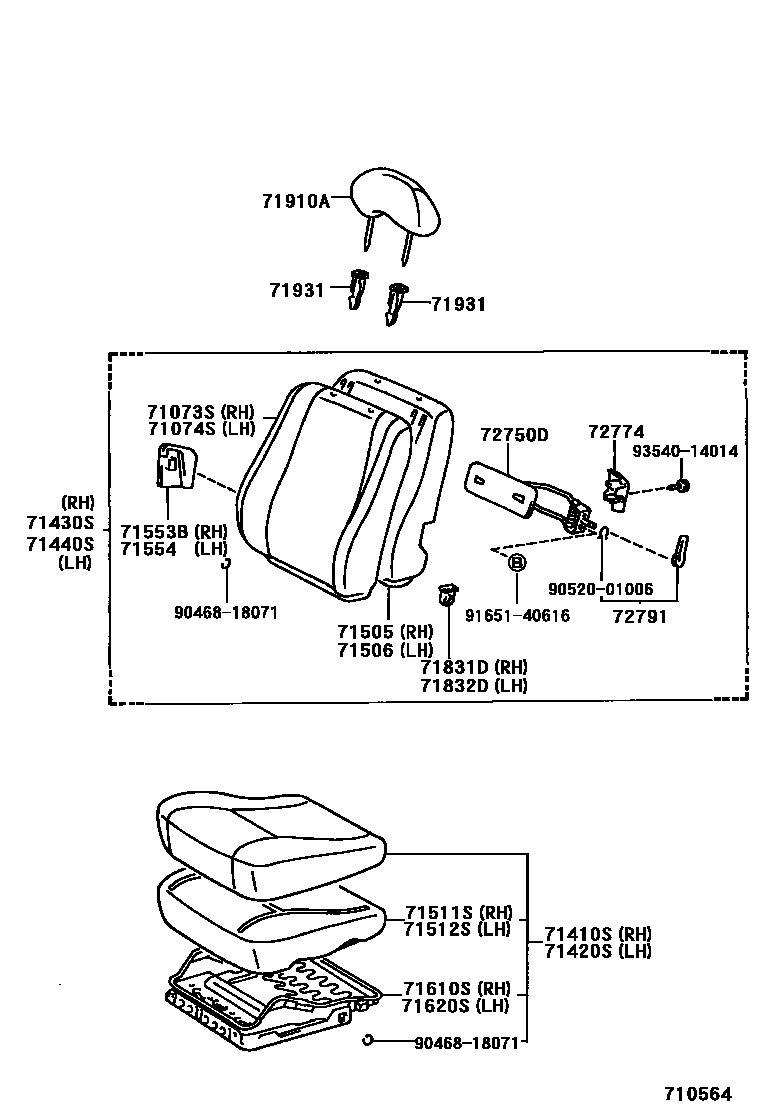

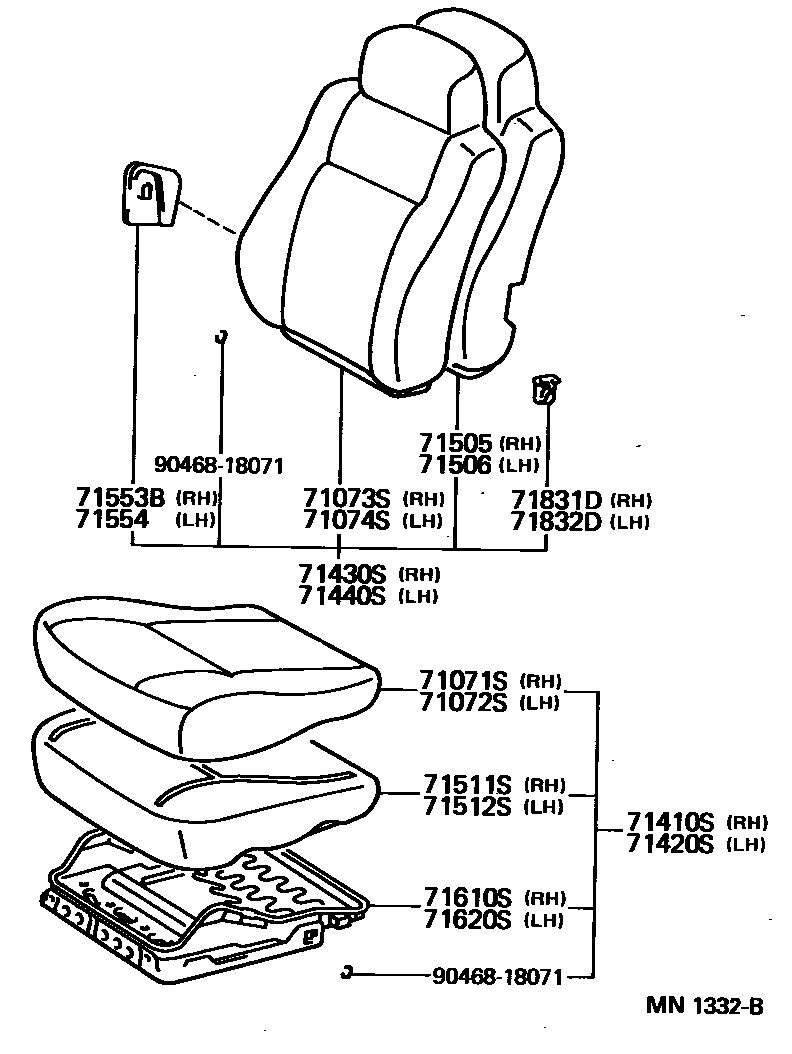

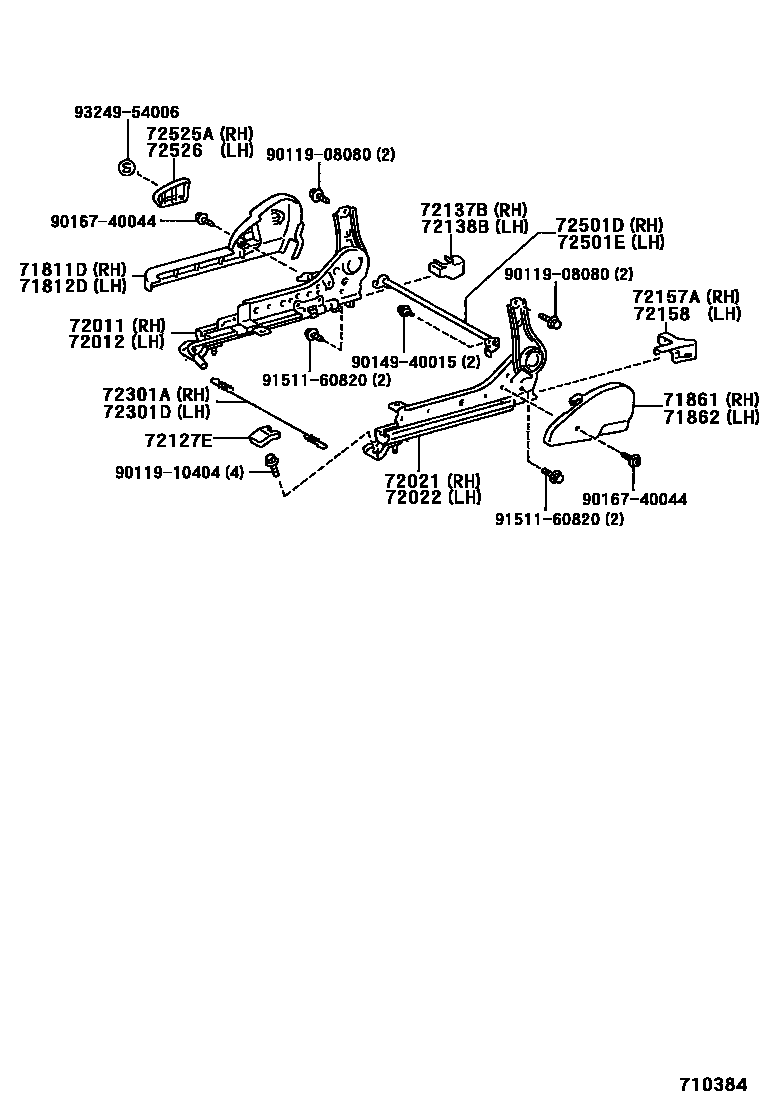

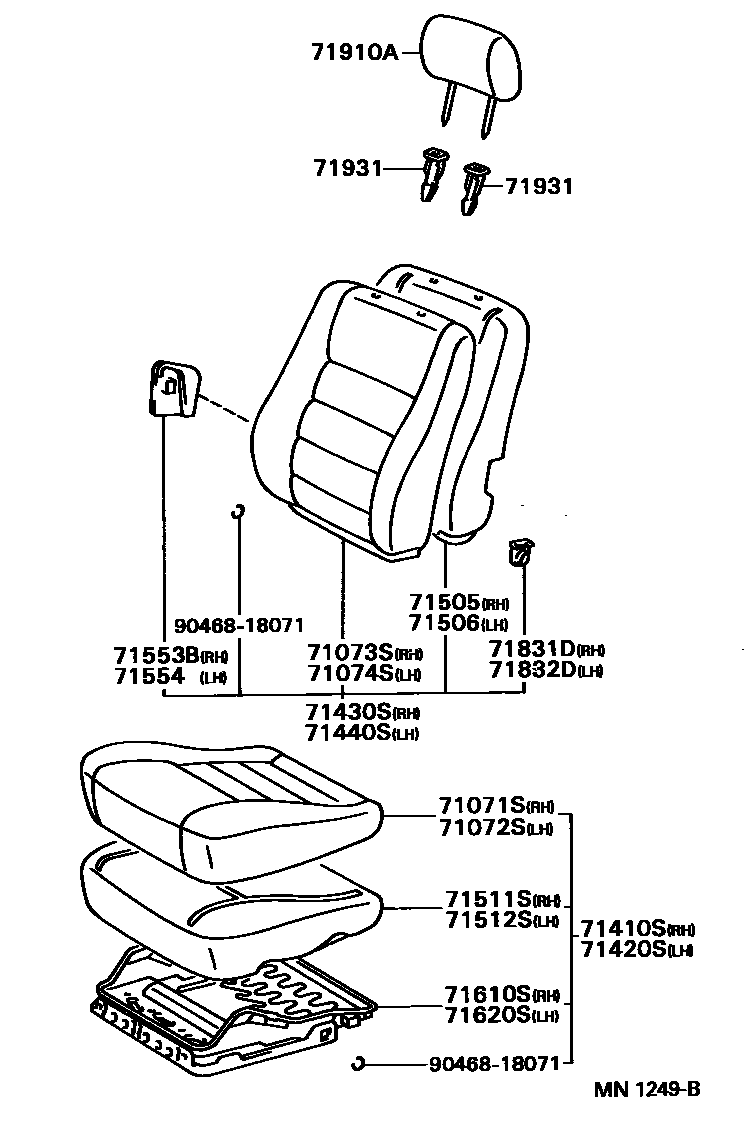

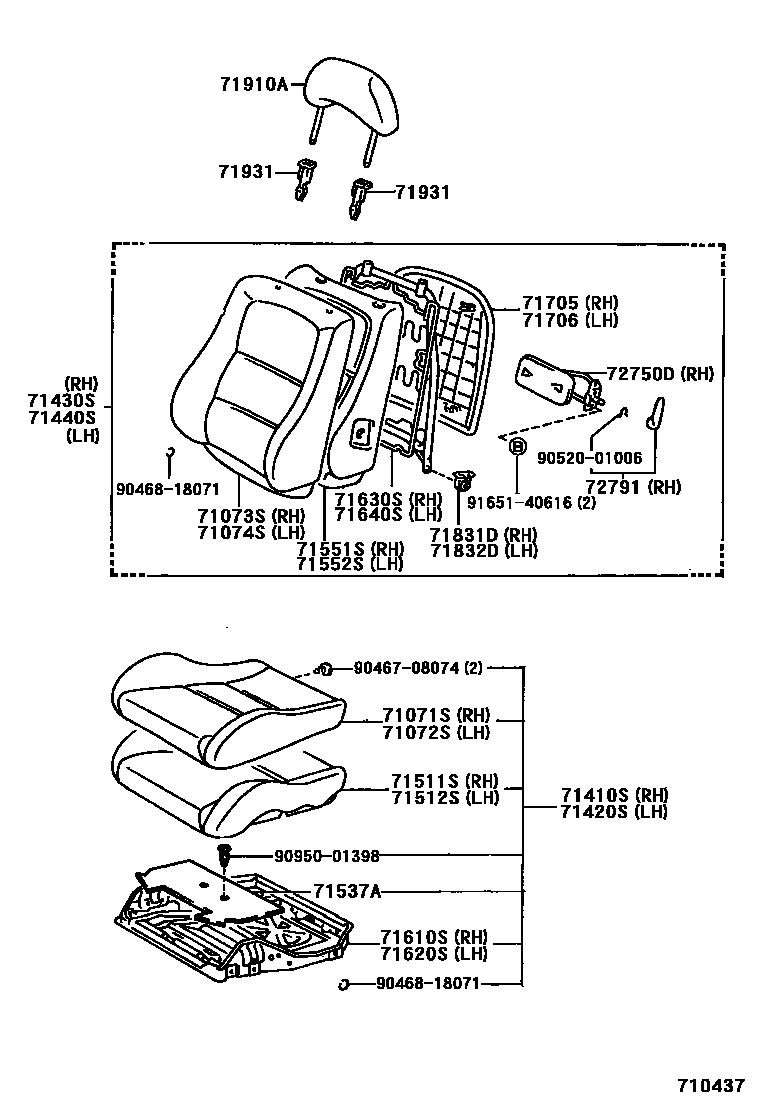

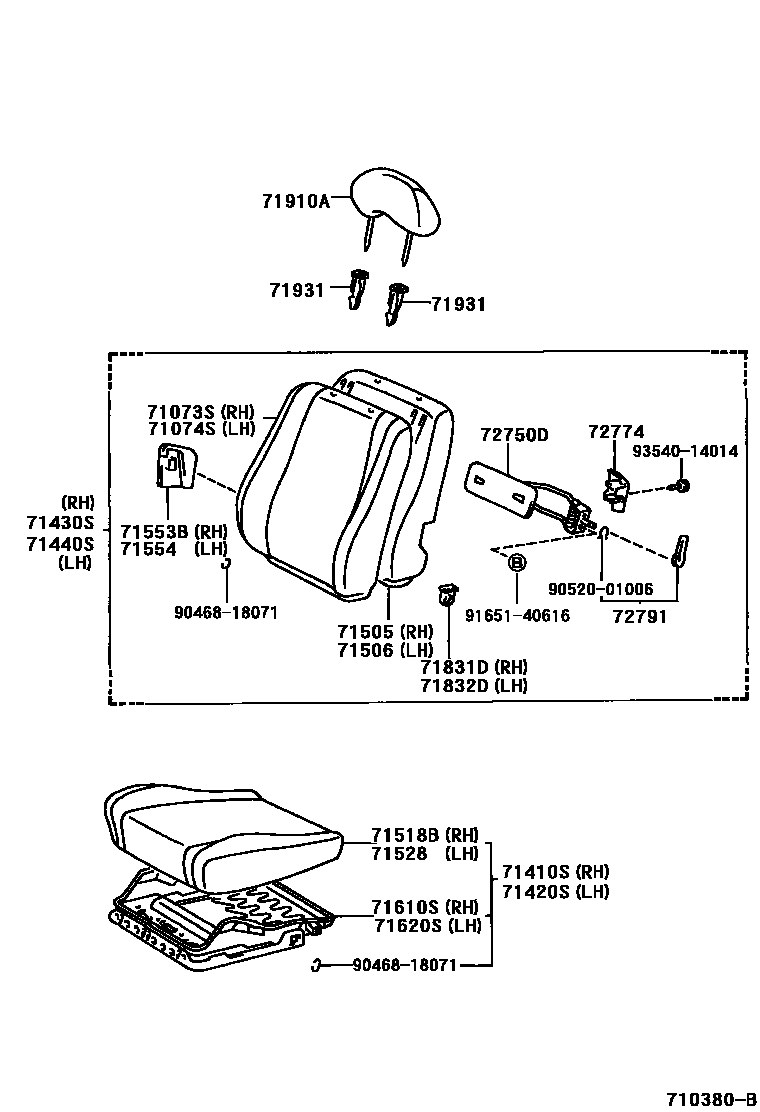

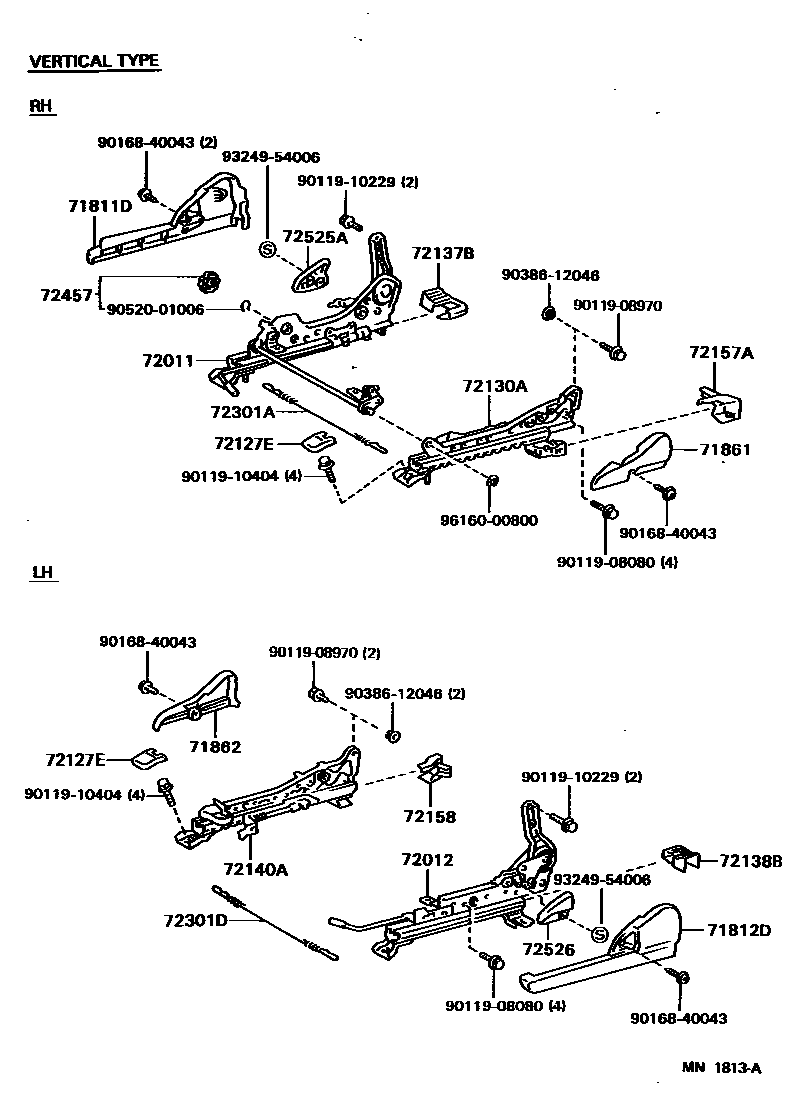

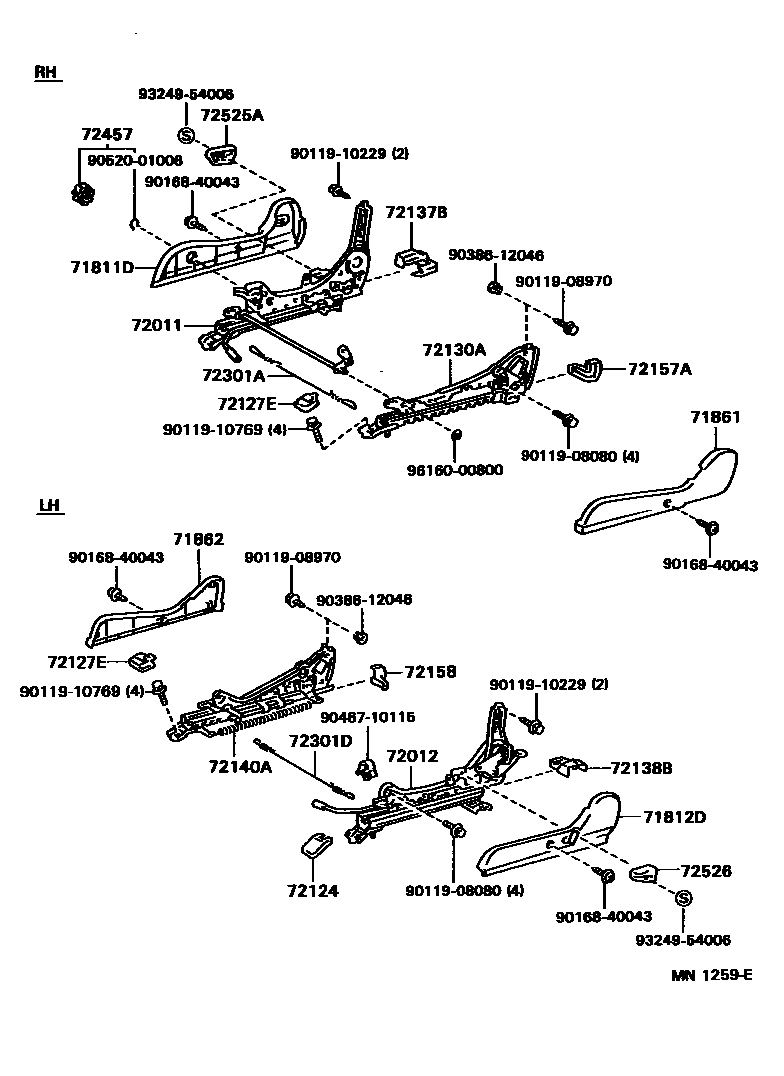

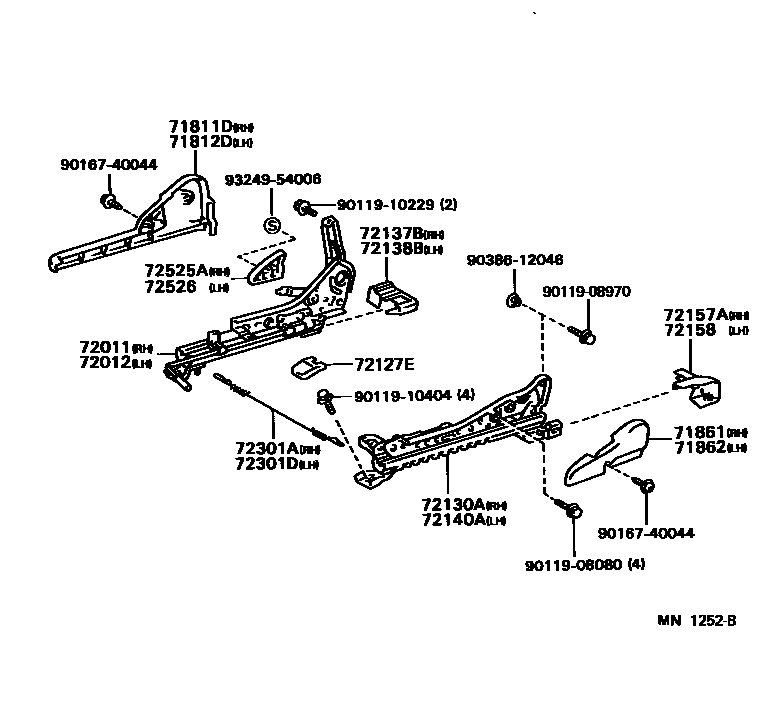

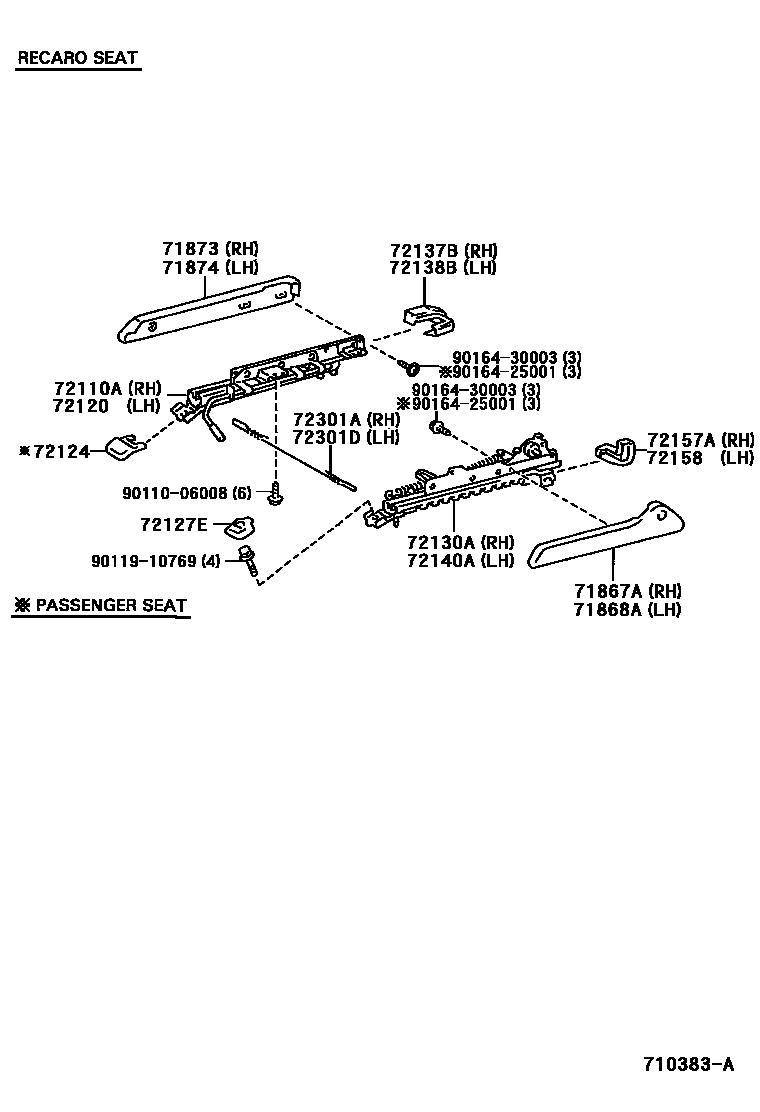

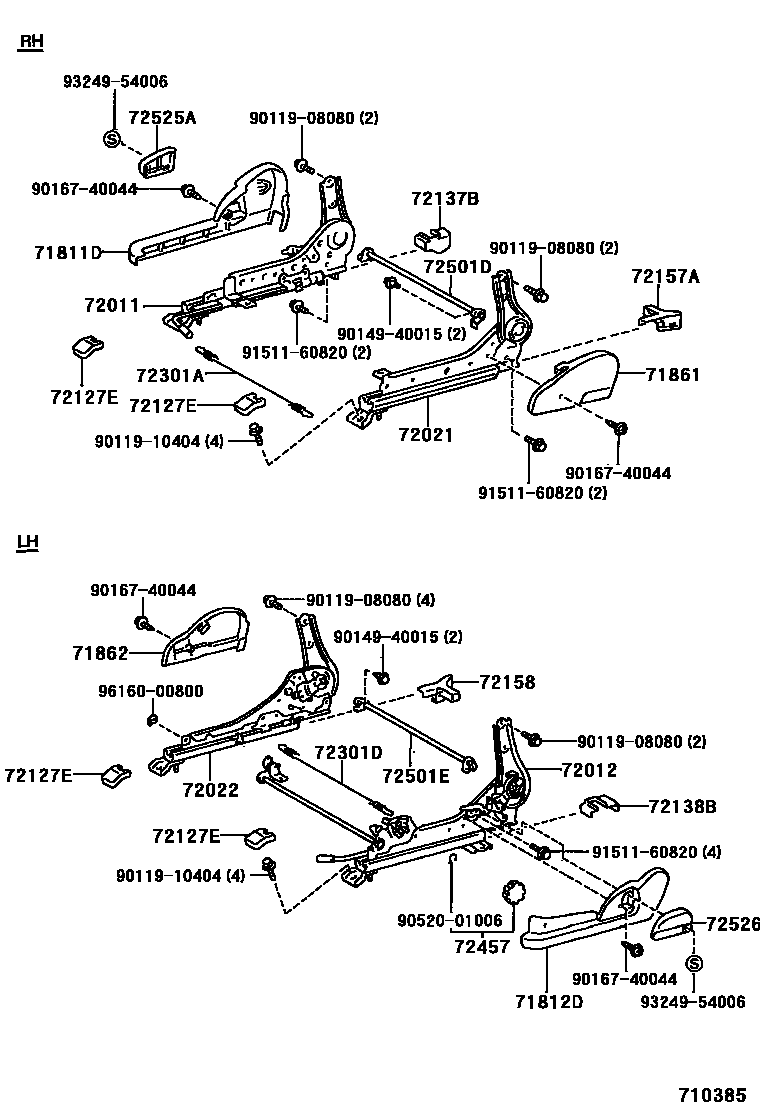

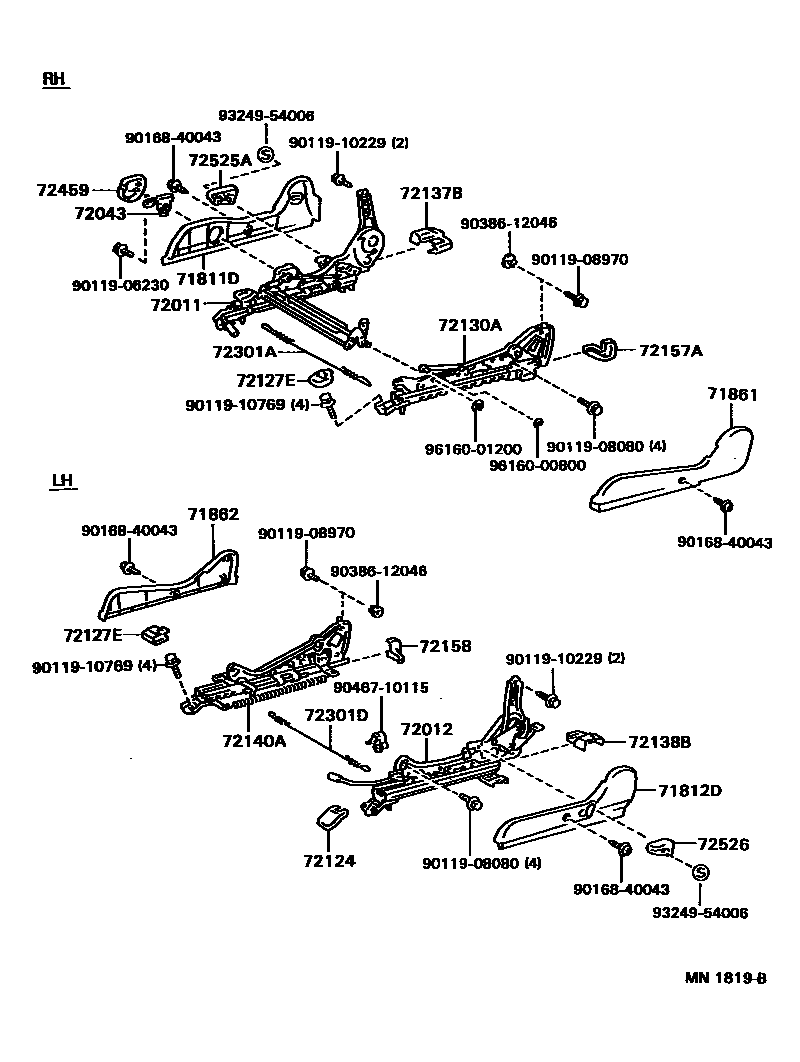

Toyota COROLLA 前排座椅和座椅滑轨 — Figure 7101
Toyota COROLLA EPC diagram 7101, 前排座椅和座椅滑轨, with 16 images and 39 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71071S | Front right seat cushion cover (for split seats) | 71071-1K511 |
| 71073S | Front right seat back cover (for split seats) | 71073-1K131 |
| 71121 | Front right seat cushion bracket | 71121-12130 |
| 71122 | Front left seat cushion bracket | 71122-12070 |
| 71430S | Front right seat back assembly (for split seats) | 71430-1K371 · 71430-1K431 |
| 71505 | Front right seat back cushion sub-assembly with frame | 71505-12110 · 71505-12111 · 71505-12150 · 71505-12160 · 71505-12170 · 71505-12301 · 71505-13030 |
| 71506 | Front left seat back cushion sub-assembly with frame | 71506-12070 · 71506-12071 · 71506-12110 · 71506-12120 · 71506-12190 · 71506-13030 |
| 71511S | Front right seat cushion cushion (for split seats) | 71511-12750 · 71511-12760 · 71511-12770 · 71511-12810 · 71511-12850 |
| 71512S | Front left seat cushion cushion (for split seats) | 71511-12750 · 71511-12760 · 71511-12770 · 71511-12810 |
| 71537A | Front seat cushion protective cover | 71537-12010 |
| 71551S | Front right seat back cushion (for split seats) | 71551-12570 |
| 71552S | Front left seat back cushion (for split seats) | 71552-12140 |
| 71553B | Front B seat back cushion | 71553-12280 · 71553-12290 · 71553-13030 |
| 71554 | Front C seat back cushion | 71553-12280 · 71554-12130 · 71554-13020 |
| 71610S | Front right seat cushion spring assembly (for split seats) | 71610-12350 · 71610-12360 · 71610-12370 · 71610-12420 · 71610-12430 |
| 71620S | Front left seat cushion spring assembly (for split seats) | 71610-12350 · 71620-12240 · 71620-12280 · 71620-12290 |
| 71630S | Front right seat back spring assembly (for split seats) | 71630-12510 · 71630-12720 |
| 71640S | Front left seat back spring assembly (for split seats) | 71640-12370 · 71640-12570 |
| 71831D | Front right seat hinge cover | 71831-16010 |
| 71832D | Front left seat hinge cover | 71831-16010 |
| 72011 | Front right seat outer adjuster sub-assembly | 72010-12590 · 72010-12610 · 72010-12670 · 72010-12680 · 72011-12220 · 72011-12280 |
| 72012 | Front left seat outer adjuster sub-assembly | 72012-12300 · 72012-12310 · 72020-12560 · 72020-12590 · 72020-12620 · 72020-12650 |
| 72021 | Front right seat inner adjuster sub-assembly | 72021-12260 · 72021-12320 |
| 72022 | Front left seat inner adjuster sub-assembly | 72022-12350 · 72022-12360 |
| 72110A | Front right seat outer slide rail assembly | 72110-12120 |
| 72120 | Front left seat outer slide rail assembly | 72120-12120 |
| 72130A | Front right seat inner slide rail assembly | 72130-12590 · 72130-12600 · 72130-12610 · 72130-12620 · 72130-12630 · 72130-12640 · 72130-12650 |
| 72140A | Front left seat inner slide rail assembly | 72140-12500 · 72140-12520 · 72140-12530 · 72140-12550 · 72140-12560 |
| 72257 | Front seat lock | 72257-12010 |
| 72301A | Right seat slide rail balance harness sub-assembly | 72301-12090 · 72301-12140 · 72301-12150 · 72301-12160 · 72301-12230 |
| 72301D | Left seat slide rail balance harness sub-assembly | 72301-12090 · 72301-12140 · 72301-12150 · 72301-12160 |
| 72501D | Right seat back recline adjuster connecting pipe sub-assembly | 72501-12080 |
| 72501E | Left seat back recline adjuster connecting pipe sub-assembly | 72501-12060 |
| 72568 | Seat back tilt bolt locking plate | 72568-17010 |
| 72591A | Seat back tilt rocker | 72591-10030 |
| 72750D | Right lumbar support adjuster assembly | 72750-12090 · 72750-12100 |
| 72760D | Left lumbar support adjuster assembly | 72760-12100 |
| 72774 | Lumbar support spring guard | 72774-12040 · 72775-12030 |
| 72795 | Lumbar support pads | 72795-12030 |
