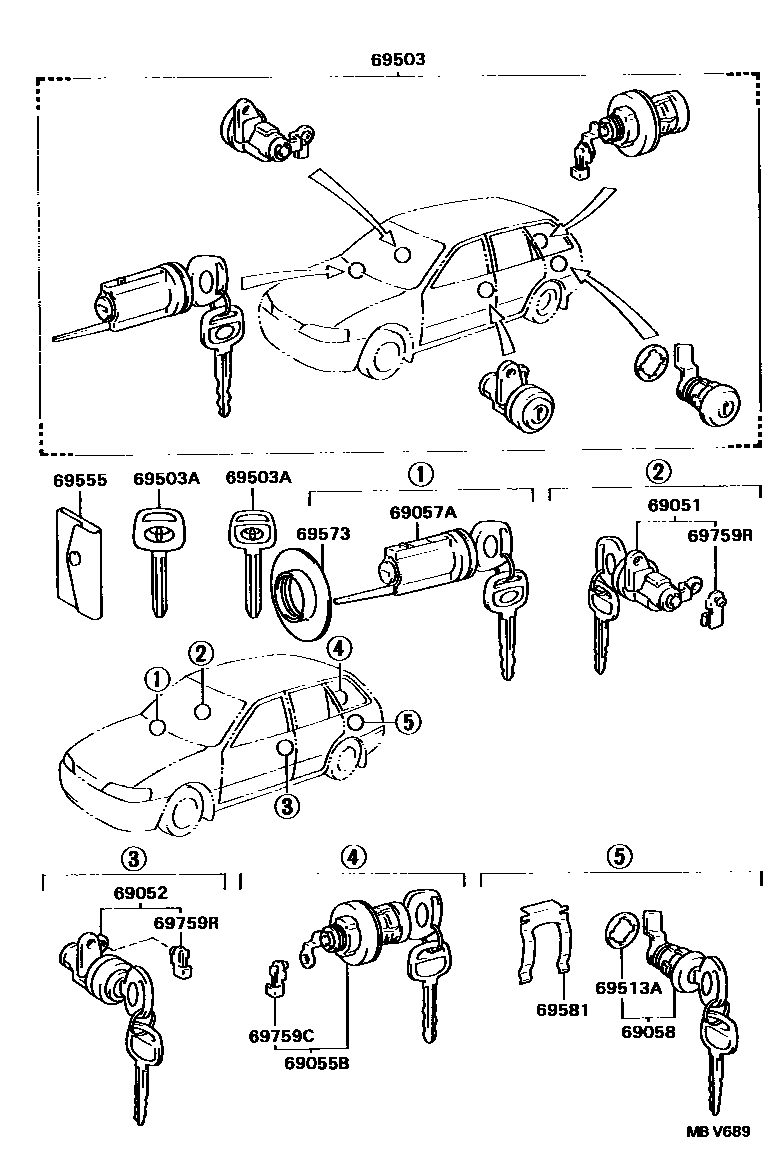

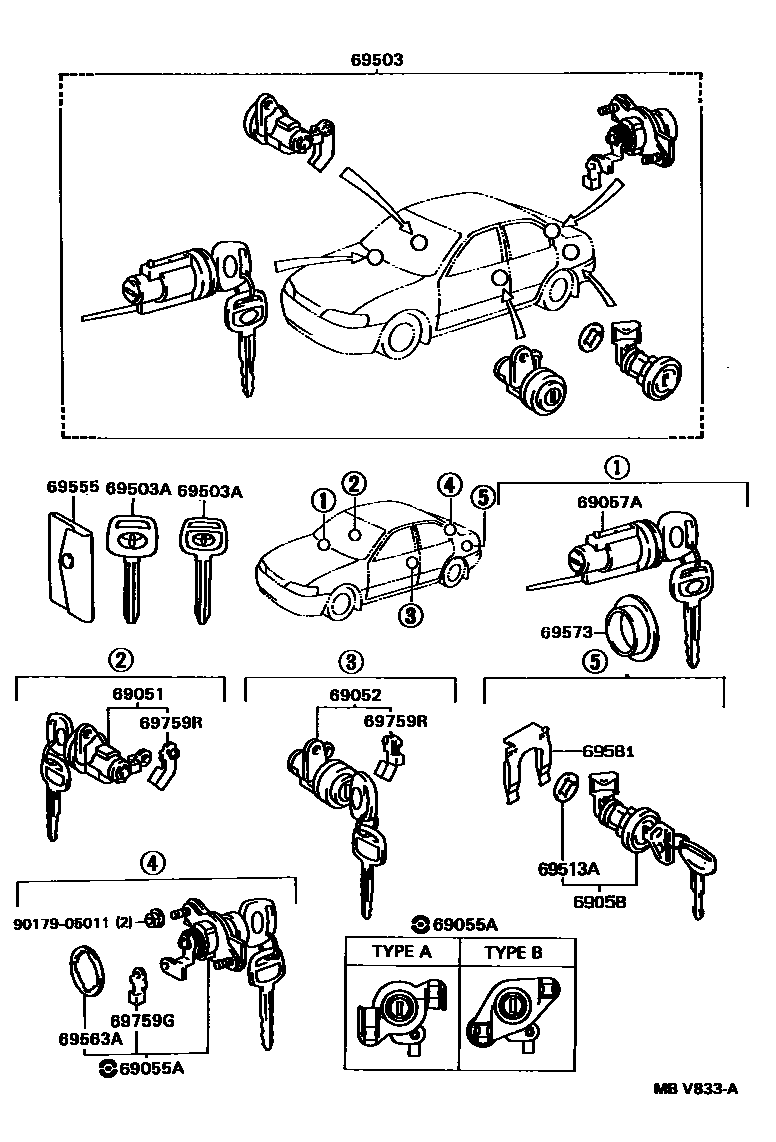

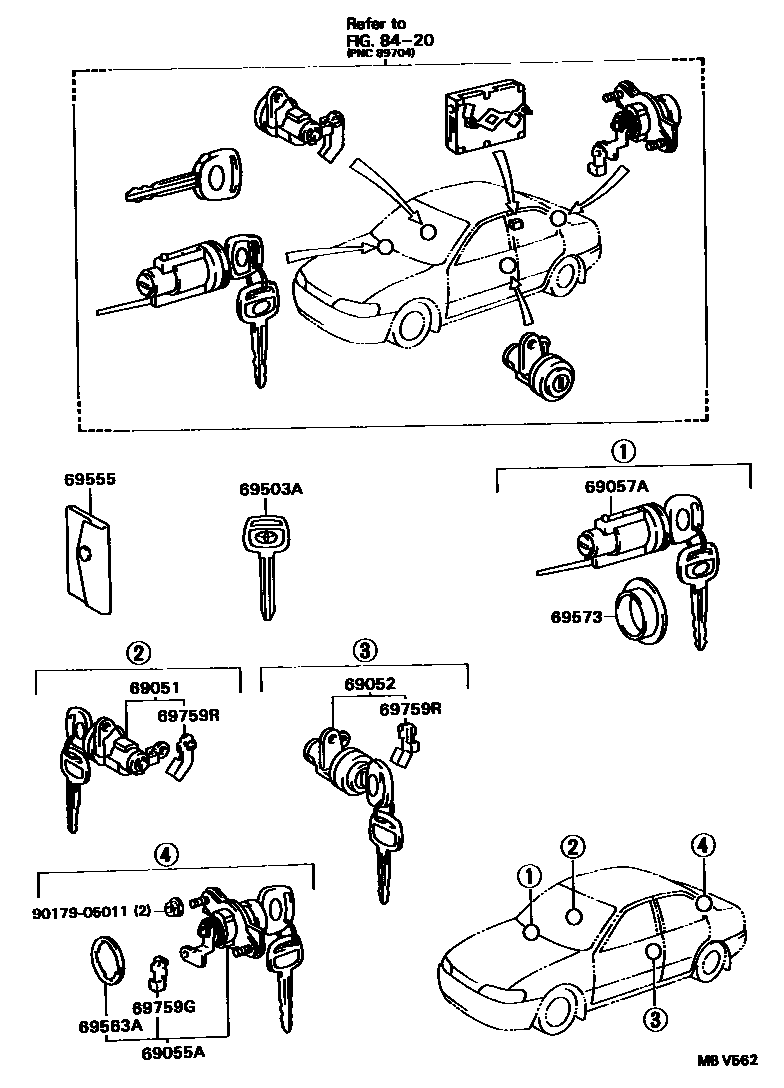

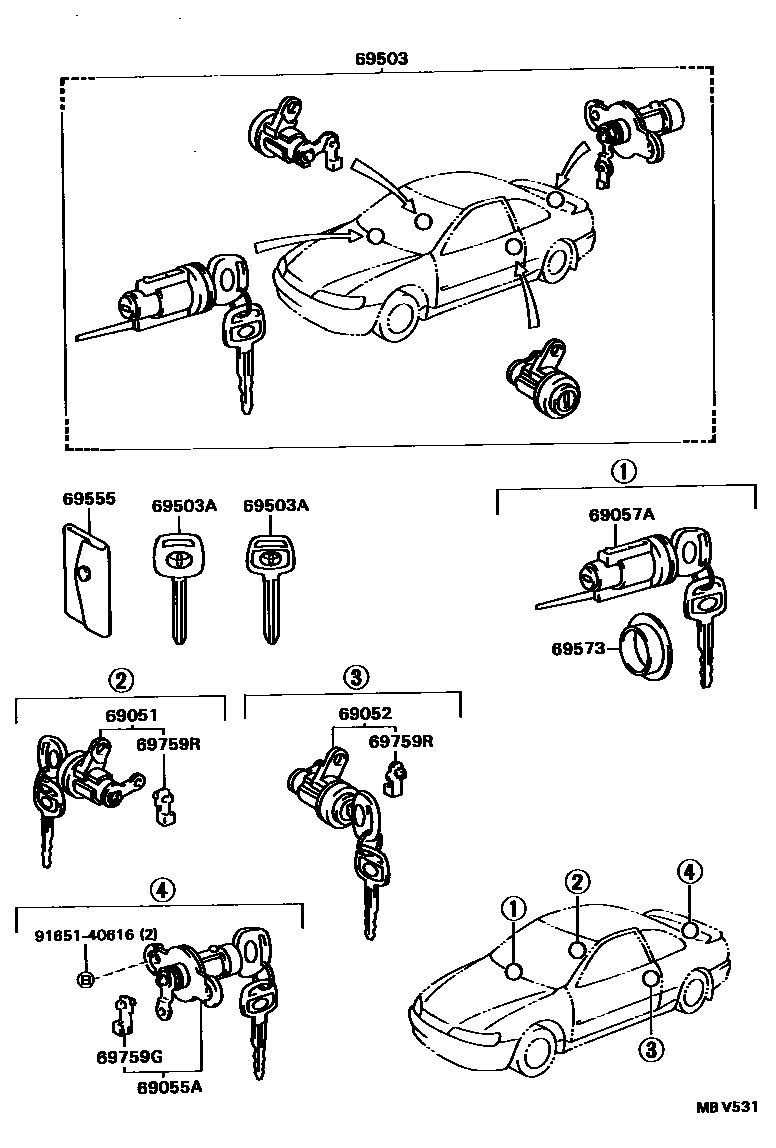

Toyota COROLLA 锁芯组件 — Figure 6712
Toyota COROLLA EPC diagram 6712, 锁芯组件, with 4 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-12320 · 69051-12330 · 69051-12370 · 69051-13130 |
| 69052 | Left door lock cylinder and key assembly | 69052-12320 · 69052-12330 · 69052-12370 · 69052-13130 |
| 69055A | Luggage lock cylinder and key assembly | 69055-12640 · 69055-12650 · 69055-12660 · 69055-12770 · 69055-12780 · 69055-12810 · 69055-12860 · 69055-12870 · 69055-12890 · 69055-1A180 |
| 69055B | Rear door lock cylinder and key assembly | 69055-13140 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-12180 · 69057-12190 · 69057-12200 · 69057-13110 · 69057-13150 |
| 69058 | Fuel filler cap lock cylinder and key assembly | 69058-12160 · 69058-13100 |
| 69503 | Door lock cylinder components | 69005-13220 · 69005-13250 · 69005-13260 · 69005-1A330 · 69005-1A340 · 69005-1A350 · 69005-1A360 · 69005-1A380 · 69005-1A430 · 69005-1A630 · 69005-1A670 · 69005-1A680 · 69005-1A720 · 69005-1A730 · 69005-1E040 |
| 69503A | external tooth key | 90999-00185 · 90999-00186 · 90999-00188 · 90999-00192 · 90999-00193 |
| 69513A | Door lock cylinder gasket | 69513-13010 · 69513-32010 |
| 69555 | key cover | 69555-17020 · 69555-20030 · 69555-95J00 |
| 69563A | Trunk door lock cylinder lining | 69563-12070 |
| 69573 | Ignition switch lock cylinder gasket | 69573-12010 |
| 69581 | Fuel filler cap lock cylinder fixing piece | 69581-12020 · 69581-13010 |
| 69759C | Back door lock cylinder buckle | 69759-24080 |
| 69759G | Trunk door lock core buckle | 69759-20080 · 69759-24090 |
| 69759R | Front door lock cylinder buckle | 69759-12080 · 69759-12090 · 69759-30040 · 69759-30050 |
