Toyota COROLLA 前门板和前门玻璃 — Figure 6701

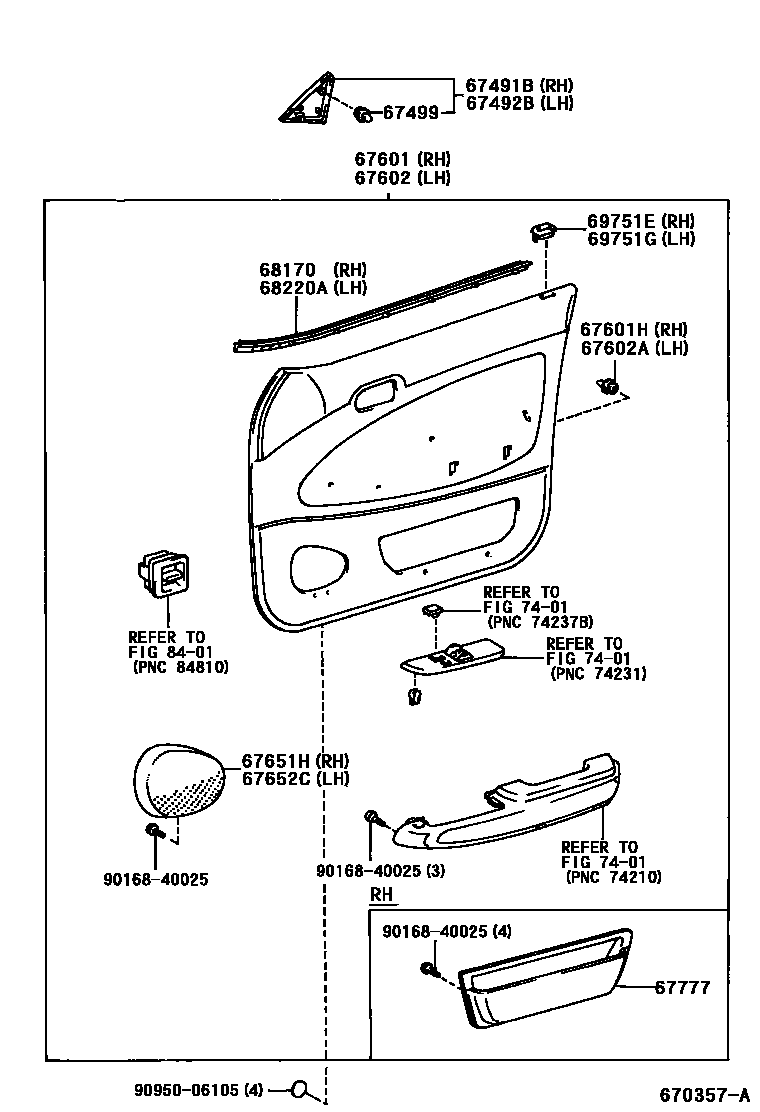

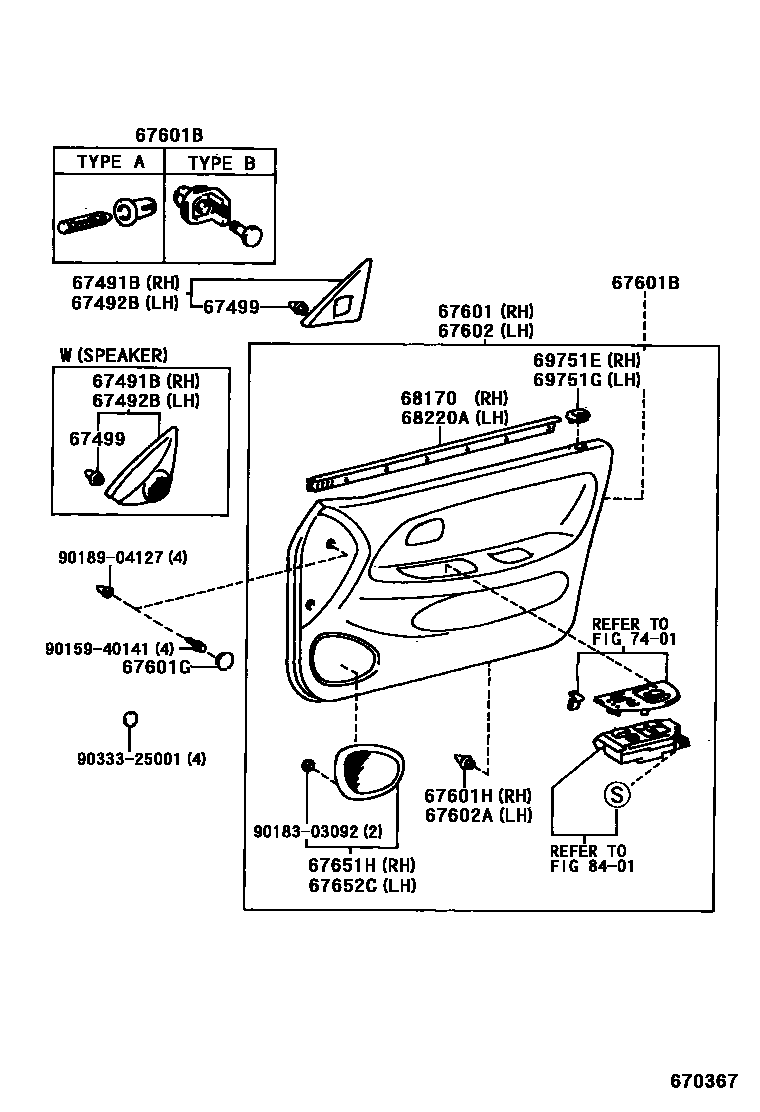

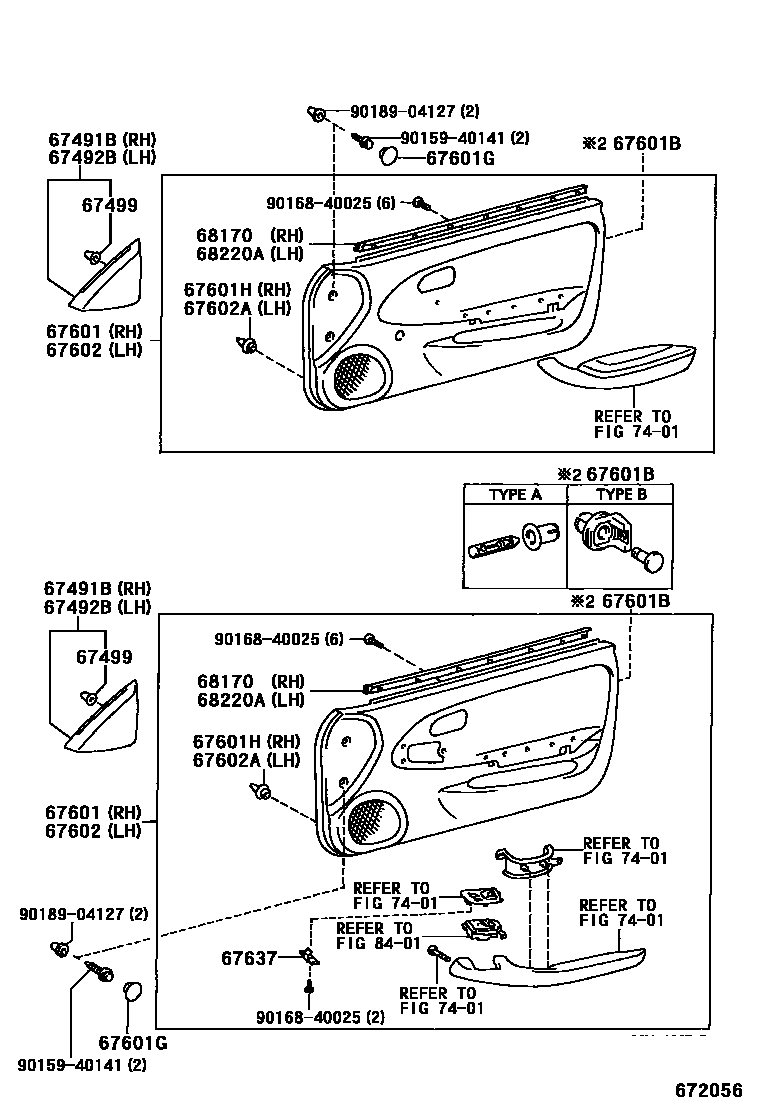

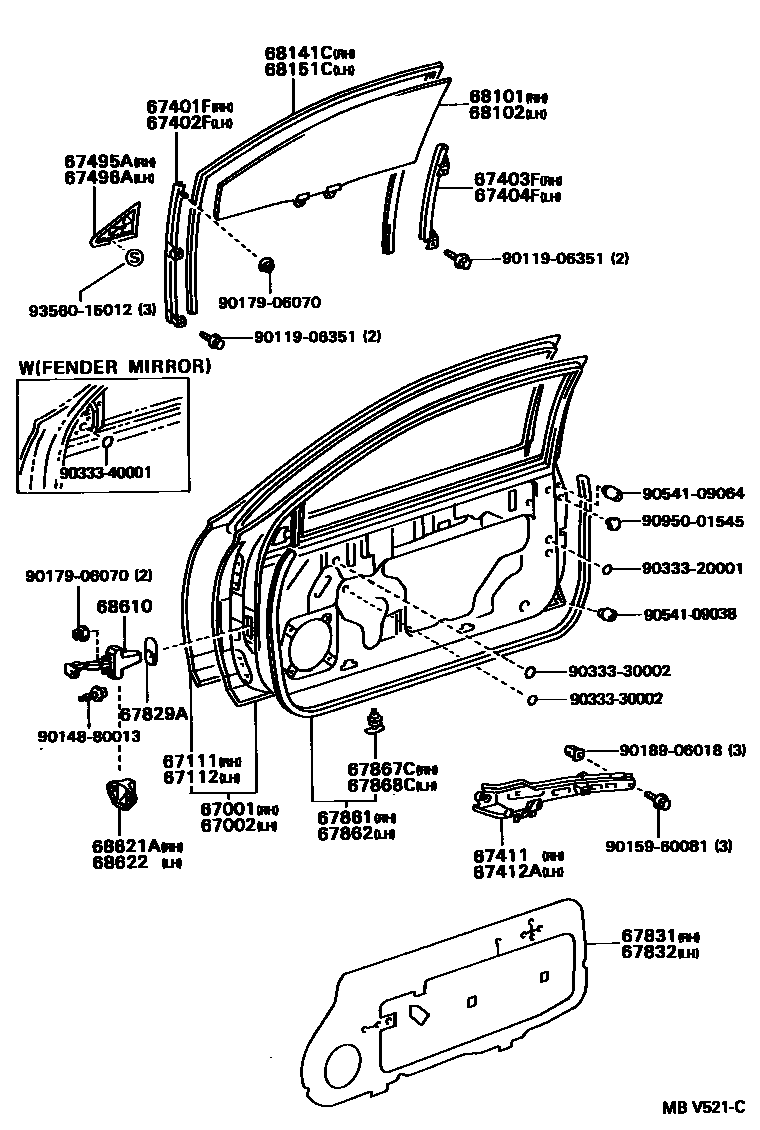

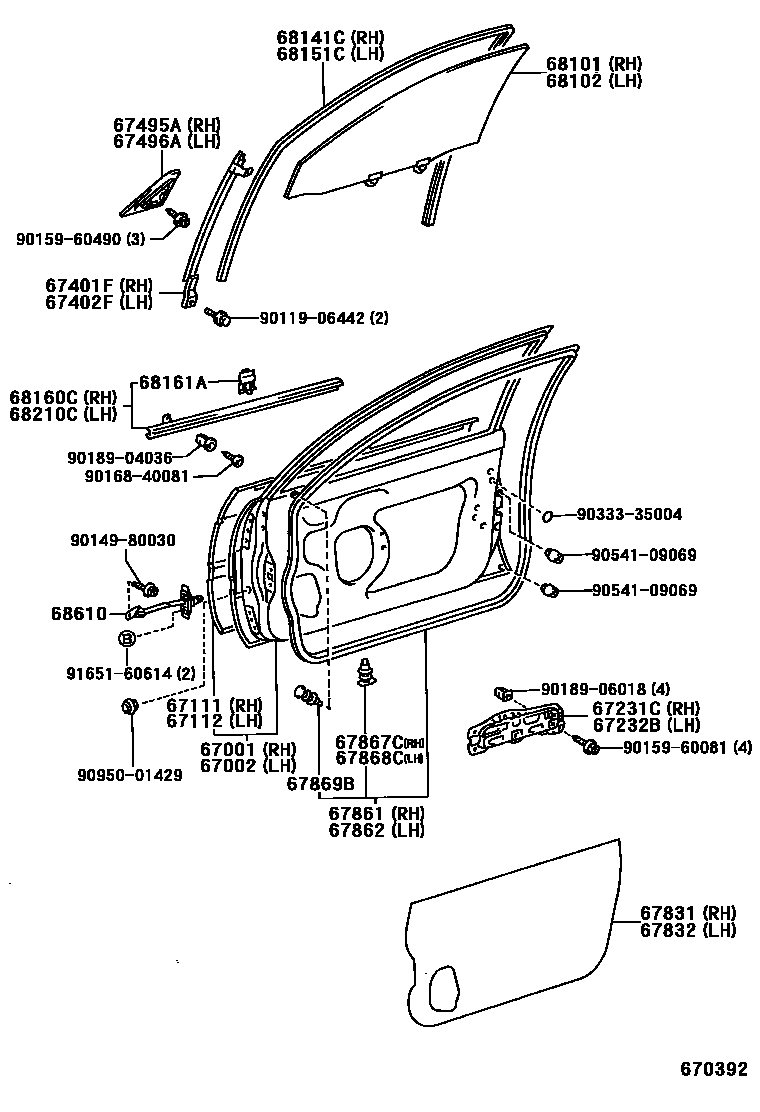

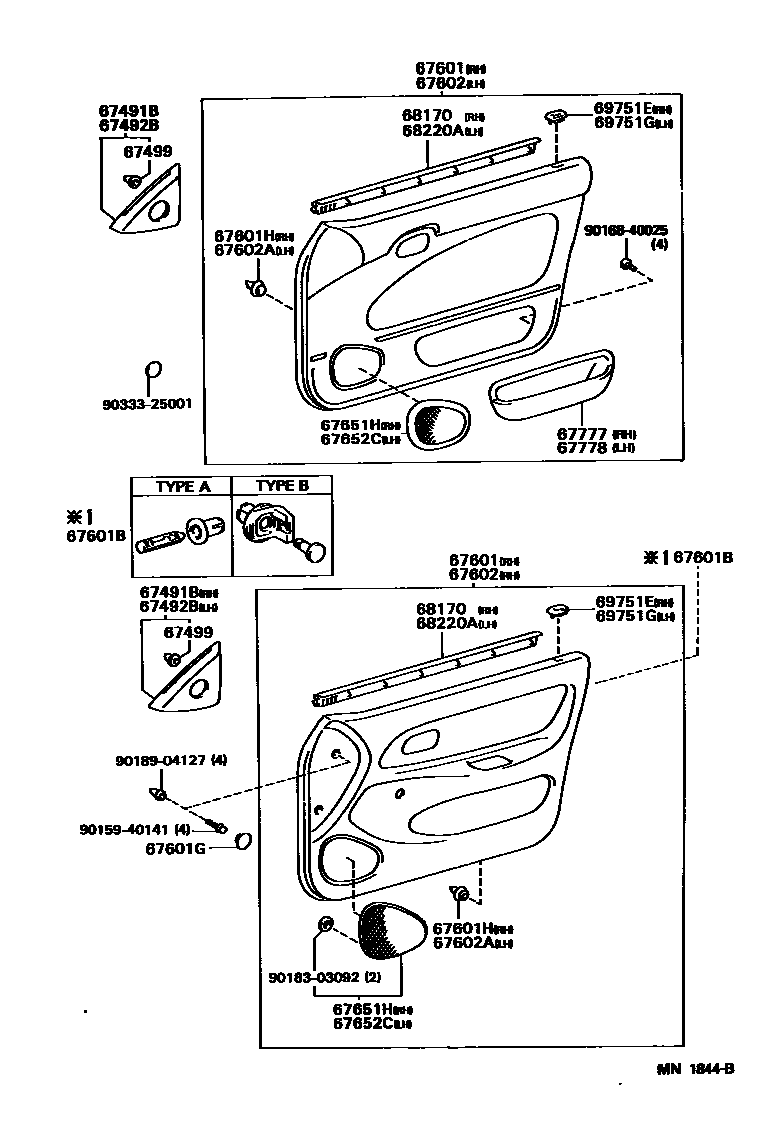

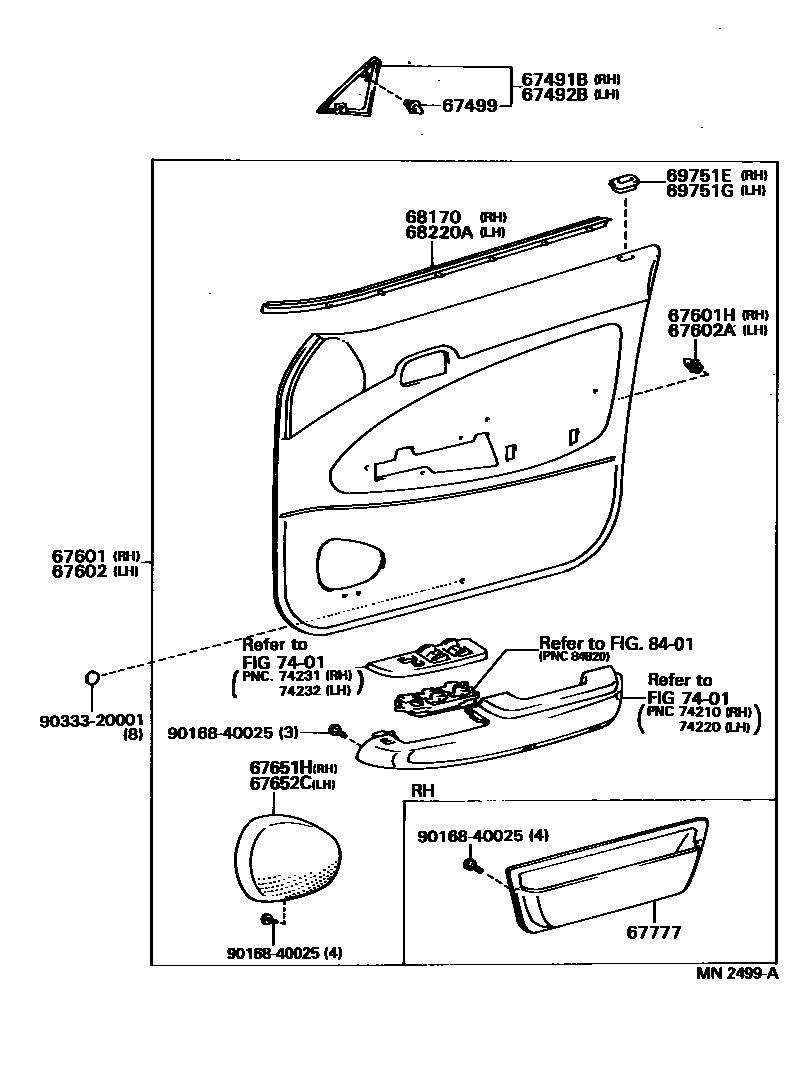

Toyota COROLLA EPC diagram 6701, 前门板和前门玻璃, with 7 images and 43 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67001 | Right front door panel sub-assembly | 67001-1A470 · 67001-1A500 · 67001-1A530 |
| 67002 | Left front door panel sub-assembly | 67002-1A450 · 67002-1A480 · 67002-1A510 |
| 67111 | Outer right front door panel | 67111-12570 · 67111-12590 · 67111-12610 |
| 67112 | Outer left front door panel | 67112-12460 · 67112-12610 · 67112-12630 |
| 67231C | Right door trim panel bracket | 67231-12010 |
| 67232B | Left door trim panel bracket | 67232-12010 |
| 67401F | Right front door front lower door frame sub-assembly | 67401-12310 · 67401-12320 |
| 67402F | Left front door front lower door frame sub-assembly | 67402-12330 · 67402-12340 |
| 67403F | Right front door rear lower door frame sub-assembly | 67403-12180 |
| 67404F | Left front door rear lower door frame sub-assembly | 67404-12180 |
| 67411 | Right front door window upper frame | 67411-12130 |
| 67412A | Left front door upper window frame | 67412-12140 |
| 67491B | Right front door window upper bracket decorative strip | 67491-12230 · 67491-12231 · 67491-12240 · 67491-12241 · 67491-12250 · 67491-12251 · 67491-13020 |
| 67492B | Left front door window upper bracket decorative strip | 67492-12230 · 67492-12231 · 67492-12240 · 67492-12241 · 67492-12250 · 67492-12251 · 67492-13020 |
| 67495A | Right front door front lower door frame upper cover | 67495-12160 · 67495-12180 |
| 67496A | Left front door front lower door frame upper cover | 67496-12160 · 67496-12180 |
| 67499 | Front door lower door frame bracket trim strip fixing | 67499-12030 · 67771-30070 |
| 67601 | Right front door decorative panel sub-assembly | 67650-12900 |
| 67601B | Catch (for front door trim panel) | 90467-09122 · 90467-09141 |
| 67601H | Right door trim panel fixing | 67771-12030 · 67771-12050 · 67771-12070 · 67771-13030 · 67771-16080 · 67771-16160 · 67771-16170 · 67771-28020 · 67771-28030 · 67771-30090 · 67771-32140 · 67771-89109 · 90467-08179 · 90467-10161 |
| 67602 | Left front door decorative panel sub-assembly | 67620-12900 |
| 67602A | Left door trim panel fixing | 67771-12030 · 67771-12050 · 67771-12070 · 67771-13030 · 67771-16080 · 67771-16160 · 67771-16170 · 67771-28020 · 67771-28030 · 67771-30090 · 67771-32140 · 67771-89109 · 90467-08179 · 90467-10161 |
| 67637 | Front door decorative panel | 67637-12030 |
| 67829A | Front door wiring harness hole seal | 67829-12010 |
| 67831 | Right front door access hole cover | 67831-12470 · 67831-12480 · 67831-12500 · 67831-13030 · 67831-13040 |
| 67832 | Left front door access hole cover | 67831-13030 · 67832-12250 · 67832-12270 · 67832-12280 · 67832-13010 · 67832-13020 · 67832-13030 |
| 67861 | Right front door seal | 67861-12790 · 67861-12820 |
| 67862 | Left front door seal | 67862-12750 · 67862-12780 |
| 67867C | Right front door seal strip fixing | 67867-12150 · 67868-12050 · 67868-20140 |
| 67868C | Left front door seal strip fixing | 67867-12150 · 67868-12050 · 67868-20140 · 67868-20150 |
| 67869B | Front door seal strip clip | 67869-12020 |
| 68101 | Right front door glass sub-assembly | 68101-12790 · 68101-12800 · 68101-12810 · 68101-12880 · 68101-1A090 · 68101-1A410 |
| 68102 | Left front door glass sub-assembly | 68102-12790 · 68102-12800 · 68102-12810 · 68102-12880 · 68102-1A090 · 68102-1A410 |
| 68141C | Right front door glass lift channel | 68141-12330 · 68141-12410 · 68141-13110 |
| 68151C | Left front door glass lift channel | 68151-12050 · 68151-12130 · 68151-13010 |
| 68160C | Right front door glass outer sealing strip assembly | 68161-12190 |
| 68161A | Catch (for front door glass outer sealing strip) | 68211-12160 |
| 68170 | Front door glass inner sealing strip assembly | 68170-12300 · 68171-12160 · 68171-13010 |
| 68210C | Left front door glass outer sealing strip assembly | 68162-12130 |
| 68220A | Left front door glass inner sealing strip assembly | 68172-12050 · 68172-13010 · 68220-12210 |
| 68610 | Front door opening limiter assembly | 68610-12080 · 68610-12081 · 68610-12100 · 68620-12010 · 68620-12011 · 68620-12030 |
| 68621A | Right front door opening limiter cover | 68621-12030 |
| 68622 | Left front door opening limiter cover | 68622-12010 |
