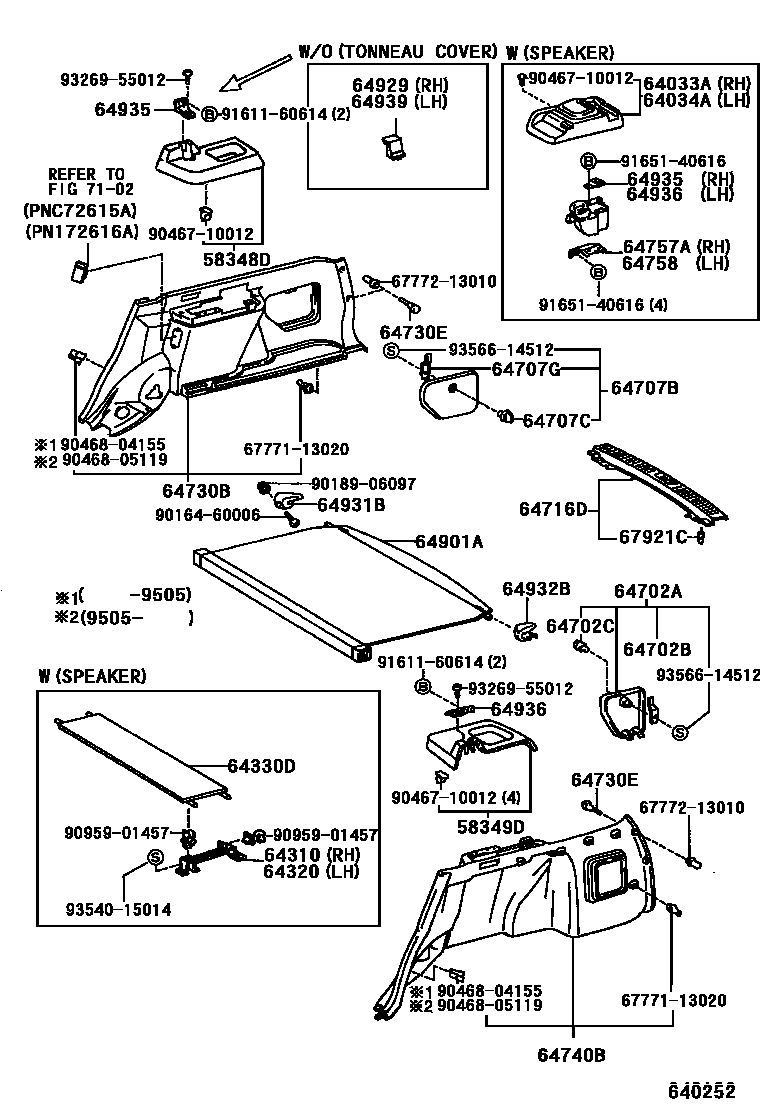

Toyota COROLLA 底板和底板装饰罩 — Figure 6404
Toyota COROLLA EPC diagram 6404, 底板和底板装饰罩, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64310 | Glove box decorative panel right bracket | 64301-13010 |
| 64320 | Glove box decorative panel left bracket | 64302-13010 |
| 64702B | Washer water tank cover stopper | 64981-13010 |
| 64707G | Jack cover stop | 64981-13010 |
| 64757A | No. 3 speaker fixing bracket | 64757-13010 |
| 64758 | No. 4 speaker fixing bracket | 64758-13010 |
| 64935 | Right trunk trim cover retainer | 64935-13030 · 64935-13040 |
| 64936 | Left trunk trim cover retainer | 64935-13030 · 64936-13010 |
| 67921C | Base panel side decorative panel fixings | 67921-13010 |
