Toyota COROLLA 杂物箱板和行李箱垫 — Figure 6403

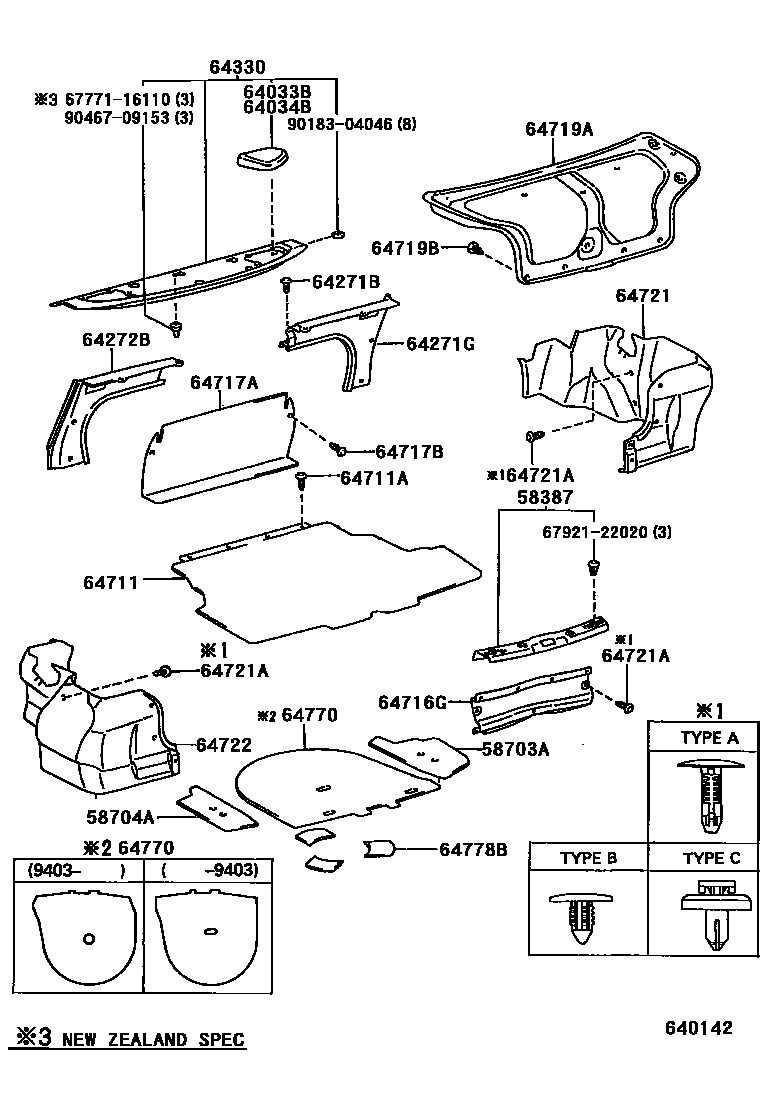

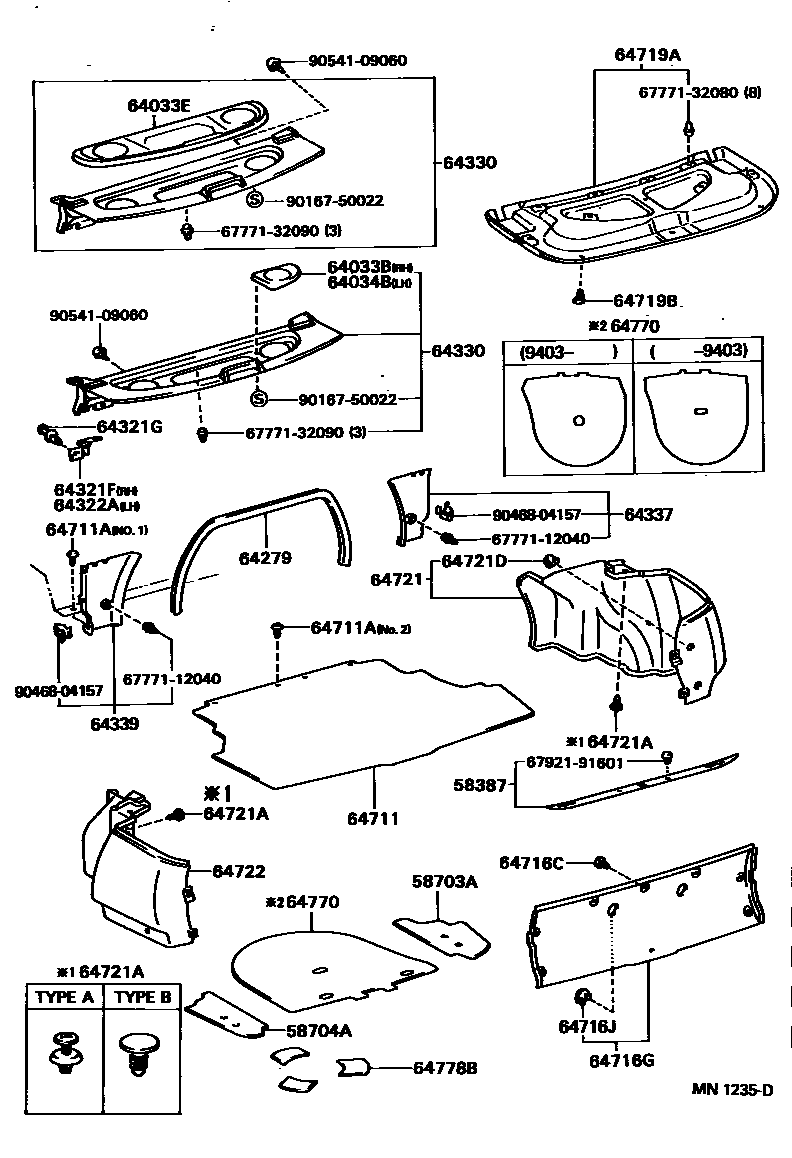

Toyota COROLLA EPC diagram 6403, 杂物箱板和行李箱垫, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58703A | Trunk door right side decorative cover sub-assembly | 58703-12030 · 58703-12040 |
| 58704A | Luggage door left decorative cover sub-assembly | 58704-12030 · 58704-12040 |
| 64321F | Glove box decorative panel right bracket | 64321-12160 |
| 64322A | Glove box decorative panel left bracket | 64322-12120 |
| 64330 | Glove box decorative panel assembly | 64330-1A430 · 64330-1A440 |
| 64711 | luggage compartment floor mat | 64711-12300 |
| 64711A | Clip (for trunk floor mat) | 90467-09156 |
| 64717B | Clip (for trunk front decorative cover) | 90467-05027 |
| 64719B | Catch (for trunk door) | 90467-07138 · 90467-07146 |
| 64721A | Clip (for trunk interior decoration cover) | 90467-06146 |
| 64770 | Spare tire cover assembly | 64770-12161 · 64770-12171 |
| 64778B | Spare tire protection device | 64778-12030 |
