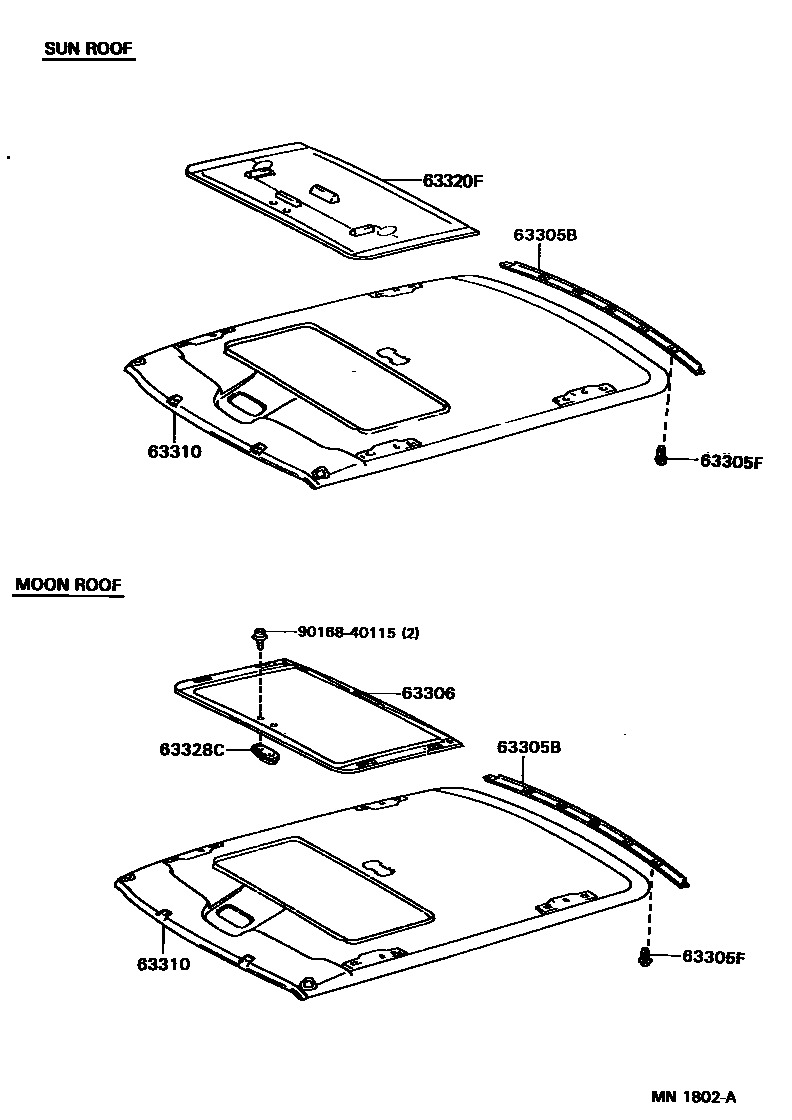

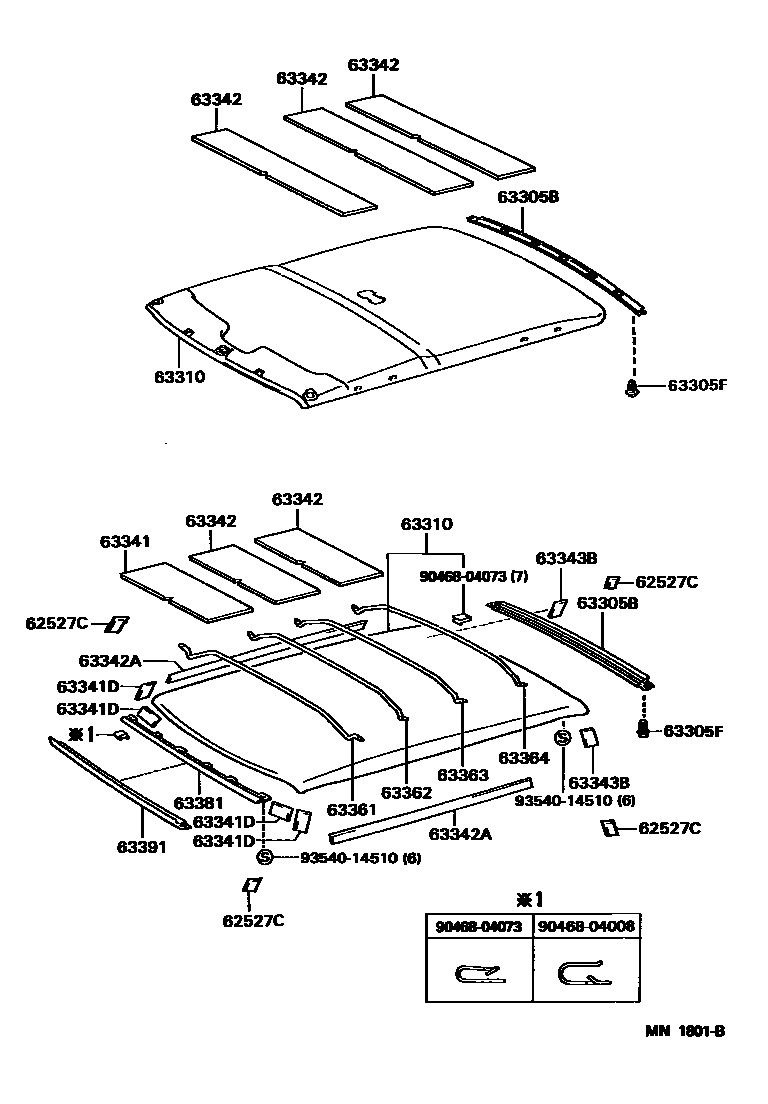

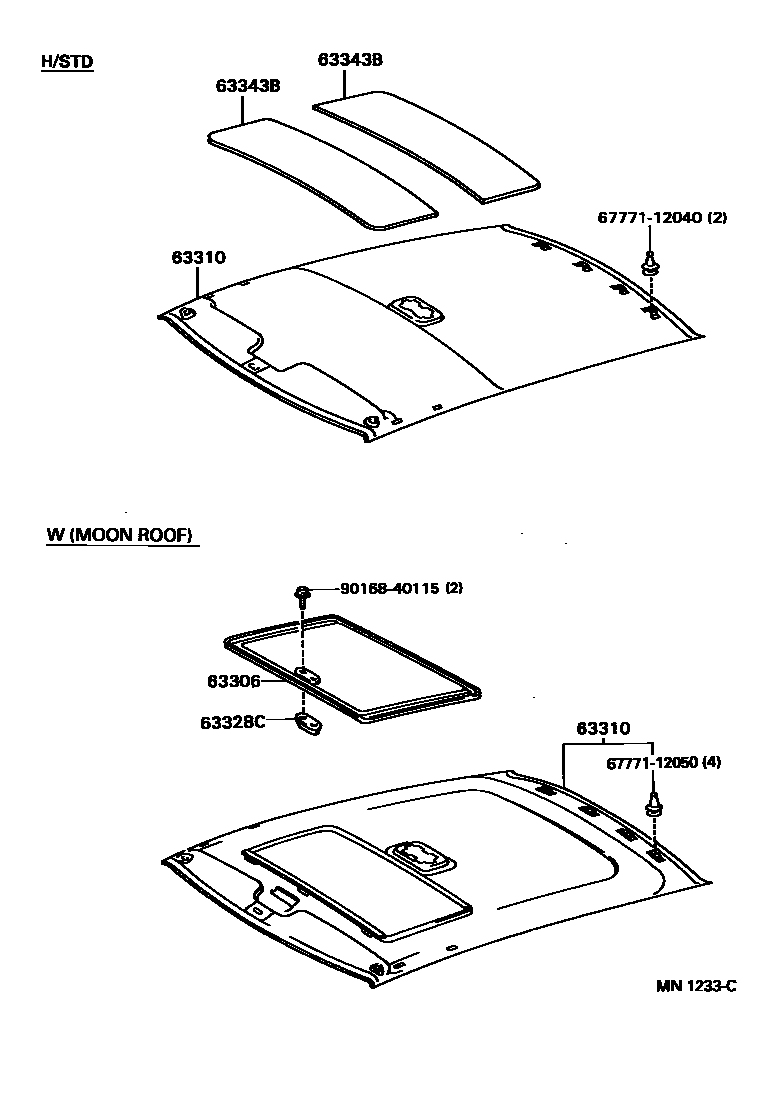

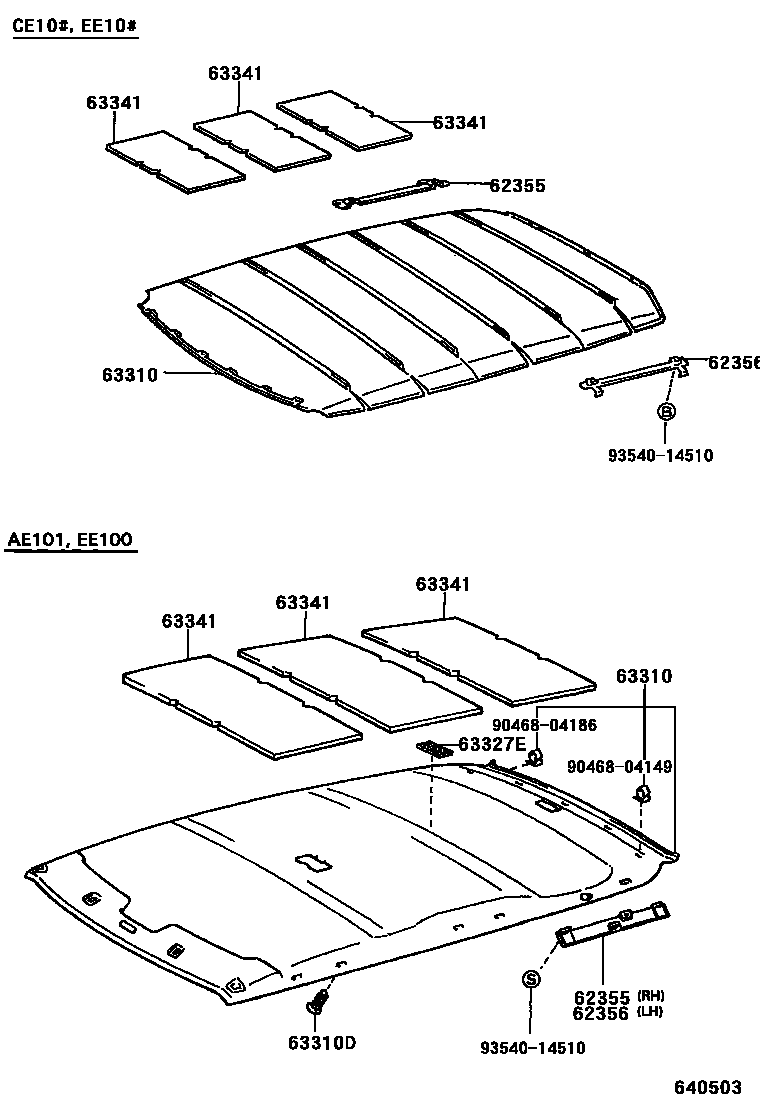

Toyota COROLLA 车顶内衬和消声垫 — Figure 6402
Toyota COROLLA EPC diagram 6402, 车顶内衬和消声垫, with 4 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62355 | Right corner window inner trim strip fixing | 62355-13020 · 62355-13030 |
| 62356 | Left corner window inner trim strip fixing | 62356-13020 · 62356-13030 |
| 62527C | Side decorative panel lining | 62527-89103 |
| 63327E | Headlining fastener No. 1 | 63327-13010 |
| 63341 | No. 1 roof silencer mat | 63341-12100 · 63341-13100 |
| 63341D | Front roof silencer pad | 63341-12150 |
| 63342 | No. 2 roof muffler pad | 63341-16010 · 63342-12060 · 63343-12050 |
| 63342A | No. 2 roof silencer | 63341-12110 |
| 63343B | Rear roof silencer pad | 63343-12050 · 63343-12090 |
| 63361 | Headlining bracket No. 1 | 63361-12240 · 63361-12250 · 63361-12260 |
| 63362 | Headlining bracket No. 2 | 63362-12200 · 63362-12210 · 63362-12220 |
| 63363 | No. 3 roof lining bracket | 63363-12040 · 63363-12060 · 63363-12070 |
| 63364 | No. 4 roof lining bracket | 63364-12020 · 63364-12030 · 63364-12040 |
| 63381 | Front lining fastener | 63381-12130 |
