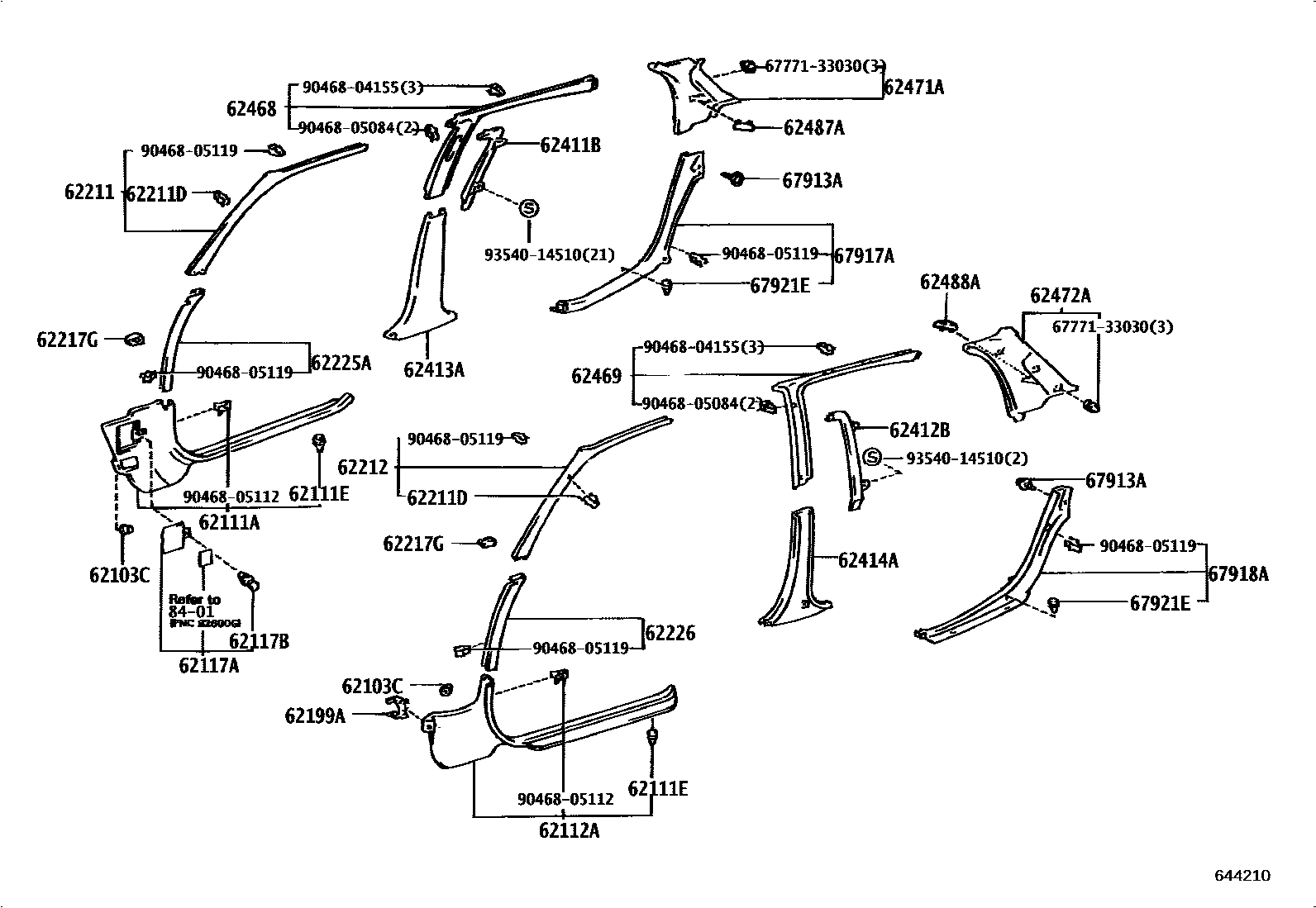

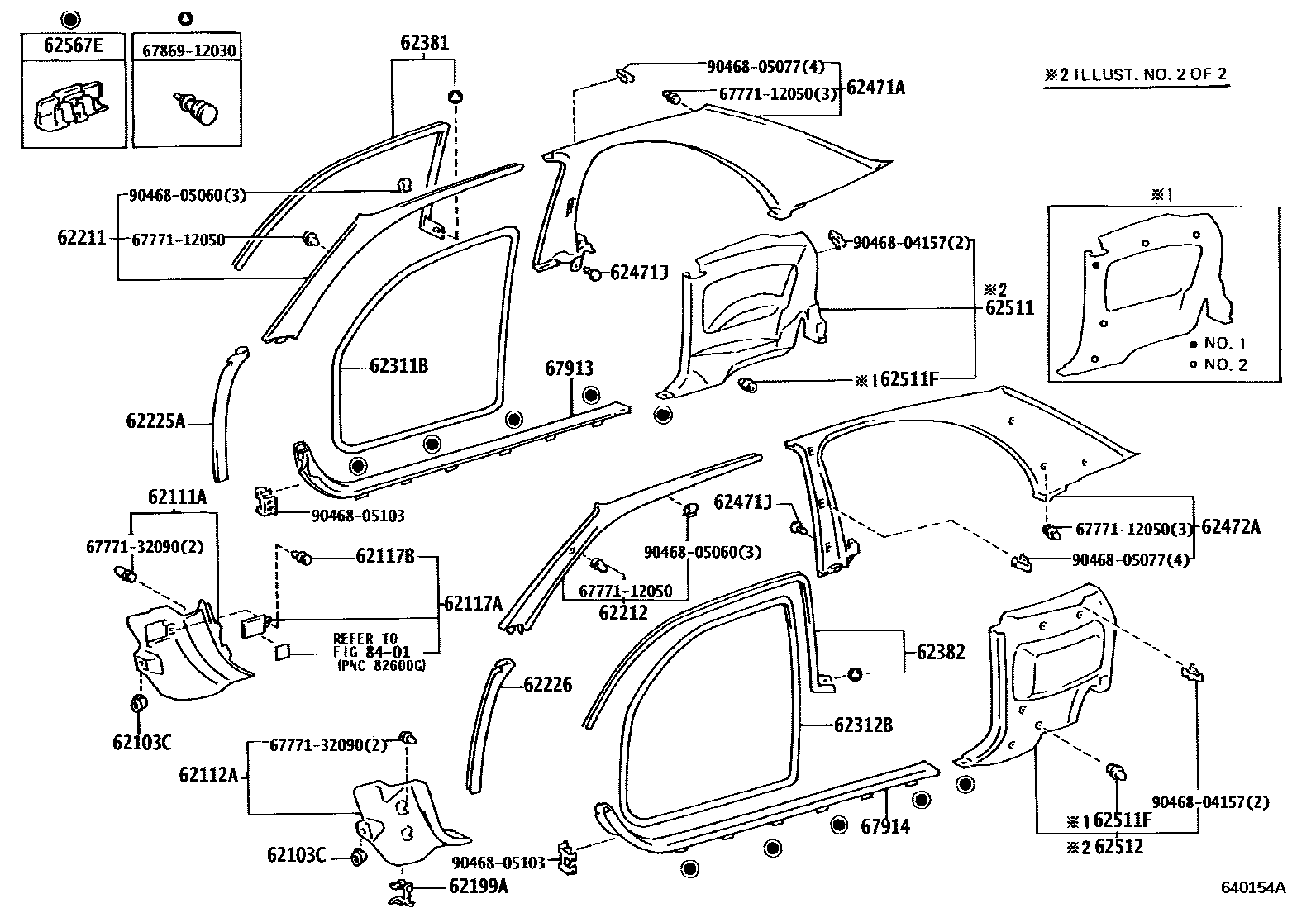

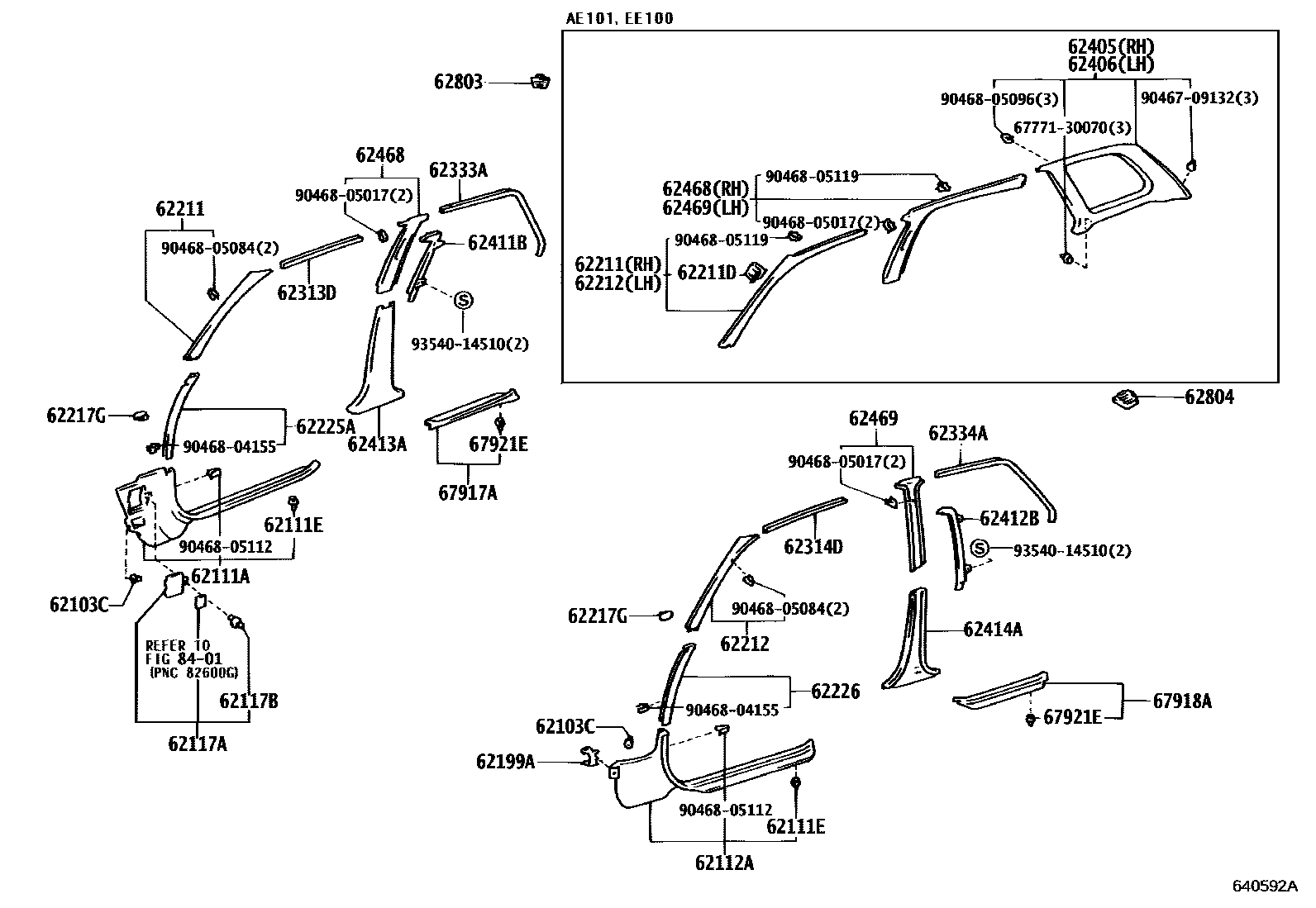

Toyota COROLLA 内饰板和车门防水胶条 — Figure 6401
Toyota COROLLA EPC diagram 6401, 内饰板和车门防水胶条, with 3 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62103C | Front wall side trim panel fixing clips | 90467-08160 |
| 62111E | Front wall side trim panel fixings | 67921-32010 |
| 62117B | No. 1 clip (for cowl side trim panel) | 90467-08149 |
| 62199A | fuse holder | 90468-25003 |
| 62211D | Clip (for body front pillar decorative panel) | 90468-05084 |
| 62217G | Front pillar decorative plate clip | 62217-12020 |
| 62311B | Right front door opening waterproof tape | 62311-12050 |
| 62312B | Left front door opening waterproof tape | 62312-12060 |
| 62381 | Right front roof rail sealing strip | 62381-12200 |
| 62382 | Left front roof rail sealing strip | 62382-12210 |
| 62511F | Fixings (for inner decorative panels on side panels) | 67771-12040 · 67771-12050 · 67771-32110 · 90467-10161 · 90467-10167 |
| 62567E | No. 2 door inner sill guard strip clip | 62566-12030 |
| 67921E | Rear door wear plate fixing parts | 67921-32010 |
