Toyota COROLLA 行李箱门和行李箱锁 — Figure 6105

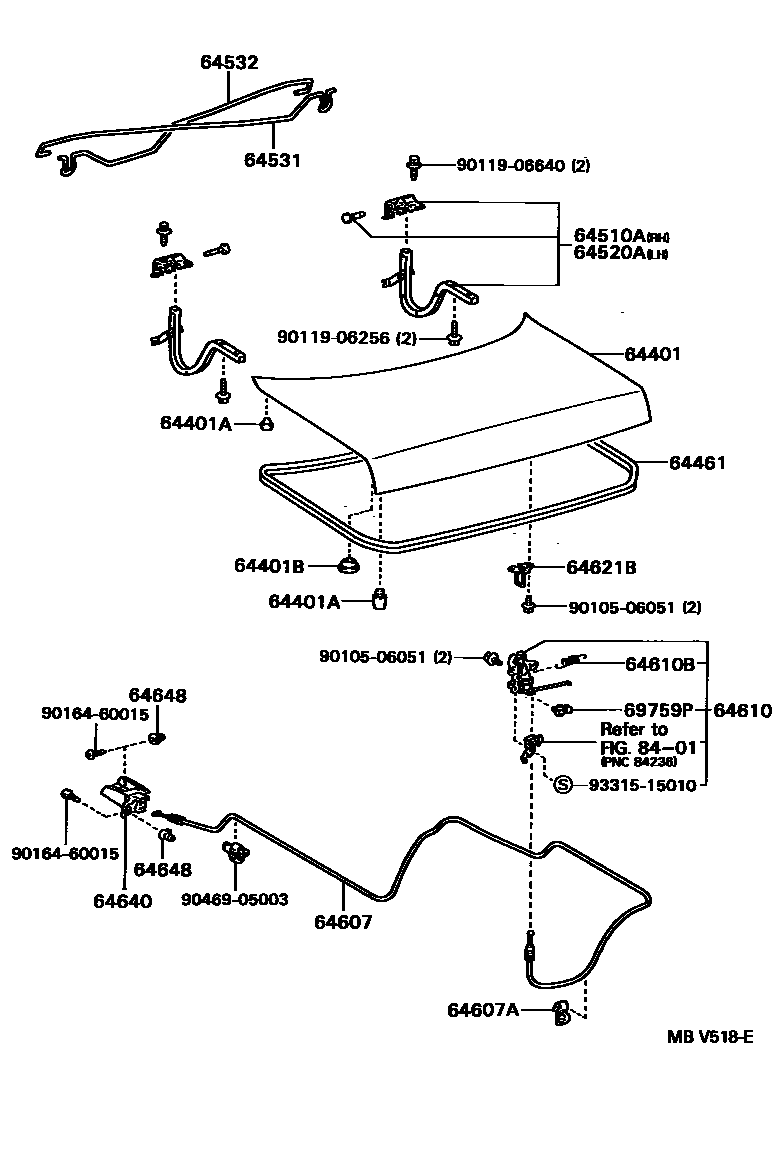

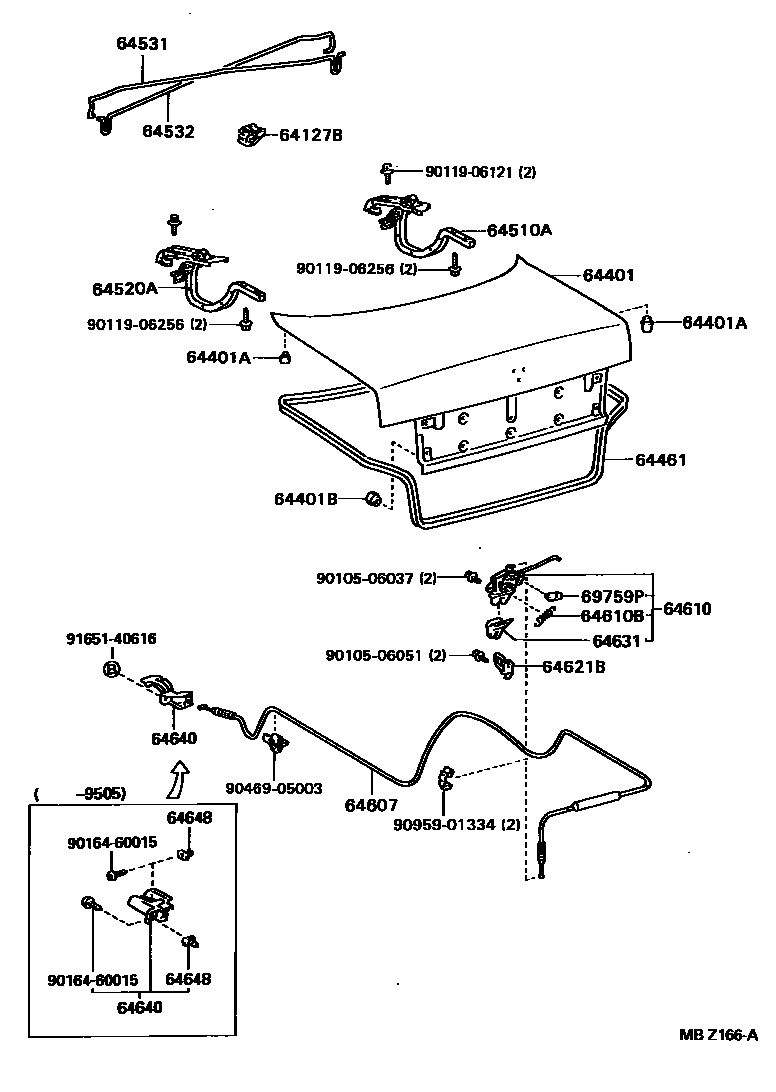

Toyota COROLLA EPC diagram 6105, 行李箱门和行李箱锁, with 2 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64127B | Trunk door torsion bar bracket | 64127-12080 |
| 64401 | Trunk door panel sub-assembly | 64401-1A510 · 64401-1A520 · 64401-1A560 · 64401-1A570 · 64401-1A600 · 64401-1A610 |
| 64401A | Cushion pad (for luggage compartment door panel) | 64459-12050 · 90541-06056 · 90541-06076 · 90541-09068 |
| 64401B | Hole plug (for trunk door panel) | 90950-01579 · 90950-01604 · 90950-01820 · 90950-01864 |
| 64461 | Trunk door seal | 64461-12290 · 64461-12480 |
| 64510A | Trunk door right hinge assembly | 64510-12220 · 64510-12240 |
| 64520A | Trunk door left hinge assembly | 64520-12210 · 64520-12230 |
| 64531 | Trunk door right hinge torsion bar | 64531-12390 · 64531-12420 · 64531-12430 · 64531-12440 · 64531-12450 · 64531-12480 · 64531-12490 · 64531-12560 · 64531-12570 |
| 64532 | Trunk door left hinge torsion bar | 64532-12380 · 64532-12410 · 64532-12420 · 64532-12430 · 64532-12440 · 64532-12470 · 64532-12480 · 64532-12550 · 64532-12560 |
| 64607 | Trunk door lock control cable sub-assembly | 64607-12560 · 64607-12561 · 64607-12610 |
| 64607A | Clip No. 1 (for trunk door lock control cable) | 69749-12010 |
| 64610 | Trunk door lock assembly | 64610-12160 · 64610-12170 · 64610-12171 · 64610-12190 |
| 64610B | Tension spring (for trunk door lock) | 90506-05001 · 90506-05002 · 90905-06021 |
| 64621B | Trunk door latch | 64620-12100 · 64621-12070 |
| 64631 | Trunk door lock protector | 64631-12040 |
| 64640 | Trunk door lock opener assembly | 64606-20090 · 64606-20091 · 64606-20160 · 64606-20161 |
| 64648 | Trunk door lock opener seal | 64648-12010 |
| 69759P | Door lock control link buckle | 69759-20040 · 69759-24050 |
