Toyota COROLLA 角窗 — Figure 6103

Toyota COROLLA EPC diagram 6103, 角窗, with 3 images and 9 PNC and OE references.

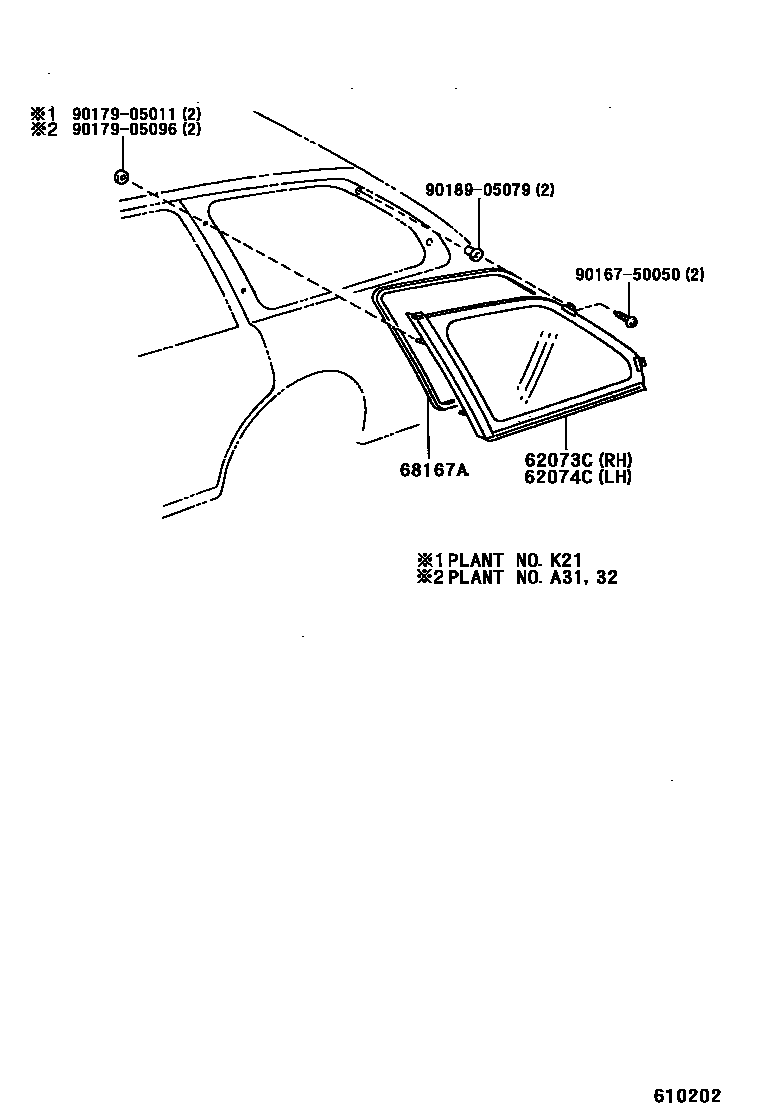

Toyota COROLLA 角窗 EPC diagram — 610202
角窗 — 610202 (199205 – 999999)

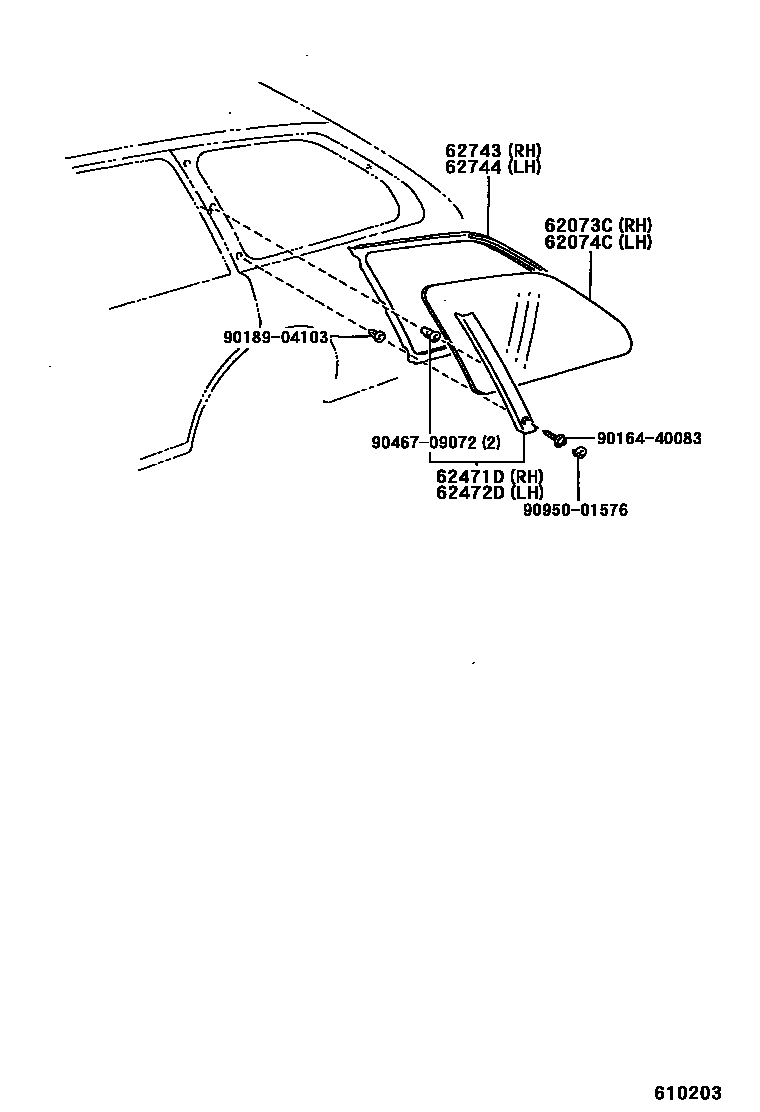

Toyota COROLLA 角窗 EPC diagram — 610203
角窗 — 610203 (199109 – 999999)

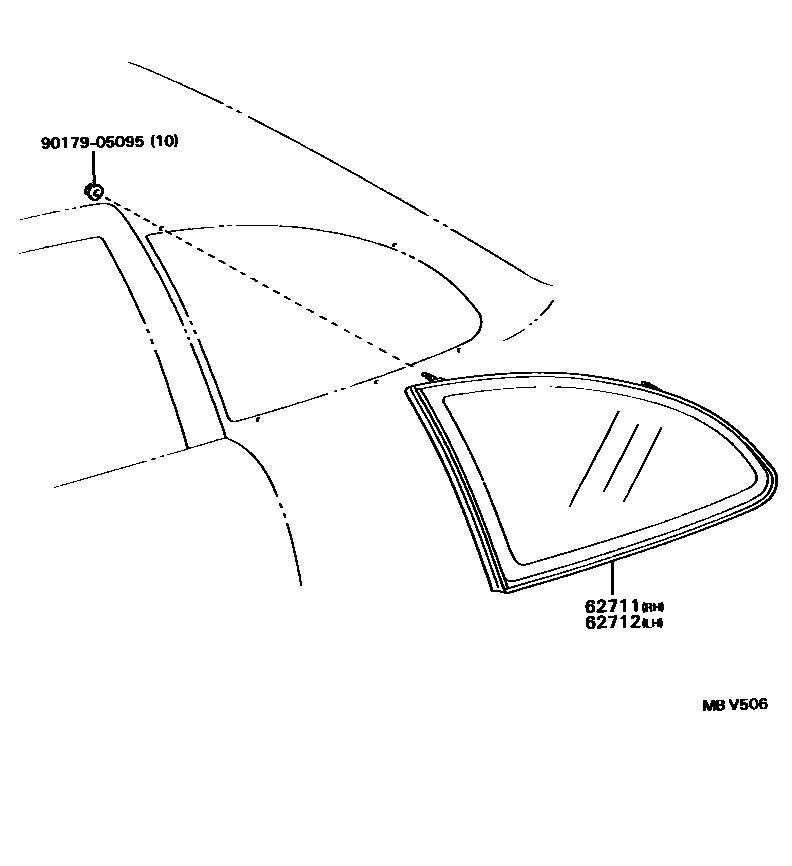

Toyota COROLLA 角窗 EPC diagram — MBV506
角窗 — MBV506 (199108 – 199505)

PNC and OE references

PNCPart nameOE numbers
62073CRight rear corner window glass sub-assembly62073-13080 · 62073-13100 · 68133-13020 · 68133-13070 · 68133-13130
62074CLeft rear corner window glass sub-assembly62074-13080 · 62074-13100 · 68134-13020 · 68134-13070 · 68134-13130
62471DDecorative panel on right rear pillar62471-13030
62472DDecorative panel on left rear pillar62472-13030
62711Right corner window glass62710-12690 · 62710-12820
62712Left corner window glass62720-12690 · 62720-12820
62743Right rear corner window sealing strip62743-13070
62744Left rear corner window sealing strip62744-13070
68167ACorner window No. 2 glass sealing strip68167-13020
